Optimizing PW482 Power Margins for Yokogawa CENTUM VP Systems

Optimizing PW482 Power Margins for Yokogawa CENTUM VP Systems

Optimizing PW482 Power Margins for Yokogawa CENTUM VP Systems

In large-scale industrial automation environments, Yokogawa CENTUM VP and CS 3000 systems manage thousands of critical field signals. Engineers frequently deploy AAI series Analog Input modules in high densities. However, many teams overlook the cumulative power draw of these components. At Powergear X Automation, we often observe that “mysterious” I/O resets stem from insufficient power margins rather than software bugs. Maintaining continuous signal availability requires a deep understanding of hardware electrical limits.

Optimizing PW482 Power Margins for Yokogawa CENTUM VP Systems

Technical Breakdown of AAI Module Current Draw

Most AAI modules, including the popular AAI141 and AAI543, draw energy primarily from the 5V system bus. While a single module consumes relatively little power, high-density cabinets change the mathematical reality. Moreover, temperature increases inside the cabinet can accelerate the aging of internal capacitors, further reducing stability.

  • Typical 5V Consumption: Range of 0.8 A to 1.2 A per module.
  • Power Equivalent: Approximately 4 W to 6 W per unit.
  • Cumulative Impact: A node with 20 modules pulls 100 W from the 5V rail.
  • Thermal Aging: High heat reduces the efficiency of power regulation components.

PW482 Capacity and Engineering Best Practices

The PW482 power supply module is the backbone of the I/O node. While the datasheet provides maximum ratings, experienced engineers never run these units at peak capacity. Operating near the limit often triggers intermittent “BAD” status alarms during peak load conditions or system startups.

  • The 75% Rule: Limit continuous 5V rail load to 75% capacity.
  • Thermal Derating: Reduce capacity by 15% if temperatures exceed 45°C.
  • Headroom Necessity: Maintain a 20% to 30% safety margin for reliability.
  • Redundancy Check: Ensure secondary supplies can handle the full node load.

Reliability Symptoms and Field Diagnostics

Power-related failures in a DCS rarely result in an immediate “blackout.” Instead, they manifest as subtle, frustrating communication glitches. Therefore, engineers must treat these symptoms as electrical warnings rather than isolated hardware defects.

  • Random Alarms: I/O modules may momentarily lose communication with controllers.
  • Startup Failures: The system crashes when all modules initialize simultaneously.
  • Heat Sensitivity: Errors appear most frequently during the afternoon heat.
  • Intermittent Bad Status: Analog inputs flicker between “Good” and “Bad” states.

Strategic Installation and Maintenance Procedures

To ensure a robust factory automation environment, follow these proactive steps during the design and maintenance phases. Proper planning prevents the need for disruptive and costly rewiring during active production cycles.

  • Node-Based Calculations: Always calculate power budgets per individual I/O node.
  • Future-Proofing: Include the potential draw of empty slots in calculations.
  • Regular Audits: Measure actual current draw during annual plant turnarounds.
  • Ventilation Checks: Verify cabinet cooling fans function correctly to prevent throttling.

Powergear X Automation Technical Insight

Our experience shows that system expansions are the primary cause of power instability. When upgrading older CS 3000 systems with newer AAI modules, engineers often assume electrical parity. However, modern revisions may have slightly higher steady-state requirements. We recommend a full power audit before adding even two or three new modules to an existing rack. Strategic risk control is always more cost-effective than an unscheduled production halt.

Frequently Asked Questions (FAQ)

Q1: How can I identify if my PW482 is currently overloaded without specialized tools?
Check the diagnostic buffer for “Module Internal Communication Error” or “I/O Bus Voltage Drop” logs. If you have more than 14 AAI modules in a single node, you are likely approaching the safety threshold.

Q2: Does the use of redundant PW482 modules double the available power capacity?
No. In a redundant setup, the modules share the load or act as a backup. You should still design the load based on the capacity of a single module to ensure the system stays online if one power supply fails.

Q3: What should I consider when replacing 10-year-old power modules?
Older units suffer from “capacitor dry-out.” When replacing them, evaluate if the current field load has increased since the original installation. Always choose the latest hardware revision to benefit from better thermal efficiency.

Looking for genuine Yokogawa modules or expert system integration advice? Visit Powergear X Automation to explore our full range of DCS components and technical solutions for industrial reliability.

Yokogawa SCP461-51 vs ProSafe-RS: Critical Safety Differences

Yokogawa SCP461-51 vs ProSafe-RS: Critical Safety Differences

Yokogawa SCP461-51 vs. ProSafe-RS: Why Hardware Separation is Non-Negotiable

In the world of industrial automation, distinguishing between Basic Process Control Systems (BPCS) and Safety Instrumented Systems (SIS) is vital. Many procurement teams mistakenly seek a one-to-one equivalent for the Yokogawa SCP461-51 within the ProSafe-RS platform. However, these systems serve fundamentally different roles in plant architecture. At Powergear X Automation, we emphasize that substituting BPCS hardware for safety-certified components compromises both compliance and personnel safety.

Yokogawa SCP461-51 vs ProSafe-RS: Critical Safety Differences

The Fundamental Split Between BPCS and SIS Architecture

The SCP461-51 processor functions as the “brain” for the CENTUM VP and CS 3000 DCS environments. It prioritizes high availability and continuous process optimization. Conversely, the ProSafe-RS platform utilizes the SCP451 series, which are dedicated TÜV-certified safety controllers. Yokogawa intentionally separates these architectures to eliminate common-cause failures. This design ensures that a software glitch in the control layer does not disable the emergency shutdown system.

Functional Safety Standards and SIL 3 Certification

Regulatory compliance remains the biggest hurdle when selecting controllers. The SCP461-51 lacks Safety Integrity Level (SIL) certification because it manages standard process loops. In contrast, the ProSafe-RS SCP451 meets IEC 61508 and IEC 61511 standards for SIL 3 applications. Using non-certified hardware in a safety loop will lead to failed audits. Furthermore, it exposes the plant to massive liability in the event of an incident.

Redundancy Philosophy: Availability vs. Fail-Safe

The redundancy in an SCP461-51 focuses on keeping the plant running to maximize production uptime. However, ProSafe-RS redundancy prioritizes a “fail-safe” state. The SCP451 incorporates advanced diagnostics and independent watchdogs. These features force the system into a known safe state during a critical hardware failure. Powergear X Automation experts often observe that mixing these philosophies leads to dangerous “nuisance trips” or, worse, safety system dormancy.

Integration Without Compromising Integrity

Both systems utilize the Vnet/IP communication protocol, allowing them to share data seamlessly. Nevertheless, they maintain strict logical boundaries. The SCP461-51 acts as a BPCS node, while the SCP451 functions as a protected safety node. This integration allows operators to view unified alarms on a single HMI. However, the DCS cannot override the safety logic of the SIS, preserving the integrity of the safety lifecycle.

Technical Best Practices for Installation and Maintenance

  • Maintain strict logical separation between BPCS and SIS control logic.
  • Use independent power feeds for SCP451 cabinets to prevent noise.
  • Keep separate spare parts inventories for CENTUM and ProSafe-RS.
  • Verify physical grounding requirements during the Site Acceptance Test (SAT).
  • Ensure that safety-related Vnet/IP traffic is properly segmented.

Powergear X Automation Expert Insight

From our experience in the field, attempting to “unify” hardware to reduce costs is a high-risk strategy. While the initial capital expenditure for ProSafe-RS is higher, the long-term protection it offers is invaluable. Industry trends show that insurers now demand strict adherence to IEC 61511. We recommend investing in dedicated SCP451 controllers for any application involving flammable or high-pressure processes.

Industry Application Scenarios

  • Emergency Shutdown (ESD): Requires ProSafe-RS SCP451 for high-speed risk mitigation.
  • Burner Management Systems (BMS): Mandatory SIL-rated hardware for furnace and boiler safety.
  • Continuous Process Control: Ideal for SCP461-51 to manage temperatures and flows.
  • Fire and Gas Systems (F&G): Uses ProSafe-RS for reliable detection and suppression logic.

Frequently Asked Questions (FAQ)

Can I use a firmware update to turn an SCP461-51 into a safety controller?

No, this is impossible. The distinction is at the hardware and circuit-design level, including internal diagnostics and physical isolation.

What is the primary risk of sharing a UPS between these two systems?

Shared power sources can introduce harmonic noise. This noise often causes “nuisance trips” in sensitive safety controllers like the SCP451.

How should I plan my spare parts strategy for a mixed plant?

Never mix inventories. Label SCP451 modules clearly as “Safety Critical” to prevent technicians from using them in non-safety DCS slots.

For more technical specifications and high-quality automation components, visit the Powergear X Automation website to explore our full catalog.

Troubleshooting Yokogawa SCP461-51 Red CTRL LED | Expert Guide

Troubleshooting Yokogawa SCP461-51 Red CTRL LED | Expert Guide

Troubleshooting the Yokogawa SCP461-51: Resolving the Solid Red CTRL LED Error

Defining the Critical Role of the System Control Processor
The SCP461-51 acts as the real-time execution heart for Yokogawa CENTUM VP control stations. In high-stakes environments like oil refineries or pharmaceutical plants, this processor ensures deterministic control and process continuity. However, a solid red CTRL LED signals a total CPU halt. This state indicates that the controller has stopped executing logic, which immediately threatens plant safety and production uptime.

Troubleshooting Yokogawa SCP461-51 Red CTRL LED | Expert Guide

Technical Analysis of CPU Halt Conditions

A solid red light differs significantly from a blinking status or initialization phase. From my experience at Powergear X Automation, this fatal error often stems from three primary triggers. Abnormal power interruptions frequently corrupt the immediate execution stack. Furthermore, backplane communication timeouts or firmware mismatches during upgrades can force a hardware lockout. When this happens, the controller freezes outputs in their last known state, potentially violating critical safety interlocks.

Protecting Integrity via Non-Volatile Memory

The SCP461-51 utilizes robust non-volatile memory to safeguard configuration data and tuning parameters. This design ensures that a standard power cycle does not erase your essential control logic. Nevertheless, engineering teams must exercise caution. Frequent, uncontrolled power cycling can degrade memory hardware over time. I have observed that aging CS 3000 retrofits are particularly susceptible to permanent boot failures if power stability is not maintained.

Restoring Node and Backplane Synchronization

The System Control Processor must synchronize with I/O nodes and the Vnet/IP bus to function. A red CTRL LED usually indicates a loss of this vital communication link. Even if your I/O modules appear healthy, they cannot process data without a functioning SCP. Therefore, a clean boot sequence is the only way to re-establish the bus heartbeat and return the station to an operational state.

Step-by-Step Guide to a Safe SCP461-51 Forced Restart

When facing a CPU halt, follow this field-proven procedure to minimize the risk of data corruption:

  • Verify Communication Status: Check the HIS/ENG station to ensure no active database writes are occurring.
  • Initiate Controlled Power Down: Switch off the power supply feeding the specific SCP rack.
  • Allow Capacitor Discharge: Wait at least 30 seconds before reapplying power to clear volatile registers.
  • Monitor the Boot Sequence: Observe the LED transition from red to blinking, then finally to solid green.
  • Evaluate Hardware Health: If the red LED persists after a restart, investigate firmware compatibility or hardware defects.

Engineering Best Practices for Long-Term Reliability

Maintaining a stable Distributed Control System (DCS) requires more than just reactive troubleshooting. We recommend the following technical standards:

  • Implement Power Conditioning: Use industrial-grade 24 VDC supplies that meet IEC 61131-2 standards.
  • Manage Thermal Loads: Ensure cabinet temperatures remain within Yokogawa’s specified limits to prevent thermal throttling.
  • Verify Grounding Integrity: Check for ground loops that might induce noise into the control bus.
  • Standardize Firmware Versions: Always align SCP firmware with the overall system generation to prevent conflicts.

Expert Commentary from Powergear X Automation

At Powergear X Automation, we believe that a red CTRL LED is rarely an isolated hardware failure. Instead, it often serves as a “canary in the coal mine” for underlying environmental issues. If you treat your DCS components with the same discipline as a high-precision turbine, they will offer years of service. For more technical deep dives and high-quality automation components, visit Powergear X Automation.

Application Scenario: Offshore Platform Recovery

On an offshore gas platform, an SCP461-51 halted due to a localized surge during a generator switchover. By following the 30-second discharge rule and verifying the Vnet/IP synchronization, the maintenance team restored the station without losing the batch sequence. This highlights the importance of patient, methodical restarts over panicked power cycling.

Frequently Asked Questions

How can I distinguish between a transient glitch and a hardware failure?
If the controller recovers after one controlled power cycle and runs for weeks, the issue was likely transient. However, if the red LED returns within hours, check the backplane pins for physical damage or oxidation.

What is the most common mistake made during a DCS restart?
The most frequent error is “rapid cycling.” Switching the power off and on in under five seconds prevents the internal logic from resetting properly. This often leads to “stuck” bootloaders that require a factory reset.

Can I swap an SCP461-51 while the redundant partner is running?
Yes, if the system is configured for high availability (redundancy), you can replace the failed unit. Ensure the new module has the exact same firmware revision to allow the primary unit to synchronize the database.

Yokogawa CENTUM VP

Yokogawa CENTUM VP: The Distributed Control System for High-Reliability Industrial Automation

Yokogawa’s CENTUM VP: The Global Standard in DCS

Yokogawa’s CENTUM VP is a globally recognized distributed control system (DCS). It is a leader in industrial automation and process control. This system offers unmatched reliability and superior performance. Moreover, the architecture provides a robust platform for complex operations.

The Evolving CENTUM VP DCS System and Network I/O (N-IO)

Yokogawa’s latest CENTUM VP R6 significantly improves the engineering environment. It drastically reduces time and effort for system setup. In addition, a new I/O system, the Network I/O (N-IO), enhances the lineup. The N-IO is the next-generation Smart Configurable I/O. Earlier systems used F-I/O (Field I/O) architecture. The high-speed Vnet/IP control network ensures rapid operator screen updates. Vnet/IP operates at one Gigabit per second, guaranteeing updates within one second. This network adheres to the IEEE 802.3 standard.

Yokogawa CENTUM VP

Distributed Control: The Core of CENTUM VP Architecture

CENTUM VP uses a true Distributed Control Architecture. It deliberately avoids a traditional Client/Server model. This design is highly advantageous for factory automation. The system database is fully distributed across each Field Control Station (FCS). Importantly, the FCS is completely redundant. This redundancy provides a switchover time of less than one millisecond. The Master Engineering Station (ENG) holds only a copy of this database. Consequently, the main database resides in the controller.

Key Advantages of Yokogawa’s Distributed Architecture

This distributed approach offers unique benefits over Client/Server models. Operator Stations (HIS) directly fetch data from the controllers. Therefore, the system update time remains at a fast one second. The architecture has no single point of failure, unlike server-based systems. Server failure would otherwise lead to data loss across all operator stations. Furthermore, individual plant units can undergo independent commissioning. Engineers can later merge the databases on the Master ENG. This design enhances system operability and availability.

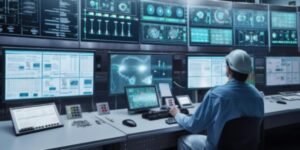

Why CENTUM VP Redefines Industrial Automation Over Conventional DCS Technology

Vnet/IP: High-Reliability Control Network for Process Control

Vnet/IP is the critical control network connecting all CENTUM VP components. It ensures the real-time, high-reliability communication necessary for stable process control. Vnet/IP is a dual-redundant control network, utilizing Bus 1 and Bus 2. Bus 1 handles primary control data. If Bus 1 fails, communication automatically switches to Bus 2 without interruption. Importantly, Bus 2 can also handle open communication. This allows generic Ethernet connectivity with non-Centum components like printers. Loss of one bus does not restrict open communication.

Configurable N-IO and Its Impact on Field Wiring

The N-IO (Network I/O) offers significant flexibility and reduced footprints. The configurable I/O modules can handle various signal types. This eliminates the need for numerous dedicated I/O types. Field signal wires connect directly to the I/O modules. This design drastically reduces the required cabinets and inter-panel wiring. However, careful junction box grouping and cable management are essential. Engineers must meticulously plan the assignment of redundant and non-redundant signals. This directly impacts the system’s overall availability and simplifies maintenance planning.

Integrated Safety with ProSafe-RS and “One Solution” Concept

Yokogawa also offers the ProSafe-RS Safety Instrumented System (SIS). ProSafe-RS is IEC/TÜV certified for SIL 3 applications. This fail-safe, standalone system is typically integrated with CENTUM VP on the same Vnet/IP network. This seamless integration eliminates the need for a separate gateway. A common Human Machine Interface (HMI) serves both the DCS and the SIS functions. Operators access all safety and control data through a single window. ProSafe-RS truly implements the “One process, One Network, One Window, One solution” philosophy in industrial automation.

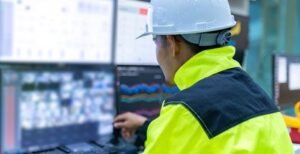

Why CENTUM VP Redefines Industrial Automation Over Conventional DCS Technology

Application Scenarios and Solutions

The robust and integrated nature of Yokogawa’s CENTUM VP and ProSafe-RS makes it ideal for critical industries. Refineries, petrochemical plants, and power generation facilities heavily rely on this architecture. The distributed database enhances operational continuity. Furthermore, the integrated safety system simplifies regulatory compliance.

Discover Advanced DCS Solutions

To leverage the power of advanced DCS and PLC solutions for your specific industrial challenges, click the link below. Powergear X Automation Limited offers expert design, integration, and support for your control systems needs.

Discover our range of industrial automation products and solutions at Powergear X Automation Limited

Master Yokogawa CENTUM VP: The Beginner’s Guide to DCS and Industrial Automation

The Role of Yokogawa CENTUM VP in Modern Industrial Automation

Industrial automation drives efficiency today. Control systems are essential for large-scale operations. Yokogawa’s CENTUM VP is a leading Distributed Control System (DCS). It manages complex processes across diverse industries. This system offers high reliability and scalability. Moreover, the CENTUM VP integrates control, monitoring, and engineering functions. This unified approach contrasts sharply with smaller, isolated Programmable Logic Controllers (PLCs). Therefore, the DCS excels in continuous and batch processing environments. Chemical, oil and gas, and pharmaceutical plants rely heavily on this technology.

CENTUM VP Architecture: Understanding the Core Components

The CENTUM VP architecture is robust and distributed. It features several key hardware and software elements. The Human Interface Station (HIS) is the operator’s primary view. The Field Control Station (FCS) handles process control logic. It executes control strategies with extreme precision. Communication occurs over a highly reliable control network. This network ensures deterministic data transfer. In addition, the system supports various field I/O devices. This structure guarantees system redundancy. As a result, a single component failure does not stop the entire plant.

DCS vs. PLC: Why CENTUM VP Is the Choice for Process Control

Many beginners confuse DCS and PLC systems. A PLC typically manages discrete, high-speed machine control. However, a DCS, like CENTUM VP, manages continuous process control. The DCS offers superior process visualization and historical data collection. Furthermore, CENTUM VP provides extensive control library functions. These features simplify the implementation of complex control schemes. Its architecture is built for system-wide integration. Conversely, integrating many PLCs into one system is challenging. Therefore, for large, critical processes, the CENTUM VP is the preferred solution.

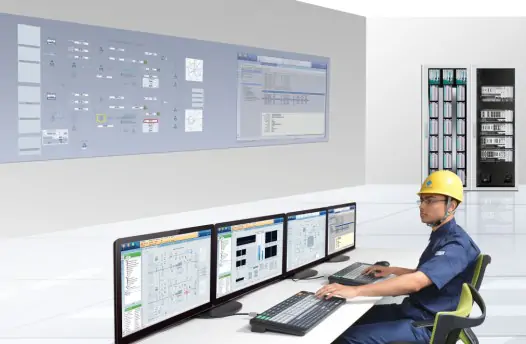

Master Yokogawa CENTUM VP

Engineering Excellence and Enhanced Operator Experience

Yokogawa prioritizes ease of engineering and operation. CENTUM VP utilizes a common database for engineering. This centralized database minimizes configuration errors. The system employs standard function blocks for control logic development. This simplifies programming tasks significantly. The operator interface is highly ergonomic and intuitive. Effective alarm management is a core design feature. This design reduces operator fatigue and enhances response times. Moreover, this focus on the operator significantly improves overall plant safety.

Practical Applications and Industry Authority of CENTUM VP

The CENTUM VP demonstrates vast application experience globally. Refineries use it for critical unit control. Power generation facilities rely on its turbine control capabilities. The system adheres to strict industry standards. This compliance confirms its authoritative standing in the market. Its long history proves remarkable reliability and stability. I believe this longevity reflects Yokogawa’s deep commitment to quality. Therefore, investing in CENTUM VP is a long-term strategic decision. It secures a high return on investment (ROI) through efficient operation.

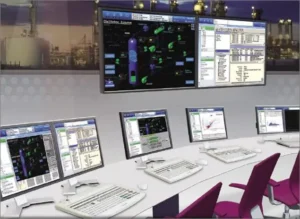

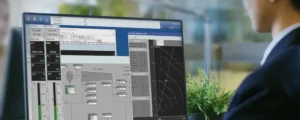

Master Yokogawa CENTUM VP

Author’s Insight: The Future of Automation and CENTUM VP

The industrial automation sector is moving toward digitalization. CENTUM VP is ready for the future. It seamlessly integrates with advanced factory automation technologies. These include Manufacturing Execution Systems (MES) and enterprise-level software. Yokogawa continues to enhance its cyber security features. This proactive stance is crucial in today’s environment. The integration of advanced analytics is a major trend. CENTUM VP supports these tools. Therefore, this DCS remains a relevant and powerful platform for tomorrow’s Smart Factories.

Enhance Your Yokogawa CENTUM VP Solution: Component Selection

Optimizing your CENTUM VP system requires careful component selection. Powergear X Automation Limited specializes in providing essential spare parts and system modules. They ensure your control system maintains peak performance.

Discover compatible modules and detailed specifications here: https://www.powergearx.com/

Yokogawa CENTUM VP Module Comparison

ModuleDescription and FunctionalitySelection Recommendation/Comparison
ADV569-P00Digital I/O Module (e.g., 32-channel, Digital Input). Used for reading on/off status from field devices like limit switches and pushbuttons.Recommendation: High-density, standard DI module. Essential for robust field data acquisition. Select this for large counts of standard on/off signals where high-speed is not critical.
ALP121-S01Field Control Unit (FCU) Module. Part of the FCS, often housing the control logic execution and communication interface.Recommendation: A foundational component for process control. Crucial for system capacity and execution speed. Compare its processing power (S01 variant) against newer or more powerful options based on the required control loop complexity and throughput.
ALE111-S50Analog Input Module (e.g., 16-channel, 4-20mA input). Used to measure continuous process variables like temperature, pressure, and flow.Recommendation: Standard AI module. A workhorse for process measurement. Ensure the S50 revision meets your required resolution and intrinsic safety standards (if applicable). Use this when reliable, high-precision measurement is paramount.
VI702Communication Interface Module. Facilitates data exchange between the FCS and other network devices, potentially including fieldbus communication.Recommendation: Essential for system communication health. Verify its supported protocols (e.g., PROFIBUS, HART) match your field device landscape. The VI702 ensures seamless data flow and diagnostics.
