Product details
Global PLC Spare HUB’s Insight

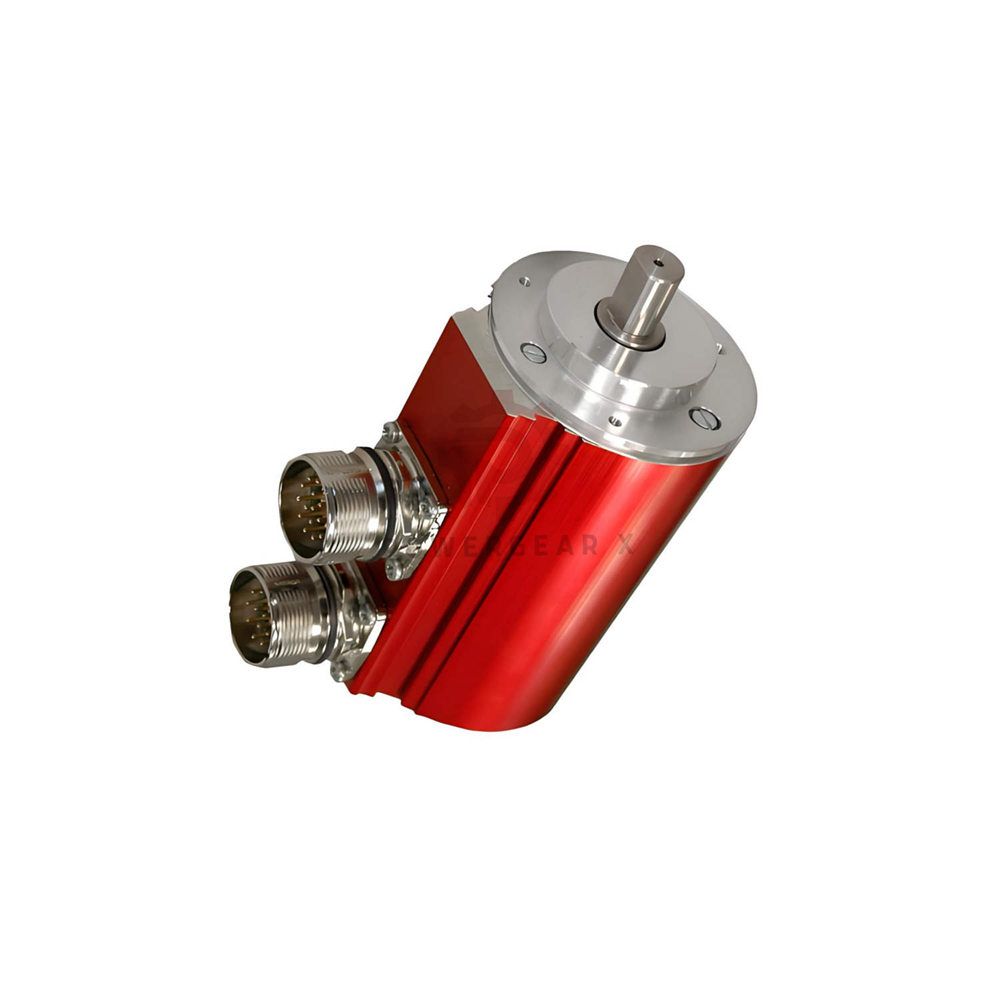

- The TR-Electronic ZE65M 171-50124 is a high-endurance multi-turn absolute encoder.
- Unlike standard sensors, the 171-50124 utilizes mechanical gear-based multi-turn technology, eliminating the need for battery backups.
- It is engineered specifically for harsh industrial motion control where position loss during power cycles is not an option.
- This ZE65M model is the preferred choice for engineers requiring high shock resistance and precise feedback in synchronous applications.
Technical Specifications
- Brand: TR-Electronic
- Model: ZE65M 171-50124
- Part Number: 171-50124
- Type: Absolute Multi-turn Rotary Encoder
- Housing Diameter: 65mm Industrial Grade
- Resolution: Precision digital feedback (Multi-bit resolution per turn)
- Ingress Protection: IP65 (Dust-tight and protected against moisture)
- Shaft Construction: Solid shaft designed for heavy radial and axial loads
- Operating Temperature: -20°C to +70°C (-4°F to +158°F)
- Anti-Interference: Enhanced EMC shielding for high-noise electrical environments
- Mechanical Speed: Optimized for high-speed industrial rotation
Diagnostic Capabilities & Equipment Suitability
- Position Persistence: The 171-50124 retains absolute position without homing, even if the shaft is moved while unpowered.
- Signal Monitoring: Internal self-diagnostics detect disc scanning errors or hardware degradation before system failure.
- Equipment Compatibility: Ideal for integration with Siemens SIMOTION, Beckhoff, and Rockwell Automation motion controllers.
- Application Scenarios: Widely used in steel mill rollers, heavy-duty cranes, printing presses, and automated warehouse lifting systems.
Installation & Maintenance Guidance
- Mechanical Alignment: Always use a flexible coupling to protect the ZE65M bearings from shaft misalignment.
- Electronic Zeroing: Use the “Preset” input to align the electronic zero-point with the mechanical home position during commissioning.
- Cabling: Utilize high-quality twisted-pair shielded cables to maintain signal resolution over long distances.
Shipping, Warranty & Logistics
- Dispatch Timeline: Fast processing with 24-48 hour shipping.
- Global Express: Worldwide delivery via FedEx, UPS, and DHL.
- Warranty Policy: Includes a full 12-month technical warranty.
- Packaging: Shipped in secure, anti-vibration industrial packaging to ensure unit calibration remains intact.
Professional FAQ & Purchasing Guide
Does the 171-50124 require a battery to remember its position?
No, the ZE65M 171-50124 uses a mechanical gear system for multi-turn counting. It retains the absolute position permanently without any internal or external battery support.
How do I verify if this specific 171-50124 model matches my existing interface?
Check the label on your current unit. The suffix “171-50124” dictates the specific electrical interface and mechanical flange. If these numbers match, it is a direct drop-in replacement.
What is the primary indicator that this encoder needs replacement?
The most common signs are intermittent “Illegal Code” alarms or “SSI Frame Errors” in your PLC diagnostic buffer, often caused by internal component wear or severe vibration damage.
Selection Guide: Can I use this for high-precision CNC applications?
While the ZE65M is highly precise, it is optimized for heavy industrial motion. For ultra-high-speed sub-micron CNC tasks, ensure the resolution (bits per turn) meets your specific controller requirements.
What precautions should be taken regarding the solid shaft installation?
Ensure the radial load on the 171-50124 shaft does not exceed factory limits. Excessive side-loading is the leading cause of premature bearing failure in absolute encoders.
