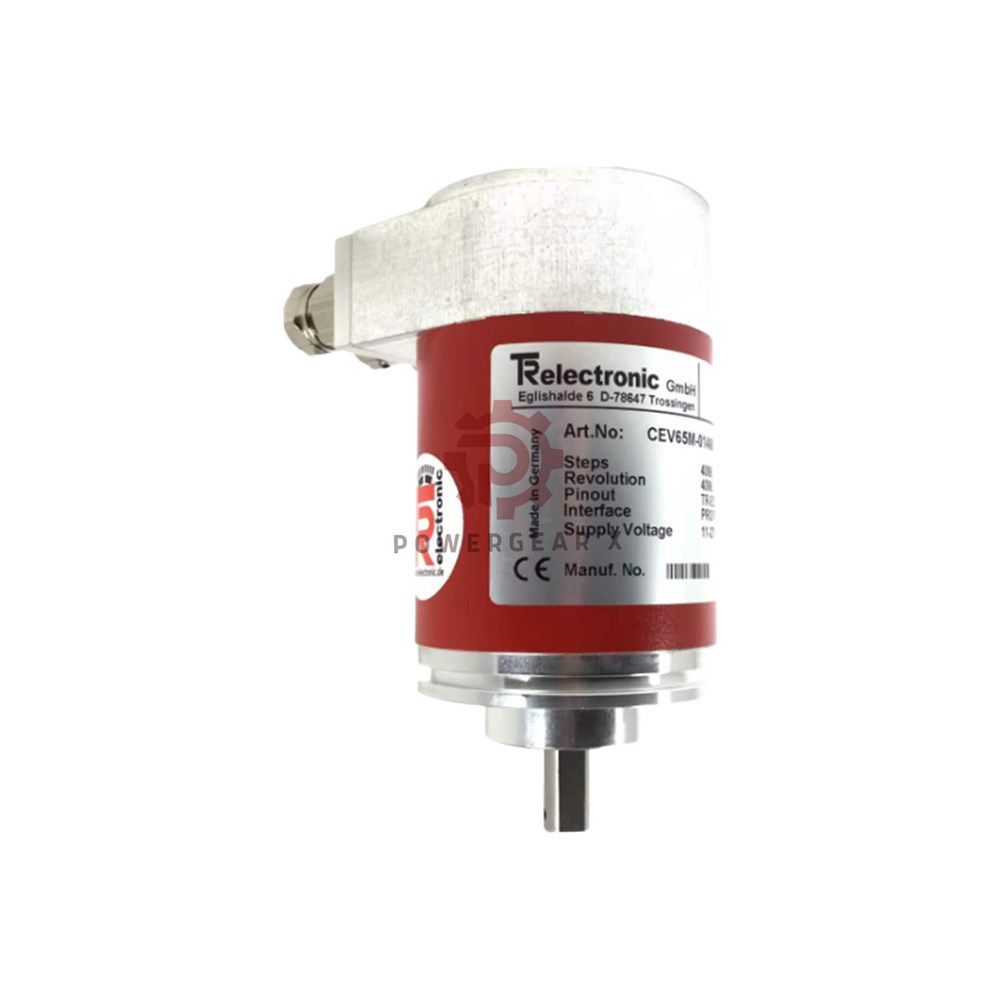

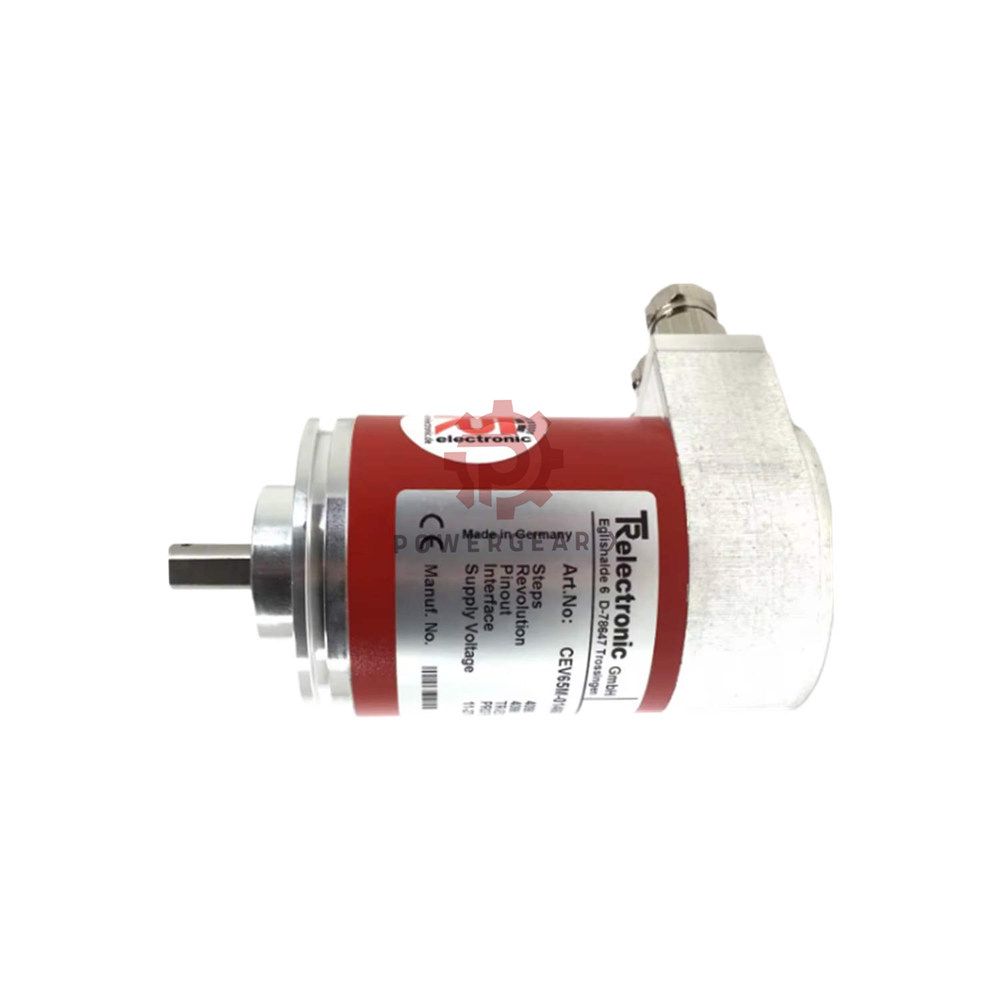

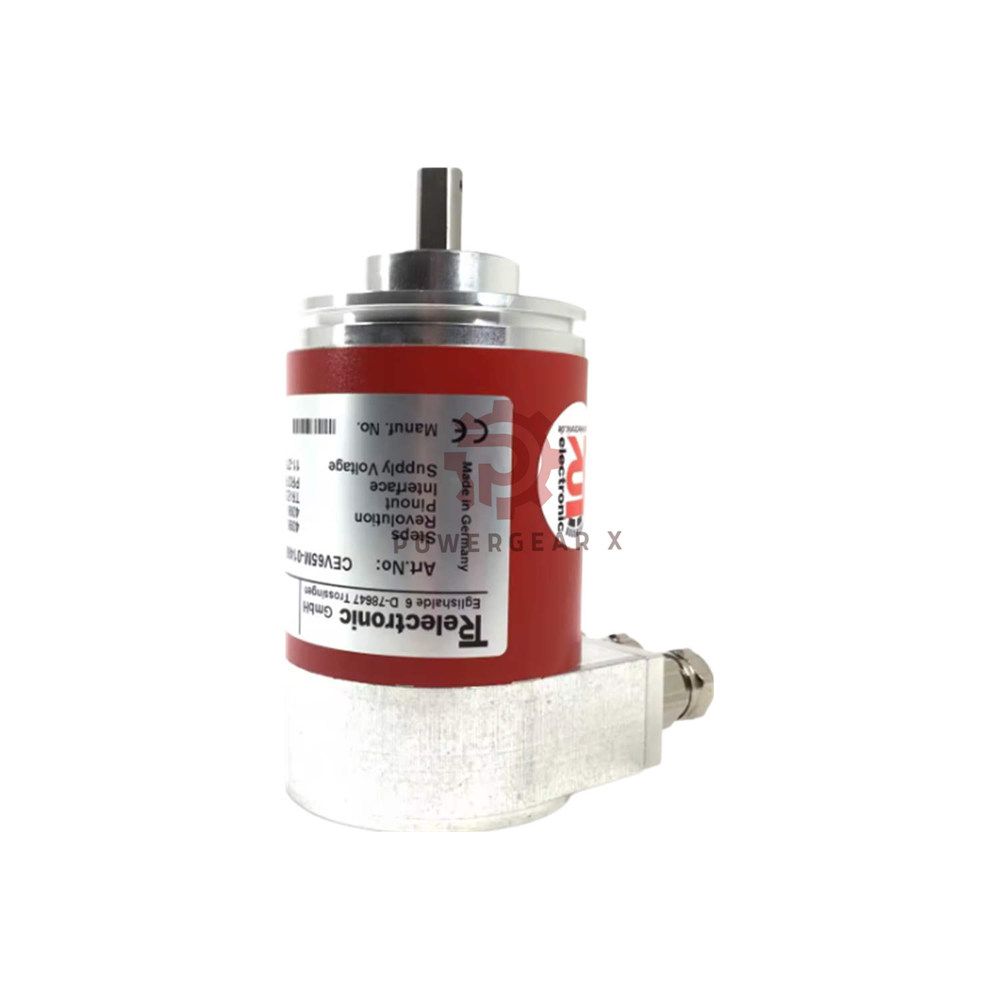

Name: TR Electronic CEV65M-01360 SSI Absolute Rotary Encoder 10mm Shaft
SKU: CEV65M-01360
Availability: InStock

Product details

Product Introduction

The TR Electronic CEV65M-01360 represents the pinnacle of precision in heavy-duty industrial sensing.
This Absolute Multiturn Rotary Encoder provides ultra-high resolution for complex motion control tasks.
Engineers trust the CEV65M series for reliable position tracking in harsh environments.
The robust design ensures zero-point stability even after power cycles.
You can count on its SSI interface for seamless high-speed data transmission.
For technical support, contact sales@powergearx.com today for expert assistance.

Technical Specifications

Brand: TR Electronic
Model: CEV65M-01360
Measurement Range: 8,192 steps per revolution with 4,096 total revolutions.
Resolution: 25-bit combined output for microscopic positional accuracy.
Interface Type: Synchronous Serial Interface (SSI) via RS422 level.
Supply Voltage: Wide range 11-27V DC power input.
Environmental Protection: IP65 rating against dust and water jets.
Temperature Range: Reliable operation from -20°C to +70°C.
Mechanical Interface: ZB36 Flange with a 10mm x 19.5mm flattened shaft.
Electrical Connection: 12-pin radial M23 connector with ST185E pinout.
Programmability: Full WinProg compatibility for fast field adjustments.
Frequency Response: High-speed processing designed for real-time automation feedback.
Anti-Interference: Superior RS422 differential signaling ensures robust noise immunity.

Installation and Integration Guide

Mount the ZB36 flange using standard M3 or M4 industrial screws.
Ensure precise alignment between the 10mm shaft and the motor coupling.
The radial connector orientation saves valuable space in tight cabinets.
Use shielded twisted-pair cables to maximize SSI signal integrity.
Connect to +86 18030005825 on WhatsApp for wiring verification.

Maintenance and Diagnostics

This encoder features internal diagnostic bits to monitor signal health.
Users can program preset values via the software interface easily.
The solid-state design eliminates the need for periodic mechanical calibration.
Clean the housing with non-corrosive agents to maintain the IP65 seal.
Check the ST185E pinout if signal loss occurs during operation.

Compatibility and Typical Applications

Compatible with Siemens SIMATIC and Rockwell Allen-Bradley controllers.
Ideal for CNC machine tools and wind turbines.
Perfect for automated warehouse cranes requiring precise multiturn positioning.
Supports heavy-duty textile equipment and steel mill processing lines.

Shipping and Quality Terms

Fast Dispatch: Ships within 24-48 hours from our warehouse.
Carrier Options: Worldwide delivery via FedEx, UPS, or DHL.
Warranty: Includes a comprehensive 12-month quality guarantee.
Package List: One TR CEV65M-01360 encoder and matching 12-pin mating plug.

Powergear X Automation’s Insight

The TR Electronic CEV65M-01360 excels in modularity and field adaptability.
The WinProg capability allows engineers to scale resolution on-site.
We recommend this model for applications with high electromagnetic interference.
The RS422 differential signaling provides superior long-distance reliability.

Expert FAQ & Purchasing Guide

How do I set the zero point on this encoder?
You can use the Preset 1+2 function via the software interface.
Can this model replace older CE-65 series encoders?
Yes, the CEV65M serves as a modern high-performance replacement.
What cable length is supported by the SSI interface?
The RS422 output supports up to 100 meters at lower clock rates.
Is the mating plug included in the box?
Yes, we provide the 12-pin mating connector with every unit.
How do I troubleshoot a flashing signal error?
Verify the 11-27V supply stability and check for shaft slippage.

Powergear X Automation Review: The CEV65M-01360 offers the best balance of durability and digital precision. Its 4,096-turn capacity makes it a versatile “workhorse” for any industrial motion system.
