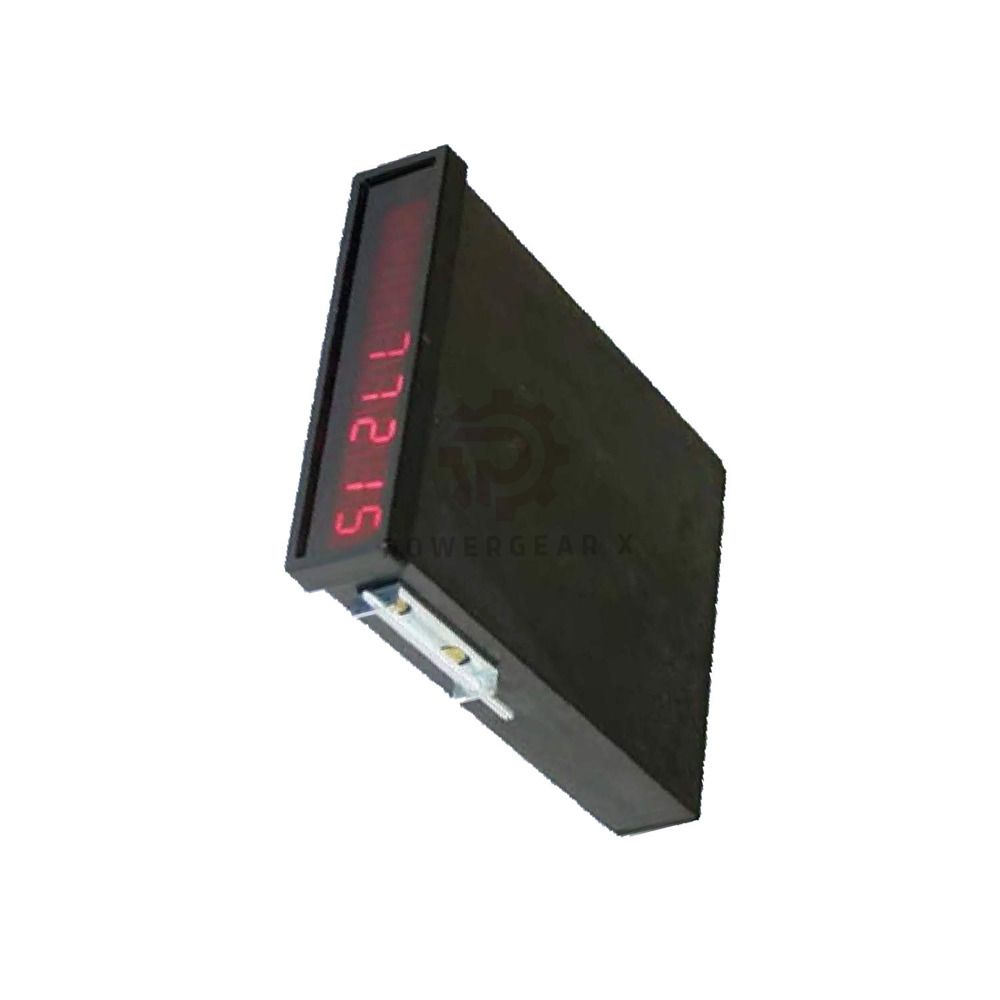

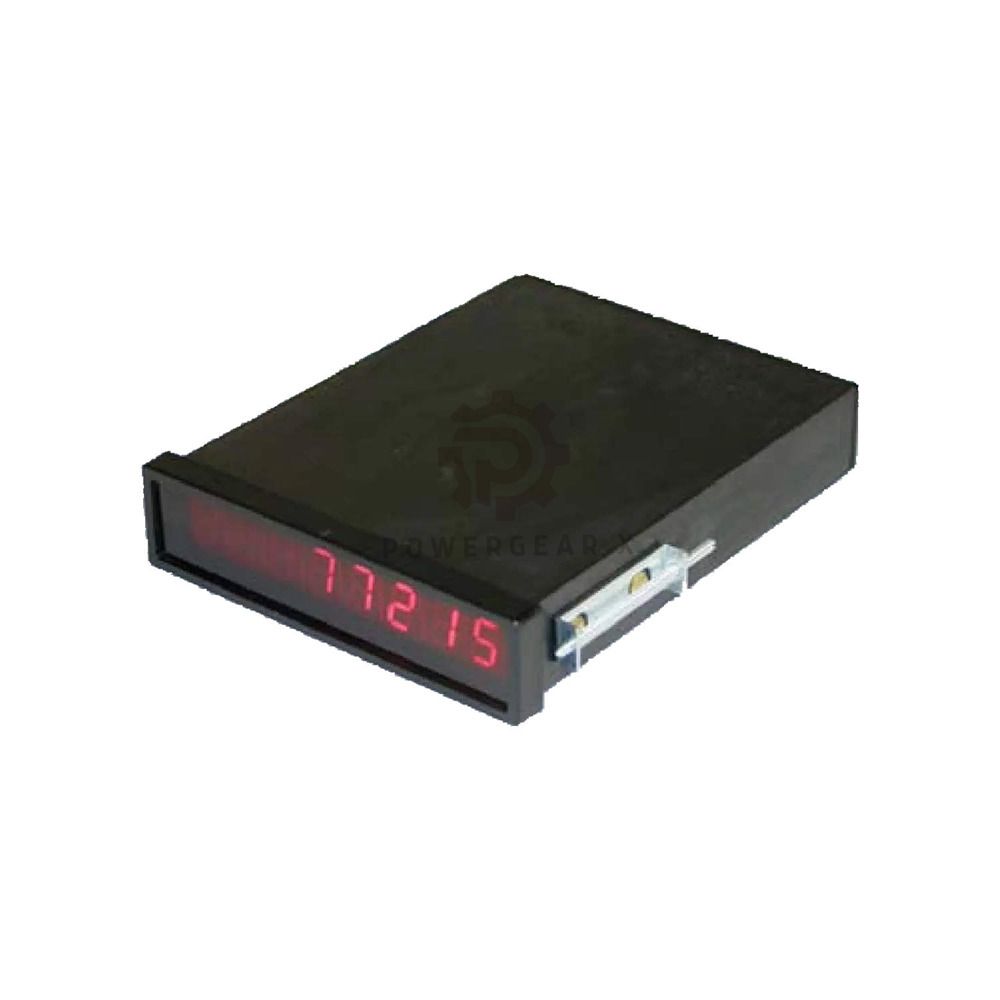

485-80020 TR-Electronic TAmini Master/Slave Display SSI Unit

Professional Overview: TR Electronic TAmini 485-80020

• The TR Electronic 485-80020 serves as a high-precision 8-digit display unit.
• This TAmini series module supports Master, Slave, and Monitor operations.
• It ensures seamless integration into control panels for real-time position visualization.
• Engineers value its multi-protocol compatibility and robust signal processing capabilities.

Technical Specifications and Performance

• Brand: TR Electronic
• Model: TAmini 485-80020
• Supply Voltage: 11 to 30 V DC
• Current Consumption: Less than 350 mA without external load.
• Display Type: 7-segment LED with 8-digit resolution.
• Character Height: 10 mm for high visibility.
• SSI Frequency Range: 100 kHz to 750 kHz
• Data Resolution: Supports 12 to 31 SSI data bits.
• Display Capacity: Up to 26-bit processing depth.
• Refresh Rate: Adjustable from 50 ms to 2000 ms.
• Signal Input: SSI (Gray or Binary), RS485, and RS422.
• Operating Temperature: 0 °C to +60 °C.
• Protection Rating: IP 43 compliant for front panel mounting.

Powergear X Automation’s Insight

• The TR Electronic 485-80020 excels in synchronization tasks.
• Cascading multiple slave displays allows for comprehensive multi-axis monitoring.
• The integrated USB interface simplifies configuration via TRWinProg software.
• We recommend this unit for systems requiring high-speed SSI data visualization.
• For technical support, email sales@powergearx.com.

Compatibility and Integration

• Software Support: Fully compatible with TRWinProg, EprogW32, and LTProg.
• Device Protocols: Direct connection for LLB and standard SSI sensors.
• Scaling Features: User-definable scaling and independent offset adjustments.
• Hardware Interface: Built-in USB and RS485/RS422 communication ports.
• Mounting: Standard 96mm x 24mm front panel cutout design.
• System Suitability: Ideal for PLC systems, rotary encoders, and linear transducers.

Installation and Maintenance Guide

• Insert the unit into the 92.5mm x 21.5mm panel cutout.
• Secure the housing using the provided mounting clips.
• Connect the power supply within the 11-30V DC range.
• Use a USB cable for initial parameter programming.
• Verify the SSI clock frequency matches your encoder settings.
• Clean the front LED panel with a dry antistatic cloth.
• Regularly check wiring terminals for vibration-induced loosening.

Diagnostic and Troubleshooting Capabilities

• Status Monitoring: Real-time error detection for SSI signal loss.
• Voltage Alerts: Programmable warning levels for supply voltage drops.
• Operation Modes: Switch between Master and Monitor for signal debugging.
• Sign Indicators: Visual feedback for decimal, HEX, and binary outputs.

Purchase and Shipping Information

• Condition: Authentic, factory-standard industrial component.
• Warranty: Includes a comprehensive 12-month quality guarantee.
• Shipping Partners: Express delivery via FedEx, UPS, and DHL.
• Dispatch Time: Orders ship within 24 to 48 hours.
• Package Contents: One TR Electronic 485-80020 unit and connector set.
• Inquiries: Call or WhatsApp +86 18030005825.

Selection Guide and FAQ

• How do I choose between Master and Slave modes?
• Select Master mode if the display provides the SSI clock signal.
• Can this unit display inches instead of millimeters?
• Yes, the unit supports both metric and imperial unit toggling.
• What software is required for custom scaling?
• Use the TRWinProg Windows-compatible program via the USB port.
• Is an external adapter needed for RS485 programming?
• You must use a USB/RS485 PC adapter for serial programming.
• What happens if the supply voltage fluctuates?
• The display triggers a warning level alert based on your settings.
