TSXREY200 Bus X Remote Rackmaster – 2-Ch Master/Slave | Modicon Premium

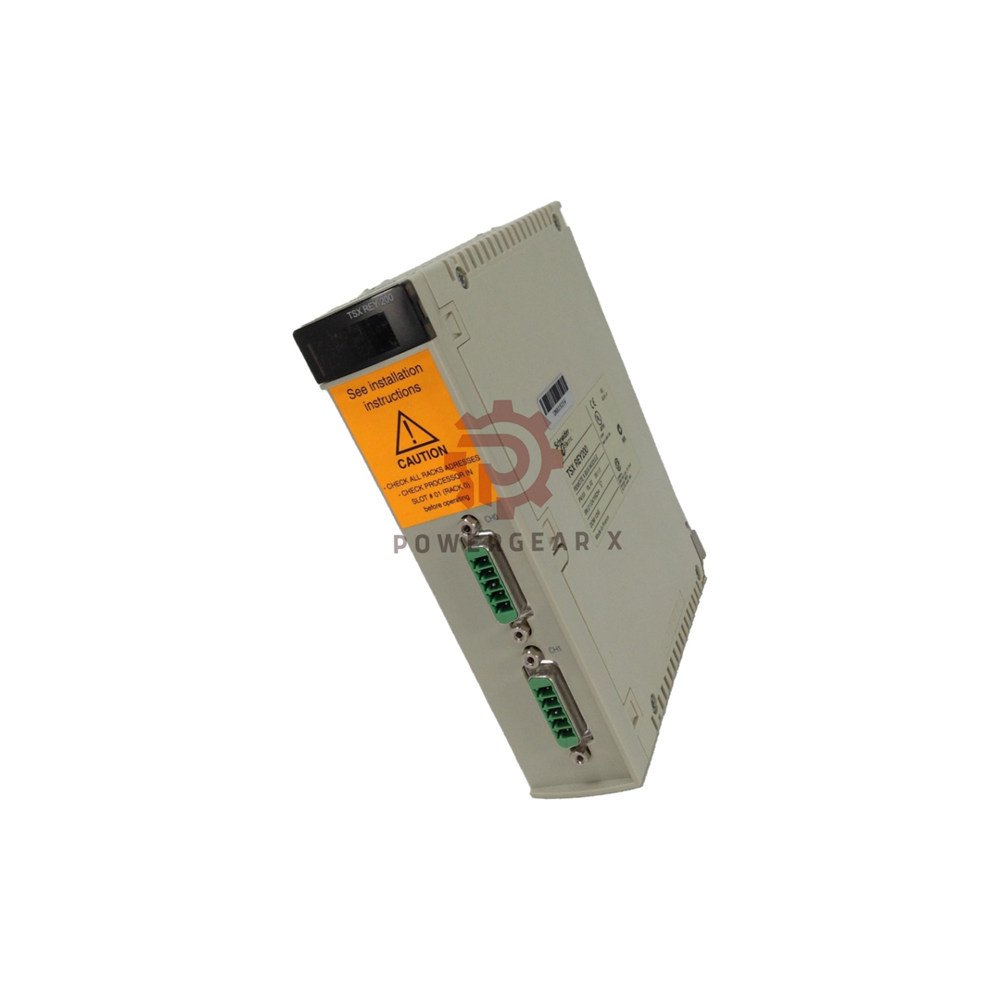

TSXREY200 – Bus X Remote Rackmaster Module

This 2-channel master/slave module manages Bus X remote I/O communication. It acts as a rackmaster for Modicon Premium platforms. The module ensures reliable data exchange with efficient access control. It is designed for demanding industrial automation environments. The module provides clear local diagnostics for quick status checks.

Key Features

• 2 independent channels for flexible Bus X connections
• Master/Slave access method for deterministic communication
• 500 mA current consumption at 5 V DC
• Standard format for easy integration
• Comprehensive LED indication for module and channel status
• Robust SUB-D 9 connectors for secure cabling

Technical Specifications

• Brand: Schneider Electric
• Model: TSXREY200
• Series: Modicon Premium
• Type: Bus X Remote Rackmaster Module
• Channels: 2
• Access Method: Master/Slave
• Connectors: 2 x SUB-D 9 (one per channel)
• Current Draw: 500 mA @ 5 V DC
• Local LEDs: Run (R), Master/Slave (MS), Internal Fault (ERR), External Fault (I/O), CH1, CH0
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -25°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Protection Class: IP20
• EMC Immunity: EN 61000-6-2
• Emissions: EN 61000-6-4
• Safety: UL 508, CSA C22.2 No. 142

Installation Guide

• Mount the module in a standard Premium rack slot.
• Connect Bus X cables to the SUB-D 9 connectors (CH0 and CH1).
• Set the master/slave configuration via DIP switches or software.
• Apply 5 V DC power (max 500 mA) to the backplane.
• Check LED indicators after power-up for normal operation.
• Refer to the user manual for detailed wiring diagrams.

Debugging & Maintenance

• LEDs provide real-time fault diagnosis (ERR, I/O, MS).
• Use the premium automation software for advanced diagnostics.
• Hot-swap support reduces downtime during replacement.
• Firmware updates are available via the official portal.
• Regularly inspect connectors for corrosion or damage.

Compatibility

• Works with Modicon Premium PLC racks (TSX P57, P58 series).
• Supports Bus X remote I/O drops and distributed stations.
• Compatible with EcoStruxure Control Expert (Unity Pro).
• Interfaces with third-party devices using standard RS-485.

Certifications & Compliance

• CE Marked for European market conformity.
• UL 508 listed for industrial control equipment.
• CSA certified for Canadian safety standards.
• RoHS compliant (exemptions apply).
• Not Green Premium but meets basic environmental norms.

Package Contents

• 1 x TSXREY200 Bus X Remote Rackmaster Module
• 1 x Quick Start Guide (multilingual)
• 2 x SUB-D 9 connector covers
• Warranty card (12 months)

Warranty & Shipping

• Warranty: 12 months against manufacturing defects.
• Shipping: 12-24 hours dispatch after order confirmation.
• Carriers: FedEx, UPS, DHL (tracking number provided).

Expert Review

“The TSXREY200 offers rock-solid performance for Bus X networks. Its dual-channel design and master/slave access ensure deterministic data flow. The LED diagnostics save troubleshooting time. A dependable choice for Premium platform expansions.” — Senior Automation Engineer

Manager’s Insight

“This module balances cost and functionality well. It simplifies remote I/O management without extra software complexity. The 500 mA power draw suits most standard racks. Ideal for projects needing quick deployment and reliable communication.” — Product Line Manager

Applications & Suitable Devices

• Remote I/O drops in manufacturing plants
• Distributed control systems (DCS)
• Material handling and conveyor systems
• Packaging machines and process lines
• Water/wastewater treatment facilities

FAQ – Frequently Asked Questions

• What is the maximum cable length for Bus X?

  Up to 200 m with shielded cables.

• Can I mix master and slave modules on the same rack?

  Yes, the TSXREY200 supports mixed configurations.

• How do I reset the module after a fault?

  Cycle power or use the software reset command.

• Is the module compatible with older TSX 17 racks?

  No, it is designed for Modicon Premium series only.

• What does the ERR LED indicate?

  Internal fault or module failure – check power and connections.

• Can I use this module in a redundant system?

  Not directly; use dedicated redundancy modules.

Selection Guide (Buying Tips)

• Verify your rack is Modicon Premium (P57/P58).
• Calculate total current draw to stay under 500 mA.
• Choose this module for master/slave Bus X networks.
• For hot-standby, consider redundant CPU solutions.
• Check firmware version for latest features.

Experience-based Q&A

• My CH1 LED stays off even with a cable connected.

  Check the cable pinout; some third-party cables may be wired differently.

• The module works but occasionally loses communication.

  Ensure proper termination resistors on the Bus X line.

• Can I replace this module without powering down the rack?

  Yes, it supports hot-swap but follow ESD precautions.
