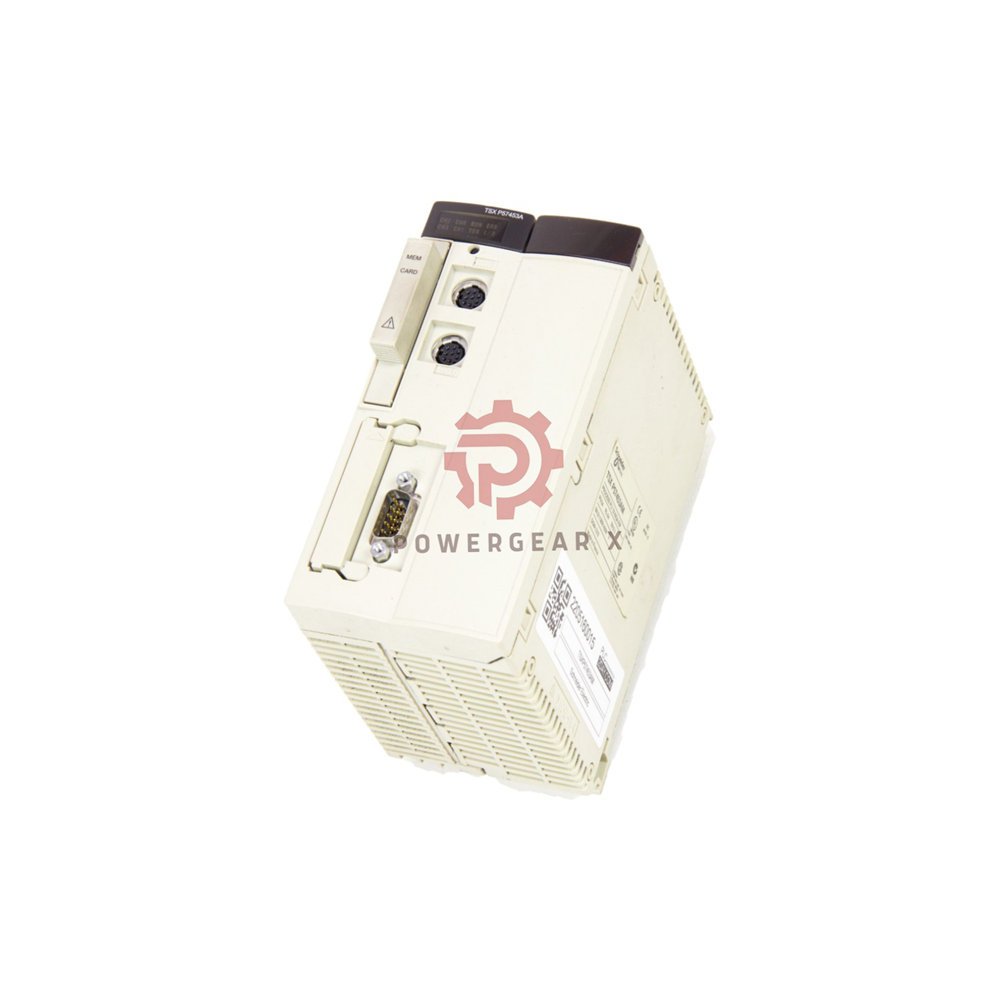

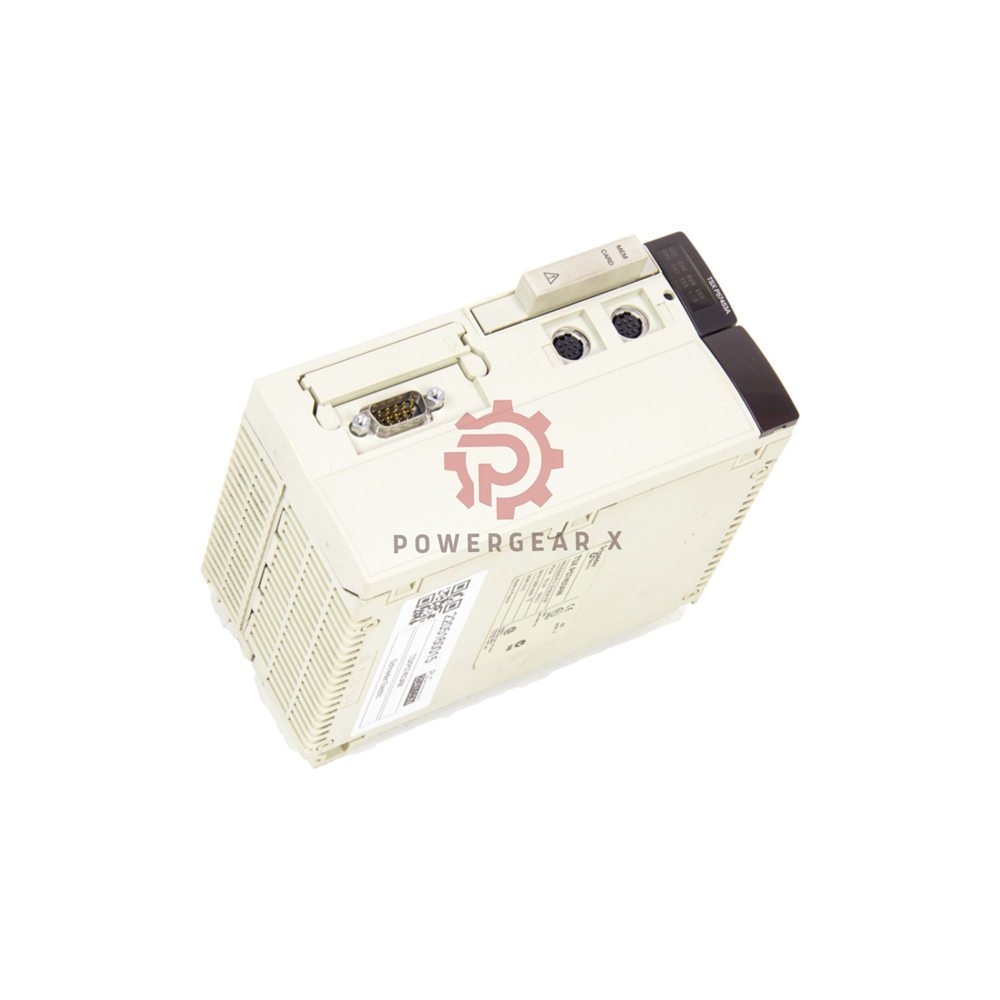

TSXP574823AM Modicon Premium PLC – EtherNet/IP Processor

TSXP574823AM – Modicon Premium Double-Format PL7 Processor

Powerful and reliable PLC processor for demanding automation tasks. Combines Ethernet TCP/IP, extensive memory, and flexible I/O capacity. Ideal for complex industrial control systems.

Key Features

• Double-format PL7 processor – Fits Modicon Premium automation platform
• Integrated Ethernet TCP/IP – RJ45 10/100 Mbit/s with Transparent Ready
• Massive memory capacity – 96 Kwords internal RAM, expandable via PCMCIA
• High-speed execution – 0.06 µs per Boolean instruction
• Multi-tasking structure – 1 fast, 1 master, and 64 event tasks
• Wide I/O support – 2040 discrete I/O, 256 analog I/O, and up to 60 control loops

Technical Specifications

• Brand & Model: Schneider Electric / TSXP574823AM
• Processor Type: Double-format PL7, Modicon Premium
• Integrated Communication: Ethernet TCP/IP (RJ45), Fipio manager (SUB-D 9), non-isolated serial link (mini DIN)
• Memory (without PCMCIA): 96 Kwords program & data
• Memory (with PCMCIA): 176 Kwords data, up to 2048 Kwords additional storage
• Discrete I/O Capacity: 2040 I/O
• Analog I/O Capacity: 256 I/O
• Application-specific Channels: 64
• Process Control Loops: 20 to 60 simple loops
• Max Racks & Slots: 16 racks (4/6/8 slots) or 8 racks (12 slots), up to 128 slots total
• Execution Speed: Boolean 0.06 µs, fixed-point 0.08 µs, floating-point 1.7 µs
• Throughput: 13.82 Kinst/ms (100% Boolean), 8.8 Kinst/ms (mixed)
• System Overhead: Fast task 0.22 ms, master task 1.15 ms
• Ambient Temperature (Operation): 0…60 °C (32…140 °F)
• Storage Temperature: -25…70 °C (-13…158 °F)
• Relative Humidity: 10…95% (operation), 5…95% (storage), non-condensing
• Operating Altitude: 0…2000 m (0…6561 ft)
• Pollution Degree: 2
• IP Protection: IP20
• Current Consumption: 1440 mA @ 5 V DC
• Weight: 0.77 kg (1.70 lb)

Installation & Maintenance

• Easy mounting – Double-format module fits standard Premium racks
• Diagnostic LEDs – 12 LEDs for status (RUN, ERR, FIP, COL, TER, STS, RX, TX, I/O, etc.)
• Maintenance-friendly – Hot-swappable PCMCIA cards, clear error indication
• Protective coating – TC treatment for harsh environments

Compatibility

• Software: PL7 Junior / Pro
• Fieldbus: Fipio, CANopen, AS-Interface, Ethernet TCP/IP
• Communication modules: up to 2 fieldbus modules, 8 AS-Interface, 1 CANopen, 4 network modules
• Transparent Ready certified for seamless integration

Certifications & Standards

• CE, UL 508, CSA C22.2 No. 142 / 213 (Class I Div 2 Groups A, B, C, D)
• IEC 61131-2, 89/336/EEC, 73/23/EEC, 92/31/EEC, 93/68/EEC
• Ship approvals: RMRS, RINA, DNV, BV, GL, LR, ABS

Package Contents

• 1 x TSXP574823AM processor module
• No accessories included (PCMCIA cards sold separately)

Warranty & Shipping

• 12-month warranty – covers manufacturing defects
• Fast dispatch – 12-24 hours after order confirmation
• Shipping carriers: FedEx, UPS, DHL (tracking provided)

Expert Review

“The TSXP574823AM stands out for its robust dual-format design and impressive memory scalability. The integrated Ethernet and Fipio give it an edge in mixed-protocol environments. Its fast task execution (0.06 µs Boolean) ensures real-time responsiveness, even in complex applications. A solid choice for system integrators who need reliability and performance.”

Manager’s Insight

“From a procurement perspective, this processor offers excellent value. The wide temperature range, certifications (ABS, DNV, GL), and low overhead make it suitable for marine, oil & gas, and factory automation. With 64 event tasks and large I/O capacity, it future-proofs your control architecture. A wise investment for critical infrastructure.”

Applications & Suitable Devices

• Industrial automation – PLC control, motion, and process loops
• Marine and offshore – certified by ABS, DNV, GL, LR
• Energy and utilities – power generation, distribution monitoring
• Manufacturing – assembly lines, packaging, material handling
• Building automation – HVAC, lighting, security integration

FAQ – Frequently Asked Questions

• What is the maximum program memory with PCMCIA?
  Up to 992 Kwords program memory with optional card.
• Can I use this processor with CANopen devices?
  Yes, it supports 1 CANopen module and up to 2 fieldbus modules.
• Is the Ethernet port isolated?
  No, but it has diagnostic LEDs for link and activity.
• How many racks can I connect?
  Up to 16 racks (4/6/8 slots) or 8 racks (12 slots).
• What software is required?
  PL7 Junior or PL7 Pro.
• Does it support floating-point arithmetic?
  Yes, execution time is 1.7 µs per operation.
• Is the processor suitable for extreme temperatures?
  Operation range 0…60 °C, storage -25…70 °C.

Selection Guide – Expert Tips

• Choose this model if: You need a high-density I/O count (2040 discrete + 256 analog) and Ethernet connectivity.
• Consider PCMCIA upgrade: For large data logging or complex programs, add the 2048 Kwords data card.
• For event-driven tasks: The 64 event tasks are ideal for time-critical responses.
• Certifications matter: If you operate in marine or hazardous areas, this processor has the required approvals.
• Avoid if: You need a compact single-format module or non-Ethernet legacy systems.
