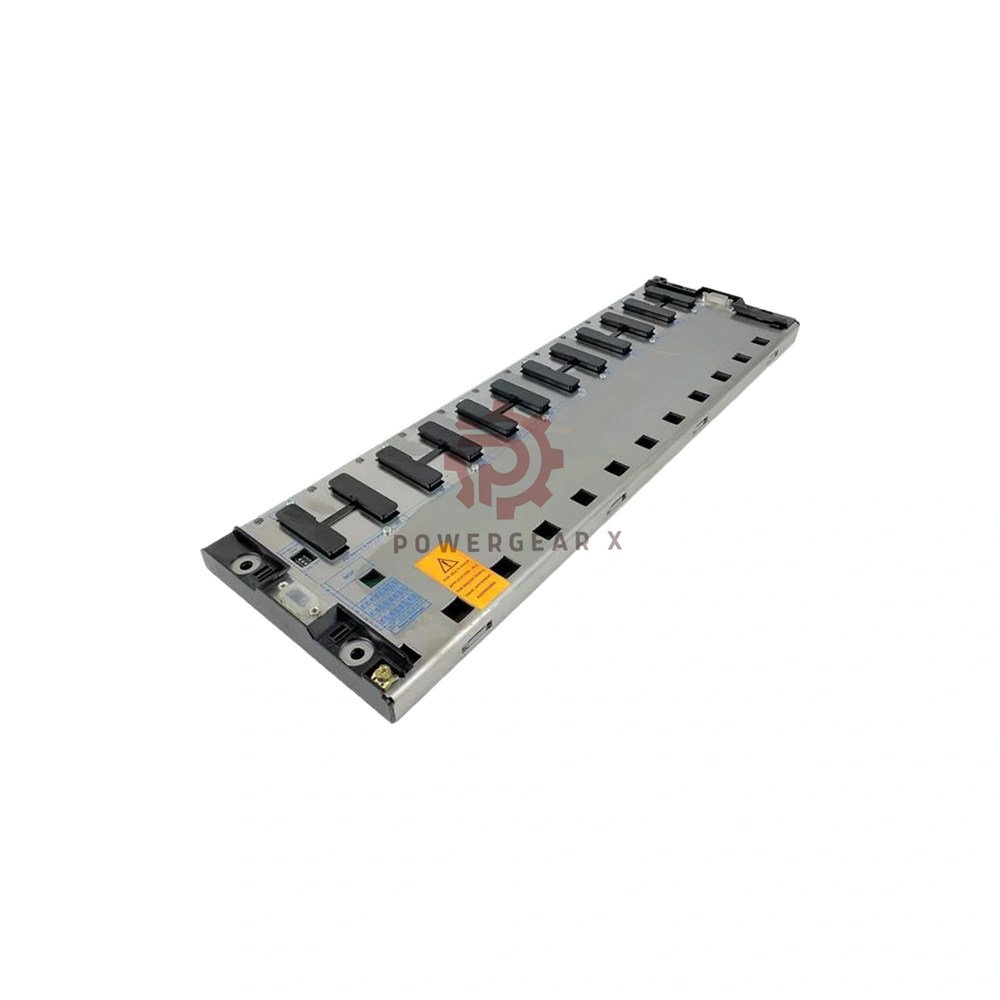

TSXRKY12EX | Extendable Rack for Modicon Premium
Powergear X Automation presents the TSXRKY12EX extendable rack. This 12‑slot chassis supports multi‑rack configurations for Modicon Premium platforms. It provides a sturdy, IP20‑rated base for I/O, application, and processor modules. Designed for industrial environments, it ensures reliable bus extension and easy installation.
- Brand: Schneider Electric
- Model: TSXRKY12EX
- Series: Modicon Premium Automation Platform
- Type: Extendable Rack (12 slots)
- Application: Multi‑rack configurations
Technical Specifications
- Slot Count: 12 slots for I/O, application, and processor modules
- Compatibility: TSXPSY power supplies, TSXP57 processors, I/O and specific application modules
- Electrical Connection: 2 female SUB‑D 9 connectors for bus X remote connection
- Mounting: By 4 M6 screws (panel) or clips (35 mm DIN rail)
- Protection: IP20, pollution degree 2, protective treatment TC
- Temperature Range: Operation 0…60 °C, Storage -25…70 °C
- Humidity: 10…95 % (non‑condensing) operation, 5…95 % storage
- Altitude: 0…2000 m
- Weight: 2.34 kg
- Marking: CE
Installation & Maintenance
- Mounting flexibility: Panel (M6 screws) or DIN rail (clips) – choose the best fit.
- Bus extension: Remote connection via SUB‑D 9 connectors simplifies multi‑rack setups.
- Maintenance: Open design allows quick module swap and visual inspection.
- Debugging: Clear slot numbering and LED indicators (on modules) aid fast troubleshooting.
Compatibility & Certifications
- Compatible with: Modicon Premium I/O, application modules, TSXPSY power supplies, TSXP57 processors
- Standards: IEC 61131‑2, UL 508, CSA C22.2 No. 142 & No. 213 (Class I, Div 2, Groups A‑D)
- Ship approvals: RINA, DNV, GL, ABS, RMRS, BV, LR
- Directives: 73/23/EEC, 89/336/EEC, 92/31/EEC, 93/68/EEC
What‘s in the Box
- TSXRKY12EX extendable rack (12 slots)
- Mounting clips for DIN rail
- Panel mounting screws (M6 x 4)
- User manual (digital download)
Warranty & Shipping
- Warranty: 12 months against manufacturing defects
- Dispatch: 12‑24 hours from order confirmation
- Carriers: FedEx, UPS, DHL – tracking provided
Expert Review
“The TSXRKY12EX is a robust backbone for Modicon Premium systems. Its 12 slots offer ample space for mixed I/O and processor modules. The dual mounting options and IP20 rating suit most factory floors. Bus extension via SUB‑D 9 is straightforward, reducing cabling errors. For critical multi‑rack projects, this rack delivers consistent performance and easy expansion.”
Manager‘s Insight
“From a procurement view, the TSXRKY12EX simplifies inventory – one rack covers many applications. Its certifications (DNV, GL, ABS) make it ideal for marine and harsh environments. The 12‑month warranty and rapid dispatch (12‑24 h) lower project risk. A solid choice for system integrators who value reliability and quick turnaround.”
Applicable Devices & Scenarios
- Devices: Modicon Premium TSXP57 processors, TSXPSY power supplies, digital/analog I/O, motion and communication modules
- Scenarios: Factory automation, process control, marine systems, energy management, and building automation
Frequently Asked Questions
- Can I use this rack with a single processor?
Yes. It supports one TSXP57 processor plus multiple I/O modules.
- Is the rack compatible with third‑party modules?
No. It only accepts Schneider Electric Modicon Premium modules.
- How do I extend the bus to a second rack?
Use the two SUB‑D 9 connectors on the rear panel for remote bus X connection.
- What is the maximum operating temperature?
60 °C. Keep ambient temperature within 0…60 °C for safe operation.
- Does the rack include a power supply?
No. You need a separate TSXPSY power supply (sold separately).
- Can I mount this on a DIN rail without screws?
Yes. Use the supplied clips for 35 mm symmetrical DIN rail.
- Is it suitable for outdoor use?
No. IP20 and pollution degree 2 limit it to indoor, clean environments.
- How to choose between panel and DIN rail?
Panel offers fixed installation; DIN rail allows quick swap and space savings. Choose based on your cabinet design.
- What if I need more than 12 slots?
Add a second rack via the bus extension connectors (up to 4 racks total).
- Does it support hot‑swapping modules?
No. Power off the rack before inserting or removing modules.
Selection Guide
- Count your I/O and processor modules – choose 12 slots for medium to large systems.
- Check your mounting preference: panel (screws) or DIN rail (clips).
- Confirm environmental conditions: 0…60 °C, IP20, altitude ≤2000 m.
- Verify certifications needed (e.g., marine: DNV, GL, ABS).
- Plan bus extension if you need more than one rack – the TSXRKY12EX supports it.
