Name: TSXPSY3610M Schneider Modicon Premium Power Supply Module
SKU: TSXPSY3610M
Price: 234.00 USD
Availability: InStock

Product details

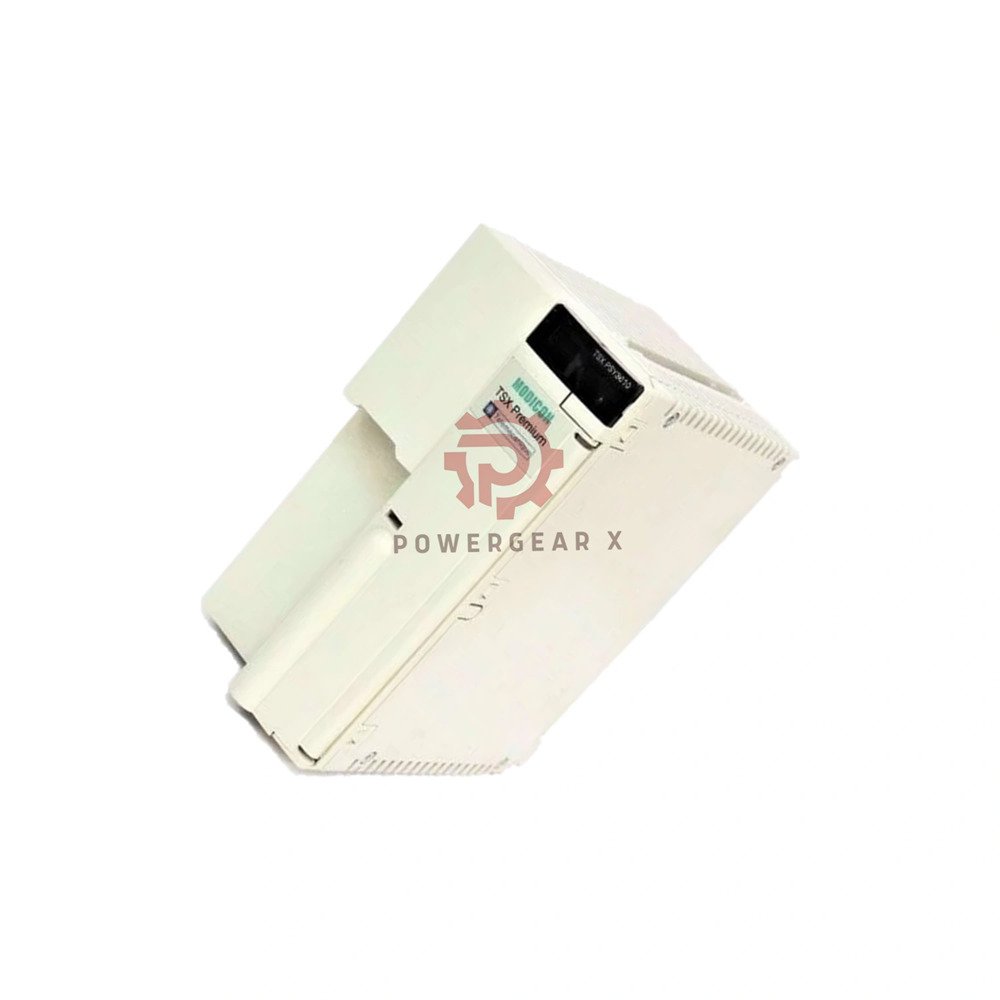

TSXPSY3610M Schneider Electric Power Supply Module for Modicon Premium

The TSXPSY3610M is a power supply module from Schneider Electric. It works with the Modicon Premium Automation platform. The unit takes 24 V DC input and feeds the rack with stable power. It delivers 50 W total useful power. Two outputs cover both 24 V DC relay loads and 5 V DC logic needs. The module uses a double format slot. It carries CE marking and IP20 protection. It suits industrial cabinets, process lines, and factory control rooms.

Key Strengths

Dual output: 24 V DC and 5 V DC in one module.
Strong input range: 19.2 to 30 V DC.
Built-in safety: Overload, overvoltage, and short-circuit protection.
Ride-through: Handles microbreaks up to 1 ms.
High isolation: 2000 V between primary and earth.
Clear LEDs: Green OK and red BAT signals.

Technical Data

Brand: Schneider Electric
Model: TSXPSY3610M
Series: Modicon Premium Automation platform
Type: Power supply module
Primary voltage: 24 V DC, 19.2 to 30 V
Input current: 2700 mA at 24 V
Inrush current: 150 A at 24 V
I²t on activation: 20 A².s; 0.5 A.s
Total secondary power: 50 W
Secondary power: 19 W at 24 V DC; 35 W at 5 V DC
Secondary current: 0.6 A at 24 V DC relay; 7 A at 5 V DC
Protection: Overload, overvoltage, short circuit on secondary
Local signalling: Green OK LED; red BAT LED
Module format: Double
Weight: 0.78 kg
Microbreak immunity: 1 ms
Dielectric strength: 2000 V primary to earth; 2000 V primary to secondary
Operating temperature: 0 to 60 °C
Storage temperature: -25 to 70 °C
Relative humidity: 10 to 95 % during use; 5 to 95 % in storage
Operating altitude: 0 to 2000 m
Protective treatment: TC
IP rating: IP20
Pollution degree: 2

Standards and Certifications

Marking: CE
Standards: IEC 61131-2; 89/336/EEC; 73/23/EEC; 93/68/EEC; 92/31/EEC
UL: 508
CSA: C22.2 No 142; C22.2 No 213 Class I Division 2 Groups A, B, C, D
Certifications: RMRS, GL, RINA, LR, ABS, DNV, BV
RoHS: Compliant since date code 1001
REACh: No SVHC above threshold

Installation Notes

Mount the module in a Modicon Premium rack.
Keep the cabinet clean and dry.
Use a protection device upstream of the PLC station.
Add a switch gear before the supply module.
Check the green OK LED after power-up.
Watch the red BAT LED for battery faults.
Keep input voltage within 19.2 to 30 V DC.

Setup and Service Ease

Two LEDs make status checks quick.
Secondary protection lowers fault risk.
Microbreak immunity aids unstable mains.
Double format fits standard Premium racks.
Check terminals during routine service.

Compatibility

Platform: Modicon Premium Automation
Rack type: Standard and extendable racks
Module format: Double slot
Check first: Confirm your rack supports this supply type

Best Fits and Use Cases

Expert Review

The TSXPSY3610M is a solid supply module for Modicon Premium racks. It gives 50 W total power across two outputs. The 24 V DC and 5 V DC rails cover most rack needs. Protection against overload, overvoltage, and short circuits adds safety. The 1 ms microbreak immunity helps in noisy plants. The 2000 V isolation is a strong point. For Premium users, this module is a dependable choice.

Manager’s Insight

This module sells well to plants that still run Modicon Premium. Buyers value the dual output and the wide input range. Stock it with spare fuses and rack parts. Highlight the 50 W total power in listings. Mention the CE, UL, and CSA marks. Add clear rack notes to cut returns. Keep spare units on hand for urgent swaps.

FAQ

Q: What does the TSXPSY3610M do?

A: It supplies power to a Modicon Premium rack.

Q: Which input voltage does it accept?

A: It takes 24 V DC, from 19.2 to 30 V.

Q: How much power does it give?

A: It gives 50 W total useful secondary power.

Q: What are the two output rails?

A: It gives 24 V DC for relays and 5 V DC for logic.

Q: Does it protect against short circuits?

A: Yes. It protects the secondary against short circuits.

Q: What do the two LEDs show?

A: Green shows voltages are present. Red shows a battery fault.

Q: Can it ride through short power dips?

A: Yes. It handles microbreaks up to 1 ms.

Q: I see the red BAT LED on. What should I check?

A: Check the backup battery first. Replace it if it is old. Then cycle power and watch the LED again.

Q: My rack trips on start-up. Any advice?

A: Check the upstream protection device. Confirm the switch gear rating. Also check the 150 A inrush current against your breaker curve.

Q: How do I choose the right Premium supply module?

A: Add up your rack power needs first. Match the 24 V DC and 5 V DC loads. Check the input range and isolation. Then confirm the double format fits your rack. Ask about the 12 month warranty and 12 to 24 hour dispatch before you order. We ship by FedEx, UPS, and DHL.
