TM2AMO1HT Schneider Modicon M238 Analog Output Module 1 Channel

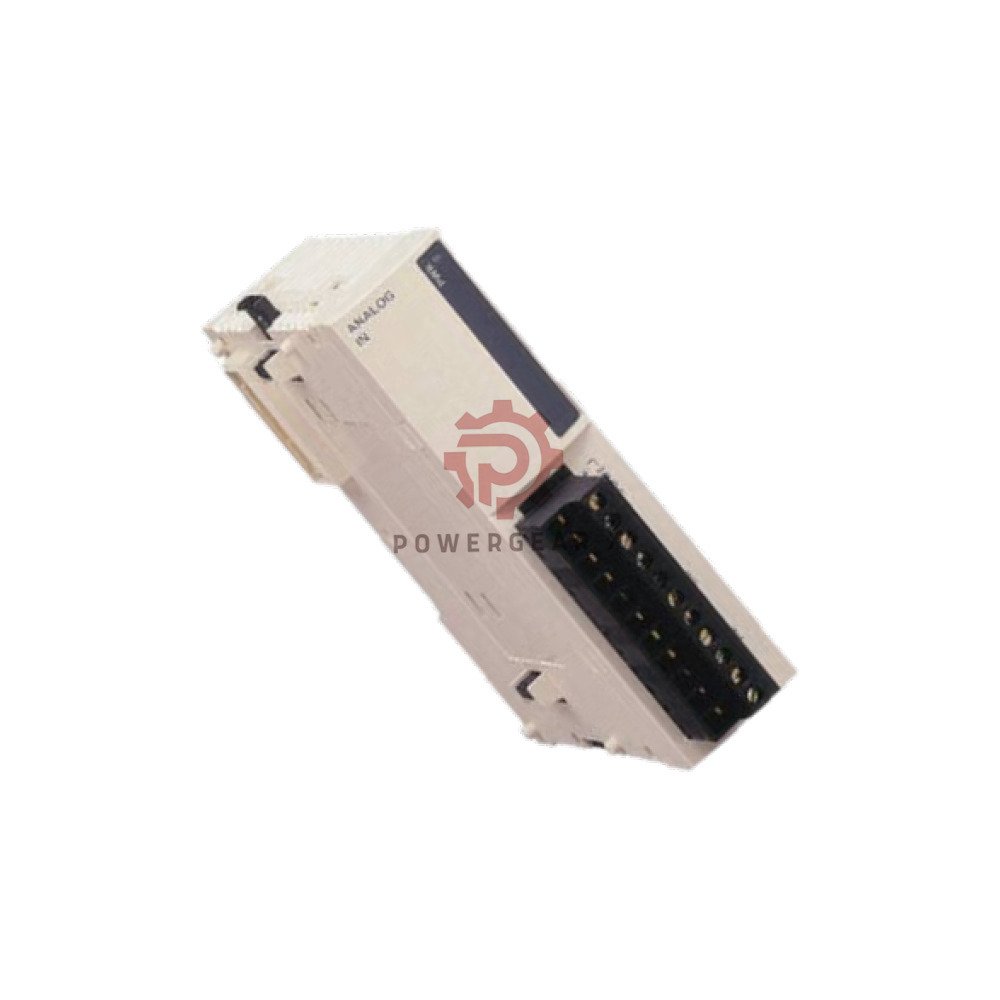

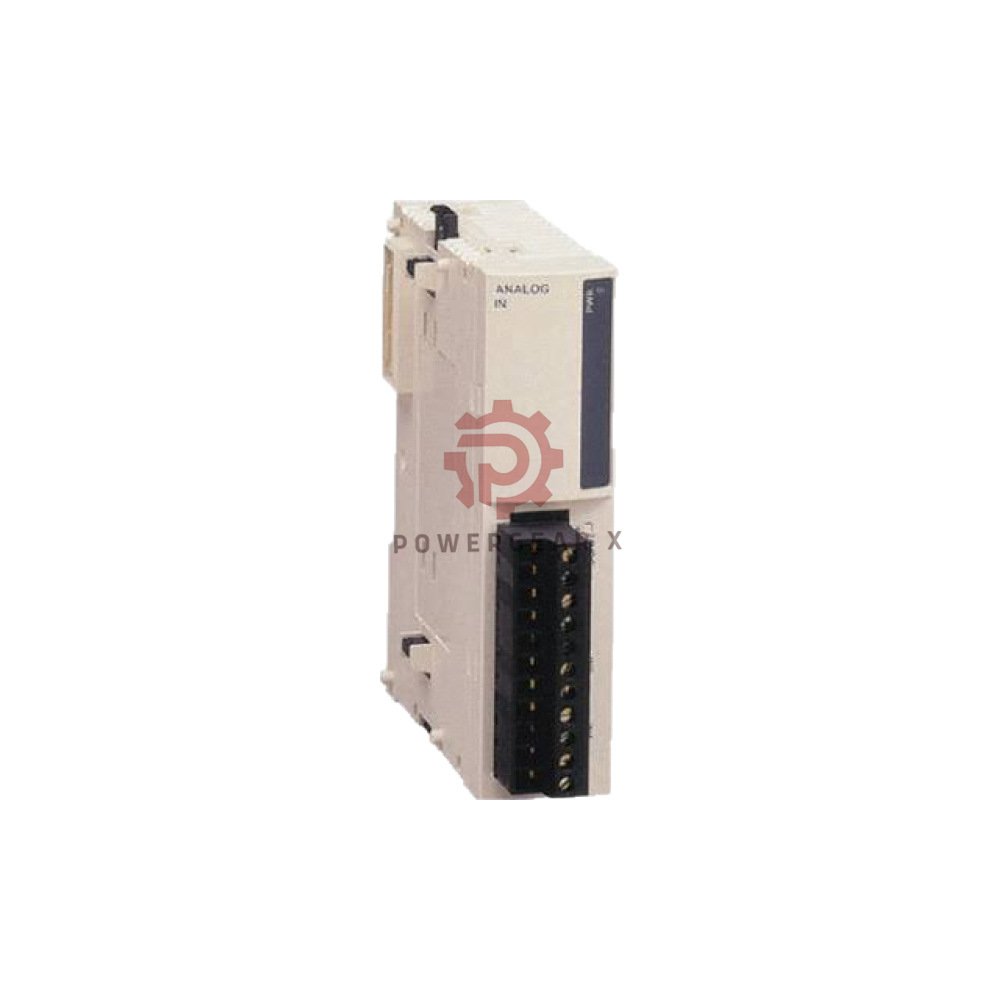

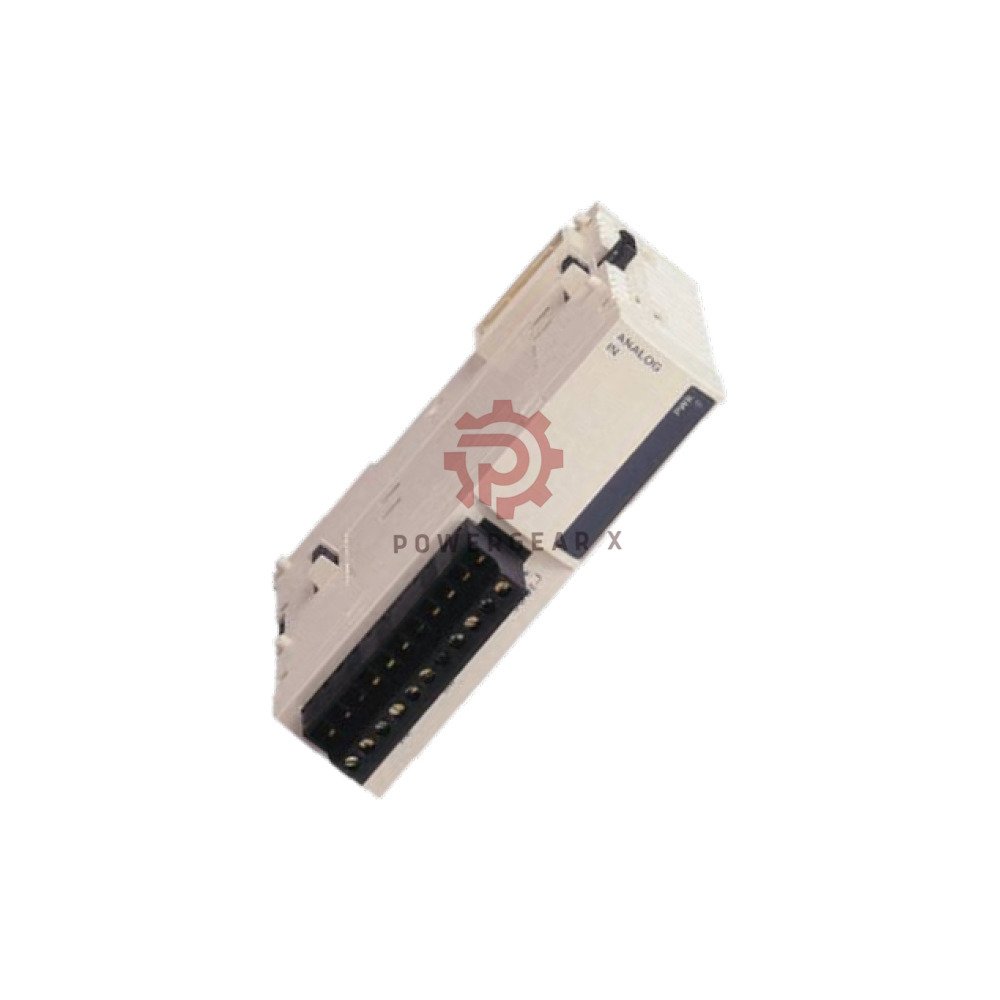

TM2AMO1HT Modicon M238 Analog Output Module

TM2AMO1HT is a single-channel analog output module for Modicon M238 logic controllers. It gives one voltage or current output. The module uses a removable screw terminal block. It fits Advantys OTB and Twido ranges too.

This module turns digital values into smooth analog signals. It drives valves, drives, and meters. The 12-bit resolution gives fine control. A photocoupler isolates the channel from internal logic. The unit needs an external 24 V DC supply.

Key Benefits

• One channel, two modes: 0…10 V or 4…20 mA.
• Fine control: 12-bit resolution.
• Safe design: photocoupler isolation.
• Easy wiring: removable screw terminal block.
• Wide compatibility: M238, Advantys OTB, and Twido.
• Stable output: low ripple and good repeat accuracy.

Technical Data

• Brand: Schneider Electric
• Model: TM2AMO1HT
• Series: Modicon M238
• Type: Analog output module
• Commercial status: Commercialised
• Analog outputs: 1
• Output type: Voltage 0…10 V
• Output type: Current 4…20 mA
• Resolution: 12 bits
• LSB value: 4.8 µA for current
• LSB value: 2.5 mV for voltage
• Load type: Resistive
• Load impedance: ≥ 2000 Ohm for voltage
• Load impedance: ≤ 300 Ohm for current
• Stabilisation time: 10 ms
• Conversion time: 10 ms plus 1 controller cycle
• Measurement error: ±0.2 % of full scale at 25 °C
• Temperature coefficient: ±0.015 %FS/°C
• Repeat accuracy: ±0.5 %FS
• Non-linearity: ±0.2 %FS
• Output ripple: ≤ 1 LSB
• Total error: ±1 %FS
• Cable type: Twisted shielded cable
• Isolation: Photocoupler between channel and internal logic
• Supply: External supply
• Rated supply voltage: 24 V DC
• Supply limits: 19.2…30 V
• Electrical connection: 1 removable screw terminal block
• Current consumption: 50 mA at 5 V DC internal
• Current consumption: 40 mA at 24 V DC external
• Weight: 0.085 kg

Measurement Range, Resolution, Accuracy, and Stability

• Measurement range: 0…10 V or 4…20 mA
• Resolution: 12 bits for fine step control
• Accuracy: ±0.2 % of full scale at 25 °C
• Linearity: ±0.2 %FS
• Repeat accuracy: ±0.5 %FS
• Total error: ±1 %FS
• Ripple: ≤ 1 LSB for a clean signal
• Stability: 10 ms stabilisation time

Temperature Range and Environmental Tolerance

• Temperature coefficient: ±0.015 %FS/°C
• Dielectric strength: 500 V between I/O and external supply
• Dielectric strength: 500 V between I/O and internal logic
• Isolation: photocoupler for noise immunity
• Cable: twisted shielded cable reduces interference

Anti-Interference Capability

• Photocoupler isolation: separates channel and logic.
• Shielded cable: cuts electrical noise pickup.
• 500 V dielectric strength: protects signal and supply circuits.
• Low ripple: ≤ 1 LSB keeps output steady.
• Stable error: ±1 %FS total error across the range.

Installation Guide

• Mounting: fit to the controller rack or base.
• Supply: use external 24 V DC, 19.2…30 V.
• Wiring: use the removable screw terminal block.
• Cable: use twisted shielded cable for best results.
• Load: keep voltage load ≥ 2000 Ohm.
• Load: keep current load ≤ 300 Ohm.
• Grounding: bond the shield to reduce noise.
• Check: verify output mode before power up.

Commissioning and Maintenance Convenience

• Removable terminal: speeds up wiring and swap outs.
• Clear mode choice: voltage or current by wiring.
• Fast response: 10 ms conversion plus one cycle.
• Simple checks: measure output with a calibrated meter.
• Low drift: stable readings over temperature.
• Few parts: one channel keeps maintenance simple.

Compatibility Notes

• Range compatibility: Advantys OTB
• Range compatibility: Twido
• Primary range: Modicon M238 logic controller
• Connection: 1 removable screw terminal block
• Supply: external 24 V DC

Certifications

• Commercial status: Commercialised
• Category: 22531 – PLCS, TWIDO, TWD
• GTIN: 00785901665588
• Package units: 1

Packing List

• 1x TM2AMO1HT analog output module
• 1x removable screw terminal block
• 1x documentation set
• Note: controller and cables ship separately.

Warranty and Shipping

• Warranty: 12 months.
• Dispatch: 12-24 hours after order confirmation.
• Couriers: FedEx, UPS, and DHL.
• Tracking: shared once the parcel leaves our warehouse.
• Support: contact sales@powergearx.com or +86 18030005825.

Expert Review

The TM2AMO1HT is a solid pick for simple analog control. It gives one clean channel with 12-bit resolution. The 0…10 V and 4…20 mA modes cover most field devices. The photocoupler isolation and shielded cable support reduce noise problems. The ±0.2 %FS accuracy at 25 °C suits many process tasks. The removable terminal block makes service easy. For small panels, this module adds analog output without a big footprint.

Manager’s Insight

Buyers often need a low-cost way to add one analog output. This module meets that need. It works with Modicon M238, Advantys OTB, and Twido. That wide fit lowers stock risk. The module ships fast and carries a 12-month warranty. Keep it on hand for valve, drive, and meter projects. Reach our team at sales@powergearx.com or +86 18030005825 for stock checks.

Suitable Equipment and Applications

• Valve control: proportional valves and dampers.
• Drive control: speed and torque reference signals.
• Process meters: analog indicators and recorders.
• Temperature loops: heater and cooler control.
• Flow control: pumps and dosing systems.
• Retrofit panels: add analog output to older bases.

FAQ

• Q: Which output modes does this module support?
  A: It supports 0…10 V voltage and 4…20 mA current.
• Q: How many outputs does it have?
  A: It has one analog output channel.
• Q: What supply does it need?
  A: It needs an external 24 V DC supply from 19.2…30 V.
• Q: What is the load limit for voltage mode?
  A: Keep the load at 2000 Ohm or higher.
• Q: What is the load limit for current mode?
  A: Keep the load at 300 Ohm or lower.
• Q: How do I reduce signal noise?
  A: Use twisted shielded cable and bond the shield to ground.
• Q: What is the output resolution?
  A: It uses 12-bit resolution.
• Q: How fast does it convert a signal?
  A: Conversion takes 10 ms plus one controller cycle.
• Q: What is the accuracy at 25 °C?
  A: It is ±0.2 % of full scale.
• Q: Does it isolate the output?
  A: Yes. A photocoupler isolates the channel from internal logic.
• Q: Can I use it with Twido?
  A: Yes. It fits Twido and Advantys OTB ranges.
• Q: What is the warranty?
  A: It comes with a 12-month warranty.
• Q: How fast do you ship?
  A: We dispatch in 12-24 hours via FedEx, UPS, or DHL.
• Q: How do I pick the right analog module?
  A: Match the output type, channel count, and load to your device.
• Q: What if my device needs two channels?
  A: Choose a two-channel module or add a second unit.
• Q: How do I get stock and lead time?
  A: Email sales@powergearx.com or message +86 18030005825.

Buying Guide

• Step 1: Check the signal type your device needs.
• Step 2: Confirm the load impedance is in range.
• Step 3: Count the channels you need.
• Step 4: Check the supply voltage is 24 V DC.
• Step 5: Plan shielded cable and grounding.
• Step 6: Confirm base compatibility: M238, OTB, or Twido.
• Step 7: Order spare modules for critical lines.
• Step 8: Contact sales@powergearx.com or +86 18030005825 for help.
