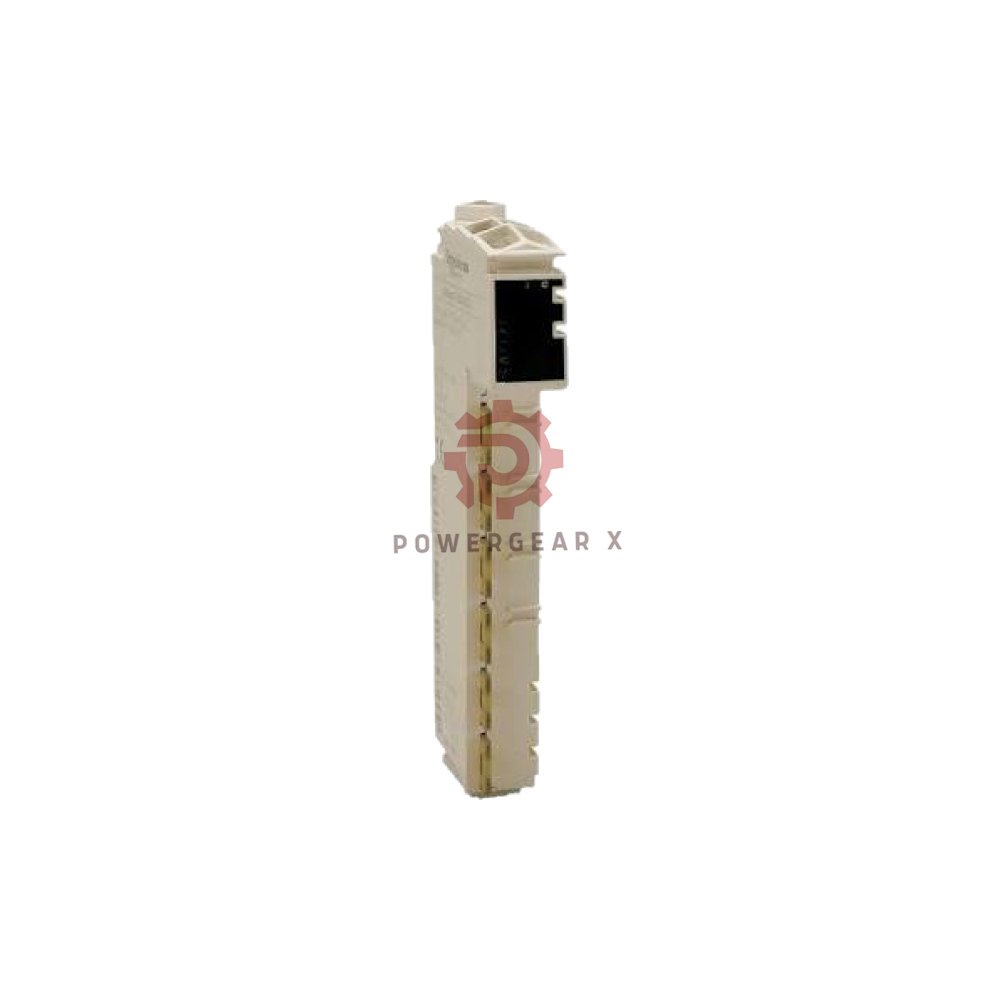

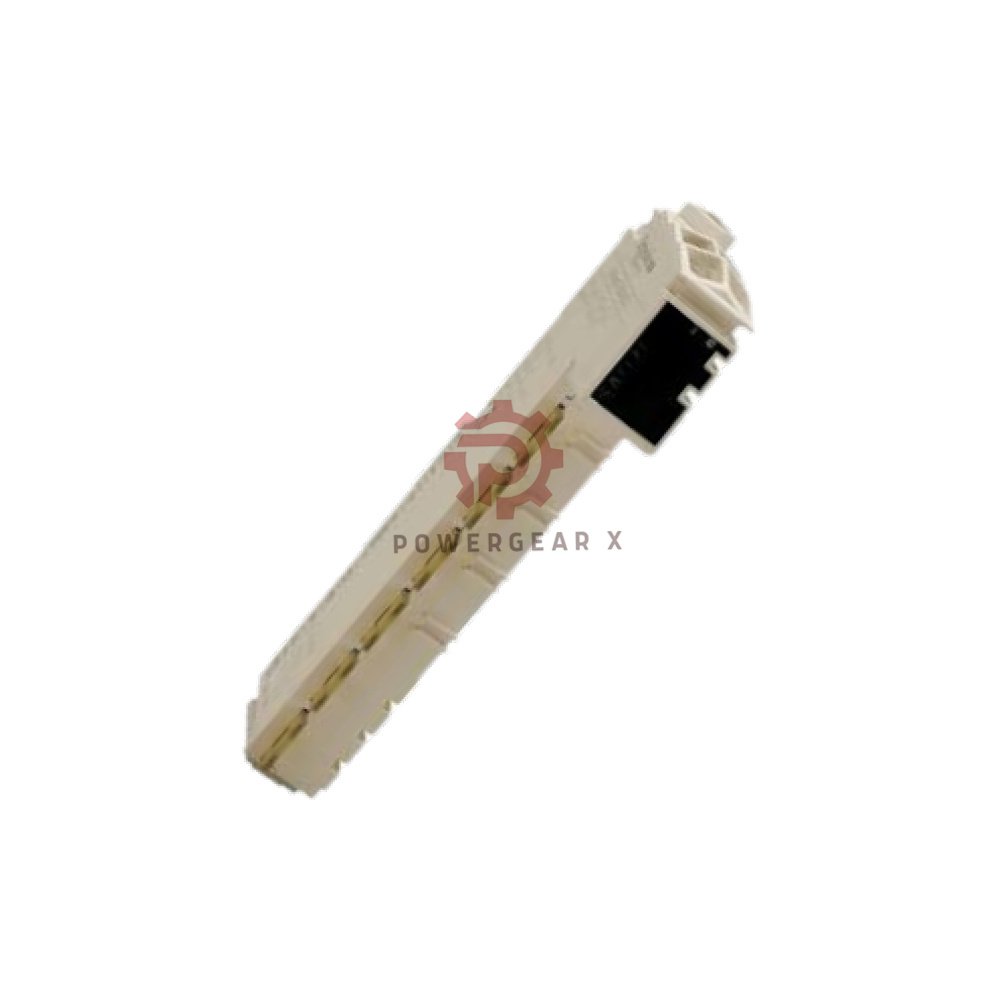

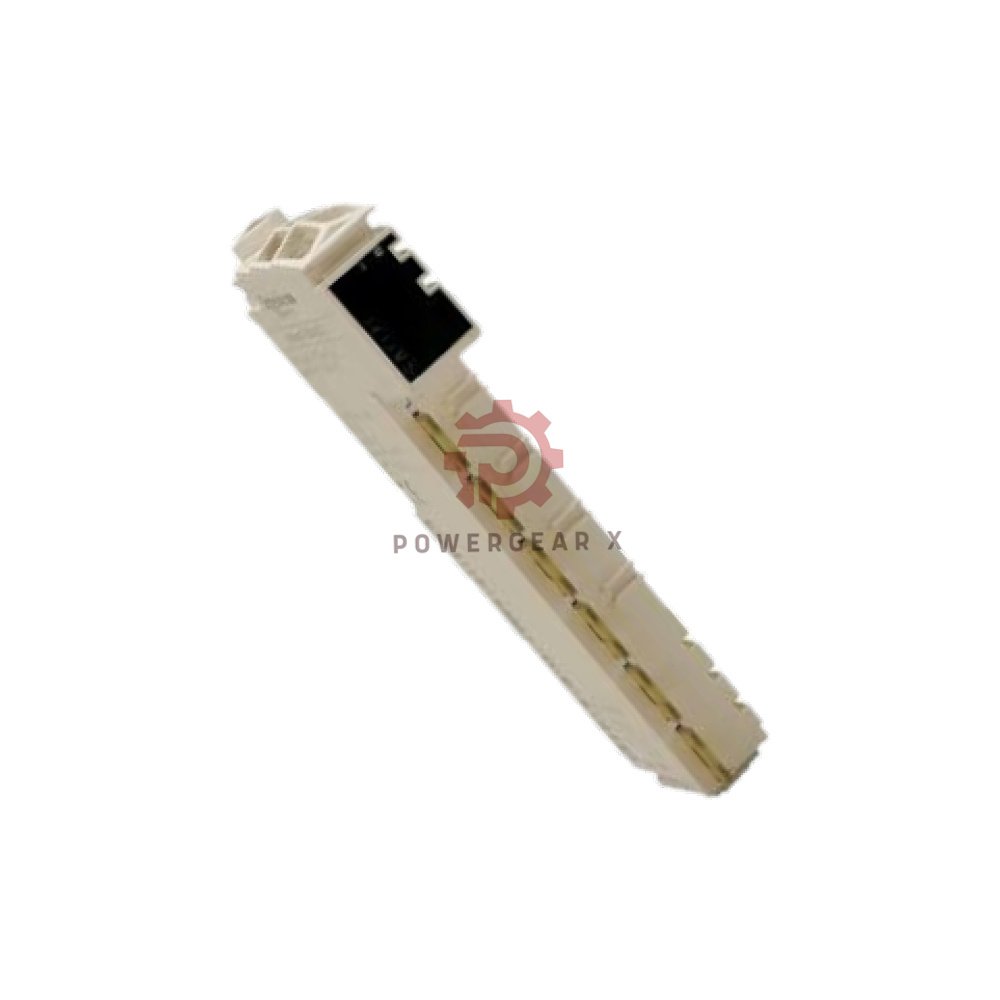

TM5SAI4L Modicon TM5 Analog Input Module 4-Channel Schneider New

TM5SAI4L Schneider Analog Input Module for Modicon TM5

TM5SAI4L is a compact analog input module. It belongs to the Modicon TM5 series. This module reads four signals at once. You can set each channel for voltage or current. It uses 12-bit resolution for steady data. The unit is slim and light. It fits tight cabinet spaces. Wiring is simple with the TM5 bus. Use it for fast machine control. The TM5SAI4L works with many M241, M251, M258, and LMC058 platforms.

I/O Specifications

• Module type
  • Analog input
  • Voltage or current per channel
• Channels
  • 4 inputs
• Signal type
  • ±10 Vdc
  • 0-20 mA
  • 4-20 mA
  • Software configurable per channel
• Range
  • ±10 V
  • 0-20 mA
  • 4-20 mA
• Resolution
  • 12 bits signed
  • ±10V: -32768 to +32767
• Accuracy
  • ±0.3% of full scale at 25 °C
  • ±0.5% FS over temperature
• Isolation
  • No isolation between channels
  • 500 Vrms AC between channels and bus
• Diagnostics
  • Channel status: below lower limit
  • Above upper limit
  • Wire break for 4-20 mA
  • ModuleOK
  • DcOk
  • NetworkOk
• Response time
  • Configurable input cycle
  • Filter off or level 2-128
  • Channel offset 200 µs
  • Sampling 1 ms or 300 µs per channel

Electrical

• Supply voltage
  • 24 Vdc
  • Via TM5 bus or power distribution module
• Power consumption
  • 1.2 W
• Bus current
  • 3 mA at 5 V DC (TM5 bus)
  • 10 mA at 24 V DC

Environmental

• Operating temperature
  • 0 to +55 °C
• Storage temperature
  • -25 to +70 °C
• Protection rating
  • IP20

Physical

• Dimensions (H×W×D)
  • 99 × 12.5 × 75 mm
• Weight
  • 0.025 kg

Compatibility

• Compatible platforms
  • Modicon M241
  • Modicon M251
  • Modicon M258
  • Modicon LMC058

Status

• Lifecycle
  • Active
  • Last verified: 2026-09
  • Modicon TM5 distributed I/O platform
  • For M258, M340, M580

Expert Review

The TM5SAI4L is a smart pick for small to mid machines. Four channels in a 12.5 mm body saves rail space. The per-channel software setup means one module does many jobs. Accuracy of ±0.3% is good for most factory loops. The 300 µs sampling speed helps fast feedback tasks. But note: channels share a common ground. For noisy plants, use shielded wire or pick an isolated module. The wire break check on 4-20 mA saves troubleshooting time. This module is a workhorse for TM5 users.

Manager’s Insight

Stock this TM5SAI4L next to M241 and M251 CPUs. Integrators love the slim design. It cuts panel cost. The 4-channel layout also lowers part count. Offer a bundle with a 24 V power module and shielded cable. That cuts support calls. Train your team on the non-isolated channels. This stops returns. The 12-month warranty is a strong selling point. Ship via FedEx, UPS, or DHL within 12-24 hours. Keep two units on the shelf for urgent jobs.

Best Fit Devices and Applications

• Devices
  • Modicon M241
  • Modicon M251
  • Modicon M258
  • Modicon LMC058
  • TM5 distributed I/O islands
• Applications
  • Pressure sensing
  • Flow metering
  • Tank level control
  • Temperature loops
  • Position feedback
  • Small packaging lines
  • Water treatment skids

FAQ

Q: Can I mix voltage and current inputs on one TM5SAI4L?
A: Yes. Each channel is set in software. One channel can read 0-10 V. Another can read 4-20 mA. No hardware jumper is needed.

Q: What does the wire break diagnostic do?
A: It watches the 4-20 mA loop. If the wire opens, the module flags a fault. The controller can then stop the machine or raise an alarm. This saves time during startup.

Q: Do I need a separate power supply for this module?
A: No. It draws power from the TM5 bus. You only need the standard 24 Vdc supply for the bus. The module uses 1.2 W.

Q: How fast can this module read a signal?
A: It can sample at 300 µs per channel. You can also set a filter level from 2 to 128. A higher filter gives steadier readings but slower response. Pick the setting for your loop speed.

Q: What is the warranty and shipping time?
A: Every TM5SAI4L comes with a 12-month warranty. We ship within 12-24 hours after payment. We use FedEx, UPS, and DHL. Contact sales@powergearx.com or +86 18030005825 for stock checks.

Q: How do I pick the right analog module for my panel?
A: Count your input points first. This unit gives four. Check your signal type: voltage or current. Confirm your PLC supports TM5. Then check space. This module is only 12.5 mm wide. For noisy sites, add shielded cable. For long runs, think about isolation. Ask us for a free selection guide.

Q: Is this module still active?
A: Yes. The lifecycle is active as of 2026-09. It works with M258, M340, and M580 platforms. You can still buy new units.

Buying Guide

• Confirm your controller: M241, M251, M258, or LMC058.
• Check your signal type per channel.
• Add shielded cable for noisy areas.
• Order a 24 Vdc power module if needed.
• Ask for a bundle to save on shipping.
• Contact sales@powergearx.com or WhatsApp +86 18030005825 for volume pricing.
