Product details

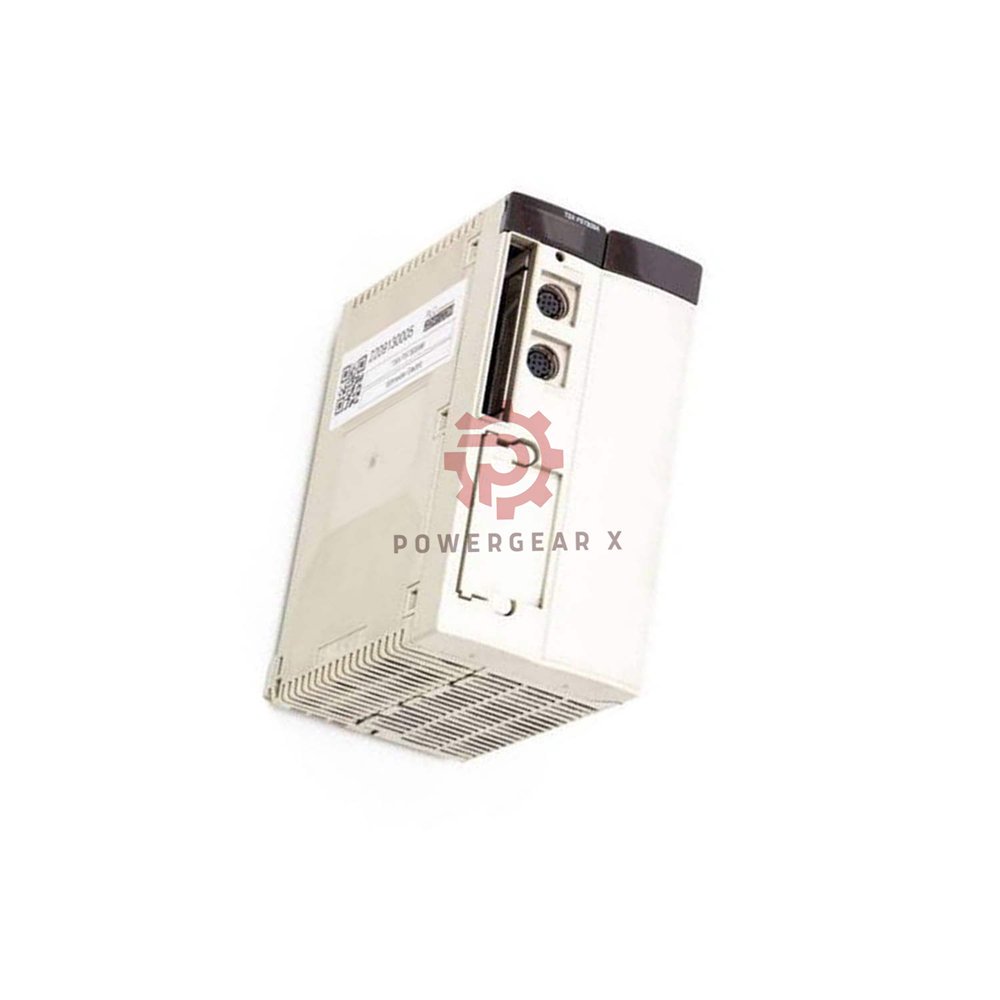

TSXP57303AM – Modicon Premium Double Format PL7 Processor
High-performance automation processor for Modicon Premium platforms. Supports PL7 Junior/Pro software. Ideal for complex discrete and analog control applications.
Key Features
- Processor Type: Double-format PL7 processor for Modicon Premium
- Memory: 64 Kwords internal RAM (program & data), expandable via PCMCIA
- I/O Capacity: 1024 discrete I/O, 128 analog I/O, 32 application-specific channels
- Communication: Non-isolated serial link, up to 115 kbit/s
- Processing Speed: Boolean 0.12 µs, floating point 2.5 µs (without PCMCIA)
- Environmental: 0…60 °C operation, IP20, pollution degree 2
Technical Specifications
- Brand: Schneider Electric
- Model: TSXP57303AM
- Series: Modicon Premium Automation Platform
- Processor Type: Double-format PL7 processor
- Software: PL7 Junior/Pro
- Rack Support: 16 racks (4/6/8 slots) or 8 racks (12 slots)
- Total Slots: 128, 96, or 64 (depending on rack)
- Discrete I/O Capacity: 1024 I/O
- Analog I/O Capacity: 128 I/O
- Application Channels: 32 dedicated channels
- Process Control: 15 to 45 simple loops
- Integrated Communication: Non-isolated serial link (2 female mini DIN, 19.2/115 kbit/s)
- Fieldbus Modules: 2 fieldbus modules (1 if CANopen used), 8 AS-Interface, 1 CANopen, 3 network modules
- Internal RAM (with PCMCIA): 80 Kwords data
- Internal RAM (without PCMCIA): 64 Kwords program & data
- PCMCIA Card: 2688 Kwords data storage, 384 Kwords program
- Object Areas: 16384 %Mi bits, 30.5 %MWi words, 32 %KWi constant words
- Application Structure: 1 master task, 64 event tasks, 1 fast task
- Execution Time (without PCMCIA): Boolean 0.12 µs, fixed-point 0.17 µs, floating 2.5 µs
- Execution Time (with PCMCIA): Boolean 0.17 µs, fixed-point 0.33 µs, floating 2.6 µs
- Instructions per ms (without PCMCIA): 6.57 (100% Boolean), 4.7 (65% Boolean + 35% fixed)
- Instructions per ms (with PCMCIA): 4.49 (100% Boolean), 3.08 (65% Boolean + 35% fixed)
- System Overhead: 0.29 ms fast task, 1.15 ms master task
- Current Consumption: 1000 mA at 5 V DC
- Module Format: Double
- Weight: 0.52 kg (1.15 lb)
- Protection: IP20, pollution degree 2
Environmental & Certifications
- Operating Temperature: 0…60 °C (32…140 °F)
- Storage Temperature: -25…70 °C (-13…158 °F)
- Humidity (Operation): 10…95 % non-condensing
- Humidity (Storage): 5…95 % non-condensing
- Altitude: 0…2000 m (0…6561.68 ft)
- Standards: CSA C22.2 No. 213, IEC 61131-2, UL 508, 89/336/EEC, 73/23/EEC, 93/68/EEC, 92/31/EEC
- Certifications: RMRS, GL, BV, LR, ABS, DNV, RINA
- Marking: CE
- Protective Treatment: TC
Installation, Compatibility & Maintenance
- Installation: Standard DIN rail or panel mount. Ensure proper grounding and cooling.
- Compatibility: Fully compatible with Modicon Premium racks and PL7 software suite.
- Debug & Maintenance: On-board LEDs (RUN, I/O, ERR, TER) for quick diagnostics. Easy firmware updates via PCMCIA.
- Interference Immunity: Designed for industrial environments with high EMI/EFI resilience.
Applications & Suitability
- Ideal For: Medium to large-scale automation systems, process control, and manufacturing lines.
- Typical Use Cases: Discrete manufacturing, material handling, packaging, and simple loop process control.
- Works With: Modicon Premium I/O modules, fieldbus devices (CANopen, AS-Interface), and network interfaces.
Expert Review
The TSXP57303AM offers a balanced mix of processing power and I/O capacity. Its dual memory architecture (internal + PCMCIA) allows flexible program and data storage. The fast Boolean processing (0.12 µs) makes it suitable for high-speed logic applications. With 32 application channels and up to 45 control loops, it adapts to complex automation tasks. A reliable choice for system integrators seeking robust performance.
Manager’s Insight
From a procurement perspective, this processor provides excellent value. Its scalability via PCMCIA and modular rack system reduces total cost of ownership. The wide temperature range and industry certifications (UL, CSA, DNV, etc.) ensure global deployment. Easy maintenance and clear diagnostic LEDs minimize downtime. Recommended for critical control systems requiring long-term stability.
Package & Logistics
- Package Contents: TSXP57303AM processor unit, user manual, and PCMCIA slot cover.
- Warranty: 12 months against manufacturing defects.
- Shipping: 12-24 hours dispatch via FedEx, UPS, or DHL.
- Return Policy: Non-returnable (as per original manufacturer policy).
Frequently Asked Questions
- What software is compatible?PL7 Junior or PL7 Pro. Both support all programming and configuration features.
- Can I expand memory beyond internal RAM?Yes. Insert a PCMCIA card for up to 2688 Kwords data or 384 Kwords program storage.
- What is the maximum number of I/O points?Supports 1024 discrete I/O and 128 analog I/O channels concurrently.
- Is this processor suitable for harsh environments?Yes. Operates at 0…60 °C, 10-95% humidity, and complies with industrial immunity standards.
- How do I troubleshoot a fault?Check the front LEDs (RUN, ERR, I/O, TER). Refer to the diagnostic section in the PL7 software.
- Can I use this with CANopen devices?Yes, but it reduces the fieldbus module capacity to 1 (instead of 2).
- What is the typical delivery time?Orders placed before 2 PM ship within 12-24 hours via FedEx, UPS, or DHL.
Selection Guide
- For high-speed logic: Choose this processor; Boolean execution is 0.12 µs.
- For large data storage: Add a PCMCIA card (up to 2688 Kwords).
- For mixed I/O: Supports 1024 discrete + 128 analog, ideal for hybrid processes.
- For multi-rack systems: Supports up to 16 racks, expandable to 128 slots.
- Ensure software compatibility: Use PL7 Junior/Pro; older versions may lack some features.
