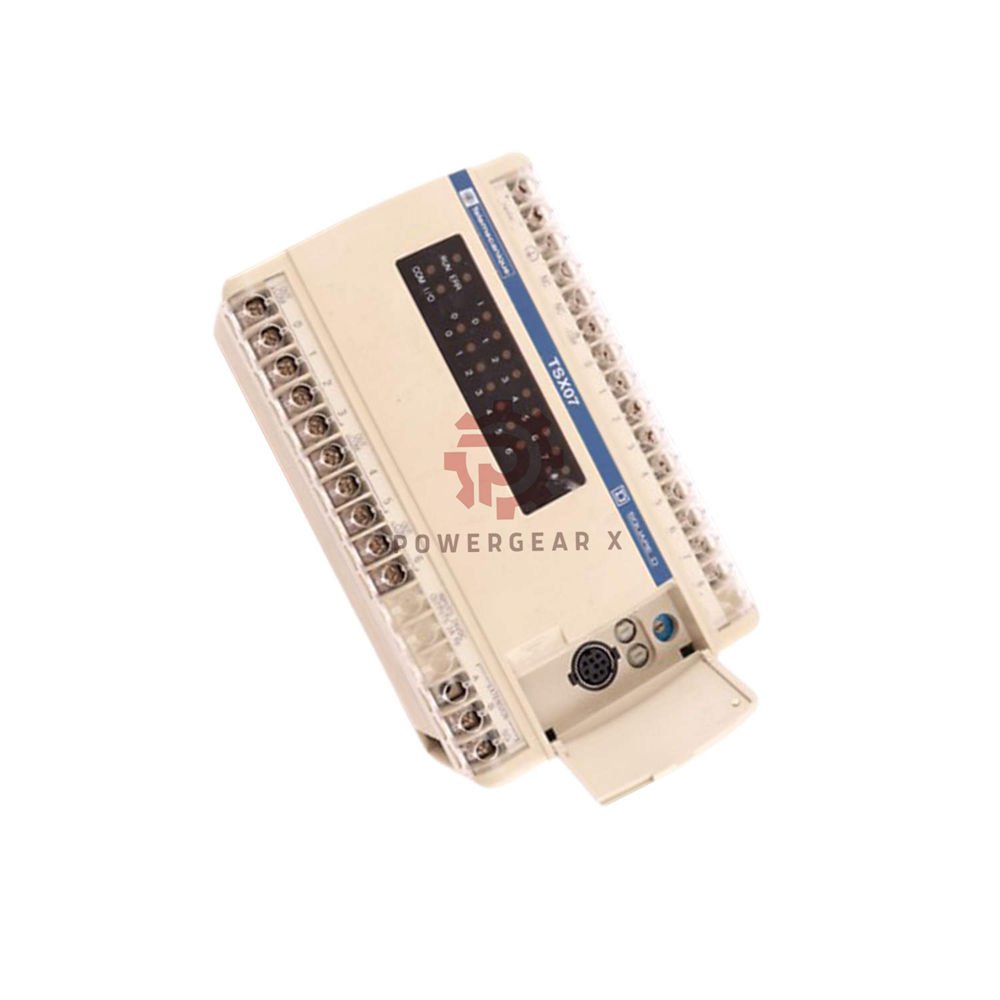

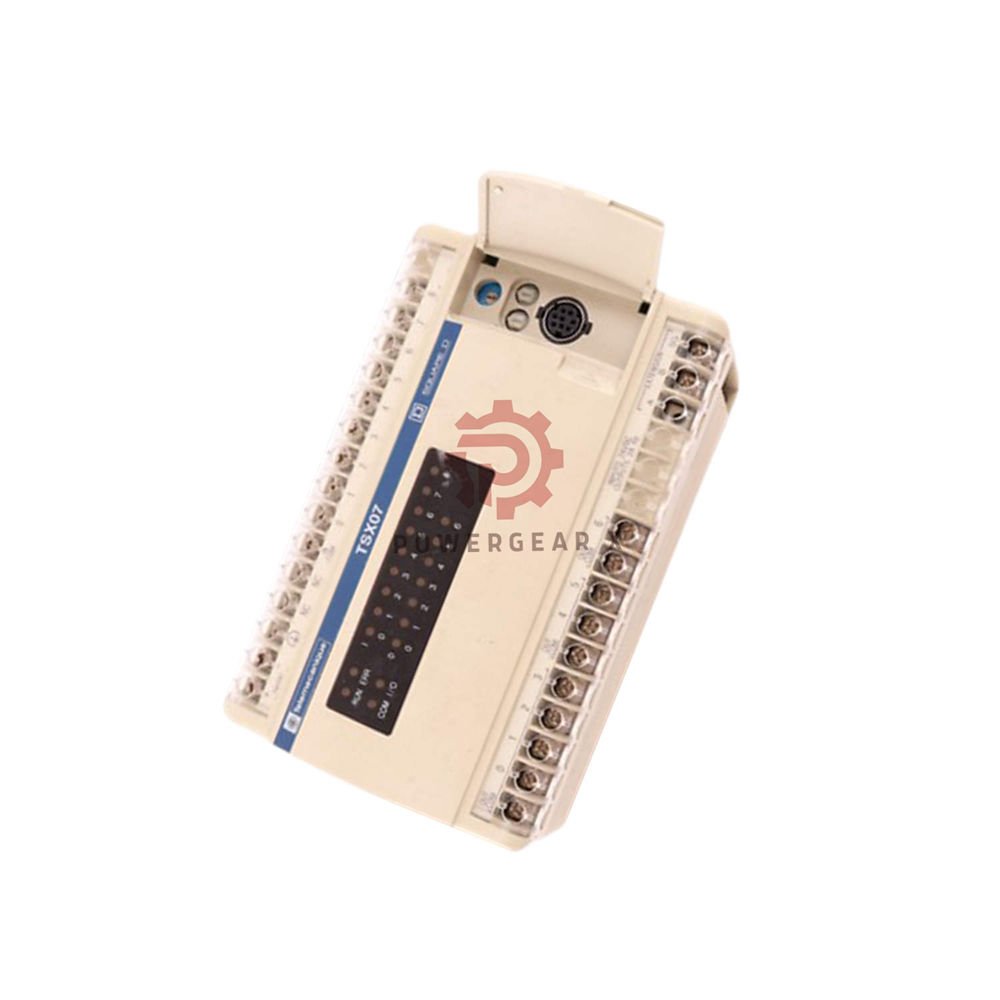

TSX07211622 Programmable Logic Controller by Schneider Electric

TSX07211622 is a programmable logic controller from Schneider Electric. It runs on 24 VDC nominal voltage. Also, it supports dual-rated output for AC and DC use. Moreover, it fits many industrial jobs.

Quick Highlights

• Brand: Schneider Electric
• Model: TSX07211622
• Series: TSX Micro PLCs
• Type: Programmable Logic Controller
• Power: 24 VDC nominal
• Output: Relay-based switching
• Mounting: Fixed DIN rail

Technical Data

• Power Supply Voltage: 24 VDC nominal
• Input Voltage Tolerance: 24 VDC ±10%
• Input Current per Channel: 13 mA @ 24 VDC
• Input Compatibility: Sinking and sourcing
• Output Current Capacity: 2 A per channel
• Load Support: Resistive and inductive
• Output Voltage Range: 240 VAC / 30 VDC
• Output Type: Relay-based switching
• Output Contact Configuration: Form-C (SPDT)
• Mounting Configuration: Compact brick-style housing
• DIN Rail Mounting: Fixed

Compatible Devices and Applications

• Material handling systems
  • Conveyor control
  • Sorting lines
• Packaging machines
  • Filling stations
  • Sealing units
• Textile machinery
  • Winding control
  • Loom systems
• Industrial control panels
• Compact automation systems

Installation Notes

• First, power off the panel before you start.
• Then mount the unit on a fixed DIN rail.
• Also, check input voltage within 24 VDC ±10%.
• Next, wire channels for sinking or sourcing use.
• Besides, keep the area dry and clean.

Setup and Care

• Label each channel for fast service.
• Also, check relay contacts during upkeep.
• Then test outputs under real load.
• Avoid heavy shocks and strong vibration.
• Finally, keep spare relays on hand.

Warranty and Shipping

• Warranty: 12 months
• Dispatch: 12 to 24 hours
• Couriers: FedEx, UPS, DHL
• Email: sales@powergearx.com
• WhatsApp: +86 18030005825

Expert Review

The TSX07211622 is a solid pick for small control jobs. It runs on 24 VDC with a wide tolerance. Also, it handles both AC and DC output. Moreover, the relay output supports 2 A per channel. It is easy to mount on a DIN rail. Therefore, it suits many factory setups.

Manager’s Insight

Buyers often need a compact PLC with flexible output. The TSX07211622 meets that need. It supports sinking and sourcing input. Also, it drives resistive and inductive loads. Moreover, it comes from a trusted brand. So, it is a low-risk choice for system builders.

FAQ

Q: What voltage does TSX07211622 need?

A: It runs on 24 VDC nominal. Also, it allows ±10% tolerance.

Q: Can it switch both AC and DC loads?

A: Yes. Its relay output is dual-rated for 240 VAC or 30 VDC.

Q: How much current can each output handle?

A: Each channel handles up to 2 A.

Q: Does it support sinking and sourcing input?

A: Yes. It works with both input types.

Q: How fast do you ship, and what is the warranty?

A: We dispatch in 12 to 24 hours by FedEx, UPS, or DHL. Also, it has a 12-month warranty.

Buying Guide

• First, count your input and output points.
• Then check if 2 A per channel is enough.
• Also, confirm your panel has DIN rail space.
• Next, match the output type to your load.
• Finally, ask us for fit help before order.
