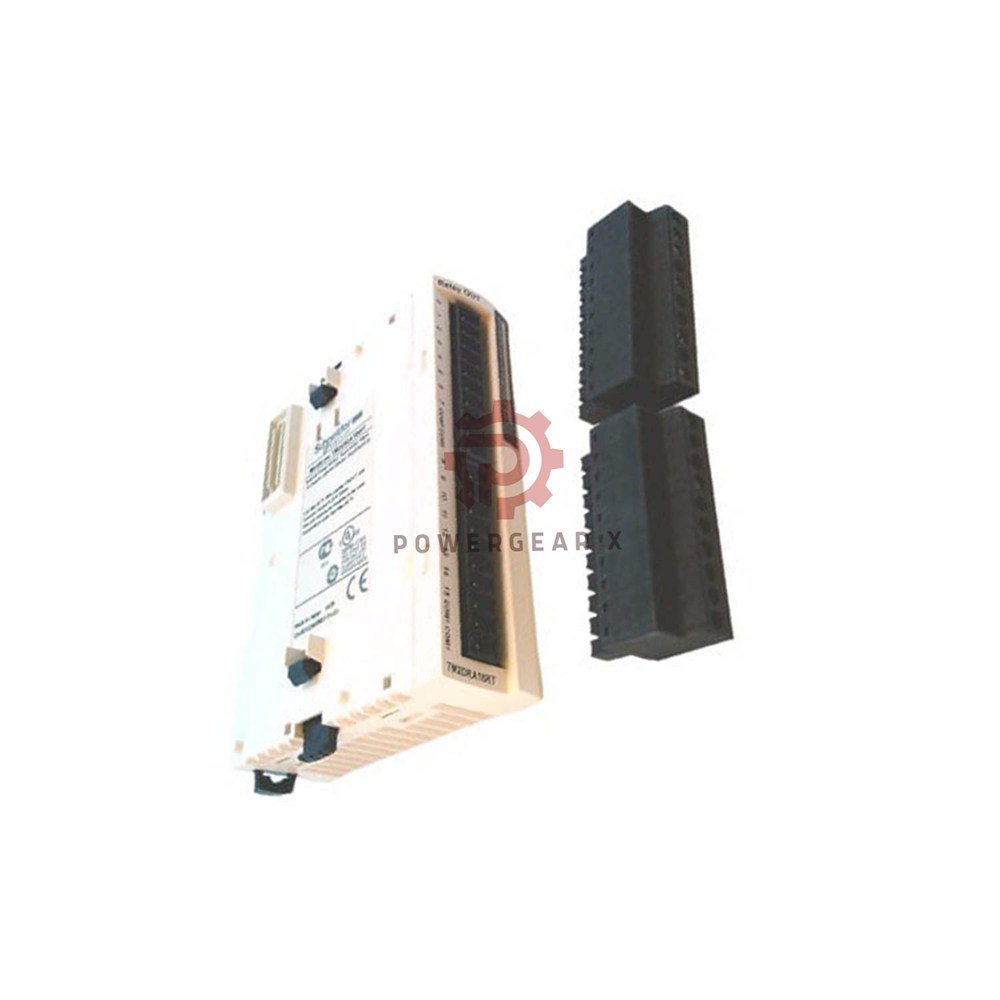

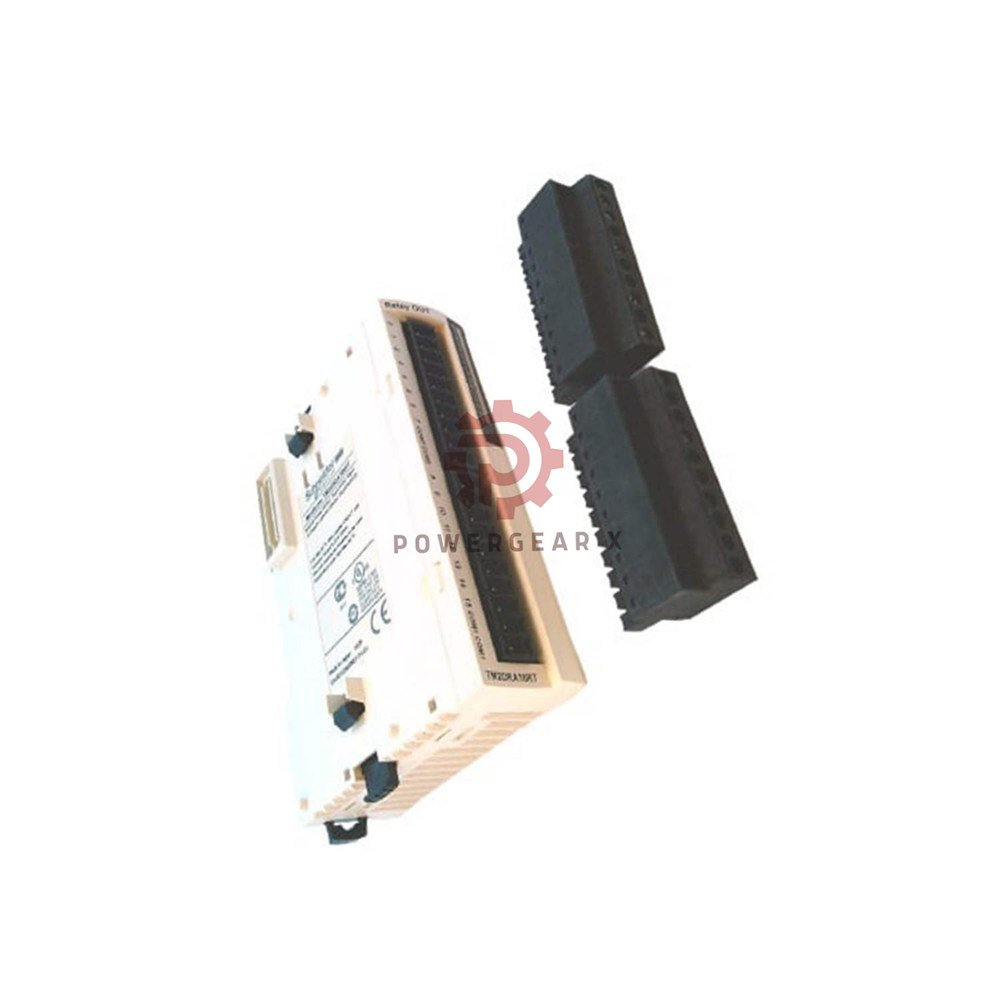

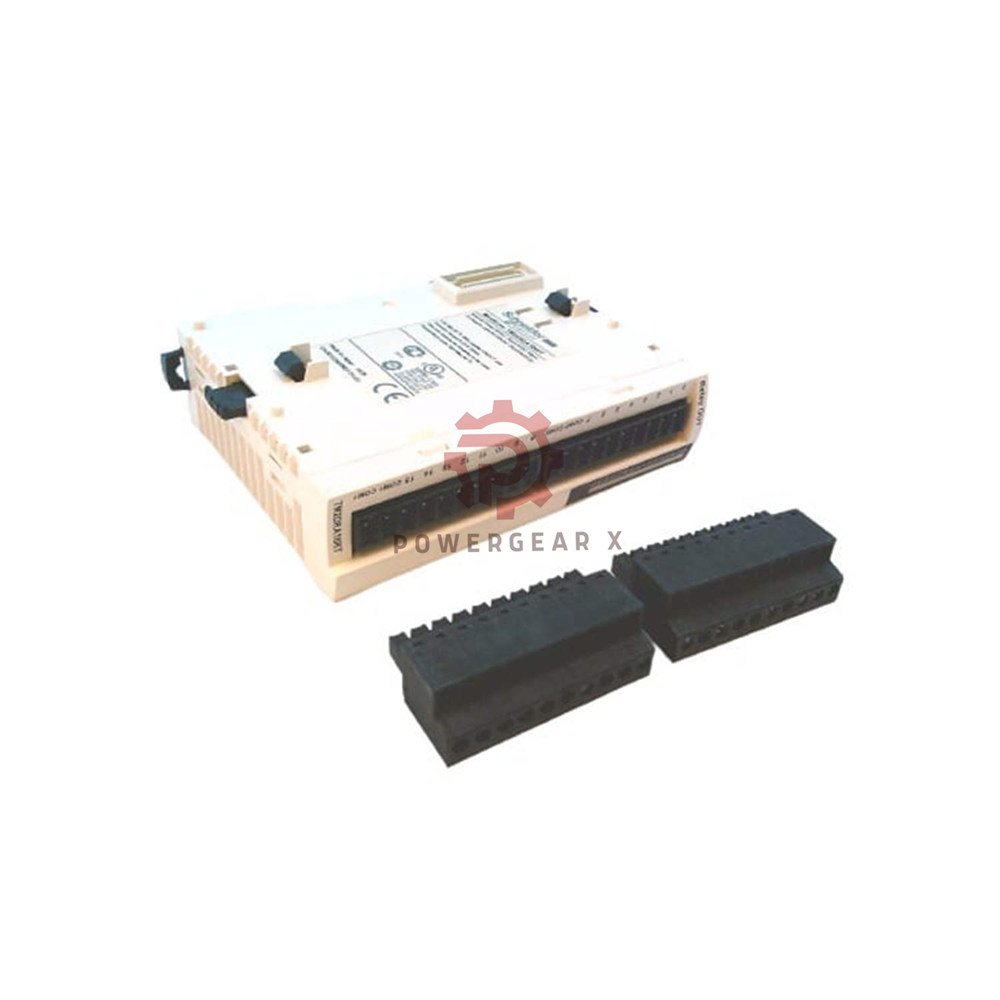

TM2DRA16RT Schneider Electric Modicon M238 Discrete Output Module 16 Relay

TM2DRA16RT Schneider Electric Modicon M238 Discrete Output Module 16 Relay Outputs

The TM2DRA16RT is a discrete output module for the Modicon M238 logic controller. It packs 16 relay outputs into a slim body. Each channel handles up to 2 A. Two common points allow flexible wiring. The module uses a removable screw terminal block. That makes service fast and simple. It mounts on a 35 mm DIN rail. The unit is also a Green Premium product. So it meets strict eco rules.

Technical Data

• Brand: Schneider Electric
• Model: TM2DRA16RT
• Series: Modicon M238 logic controller
• Type: Discrete output module
• Output Count: 16
• Output Type: Relay
• Output Function: 1 NO
• Current per Channel: 2 A
• Current per Common: 8 A
• Common Points: 2
• Contact Resistance: 45 mOhm or less
• Response Time 0 to 1: 10 ms or less
• Response Time 1 to 0: 5 ms or less
• Minimum Switching: 0.1 mA at 0.1 V DC
• Isolation Between Channels: 1500 V for 1 minute
• Isolation Channel to Logic: 2300 V for 1 minute
• Isolation Between Groups: 1500 V for 1 minute
• Mechanical Durability: 20,000,000 cycles
• Electrical Durability: 100,000 cycles at 0.5 A AC-15 240 V AC
• Electrical Durability: 100,000 cycles at 1 A AC-15 240 V AC
• Electrical Durability: 100,000 cycles at 1 A DC-13 24 V DC
• Electrical Durability: 100,000 cycles at 2 A 240 V AC resistive
• Electrical Durability: 100,000 cycles at 2 A 30 V DC resistive
• Current Use: 30 mA at 5 V DC, 40 mA at 24 V DC
• Local Signalling: 1 display block
• Connection: 1 removable screw terminal block
• Mounting: 35 mm symmetrical DIN rail
• Weight: 0.145 kg
• Depth: 84.6 mm
• Height: 90 mm
• Width: 27.3 mm
• Compatibility: Advantys OTB, Twido
• Sustainability: Green Premium product
• RoHS: Compliant since 1039
• REACh: No SVHC above threshold
• Environmental Profile: Available
• End of Life Instructions: Available

Expert Review

The TM2DRA16RT is a workhorse for relay output jobs. Sixteen channels save rack space. The 2 A per channel rating drives many loads. Two commons give wiring freedom. The 20 million mechanical cycles show strong build quality. The screw terminal block makes swaps quick. Isolation ratings add safety. For small panels that need many relay points, this module is a smart pick.

Manager’s Insight

Buyers want fast delivery and low risk. The TM2DRA16RT meets both. It ships in 12–24 hours. It carries a 12-month warranty. Couriers include Fedex, UPS, and DHL. The module fits Modicon M238, Twido, and Advantys OTB systems. That range cuts setup time. For teams that need reliable relay outputs, this model is a safe buy. Reach us at sales@powergearx.com or +86 18030005825 for stock and price.

Best Fit Devices and Applications

• Relay and contactor control
• Lamp and indicator panels
• Valve and damper drive
• Small machine control
• Packaging lines
• Pump and fan starters
• Building control panels
• Retrofit of Twido and M238 systems

FAQ

How many outputs does this module give?

It gives 16 relay outputs in one unit.

How much current can each channel take?

Each channel handles up to 2 A.

How much current can each common point take?

Each common point takes up to 8 A.

How fast does the relay switch?

It turns on in 10 ms or less. It turns off in 5 ms or less.

What is the isolation strength?

Channels isolate at 1500 V for 1 minute. Logic isolates at 2300 V for 1 minute.

How long does the relay last?

Mechanical life reaches 20,000,000 cycles. Electrical life hits 100,000 cycles at rated loads.

How does it connect to wires?

It uses a removable screw terminal block. That makes wiring and swaps easy.

How do I mount it?

Clip it onto a 35 mm DIN rail.

Which systems does it work with?

It works with Modicon M238, Twido, and Advantys OTB.

Is it eco friendly?

Yes. It is a Green Premium product and follows RoHS rules.

How fast do you ship?

We dispatch in 12–24 hours.

Which couriers do you use?

We use Fedex, UPS, and DHL.

What warranty do you offer?

We offer a 12-month warranty.

How do I pick the right output module?

Count your output points first. Check the load current and voltage. Then match them with the TM2DRA16RT specs. Ask our team at sales@powergearx.com for help.

Can it replace older Twido output cards?

In many cases, yes. Check rack type, wiring, and load first. The TM2DRA16RT fits many legacy setups.

What should I check before power-on?

Check wiring, load size, and grounding. Make sure each channel stays under 2 A.

How do I keep it running well?

Keep it clean and dry. Check screws and cables often. Stay within the rated current and voltage.

Where can I buy genuine stock?

Contact sales@powergearx.com or +86 18030005825. We confirm stock, price, and shipping fast.
