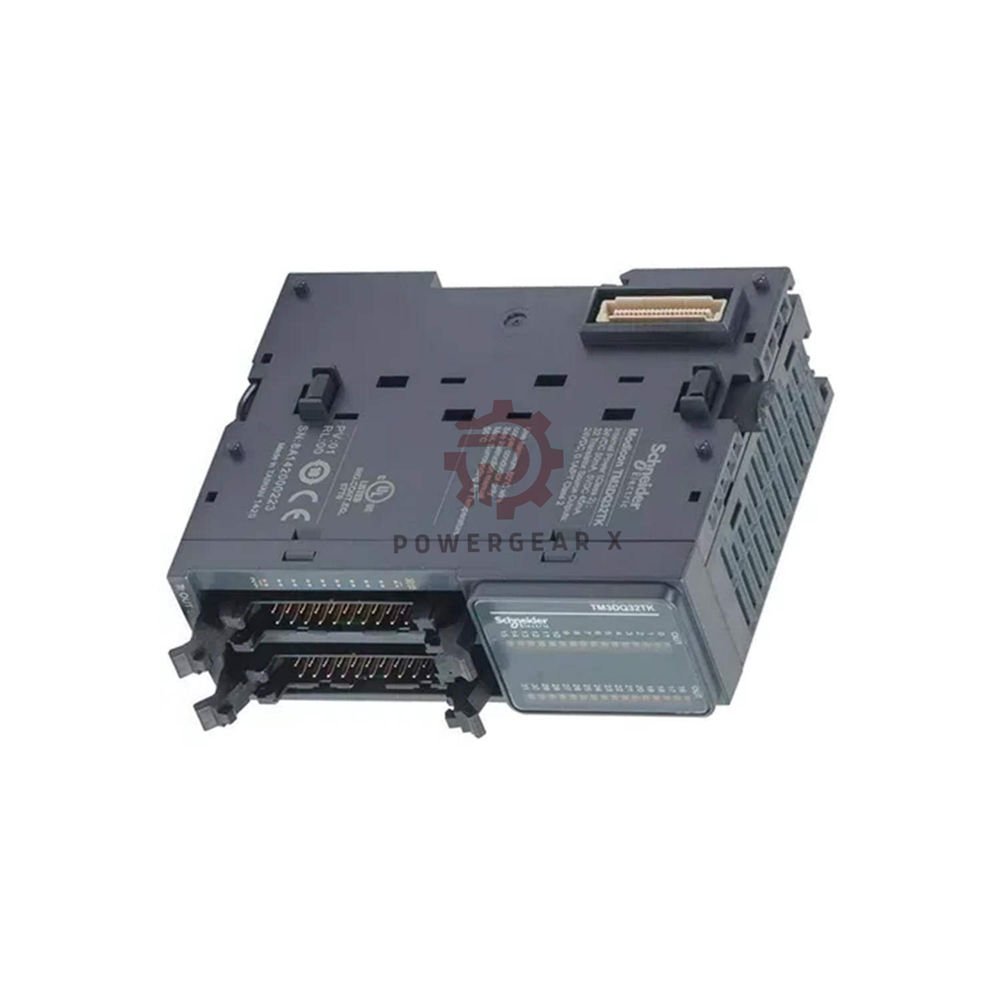

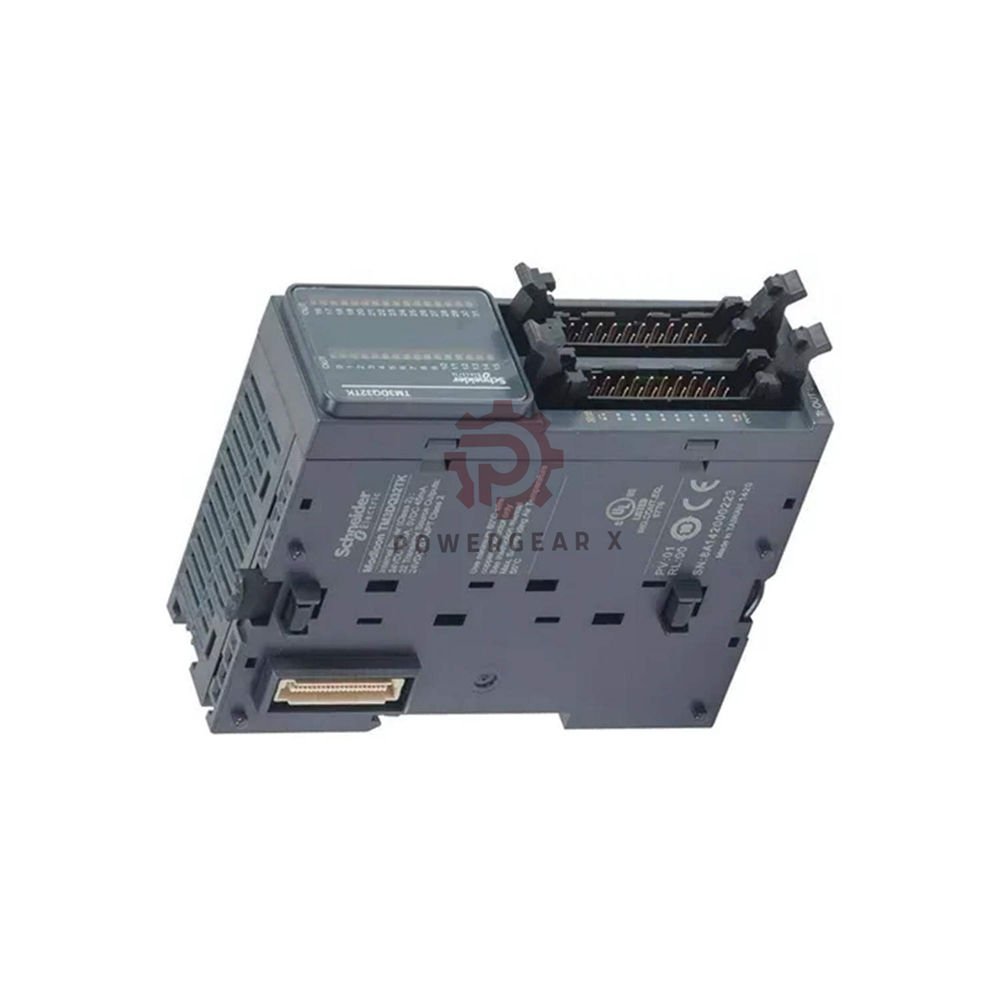

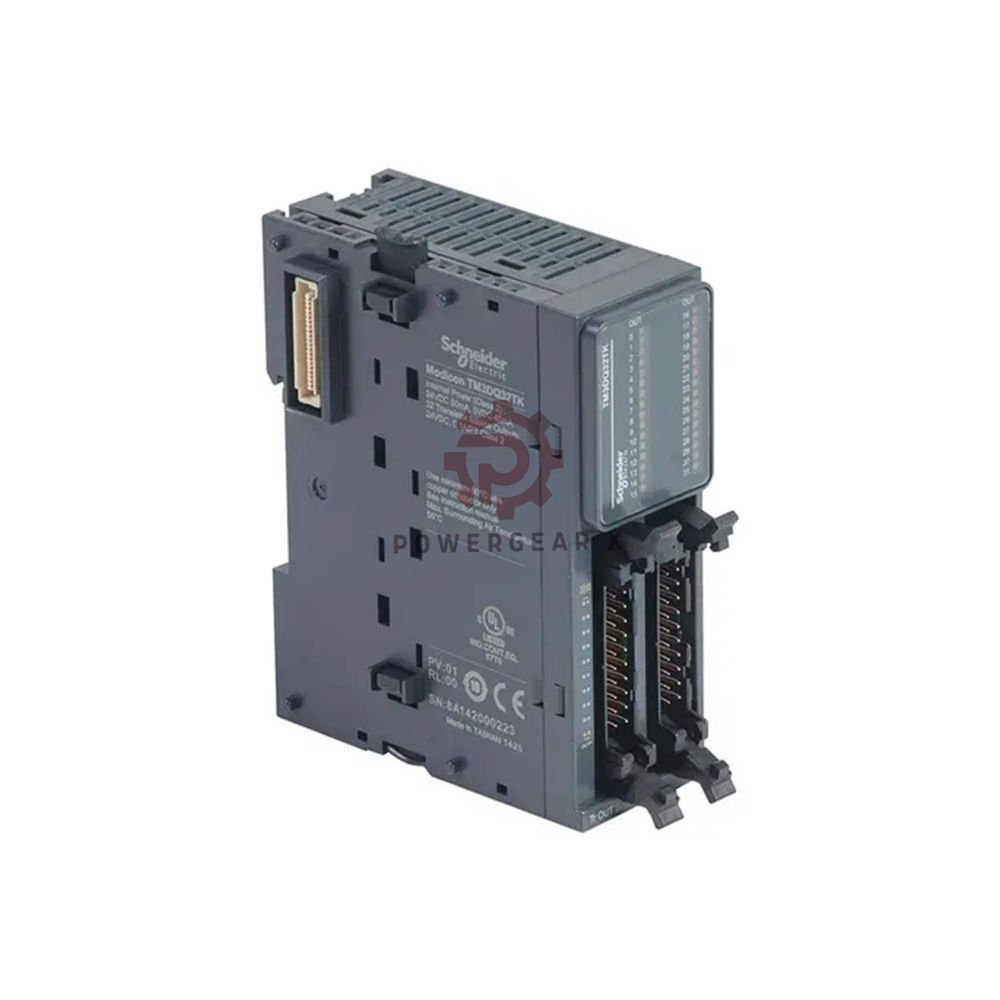

Name: TM3DQ32UK Schneider Modicon TM3 32 Output Transistor Module
SKU: TM3DQ32UK
Price: 234.00 USD
Availability: InStock

Product details

Product Overview

TM3DQ32UK is a discrete output module from Schneider Electric.
It belongs to the Modicon TM3 range.
It offers 32 transistor outputs with NPN sink logic.
Outputs connect through one HE-10 connector.
It plugs into Modicon M221, M241, M251, and M262 controllers.
Compact size saves panel space in dense cabinets.

Technical Data

Brand: Schneider Electric
Model: TM3DQ32UK
Series: Modicon TM3
Type: Discrete output module, transistor NPN
Compatibility: Modicon M241, M251, M221, M262
Output Type: Transistor, negative logic (sink)
Output Count: 32
Output Voltage: 24 V DC
Output Current: 100 mA per channel
Bus Current Off: 5 mA at 5 V DC; 0 mA at 24 V DC
Bus Current On: 25 mA at 5 V DC; 40 mA at 24 V DC
Response Time: 450 µs turn-on, 450 µs turn-off
Leakage Current: 0.1 mA max
Voltage Drop: Below 0.4 V
Tungsten Load: Under 1.2 W
Local Signalling: 1 green LED per channel
Connection: HE-10 connector
Cable Distance: Unshielded, under 5 m
Insulation: 500 V AC between output and logic; none between outputs
Mounting: TH35-15 or TH35-7.5 DIN rail; panel with kit
Dimensions: 90 mm H × 33.5 mm W × 81.3 mm D
Net Weight: 0.112 kg
Standards: EN/IEC 61131-2
Certifications: cULus, CE, UKCA, RCM, EAC, HazLoc
ESD Resistance: 8 kV air, 4 kV contact
EM Field Resistance: 10 V/m (80 MHz–1 GHz), 3 V/m (1.4–2 GHz), 1 V/m (2–3 GHz)
Magnetic Field Resistance: 30 A/m at 50/60 Hz
Fast Transient: 1 kV for I/O
Surge Withstand: 1 kV I/O common mode
Conducted Disturbance: 10 V (0.15–80 MHz), 3 V spot frequencies
Emission: 40 dBμV/m class A (30–230 MHz); 47 dBμV/m class A (230–1000 MHz)
Operating Temp: -10 to 35°C vertical; -10 to 55°C horizontal
Storage Temp: -25 to 70°C
Humidity: 10–95%, no condensation
Protection: IP20 with cover
Pollution Degree: 2
Altitude: 0–2000 m operation; 0–3000 m storage
Vibration: 3.5 mm (5–8.4 Hz); 3 gn (8.4–150 Hz)
Shock: 15 gn for 11 ms

Expert Review / Manager’s Insight

TM3DQ32UK packs 32 outputs into a very slim body.
The 450 µs response suits fast sorting and labeling tasks.
Sink logic matches many Asian and European sensor setups.
One HE-10 plug cuts wiring time and errors.
Green LEDs on every channel speed up troubleshooting.
No isolation between outputs, so watch load grouping.
Great for machine builders who need high channel density.
Keep vertical mounting cool to stay within 35°C.

Best Fit Devices and Applications

Works with Modicon M221, M241, M251, M262 controllers.
Ideal for packaging, filling, and labeling machines.
Suits solenoid valve banks and small relay arrays.
Fits conveyor diverters, indexers, and pick-and-place units.
Good for test rigs and compact OEM panels.

Installation Guide

Clip the module onto a TH35 DIN rail.
Use a panel kit for flat surface mounting.
Plug the HE-10 connector into the output port.
Keep unshielded cables under 5 m.
Feed 24 V DC from a clean supply.
Follow local codes and Schneider manuals.

Setup and Maintenance Ease

Green LEDs show output state without tools.
No address setup needed on TM3 bus.
Replace modules fast with plug-in connectors.
Check terminal screws each year.
Clean vents to prevent heat buildup.

Compatibility Notes

Designed only for Modicon TM3 expansion.
Works with M221, M241, M251, and M262 logic controllers.
Not for M340, M580, or Premium racks.
Use Schneider approved HE-10 cables.

Certifications

CE, UKCA, RCM, EAC, cULus, and HazLoc listed.
Meets EN/IEC 61131-2 and EMC standards.
Ask us for the full certificate pack if needed.

Packing List

1 × TM3DQ32UK output module
1 × quick start sheet (if supplied)
Original box may vary by batch.

Warranty, Shipping, and Support

12-month warranty on every module.
12–24 hour dispatch for stock items.
Ship via FedEx, UPS, or DHL.
Email: sales@powergearx.com
WhatsApp: +86 18030005825

FAQ

Q: Can TM3DQ32UK drive a relay coil directly?
A: Yes, if coil current stays under 100 mA per channel.
Q: Why is isolation missing between outputs?
A: The design shares a common sink path, so group loads with care.
Q: Does vertical mounting lower the temperature limit?
A: Yes, vertical use caps operation at 35°C instead of 55°C.
Q: What cable length works best?
A: Keep unshielded runs under 5 m for clean switching.
Q: Is a 12-month warranty offered?
A: Yes, all units ship with a 12-month warranty.
Q: How quick is delivery?
A: We dispatch in 12–24 hours using FedEx, UPS, or DHL.
Q: Can I mix this with M241 and M262 in one panel?
A: Yes, both controllers accept TM3 expansion modules.
Q: What is the top switching speed?
A: Turn-on and turn-off each take about 450 µs.
Q: Do I need a special connector?
A: Yes, use a standard HE-10 plug for the outputs.
Q: Can I order a bulk quantity?
A: Yes, write to sales@powergearx.com for volume pricing.
