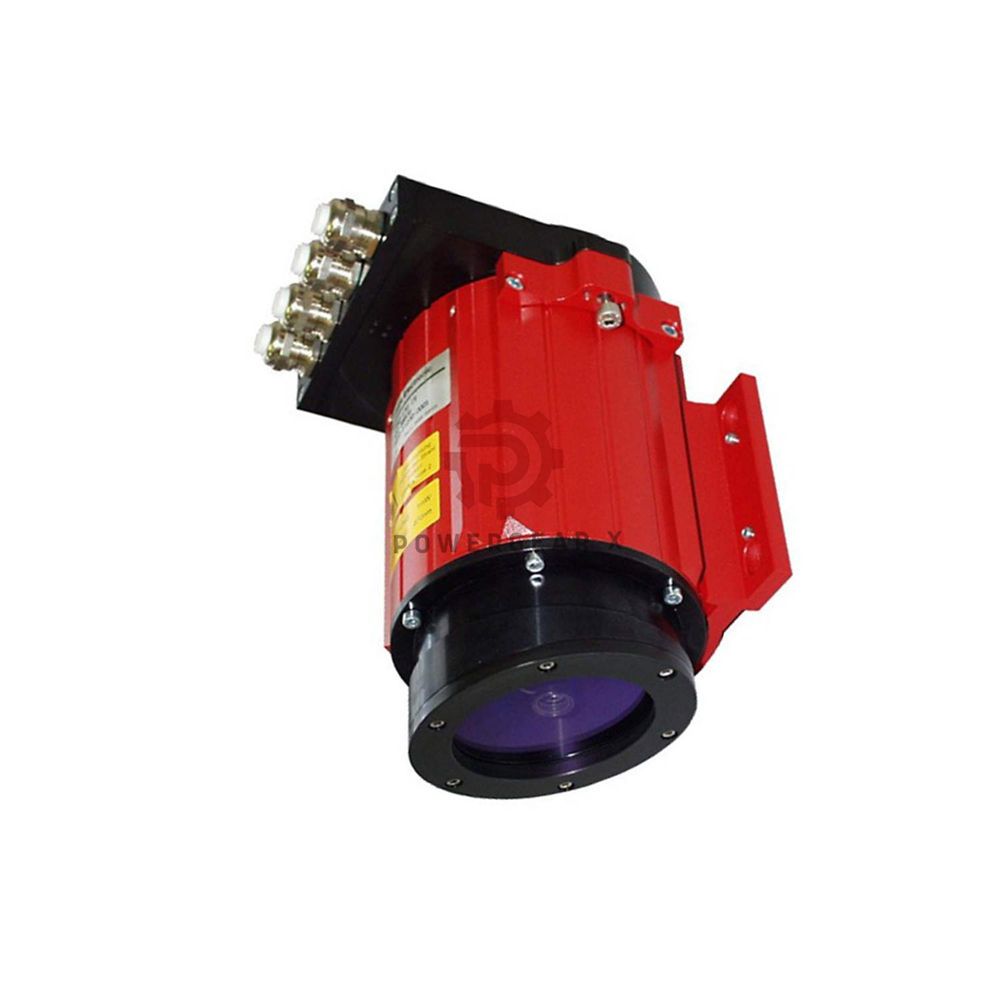

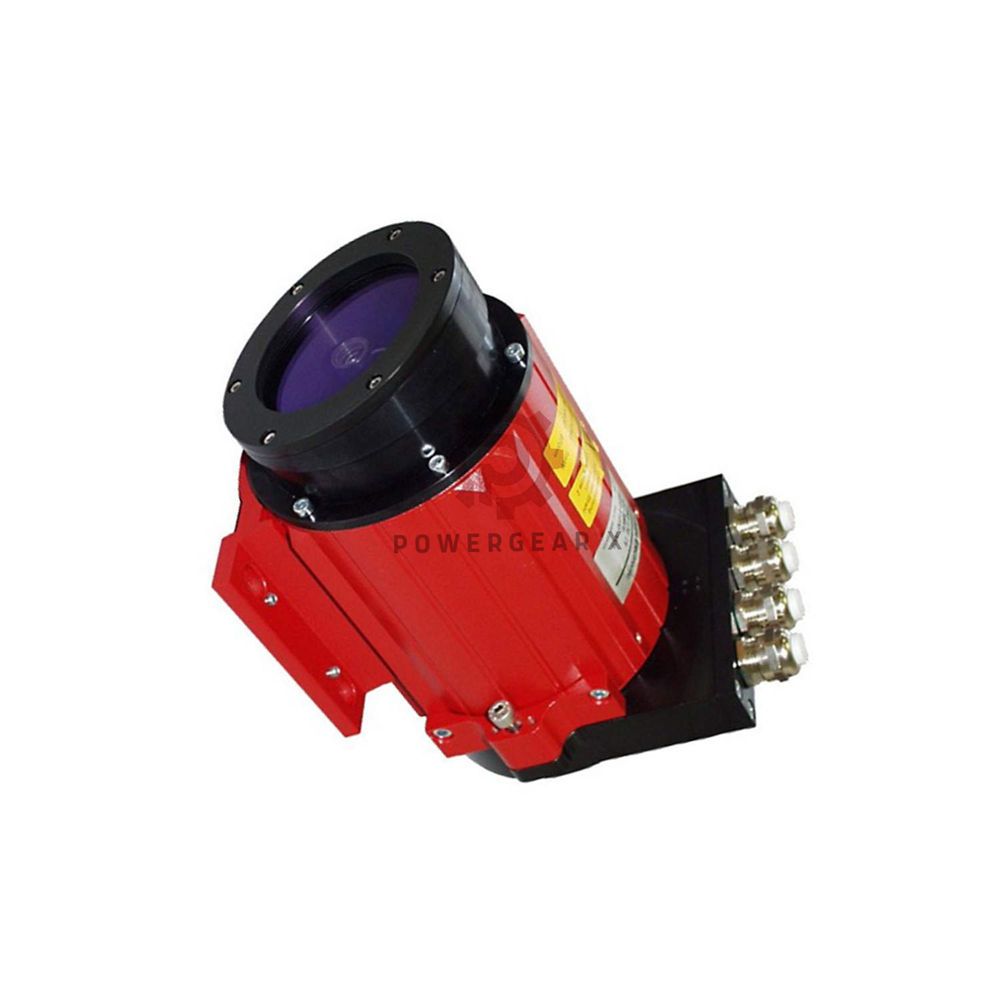

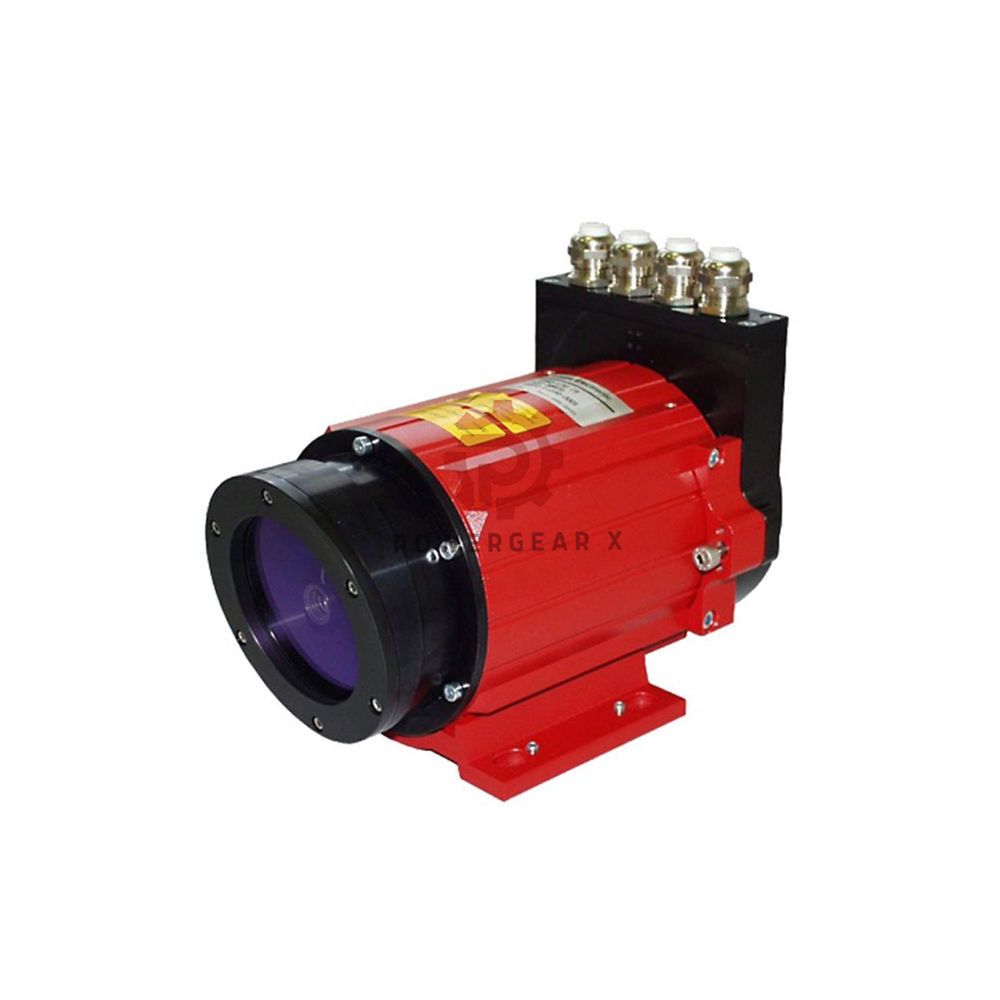

Name: TR LE200 Laser Measuring Device EtherNet/IP LE200 Phase Shift Sensor
SKU: LE200
Availability: InStock

Product details

The LE200 by TR Electronic is a high-precision Laser Distance Measuring Device utilizing advanced Phase Shift Measurement.
Engineered for EtherNet/IP environments, the LE200 supports high-speed data integration with a 1000 Values/s refresh rate.
This wear-free detection system eliminates mechanical fatigue, making it ideal for continuous linear movement tracking.
With a standard range of 125m and extensions up to 195 meters, the LE200 series covers massive industrial footprints.
The rugged IP65 construction and optional integrated heating (48W) ensure performance in cold-storage or outdoor environments.

Brand: TR Electronic
Model Identifier: LE200 EtherNet/IP
Measurement Principle: High-accuracy Phase Shift technology using 670nm Red Light Laser.
Resolution: Physical resolution of 0.1 mm for microscopic positioning accuracy.
Measuring Reach: Flexible range options of 125m, 170m, and a maximum of 195m against reflector foil.
Linearity Deviation: ±3 mm up to 12m; ±5 mm Full-Scale absolute accuracy.
Interface: Dual-port EtherNet/IP™ (100 MBit/s) with Encoder Device Profile 0x22.
Safety Standard: Laser Class 2 (IEC 60825-1) requiring no specialized eye protection for standard use.
Supply Voltage: 18…27 VDC ± 5% with a typical consumption under 350 mA.
Environmental Resilience: Withstands vibration up to 50 m/s² and shock up to 300 m/s².
Response Time: Blazing fast 1 ms integration time for real-time motion control loops.

The LE200 excels in high-bay warehouse applications due to its 1 ppm/°C temperature drift stability.
From a technical standpoint, the TRWinProg software compatibility allows for deep parameterization of intensity and velocity thresholds.
We particularly value the Red Light Laser Diode which simplifies physical alignment over long distances compared to infrared alternatives.
The LE200 series status LEDs provide immediate diagnostics for Network Status and Duplicate IP detection, reducing commissioning time.
Integrating the Heating Option makes the LE200 a superior choice for -30°C environmental transitions.

Automated Storage and Retrieval Systems (AS/RS): Precision positioning of shuttle cars and stacker cranes.
Overhead Gantry Cranes: Long-range distance monitoring in steel mills and shipyards.
Transfer Car Systems: Reliable collision avoidance and docking for heavy-duty material handling.
Elevator Systems: Continuous height monitoring for industrial freight lifts and mining hoists.

How do I troubleshoot an “Error LED” flashing at 1 Hz on my LE200?
This indicates a Connection Timeout; check your EtherNet/IP cabling and ensure the PLC polling rate matches the 1ms integration time.
Can I use the LE200 without a reflector?
Standard LE200 units are optimized for Reflector Foil; using them against dark surfaces significantly reduces the effective range.
What is the purpose of the 48W heating option?
It prevents condensation on the laser optics, which is crucial when moving between different temperature zones in logistics.
Is it possible to acknowledge errors remotely?
Yes, the programmable functional input can be mapped to Error Acknowledgement or Laser Switch-off via the software.
Selection Guide: Why choose the LE200 over standard ultrasonic sensors?
The LE200 offers vastly superior 0.1mm resolution and ignores ambient noise, making it the standard for high-speed automation.
