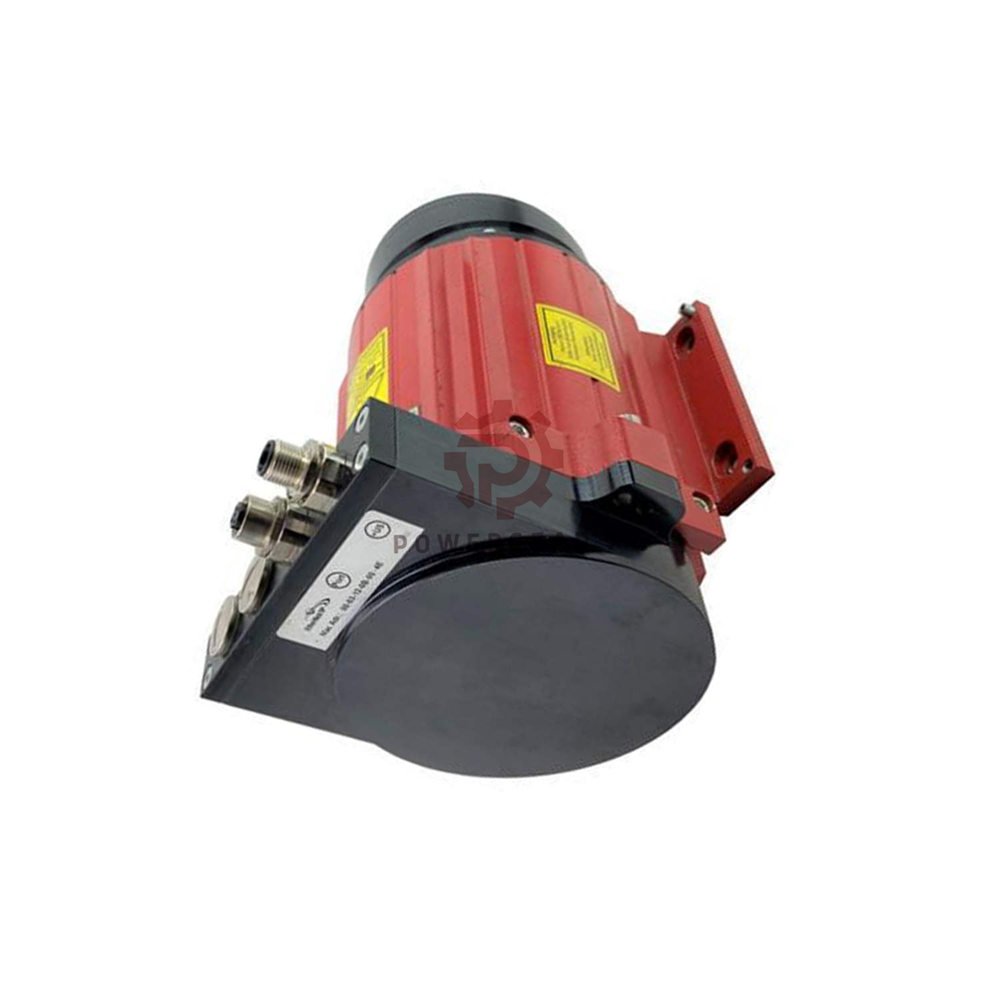

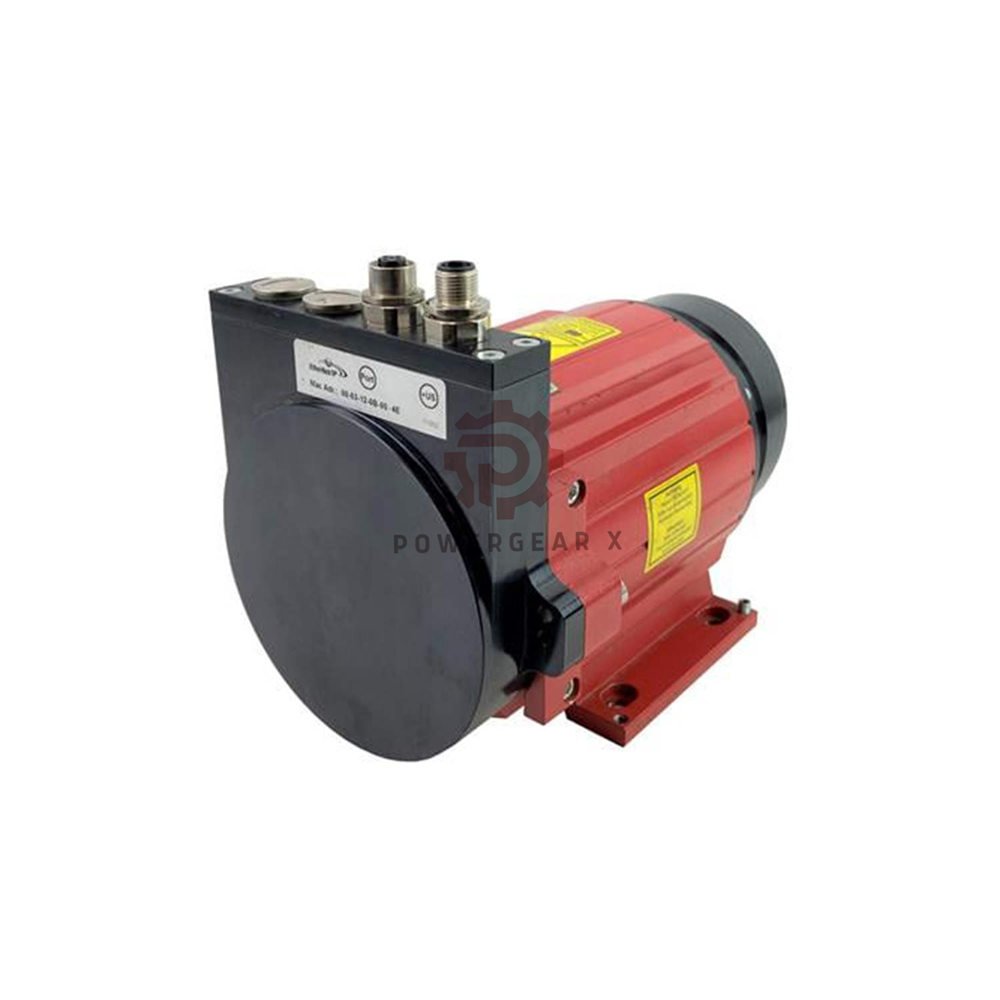

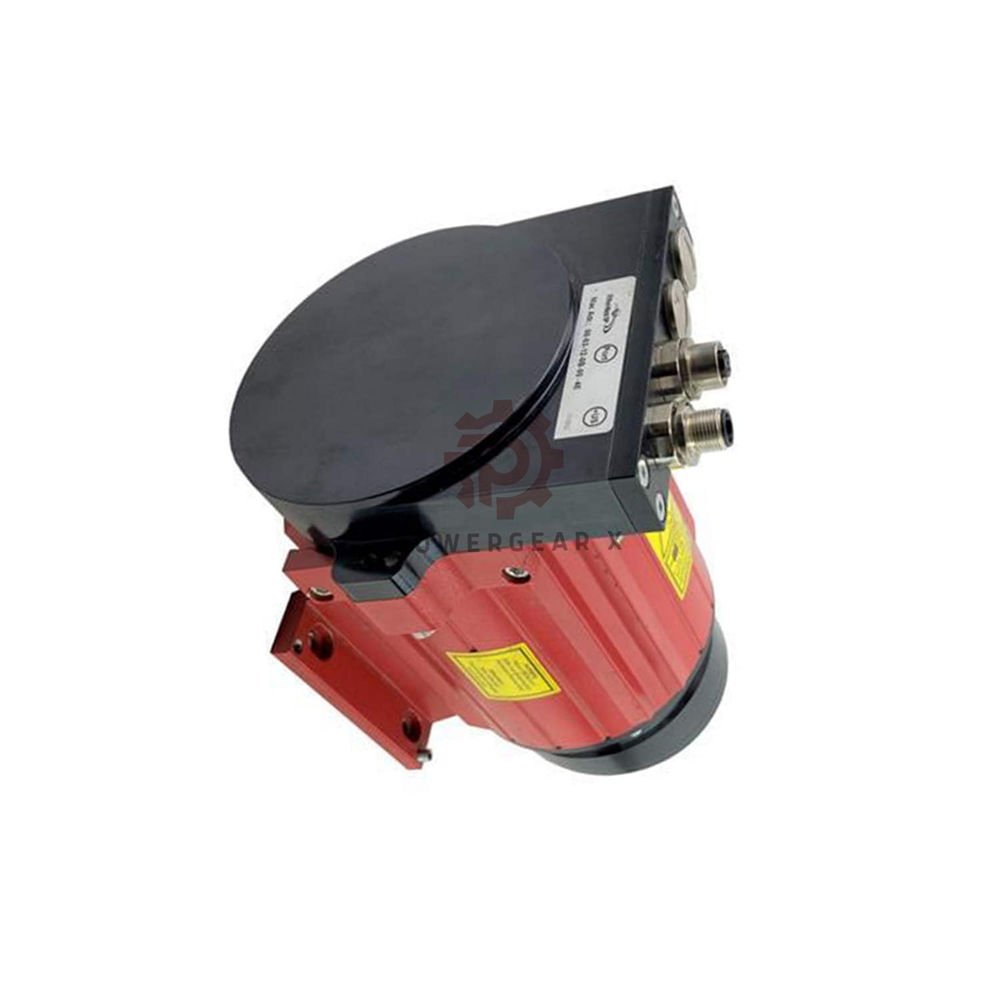

Name: 2200-00702 TR Electronic Laser Distance Sensor Ethernet/IP 125m Range
SKU: 2200-00702
Availability: InStock

Product details

2200-00702 Technical Insight & Product Summary

The 2200-00702 from TR Electronic represents a sophisticated solution for long-range position acquisition in automated environments. Engineered for linear movement tracking up to 125 meters, this laser distance measurement device utilizes a non-contact, wear-free detection principle. The integration of an Ethernet/IP interface ensures high-speed data deterministic performance, making the 2200-00702 a reliable node in modern industrial networks. Its rugged IP65-rated housing facilitates deployment in demanding settings where precision and durability are non-negotiable.

Powergear X Automation Review

Our engineering team identifies the 2200-00702 as a top-tier choice for warehouse logistics and heavy-duty crane positioning. Unlike standard proximity sensors, the 2200-00702 maintains sub-millimeter stability over massive distances using specialized reflective foil. We specifically recommend this model for systems requiring “Full Stroke Linearization,” as the programmable code allows for precise calibration across the entire 125m range.

Core Engineering Specifications

Model Identification: 2200-00702 (LE-200 Series Compatible)
Maximum Reach: Precise measurement capability up to 125 Meters.
Communication Protocol: Native Ethernet/IP for seamless PLC integration.
Resolution Performance: Fixed at 1.0 for consistent data feedback.
Laser Safety Profile: Protection Class 2 (Visible red laser).
Physical Connectivity: Radial connector position using 1x4P+8P Male and 4P Female M12.
Electrical Range: Operates on a 18-27V DC supply voltage.
Ingress Protection: Rated at IP65 for dust and water jet resistance.
Operational Tolerance: Temperature stabilized for 0°C to 50°C environments.
Output Hardware: RS485 level for secondary diagnostic or programming access.

Optimized Equipment Compatibility

Automated Storage and Retrieval Systems (AS/RS).
Overhead Gantry Cranes and Portal Cranes.
Transfer Car (RGV) positioning on long-track rails.
Heavy-duty lift and elevator shaft monitoring.
Large-scale industrial material handling conveyors.

Professional FAQ & Procurement Guide

Does the 2200-00702 require a specific target surface for 125m measurements?

Yes, this specific model requires the use of reflective foil to ensure signal integrity and accuracy over the full 125-meter stroke.

How does the Ethernet/IP interface handle network configuration?

The 2200-00702 features programmable code, allowing engineers to set IP addresses and data assembly instances through standard industrial software tools.

Is the radial connector layout suitable for tight-space installations?

The radial M12 design is specifically engineered to reduce cable strain and footprint in compact mounting brackets compared to axial exits.

What is the recommended maintenance schedule for the laser optics?

Since detection is wear-free, maintenance is limited to periodic cleaning of the laser lens and reflective foil to prevent signal attenuation from dust.

What are the shipping lead times and protection terms for international buyers?

Powergear X Automation provides a 12-month warranty on the 2200-00702. We guarantee dispatch within 12-48 hours via FedEx, UPS, or DHL for rapid global delivery.
