Name: TR CDV75M-00002 CDV75M Series PROFIBUS Absolute Encoder with 4m Cable
SKU: CDV75M-00002
Availability: InStock

Product details

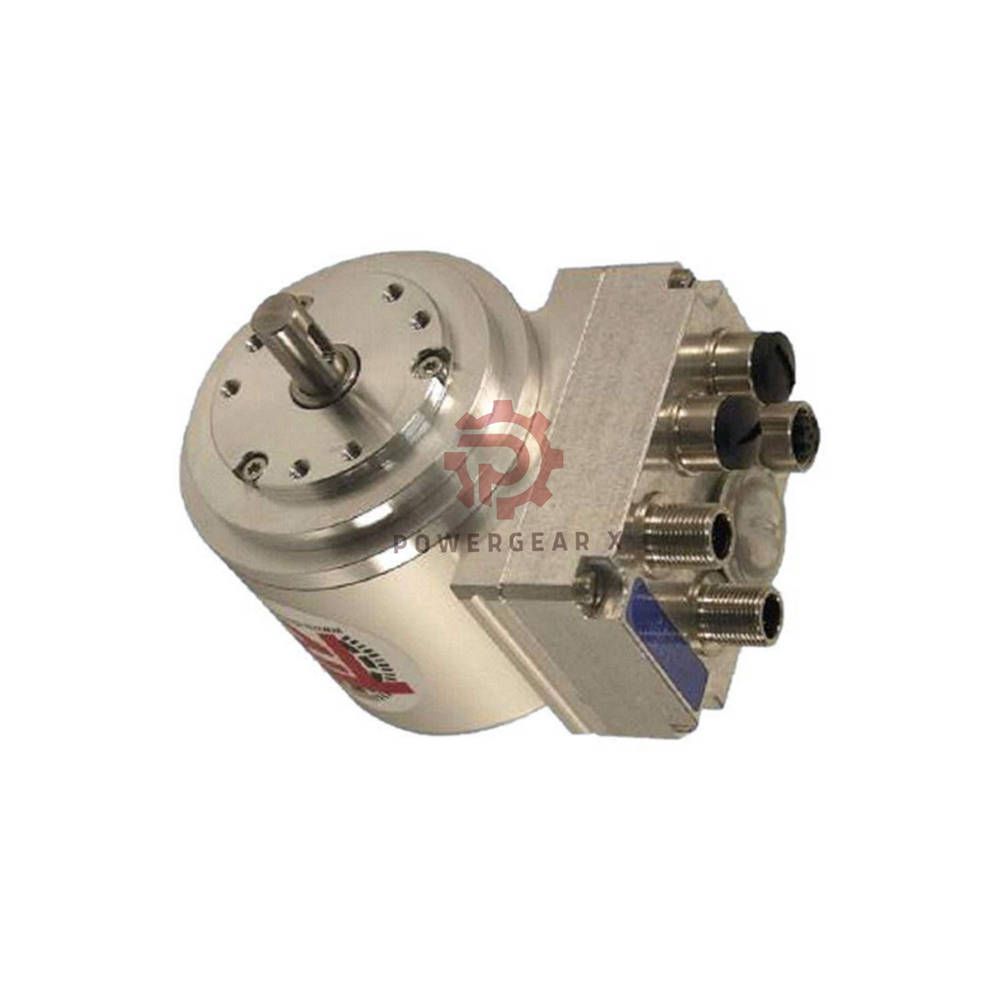

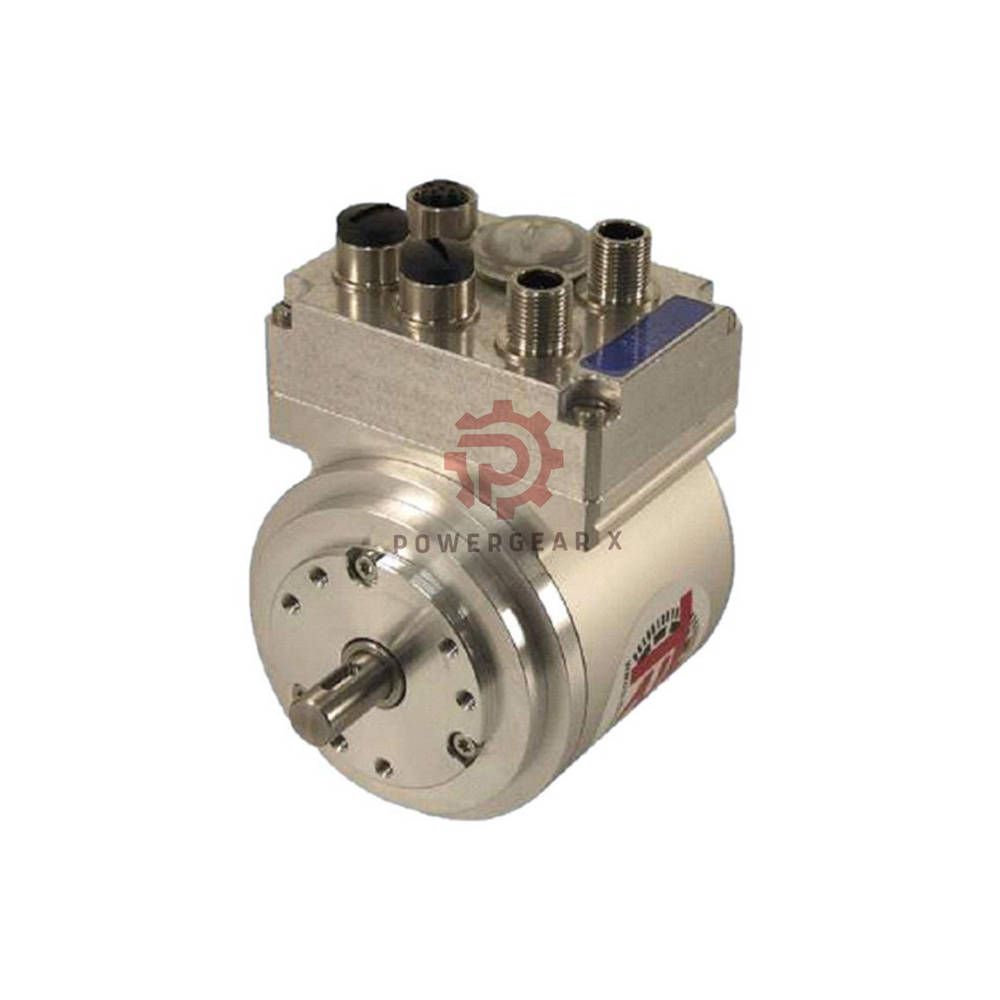

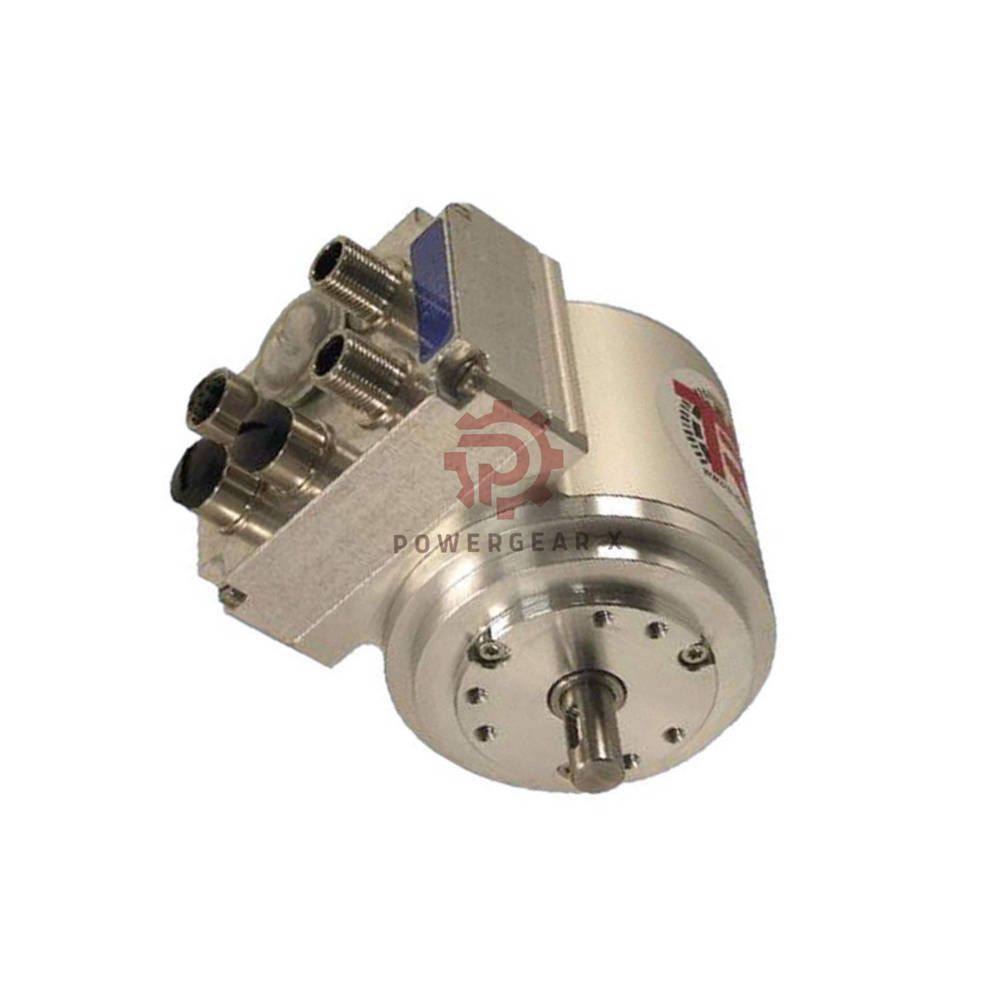

The CDV75M-00002 is a high-performance Absolute Rotary Encoder engineered for functional safety applications.
Integrated with the PROFIsafe protocol over PROFIBUS, this unit ensures reliable data transmission in critical systems.
It features a dual-redundant scanning system with internal cross-validation to prevent operational failures.
The CDV75M-00002 includes a 4-meter pre-installed cable and high-quality industrial plug for immediate deployment.
This CDV75M series device delivers both safe position and safe speed data directly to your safety PLC.

Brand: TR Electronic
Model Number: CDV75M-00002
Safety Standard: Certified SIL 3 (DIN EN 61508) and PL e (EN ISO 13849).
Resolution: 28-bit total capacitance (8,192 steps/rev and 32,768 revolutions).
Voltage Supply: 11 to 27 V DC with low current consumption under 150 mA.
Mechanical Interface: 50mm centering collar and 10mm shaft with 3mm groove.
Incremental Track: Integrated RS 422 rectangle track (4,096 steps) for unsafe speed feedback.
Load Capacity: Supports up to 50 N axial and 90 N radial shaft loads.
Environmental Rating: IP 54 protection class with a working range of -20 °C to +70 °C.
Signal Integrity: PFH value of 8.45 × 10⁻¹⁰ 1/h ensures maximum system uptime.

The CDV75M-00002 is not just an encoder; it is a critical safety component for human-machine interaction.
Unlike standard encoders, the CDV75M series utilizes internal cross-validation, reducing the risk of undetected signal drift.
We find the adjustable window of difference feature particularly useful for fine-tuning system tolerance in high-vibration environments.
For engineers implementing Category 4 safety circuits, this hardware simplifies the architecture by handling validation internally.
The inclusion of the 4,096-step incremental track allows for dual-use in both safety and standard motion control loops.

Automated Guided Vehicles (AGVs): Ensuring safe navigation and speed monitoring in logistics hubs.
Stage Technology: Precise and safe positioning for overhead theater lifts and moving platforms.
Heavy Duty Cranes: Monitoring hoist height and trolley position in harbor environments.
Robotic Workcells: Defining safe zones for collaborative robot operations near human operators.
Large-scale Presses: Critical feedback for ram positioning and speed synchronization.

What is the advantage of the integrated 4-meter cable on the CDV75M-00002?
The factory-sealed 4m cable ensures the IP 54 seal remains intact compared to field-wired connectors, reducing EMI risks.
Does the safety system output data separately from the main measurement system?
No, the internal safety data is used for cross-validation and is issued as a safe value via the PROFIsafe protocol.
How do I handle the PROFIBUS addressing for this safety encoder?
Addressing is managed via the GSD file within your PLC environment, allowing for programmable integration time and direction.
Can this encoder withstand high-vibration machinery?
Yes, it is rated for vibration up to 100 m/s², making it suitable for heavy industrial stamping and milling equipment.
Selection Guide: What should I check before ordering the CDV75M-00002?
Verify that your PLC supports PROFIsafe and confirm that the 10h7 shaft dimensions match your existing coupling hardware.

Dispatch Time: Orders are processed and shipped within 12-48 hours.
Global Logistics: Fast delivery via FedEx, UPS, or DHL international express.
Standard Warranty: We provide a full 12-month quality guarantee on all CDV75M-00002 units.
Support: For urgent inquiries, email sales@powergearx.com for technical assistance.
