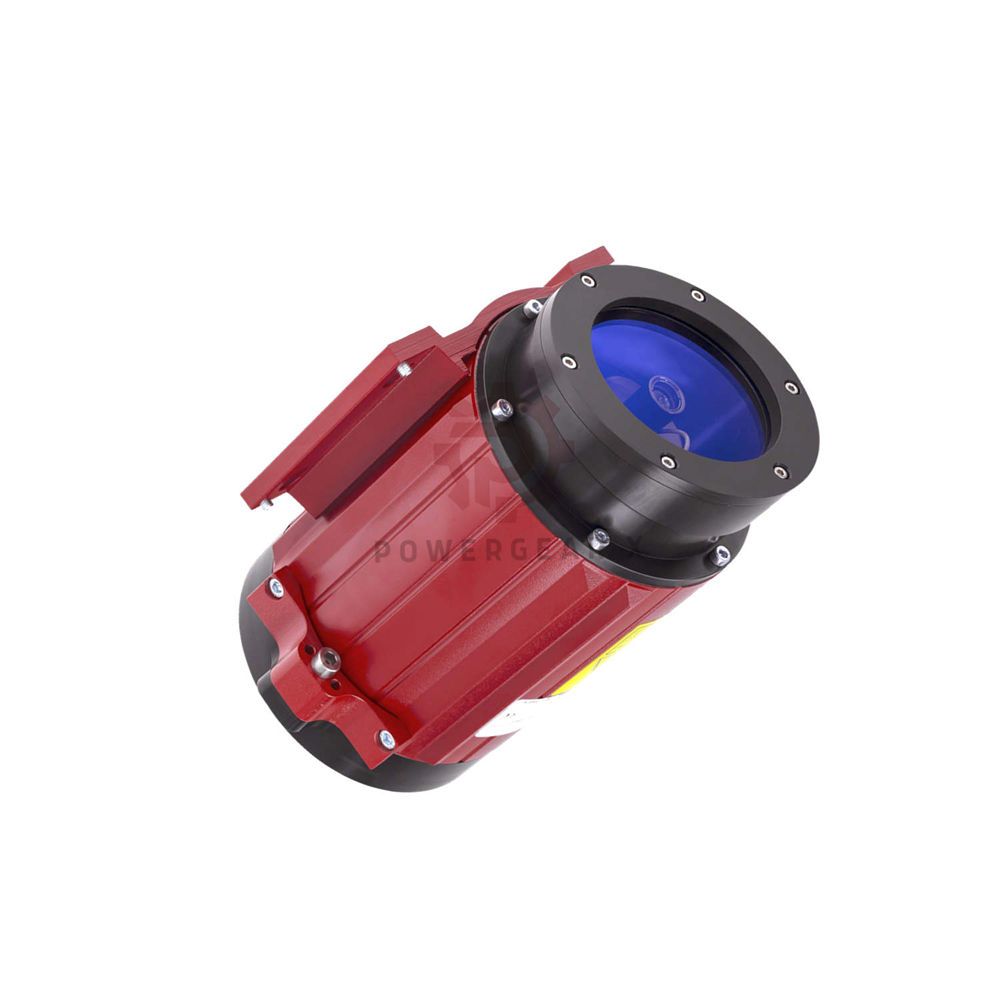

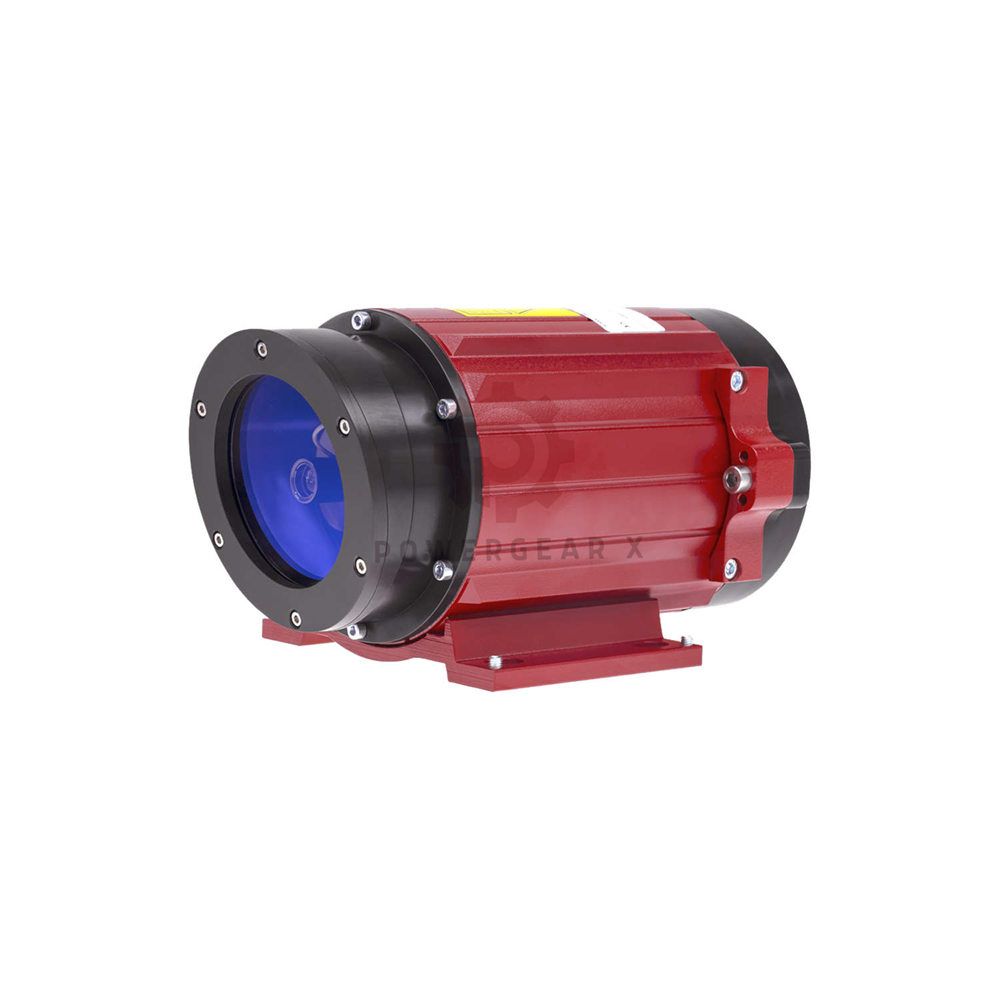

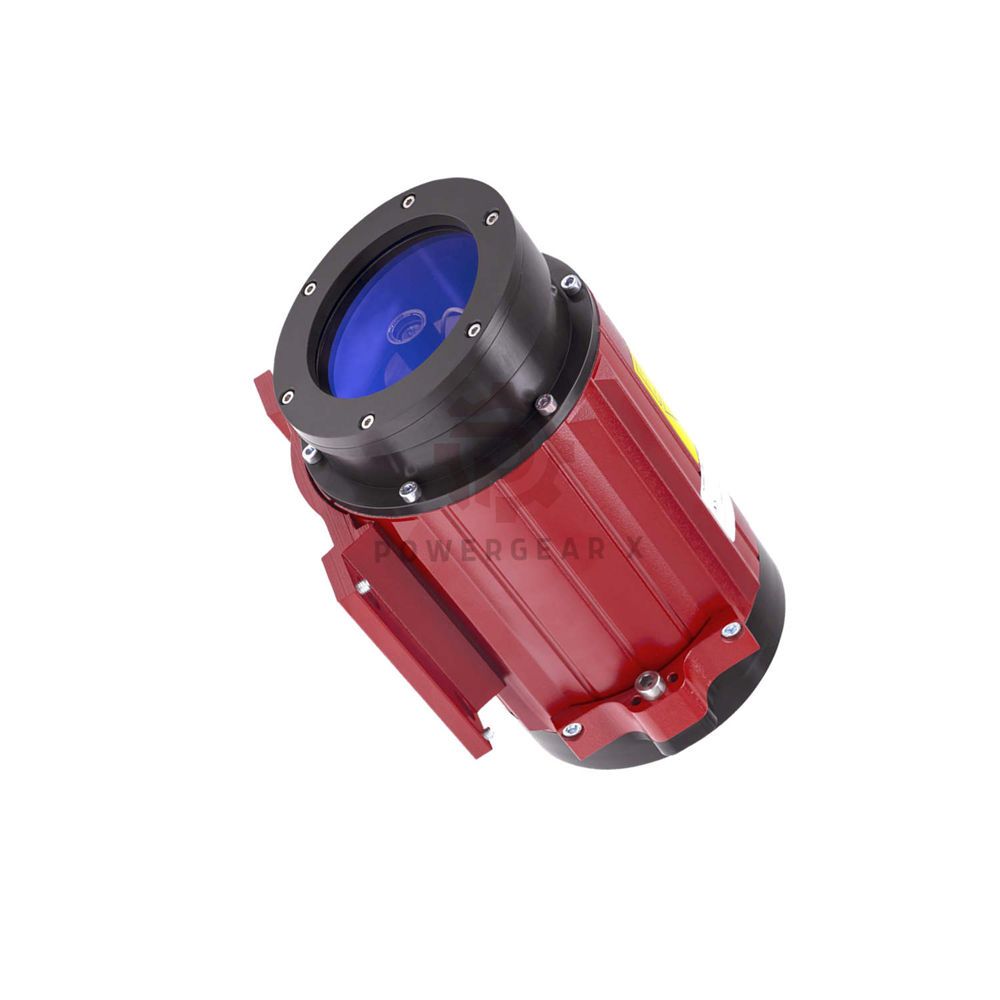

TR Electronic K-LE200-EIP-1 Laser Measuring LE-200 195m Range Sensor

Powergear X Automation’s Insight

• The K-LE200-EIP-1 is a high-performance phase-shift laser measurement solution engineered for precision logistics and heavy industrial positioning.
• Unlike pulse-time-of-flight sensors, the LE-200 series utilizes phase comparison to achieve a physical resolution of 0.1 mm.
• This makes the K-LE200-EIP-1 indispensable for stacker cranes, automated storage systems (ASRS), and overhead gantry positioning.
• It provides sub-millimeter feedback over long distances up to 195 meters.
• Its native EtherNet/IP interface simplifies integration into Rockwell Automation environments.

Technical Engineering Data

• Measurement Core: Phase shift principle using a 670nm Red Laser Diode (Class 2).
• Dynamic Range: Standard 0.2–125m; extensible to 170m or 195m against reflector foil.
• Precision Metrics: 0.1 mm resolution with absolute linearity of ±3 mm up to 12m.
• Data Velocity: 1000 values per second output rate with a 1 ms integration time.
• Network Protocol: EtherNet/IP™ (IEC 61784-1 CP 2/2) via Fast Ethernet Physical Layer.
• Device Profile: Encoder Device Profile 0x22, supporting 100 MBit/s transmission.
• Thermal Management: Integrated 48W heating option for low-temperature stability.
• Input/Output: Programmable function inputs (Preset/Laser Off) and status outputs.
• Physical Durability: IP65 protection rating with 50 m/s² vibration resistance.
• Voltage Demand: 18–27 VDC (±5%) with a typical no-load consumption ≤350 mA.

Equipment Compatibility and Applications

• PLC Systems: Allen-Bradley ControlLogix/CompactLogix via EDS file integration.
• Material Handling: Automated stacker cranes and shuttle vehicles.
• Heavy Machinery: Transfer cars and industrial elevator positioning.
• Software Tools: Programmable via TR-Soft (TRWinProg) for fieldbus optimization.

Logistics and Quality Guarantee

• Shipping Window: Dispatched within 12-48 hours from order confirmation.
• Express Carriers: Global delivery via FedEx, UPS, and DHL.
• Warranty: Full 12-month quality assurance on all K-LE200-EIP-1 units.
• Condition: Brand new, factory-certified hardware for mission-critical reliability.

Expert FAQ & Selection Guidance

How does the K-LE200-EIP-1 handle condensation in cold storage?

• The integrated 48W heating system prevents internal lens fogging.
• We recommend the optional -30°C working temperature configuration for sub-zero warehouse environments.

What is the primary advantage of the 1000 Values/s refresh rate?

• High refresh rates reduce “position lag” during high-speed travel.
• For stacker cranes moving at 3-5 m/s, this frequency ensures the PLC receives near-instantaneous feedback.

Does the K-LE200-EIP-1 require specific reflector foils?

• Yes, phase-shift measurements are tuned to specific reflectivity.
• Always use TR-Electronic approved foils to maintain the ±3mm linearity and the 195m range extension.

How do I troubleshoot a “Duplicate IP” error on the network?

• Check the Network Status LED. If it shows a solid light, the hardware has detected a conflict.
• Use TRWinProg to reassign a unique IP within your EtherNet/IP subnet.

What is the typical lifespan of the laser diode in continuous operation?

• The Class 2 diode is rated for long-term industrial use.
• Utilizing the “Laser-Off” function input during idle periods can significantly extend the diode’s operational life.
