Product details
Product Overview

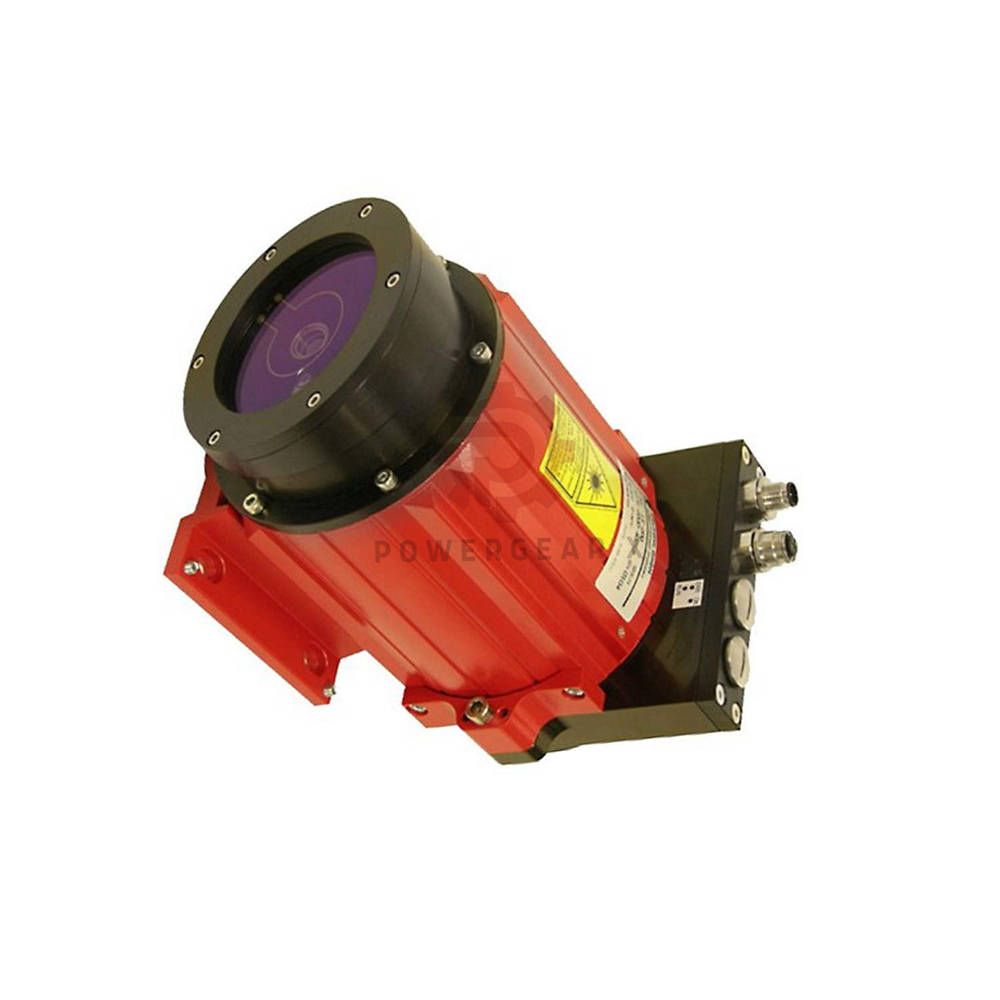

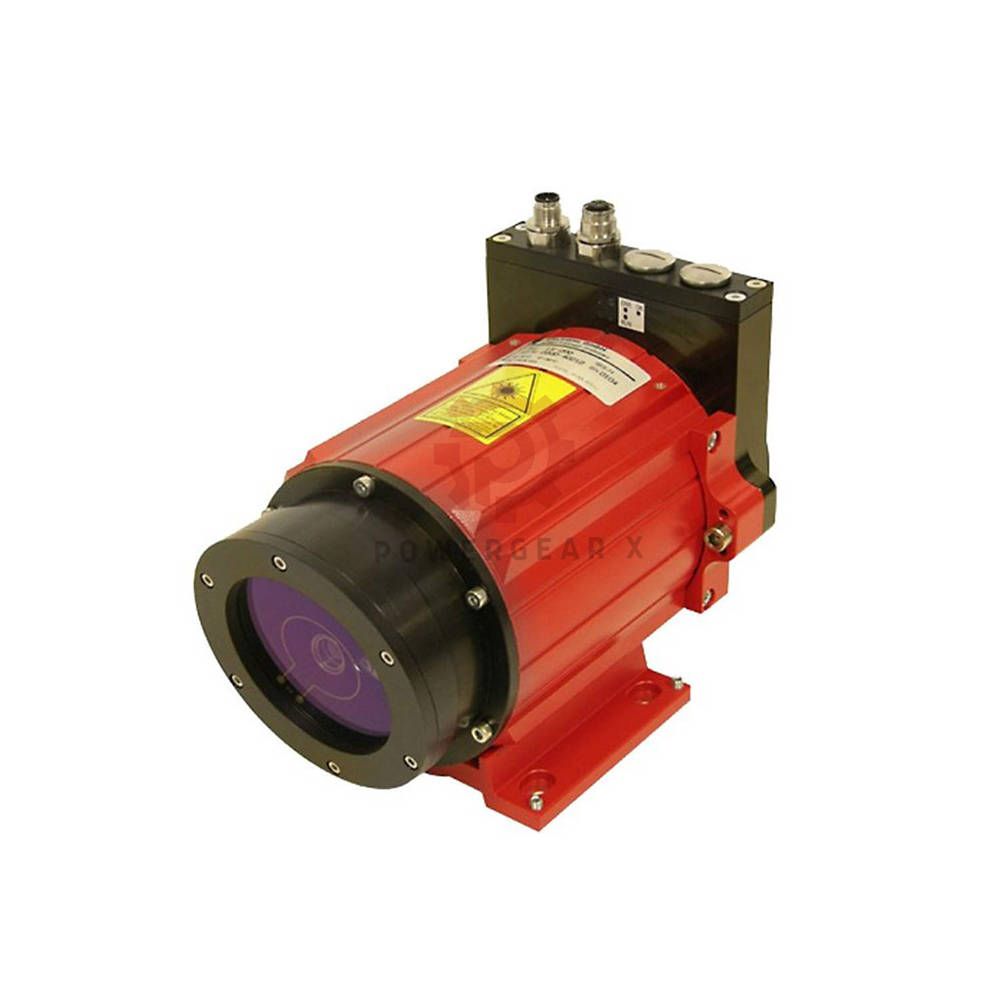

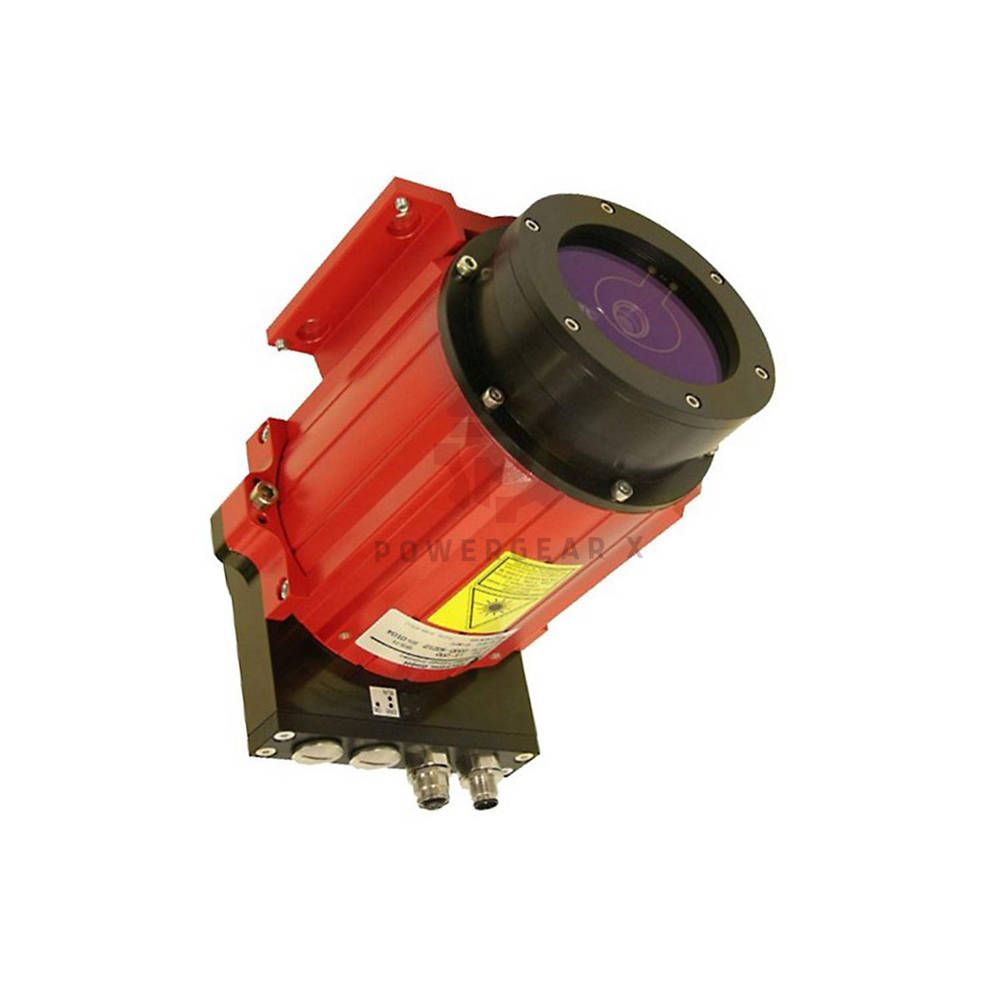

- Brand: TR Electronic
- Model: 2200-01702
- Type: Laser Distance Sensor | Barcode Detection
- Engineered for long-range linear measurement up to 170 meters.
- This device enables precise, wear-free position detection.
- It supports flexible programming for custom automation needs.
- It integrates seamlessly into Ethernet-based industrial networks.
- Its rugged design ensures stable operation in demanding environments.
Core Capabilities
- Extended measuring distance up to 170 meters
- High-resolution detection with 1.0 measurement accuracy class
- Supports barcode and reflective foil positioning
- Programmable logic for customized applications
- Full stroke linearization improves measurement consistency
- Multi-interface support enhances system flexibility
Technical Specifications
- Measurement Range: 170 meters
- Resolution: 1.0
- Interface: Ethernet IP
- Output Level: RS485
- Supply Voltage: 18–27 V DC
- Temperature Range: 0°C to 50°C
- Protection Class: IP65
- Laser Class: Class 2
- Connector Type: 1×4P+8P male / 4P female / M12
- Connector Position: Radial
- Optional Feature: Encoder interface up to 12 MBaud
- Cooling Method: Not required
- Reference: Reflective foil supported
Integration & Compatibility
- Compatible with Ethernet/IP PLC systems.
- Works with barcode-based positioning systems.
- Supports hybrid setups with RS485 communication.
- Suitable for automation platforms requiring long-distance sensing.
Installation Notes
- Install with stable mounting to avoid misalignment.
- Ensure clear optical path for accurate laser detection.
- Use reflective foil for extended range performance.
- Follow wiring reference TR-ELE-TI-DGB-0014.
Typical Applications
- Automated warehouse positioning systems
- Crane and hoist distance monitoring
- Conveyor tracking and logistics systems
- Steel and heavy industry measurement tasks
- High-bay storage and retrieval machines
Powergear X Automation Review
- This model excels in long-distance industrial measurement scenarios.
- It delivers stable performance without mechanical wear.
- Its programmability suits customized automation solutions.
- It integrates well into modern Ethernet-based control systems.
- Recommended for logistics, crane, and positioning equipment.
FAQ
- What factors affect measurement accuracy in long distances?
- Surface reflectivity and alignment significantly impact accuracy.
- Is reflective foil necessary for operation?
- It is recommended for maximum range and stable readings.
- How to choose between Ethernet IP and RS485 output?
- Select Ethernet for modern PLC systems and RS485 for legacy integration.
- What should be considered during installation?
- Avoid obstacles and ensure stable mounting for consistent readings.
- What support and delivery options are available?
- Includes 12-month warranty and ships within 12–48 hours.
- Delivery via FedEx, UPS, or DHL with global coverage.
