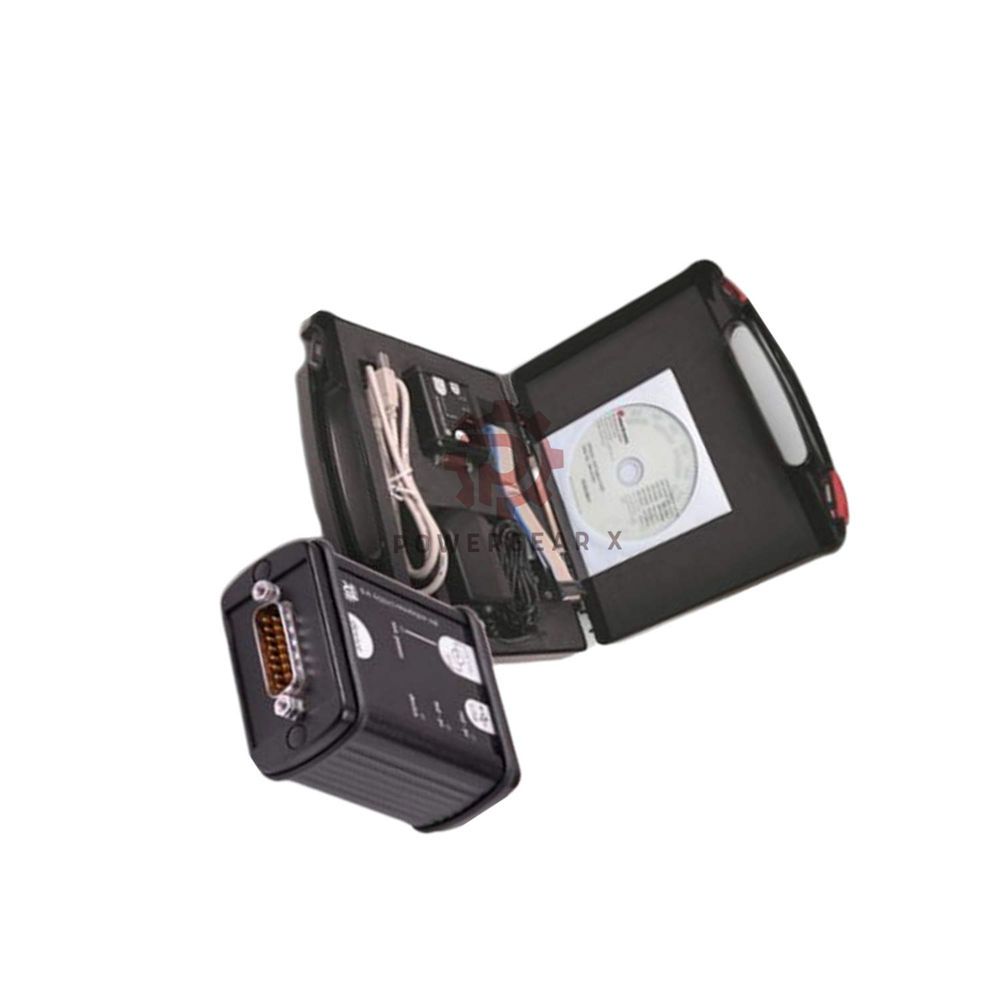

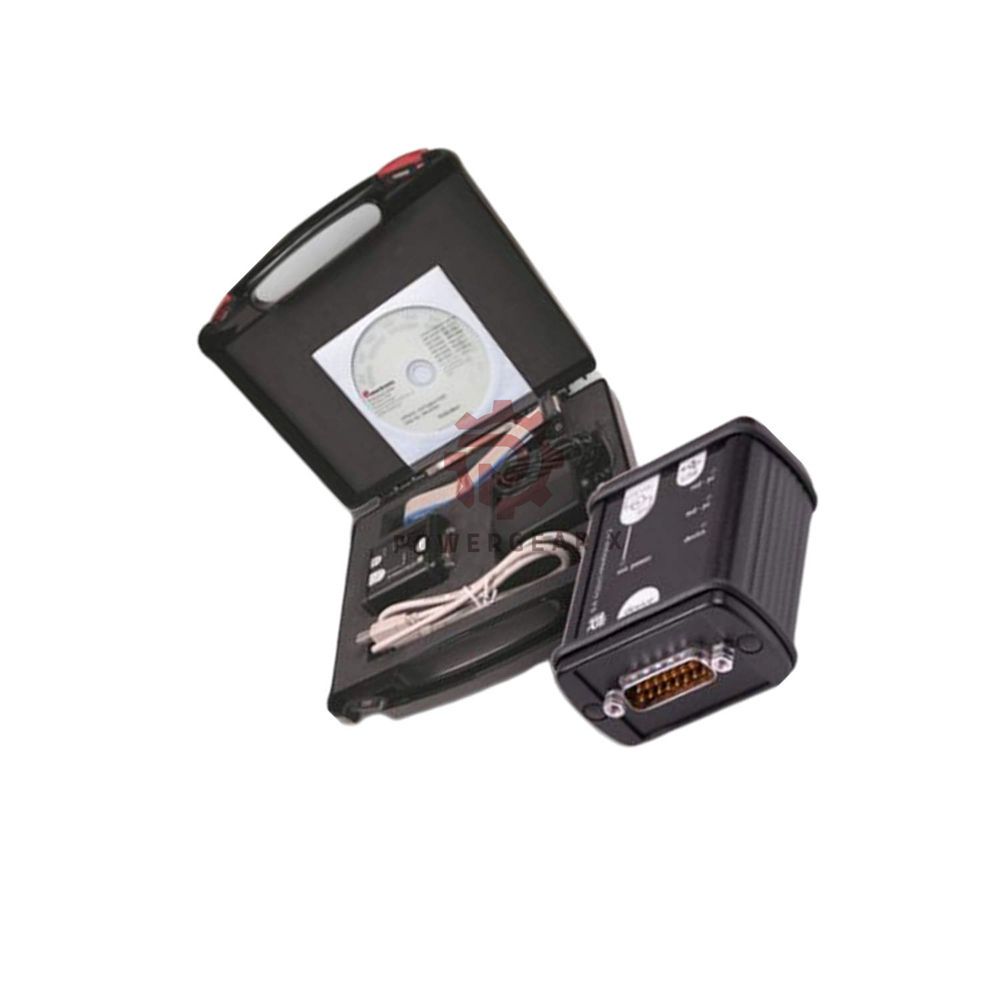

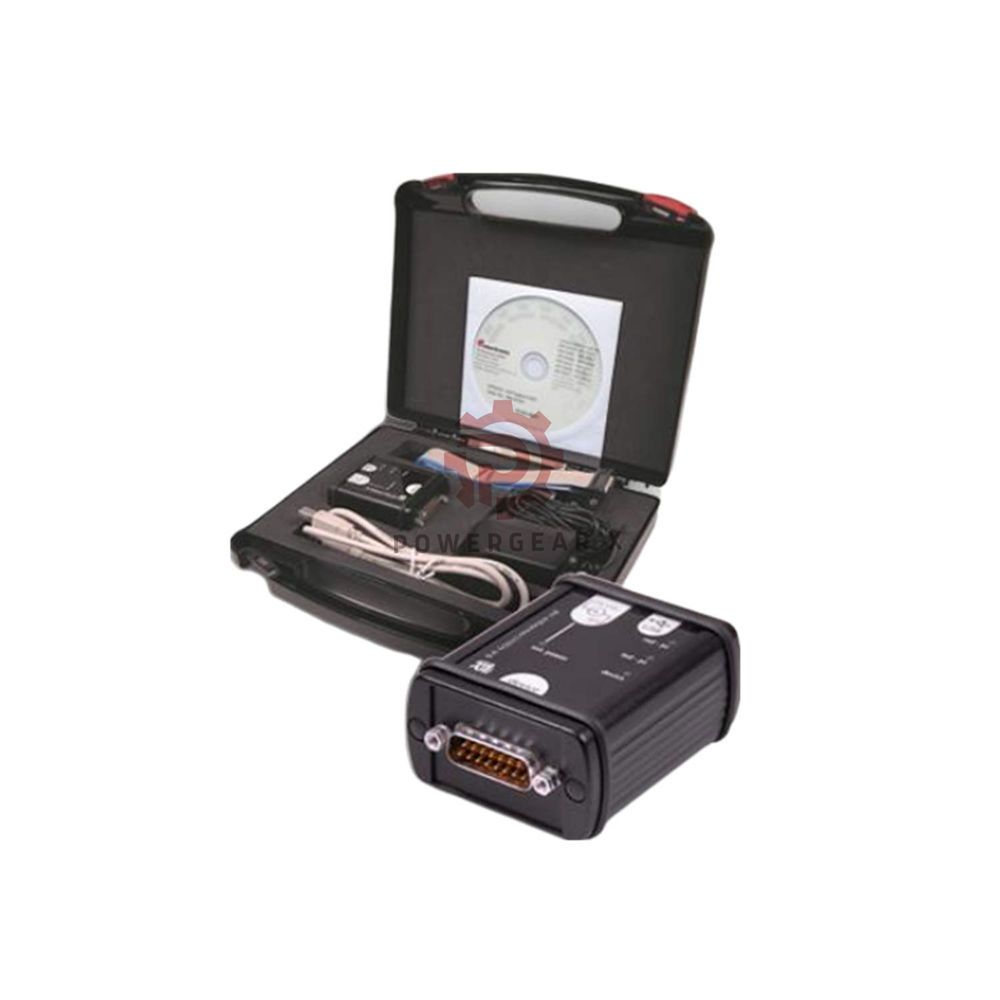

TR-Electronic ADP-010 485-00230 SSI Encoder Display
Product Overview
The TR-Electronic ADP-010 (Part No. 485-00230) is a high-performance SSI signal processing unit designed for industrial precision. This module converts complex encoder data into a readable 6-decade red LED display. It features a robust 485-00230 interface for seamless integration into automation environments. Engineers use the ADP-010 for critical scaling, offset adjustments, and peak value detection. The front membrane keyboard allows for intuitive onsite programming without external tools. For urgent technical inquiries, contact sales@powergearx.com today.
Technical Specifications
- Brand: TR-Electronic
- Model: ADP-010 (485-00230)
- Resolution Capability: Supports 10 to 25-bit SSI signals for high accuracy.
- Signal Compatibility: Accepts both single-turn and multi-turn SSI encoder inputs.
- Clock Frequency: Internal master mode at 100 kHz or 200 kHz.
- External Clocking: Slave mode supports external frequencies up to 125 kHz.
- Conversion Rate: Fast processing at approximately 28 values per second.
- Output Logic: Features RS422 / RS485 drivers for stable clock transmission.
- Input Logic: NPN compatible digital user inputs with 10 kΩ impedance.
- Alarm Outputs: Two programmable relays for open or closed contact signaling.
- Analog Option: 16-bit resolution output supporting 0/4-20mA or 0/2-10V.
- Temperature Range: Reliable operation from 0°C up to 50°C.
- Environmental Protection: Front panel IP 54 rating ensures dust and splash resistance.
- Isolation Integrity: 3 kV isolation for analog circuits to prevent interference.
Installation and Maintenance
- Mount the device into a standard DIN 43 700 switchboard cutout easily.
- Secure all electrical connections via the plug-in screw terminal system.
- Ensure the 148 mm mounting depth includes space for wire routing.
- The ADP-010 requires no periodic lubrication or complex hardware tuning.
- Clean the front membrane with a dry cloth to maintain button responsiveness.
- Monitor the integrated error message display for rapid system diagnostics.
Compatibility and System Integration
- Fully compatible with all TR-Electronic SSI absolute encoders and sensors.
- Supports standard industrial protocols including DIN 66 019 and ISO 1745.
- Integrates with PLCs via RS485, RS422, or TTY serial interfaces.
- Works with baud rates ranging from 300 up to 19200.
- Suitable for equipment requiring precise linear or rotary position visualization.
Shipping and Warranty
- Fast Dispatch: Your order ships within 24-48 hours of confirmation.
- Global Logistics: Express delivery via FedEx, UPS, or DHL.
- Quality Assurance: Includes a full 12-month warranty for peace of mind.
- Packaging: Secured in industrial-grade anti-static packaging for safe transit.
Powergear X Automation’s Insight
The TR-Electronic ADP-010 is more than a simple display unit. It acts as a specialized translator for SSI protocols in harsh electrical environments. The 485-00230 model is particularly valued for its high isolation voltage and scaling flexibility. Engineering teams prefer this module for its ability to handle both Binary and Gray codes natively.
Typical Application Scenarios
- Positioning feedback for heavy-duty industrial crane systems.
- Real-time height monitoring in automated warehousing lifts.
- Synchronizing multiple axes in large-scale textile machinery.
- Measuring material thickness in high-speed steel rolling mills.
- Angle tracking for large satellite communication dish arrays.
Frequently Asked Questions (FAQ)
How do I adjust the scaling factor on the ADP-010?
You can program the scaling factor directly using the front membrane push buttons.
Does the 485-00230 support Gray code encoders?
Yes, the module is programmable to accept either Binary or Gray code formats.
What happens if the SSI clock signal is interrupted?
The unit detects the break and displays a specific error message for troubleshooting.
Can I reset the MAX/MIN values remotely?
Yes, you can configure the digital user inputs for the Auto-Reset function.
Is the power supply for the encoder included?
The AC version provides an internal 24V DC supply for the connected encoder.
Purchasing Guide
- Confirm your required supply voltage (95-250V AC or 18-36V DC).
- Verify if your application requires the optional 16-bit analog output.
- Check the required SSI bit length to ensure compatibility with the display.
- Select the appropriate serial interface (RS485/TTY) for your data network.
- Contact us via WhatsApp: +86 18030005825 for bulk pricing.
