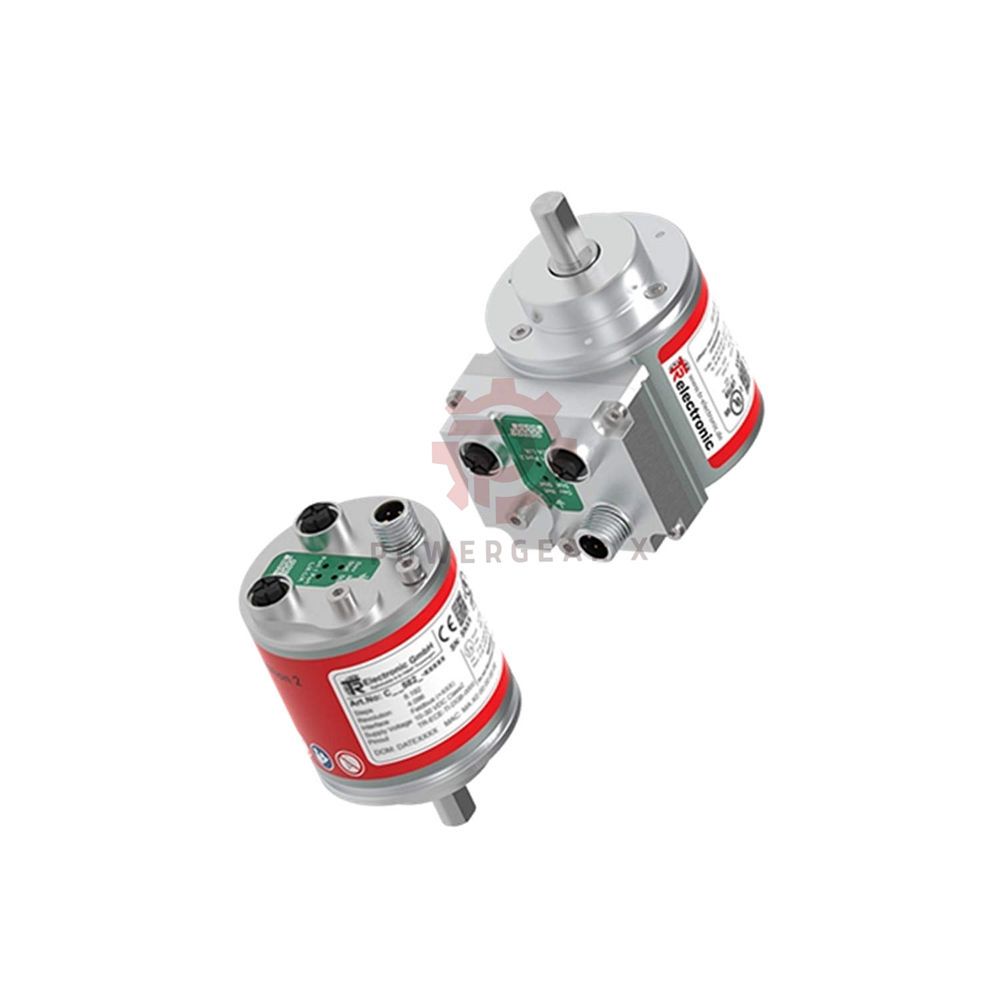

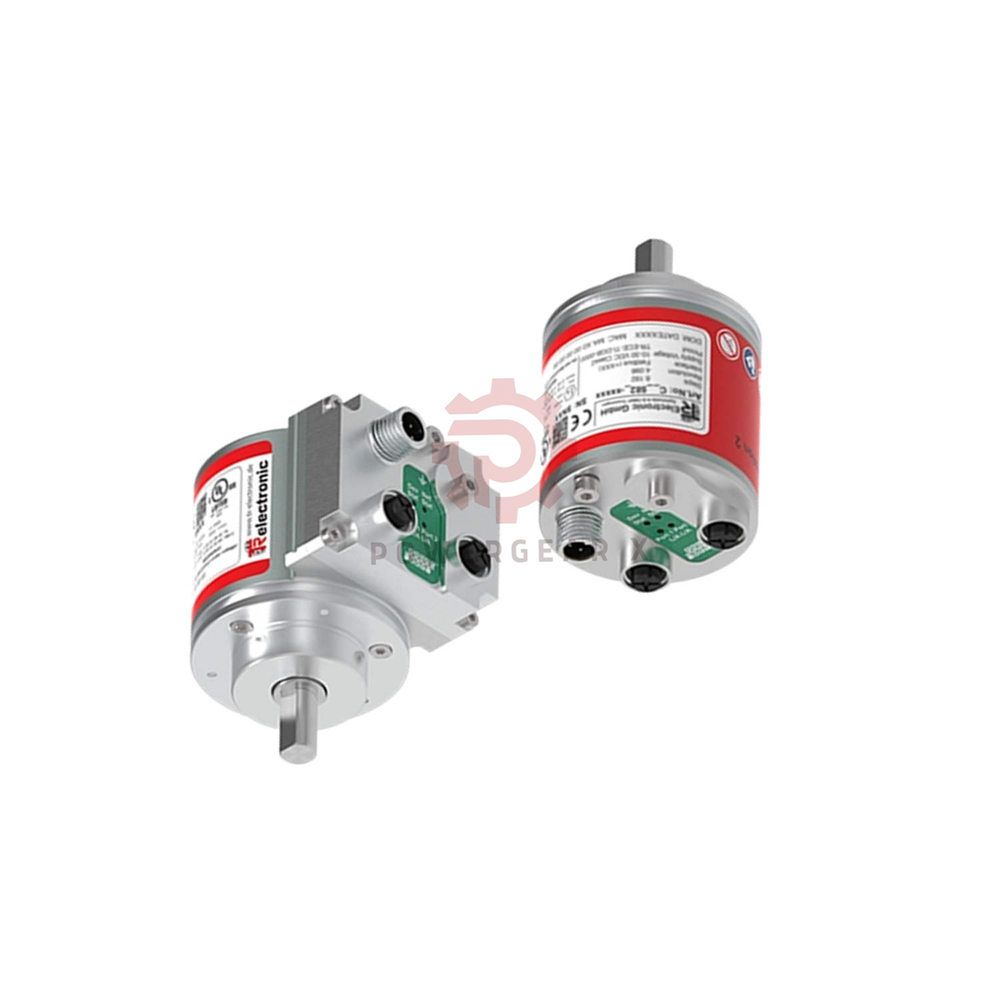

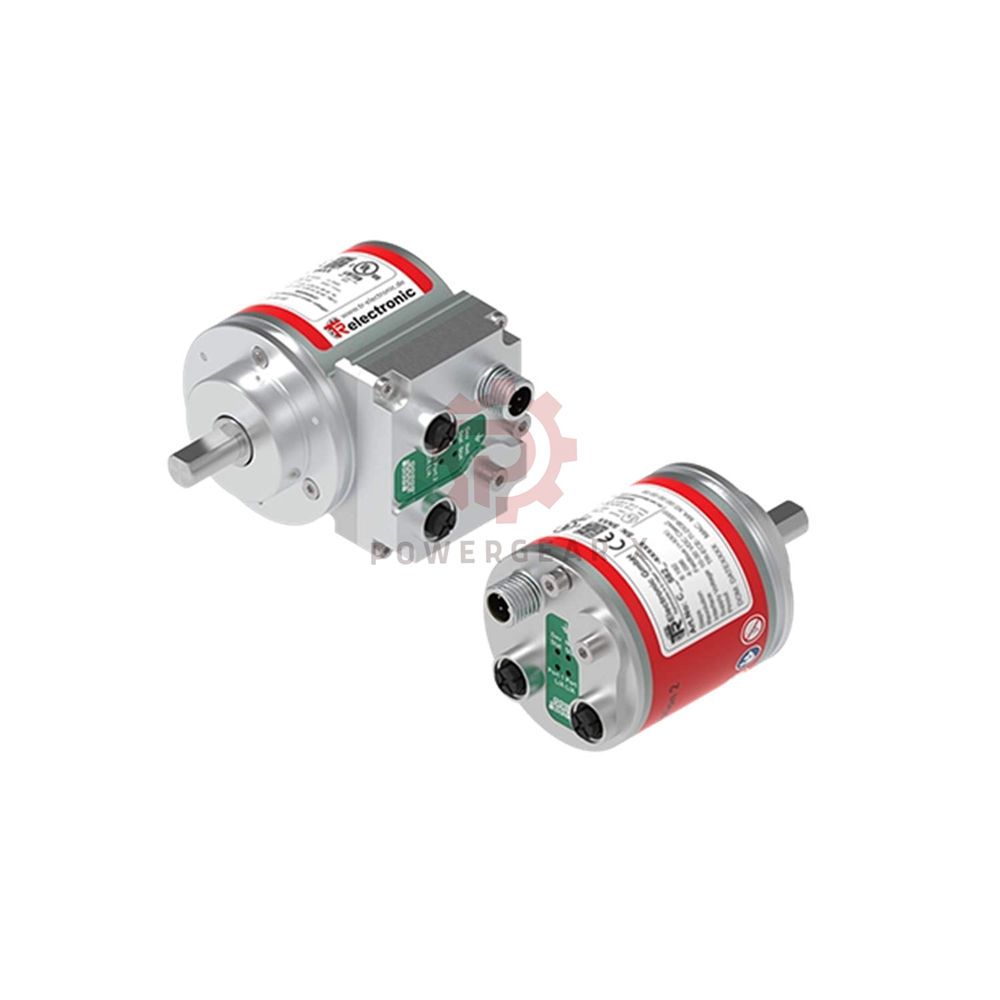

TR Electronic CEV58M-00441 Profinet Absolute Multi-turn Encoder

Powergear X Automation Review

• The TR Electronic CEV58M-00441 sets the standard for high-speed industrial positioning accuracy.
• Engineers trust the CEV58M series for seamless Profinet IO integration and superior data integrity.
• The 33-bit total resolution ensures precise tracking across complex multi-turn automation cycles.
• This unit excels in high-duty environments requiring rapid cyclic rates and real-time feedback.

High-Performance Industrial Position Sensing

• The TR Electronic CEV58M-00441 is a sophisticated Absolute Multi-Turn Encoder for Ethernet automation.
• It delivers precise position data after power loss without requiring a home run.
• The Profinet IO interface supports high-speed communication up to 100 MBit/s.
• This unit features a rugged ZB36 flange and IP65 protection for harsh conditions.

Technical Specifications and Measurement Capacity

• Brand: TR Electronic
• Model: CEV58M-00441
• Measurement Range: 4,096 revolutions (Multi-turn)
• Resolution per Turn: 8,192 steps (13-bit)
• Total Resolution: 33-bit architecture
• Interface Type: Profinet IO (V2.2)
• Data Code: Binary
• Cycle Time: >= 1000 µs (IRT/RT)
• Supply Voltage: 11-27 VDC (24V Nominal)
• Typical Current: 120 mA (Unloaded)
• Mechanical Speed: Maximum 12,000 1/min
• Shaft Load Capacity: Axial 50 N / Radial 100 N
• Shaft Geometry: 10mm diameter with flat (10FL/19.5)
• Operating Temperature: -20°C to +70°C
• Protection Rating: IP65 standard
• EMC Immunity: DIN EN 61000-6-2
• Connection: M12 Connectors (Axial position)

Installation and System Integration

• Mounting: Use the ZB36 centering bond flange for precise mechanical alignment.
• Coupling: Ensure the 10mm shaft aligns perfectly to prevent premature bearing wear.
• Wiring: Connect the 4-pin M12 for power and D-coded M12 for Ethernet.
• Grounding: Use shielded cables to maintain high anti-interference capability in noisy environments.
• Tools: Configure the device parameters via standard Fieldbus-Device engineering software.

Diagnostic Capabilities and Maintenance

• Internal Monitoring: The system tracks velocity and hardware status via Profinet telegrams.
• Programmable Parameters: Users can adjust counting direction and resolution remotely.
• Bearing Life: The robust design is rated for 3.9E+10 revolutions at 6000 RPM.
• Maintenance Ease: Modular design allows quick replacement without mechanical recalibration.

Purchase Information and Logistics

• Package List: Includes one TR Electronic CEV58M-00441 absolute encoder unit.
• Warranty: Comprehensive 12-month quality guarantee on all technical components.
• Dispatch Time: Guaranteed shipment within 24-48 hours from our central stock.
• Courier Options: Rapid worldwide delivery available via FedEx, UPS, and DHL.
• Direct Inquiries: sales@powergearx.com
• WhatsApp Support: +86 18030005825

Selection Guide and FAQ

• How do I choose the correct shaft size for my application?
• Measure your coupling diameter; this CEV58M model specifically utilizes a 10mm shaft with flat.
• Does this absolute encoder require a battery for multi-turn data storage?
• No, the electronic sensing technology retains position data indefinitely without external power or batteries.
• Can I modify the resolution settings after the encoder is installed?
• Yes, the device supports programmable parametrization directly through the Profinet interface software.
• What is the protocol for handling high-vibration environments?
• This model supports up to 100 m/s² vibration; ensure the ZB36 flange is securely bolted.
• Is the mating plug included in the standard box?
• The standard package includes the encoder only; please specify if you require matching M12 connectors.
