Product details

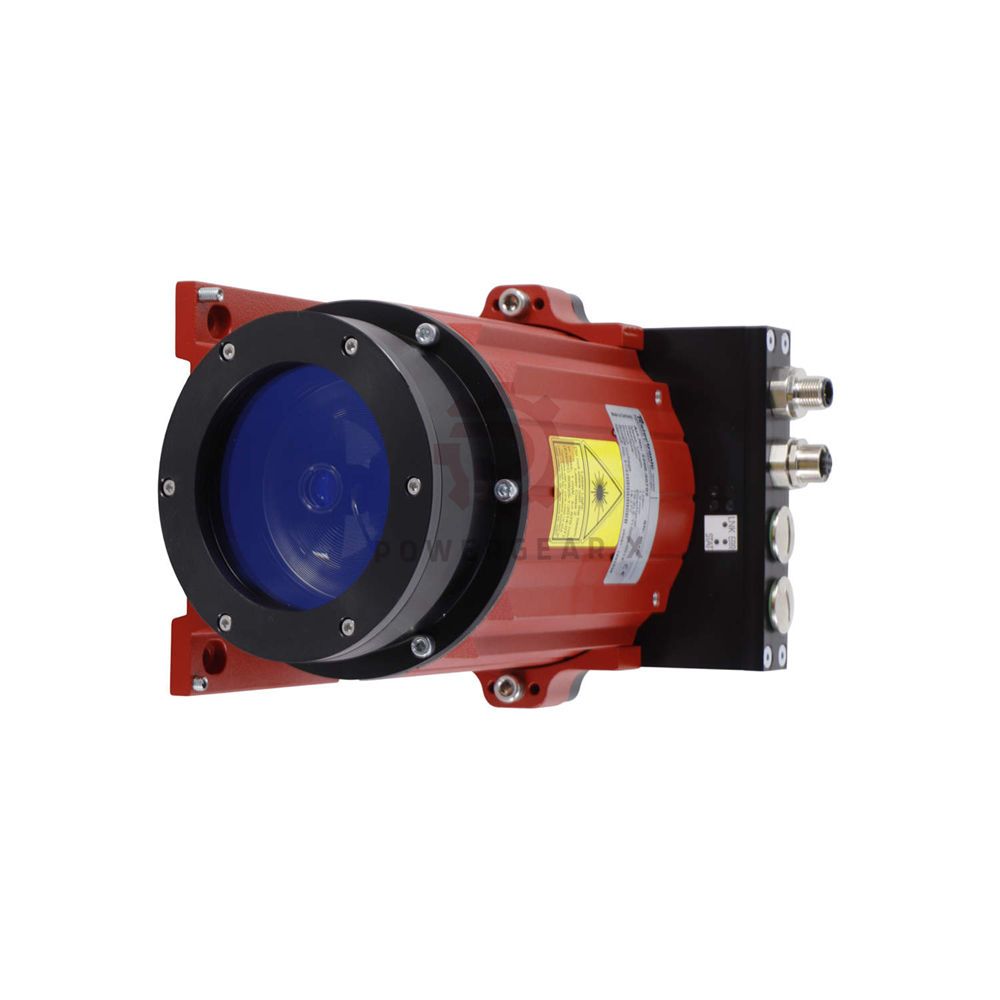

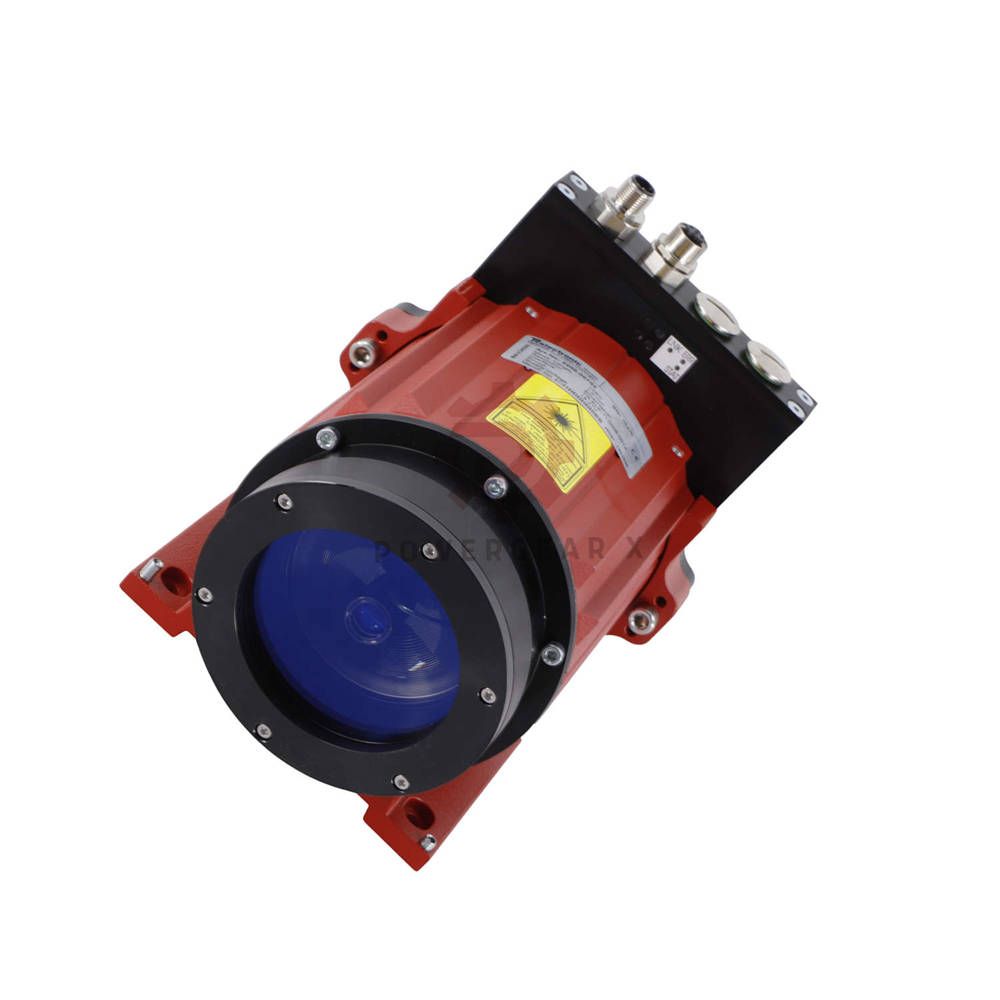

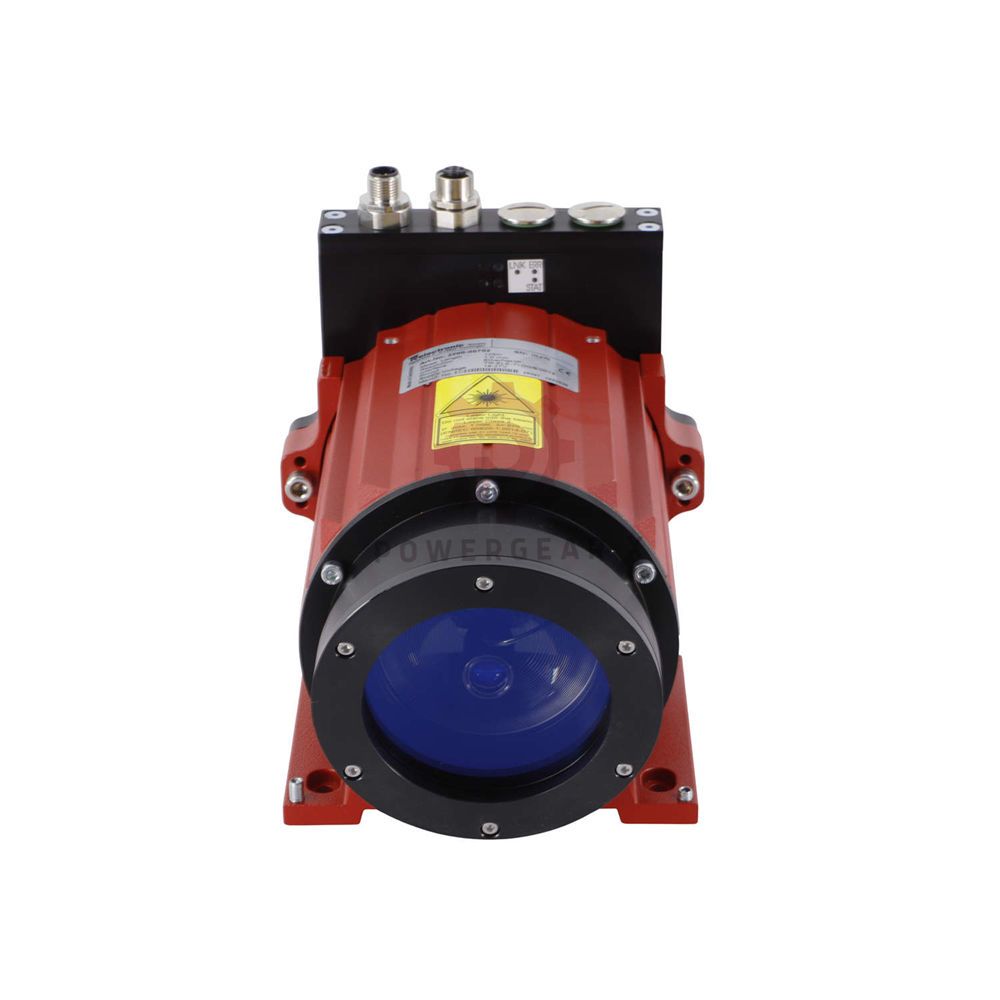

Product Overview
- Brand: TR Electronic
- Model: 2200-00402
- Series: 2200 Laser Measurement Series
- Type: Laser Distance Sensor | Barcode Positioning
- Reliable phase-shift laser measurement for long-range industrial positioning.
- This sensor provides stable measurement up to 125 meters.
- It uses non-contact optical technology for zero mechanical wear.
- It integrates CAN DeviceNet communication for industrial networks.
- It supports programmable logic for flexible automation design.
Performance Highlights
- Measurement range up to 125 meters with extension capability
- Physical resolution reaches 0.1 mm
- High repeatability with ±2 mm consistency
- Fast refresh rate up to 1000 values per second
- Full stroke linearization ensures accuracy across full range
- Stable performance under continuous operation conditions
Technical Specifications
- Measuring Principle: Phase shift technology
- Standard Range: 0.2 to 125 meters
- Extended Range: Up to 170 m, 195 m, 240 m
- Resolution: 0.1 mm
- Linearity: ±3 mm within 12 m, ±5 mm full scale
- Reproducibility: ±2 mm
- Interface: CAN DeviceNet
- Transmission Rate: 125, 250, 500 kbit/s
- Output Level: RS485
- Voltage Supply: 18–27 V DC
- Current Consumption: ≤ 350 mA
- Temperature Range: 0°C to 50°C
- Optional Low Temp: -30°C to 50°C
- Protection: IP65
- Laser Type: Red diode, 670 nm, Class 2
- Output Rate: 1000 measurements per second
System Integration
- Supports CAN DeviceNet protocol per EN 50325-2.
- Compatible with ISO 11898 CAN bus systems.
- Adjustable parameters via TRWinProg software.
- DIP switches enable flexible transmission configuration.
Electrical & I/O Features
- Programmable digital input for preset and control functions.
- Status outputs include temperature, speed, and position.
- RS485 interface supports configuration and diagnostics.
- Galvanically isolated reference potentials improve stability.
Installation & Wiring
- Uses 20-pole screw terminal interface.
- Supports Phoenix Contact clamp connections.
- Compatible with AWG 26–16 wiring standards.
- Ensure proper grounding for CAN signal integrity.
- Avoid connecting reserved terminals marked N.C.
Environmental Durability
- Vibration resistance up to 50 m/s²
- Shock resistance up to 300 m/s²
- Humidity tolerance up to 98% non-condensing
- Complies with EMC standards DIN EN 61000-6-2 and 61000-6-3
Status Indication
- Green RUN LED indicates active communication.
- Flashing green signals recoverable faults.
- Red ERR LED indicates system fault conditions.
- Green OK LED confirms hardware status.
Powergear X Automation’s Insight
- This model suits long-distance precision positioning systems.
- It performs well in crane and warehouse automation.
- Its CAN interface supports legacy industrial networks.
- It is ideal for environments requiring stable optical sensing.
- Recommended for logistics, steel processing, and heavy machinery.
FAQ
- How does phase-shift measurement improve performance?
- It provides stable accuracy over long distances with minimal drift.
- What is the advantage of CAN DeviceNet communication?
- It ensures reliable data exchange in industrial environments.
- Can this sensor operate in cold environments?
- Optional configuration supports operation down to -30°C.
- What should be considered when selecting range extensions?
- Longer ranges require reflective targets for consistent results.
- What services are included after purchase?
- Includes 12-month warranty and technical support.
- Orders ship within 12–48 hours via FedEx, UPS, or DHL.
