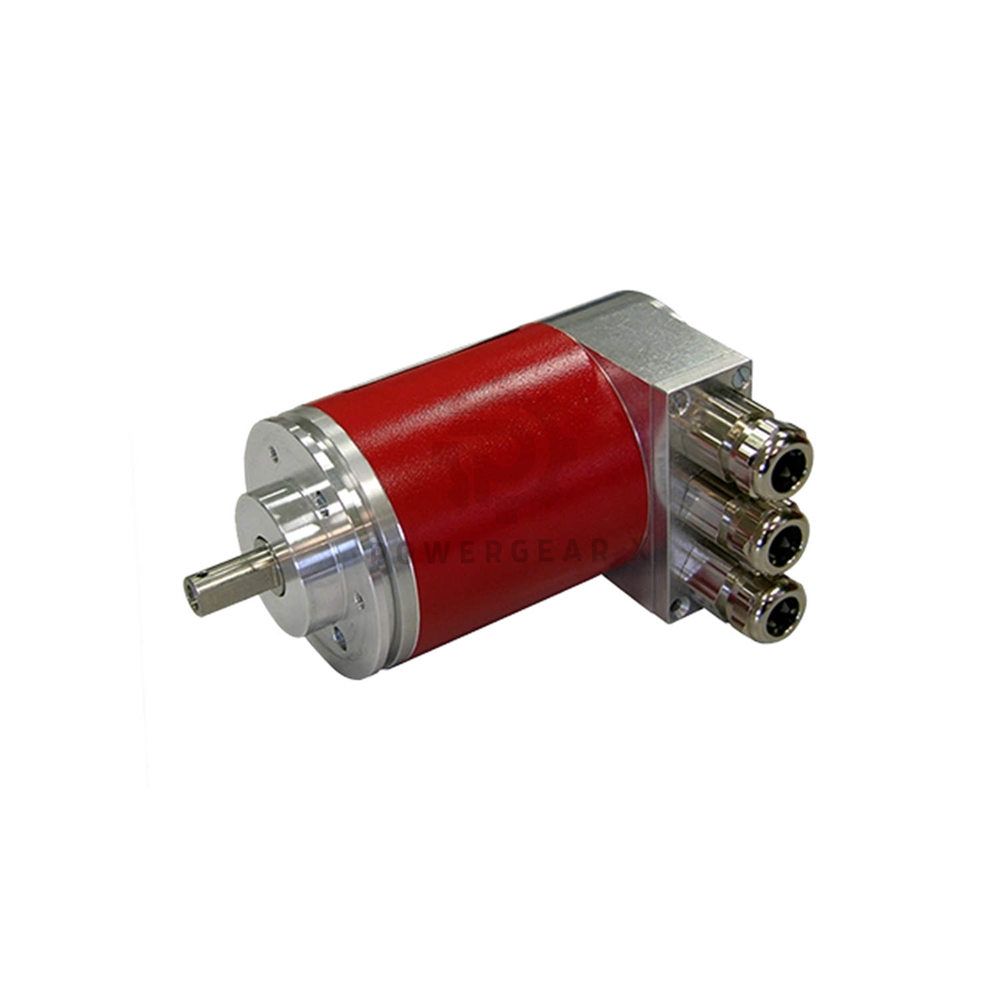

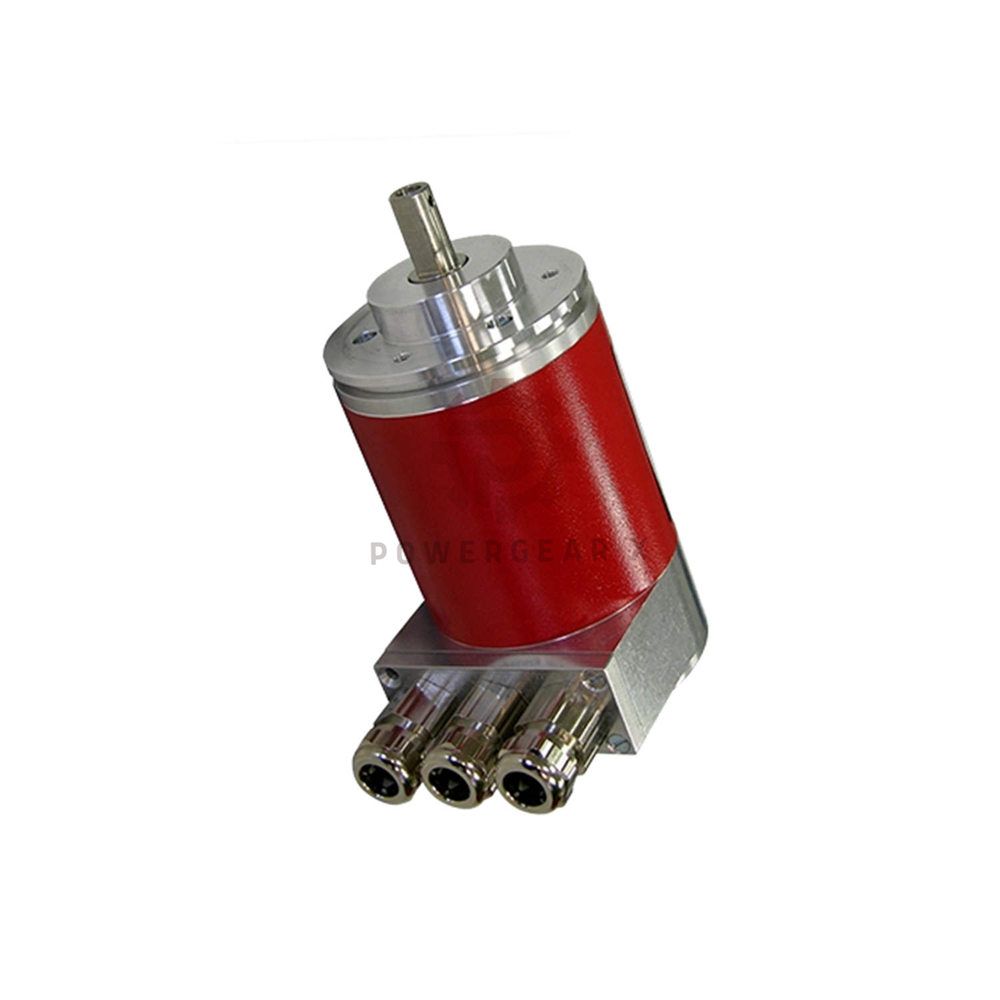

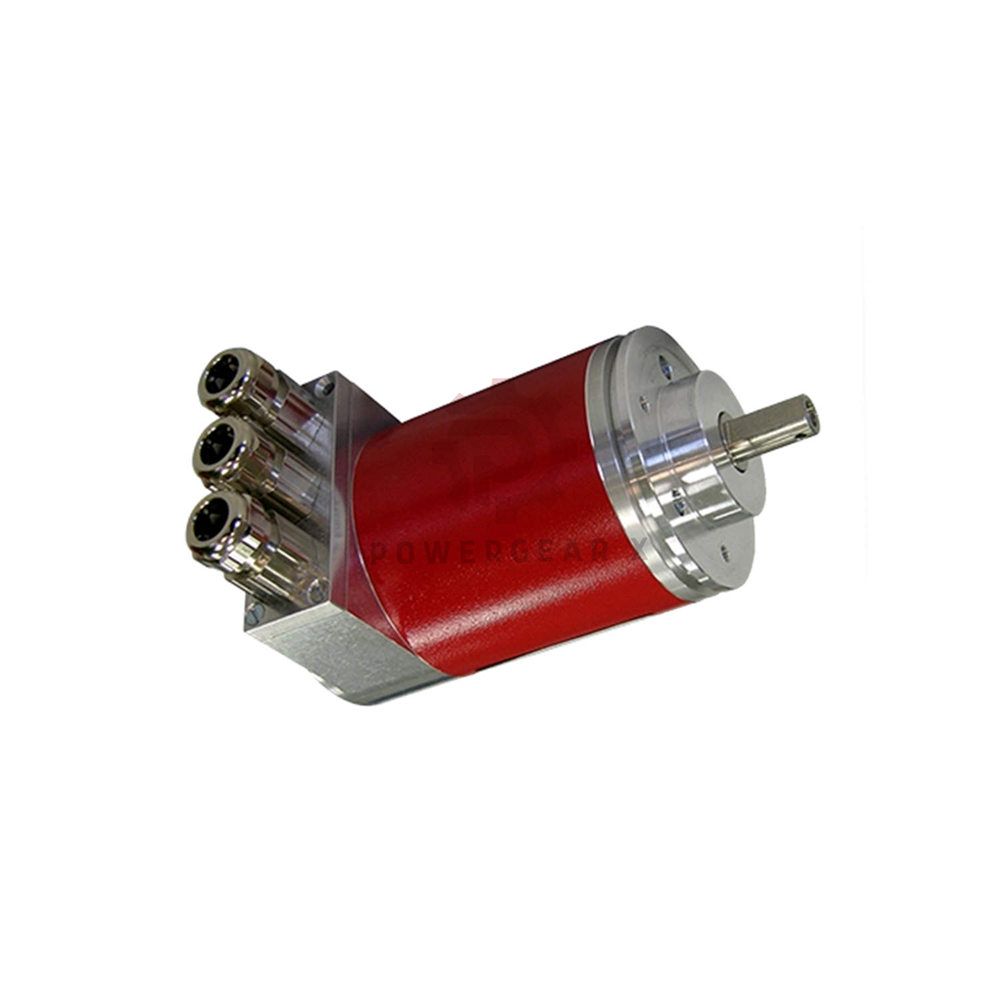

TR Electronic CEV65M-10579 | Profinet IO + SSI Absolute Encoder
- The TR Electronic CEV65M-10579 delivers high-precision position sensing for industrial automation.
- This multi-turn absolute encoder features a dual interface for maximum system flexibility.
- Engineers utilize its Profinet IO and SSI outputs for real-time motion control.
- The IP65 protection rating ensures reliable performance in dusty or moist environments.
- A programmable resolution allows custom scaling to meet specific mechanical requirements.
- The ZB36 flange design provides a compact footprint for tight installations.
Technical Data and Specifications
- Brand: TR Electronic
- Model: CEV65M-10579
- Resolution: 4,096 steps per revolution (12-bit)
- Measuring Range: 4,096 total revolutions (12-bit)
- Interface: Dual Profinet IO (Spec 2.2) + SSI
- Supply Voltage: 11V to 27V DC
- Output Levels: Supports both RS422 and RS485
- Temperature Range: -20°C to +70°C
- Shaft Type: 10mm flat shaft (10FL/19,5)
- Connectors: 1x4P M12, 1x8P M12, and 2x4P D-coded Female
- Conformance: Encoder Class C for high-speed synchronization
- Anti-Interference: Professional-grade EMC shielding and galvanic isolation
Installation and Maintenance Convenience
- Mount the CEV65M-10579 using the ZB36 centering flange for precision alignment.
- Connect via radial M12 ports to reduce cable strain in tight spaces.
- Use the programmable preset function to calibrate the zero-point via software.
- The device requires zero mechanical maintenance under normal operating conditions.
- Diagnostics are simplified through integrated Profinet status monitoring and error reporting.
Compatibility and Typical Applications
- Fully compatible with Siemens S7-1500 and other Profinet-capable PLCs.
- Ideal for precision CNC machinery and high-speed packaging lines.
- Used extensively in robotic arm joints and automated storage systems.
- Suitable for wind turbine pitch control and heavy-duty conveyor synchronization.
Shipping and Commercial Terms
- Processing Time: Fast dispatch within 24-48 hours.
- Courier Services: Worldwide shipping via FedEx, UPS, or DHL.
- Warranty: Comprehensive 12-month quality guarantee included.
- Package List: 1x TR Electronic CEV65M-10579, Factory Calibration Report.
- Inquiries: sales@powergearx.com
- WhatsApp Support: +86 18030005825
Powergear X Automation’s Insight
- The CEV65M-10579 series offers unmatched reliability for transitioning from SSI to Ethernet backbones.
- We recommend this model for applications requiring Class C synchronization in complex multi-axis motion.
FAQ & Buying Guide
- Question: How do I set the IP address for the Profinet interface?
- Answer: You can assign the name and IP via the TIA Portal or GSDML configuration tool.
- Question: Does this model support both RS422 and RS485 levels?
- Answer: Yes, the output levels are switchable based on your interface configuration.
- Question: Can the CEV65M-10579 withstand high vibrations?
- Answer: The robust internal construction handles standard industrial vibration levels comfortably.
- Selection Tip: Always verify that the 10FL/19,5 shaft matches your existing coupling dimensions.
