Product details
Product Brief

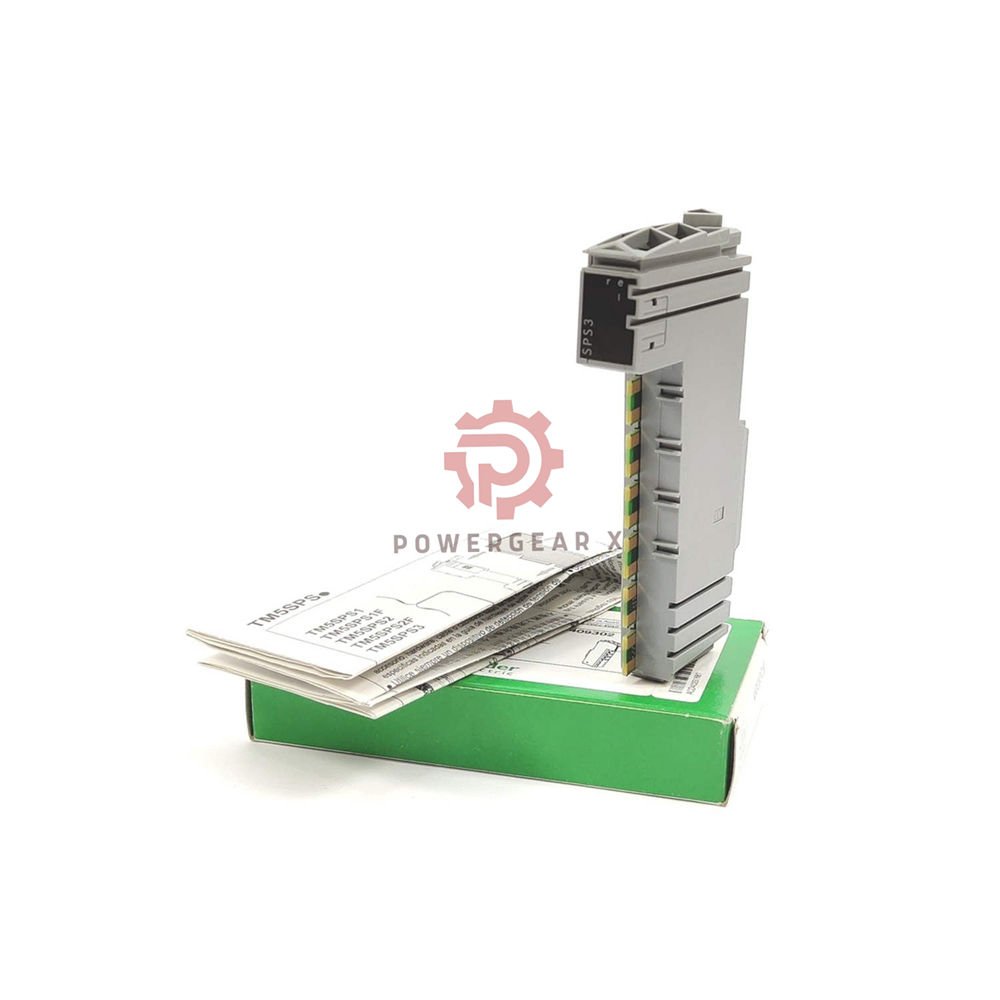

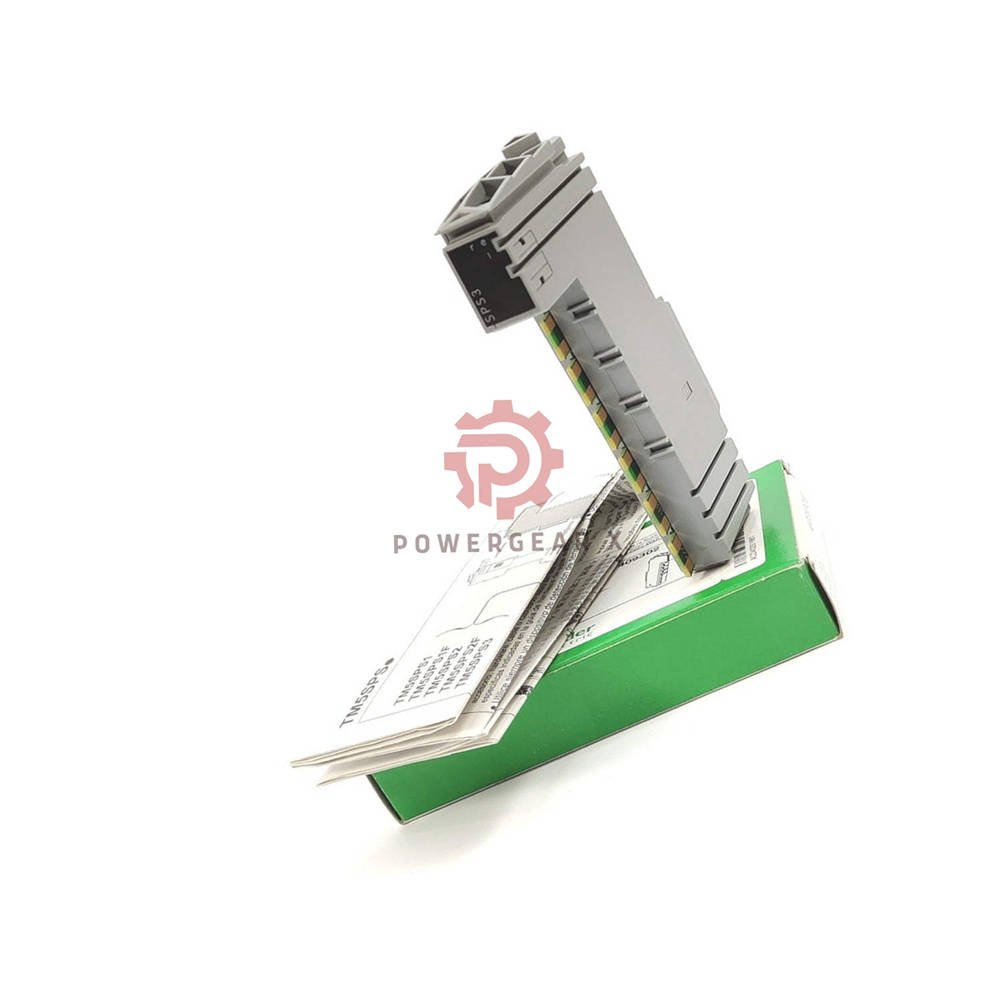

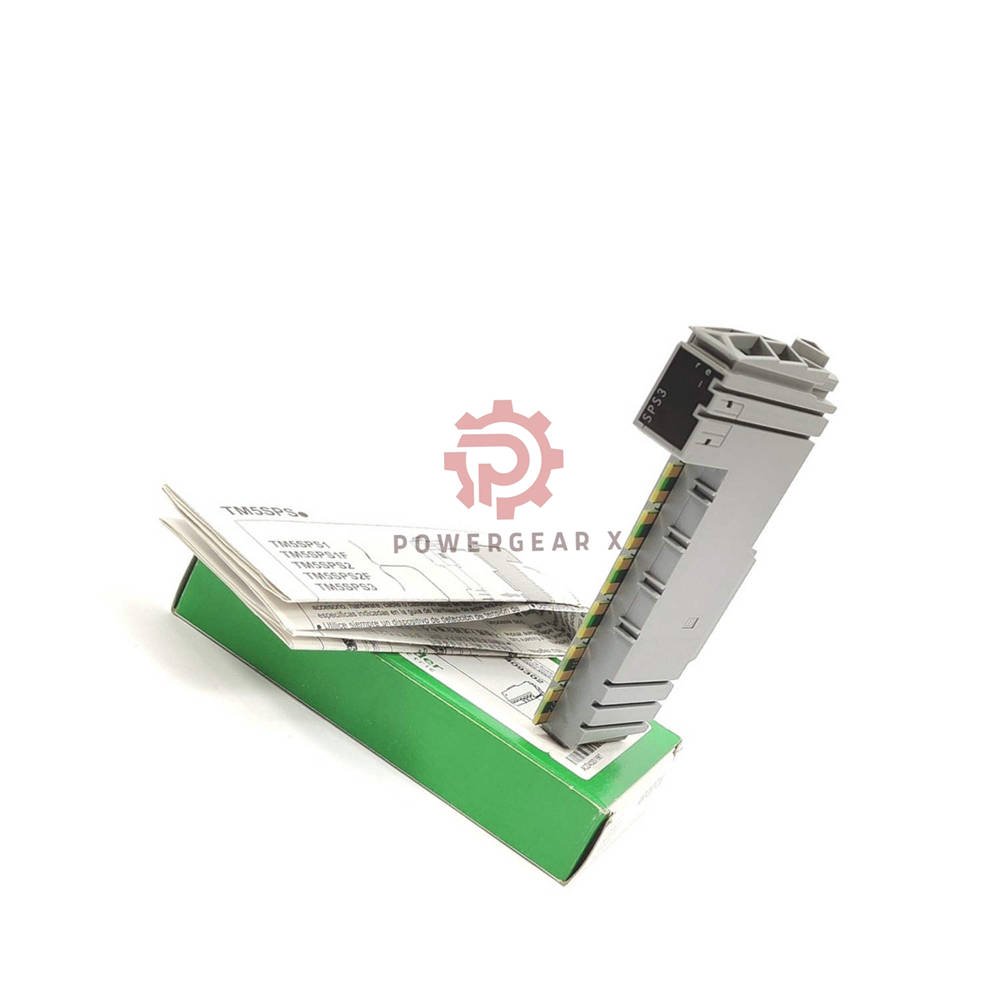

TM5SPS3 is a 24 V DC power distribution module for Modicon TM5 systems. It supplies CANopen interface and I/O modules. This module ensures reliable power for logic and motion controllers.
Key Features
- Supply Voltage: 24 V DC
- Power Bus Output: 750 mA at -10…55 °C, 500 mA at 55…60 °C
- I/O Segment Current: 10 A
- Short-Circuit Protection: 10 A external fuse required
- Power Dissipation: ≤ 1.91 W
- Self-Consumption: ≤ 25 mA at 24 V DC
- Colour: Grey
Technical Specifications
- Brand: Schneider Electric
- Model: TM5SPS3
- Series: Modicon TM5
- Type: Power Distribution Module
- Range Compatibility: Modicon LMC078, LMC058, M258
- Product Compatibility: Logic controllers, motion controllers
- Network Type: DC
- Temperature Range (Operation): -10…55 °C (horizontal, no derating); 55…60 °C (derating); -10…50 °C (vertical)
- Storage Temperature: -40…70 °C
- Relative Humidity: 5…95 % (no condensation)
- Operating Altitude: 0…2000 m
- Storage Altitude: 0…3000 m
- Vibration Resistance: 1 gn at 8.4…150 Hz (DIN rail); 3.5 mm at 5…8.4 Hz
- Shock Resistance: 15 gn for 11 ms
- ESD Immunity: 4 kV contact, 8 kV air (EN/IEC 61000-4-2)
- RF Immunity: 10 V/m (80…2000 MHz), 1 V/m (2…2.7 GHz)
- Fast Transient Immunity: 1 kV I/O, 2 kV power lines
- Surge Immunity: 0.5 kV differential, 1 kV common mode
- EMC Standards: EN/IEC 61000-4-6, CISPR 11
Installation & Commissioning
- Mounting: DIN rail (vertical or horizontal)
- Derating: Required at 55…60 °C for horizontal mounting
- Wiring: Easy access to 24 V DC terminals
- LED Indicators: Quick status check for power and bus
- Commissioning: Plug-and-play with Modicon TM5 system
Compatibility
- Controllers: Modicon LMC078, LMC058, M258
- Modules: CANopen interface, I/O modules, Sercos III bus
- System: Modicon TM5 automation platform
Certifications
- CSA C22.2 No 213, No 142
- IEC 61131-2
- UL 508
- GOST-R, C-Tick, CSA, cULus
- CE Marking
Package Contents
- 1 x TM5SPS3 Power Distribution Module
- Unit Weight: 51 g
- Dimensions: 2.0 x 6.0 x 10.5 cm
Warranty & Shipping
- Warranty: 12 months against manufacturing defects
- Dispatch: 12–24 hours after order confirmation
- Carriers: FedEx, UPS, DHL (express delivery)
Expert Review
TM5SPS3 delivers stable 24 V DC power to CANopen and I/O modules. Its wide temperature range and robust EMC protection suit harsh industrial environments. The derating profile is clearly defined, preventing unexpected shutdowns. Easy DIN-rail mounting and LED diagnostics reduce installation time. A reliable choice for Modicon TM5-based automation cells.
Manager’s Insight
This module optimizes power distribution for multi-axis motion systems. It ensures bus stability even with high I/O loads. The compact design saves cabinet space. With global certifications and 12-month warranty, it lowers total cost of ownership. Recommended for OEMs and system integrators needing a rugged, field-proven power solution.
Applications & Suitable Devices
- Logic controllers (Modicon M258)
- Motion controllers (LMC058, LMC078)
- CANopen interface modules
- I/O modules (digital, analog)
- Sercos III communication bus
- Packaging, material handling, and conveyor systems
- Automated assembly lines and robotics
FAQ – Frequently Asked Questions
- Q: What is the maximum current for the I/O segment?
- A: 10 A (protected by external fuse).
- Q: Can I mount this module vertically?
- A: Yes, but ambient temperature derates to -10…50 °C.
- Q: Which controllers are compatible?
- A: Modicon LMC078, LMC058, and M258.
- Q: Does it support Sercos III?
- A: Yes, it supplies Sercos III bus and I/O modules.
- Q: What is the power dissipation?
- A: Maximum 1.91 W.
- Q: Is the fuse included?
- A: No, you need a 10 A external fuse (not supplied).
- Q: How to check module status?
- A: Use the built-in LED indicators for power and bus.
- Q: What is the shipping weight?
- A: 51 g per unit.
- Q: Any special storage conditions?
- A: Store between -40…70 °C and 5…95 % humidity (no condensation).
Selection Guide
- Check your controller model (LMC078, LMC058, M258).
- Verify total I/O current does not exceed 10 A.
- For high ambient temperatures (55…60 °C), apply derating or use horizontal mounting.
- Use a 10 A fast-blow external fuse for short-circuit protection.
- Consider spare modules for critical production lines.
- For Sercos III applications, ensure compatible firmware versions.
