Product Overview

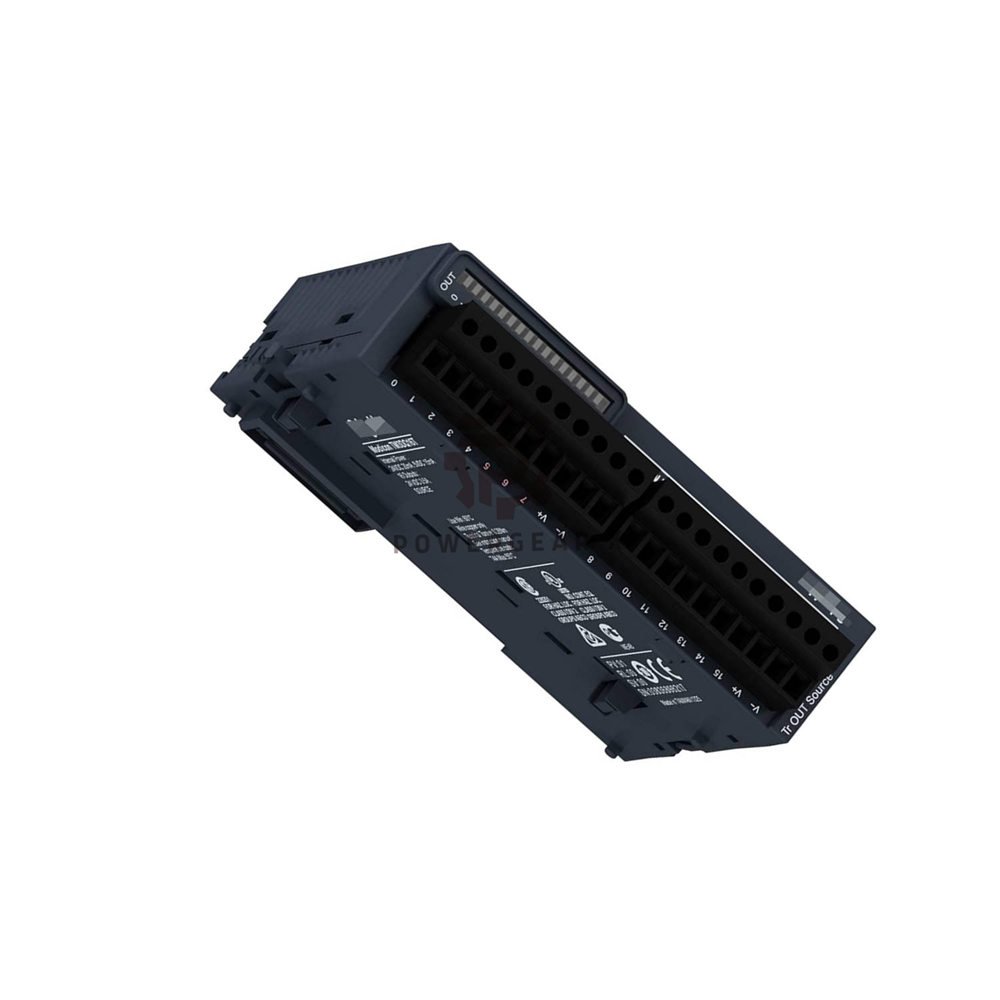

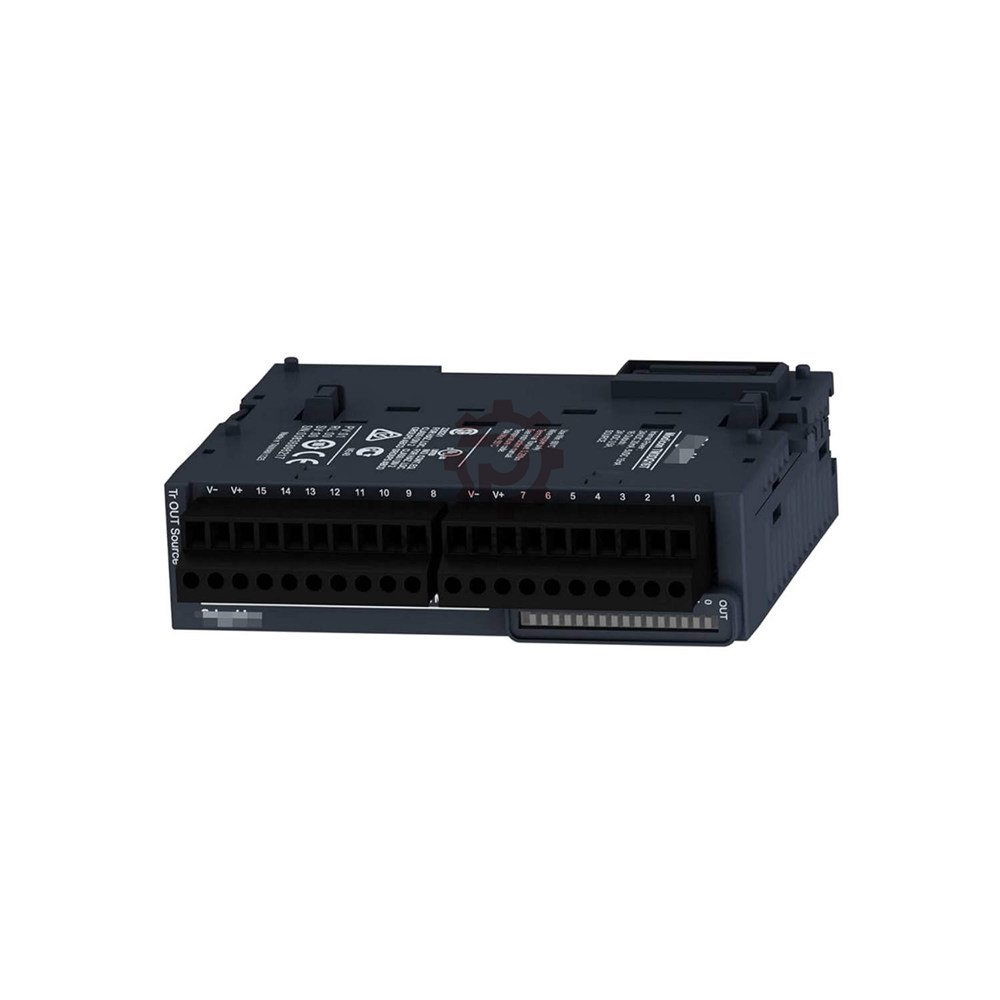

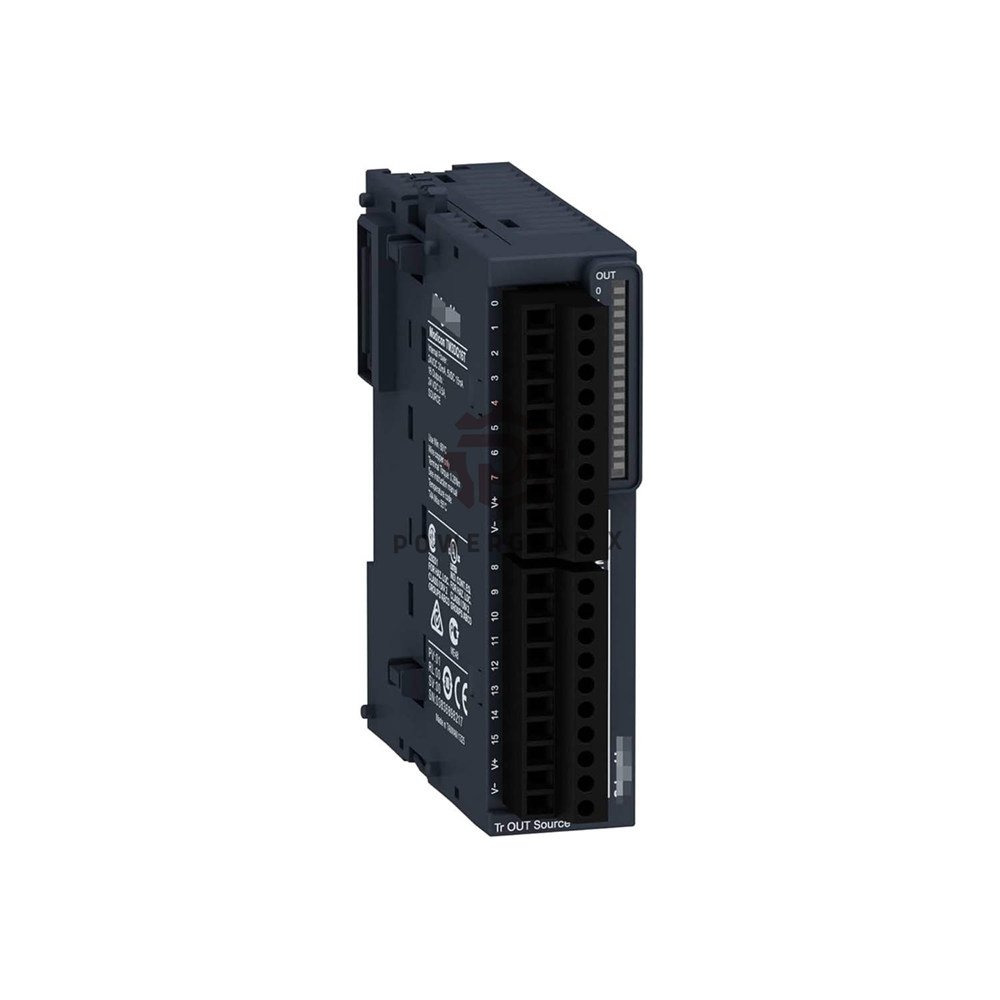

Furthermore, the TM3DQ16T is a high-performance discrete output module from Schneider Electric’s Modicon TM3 series. Specifically, this 16-channel transistor output module uses positive logic (PNP) and delivers 24 V DC at 500 mA per point. In addition, it offers a swift response time of 450 µs for both turn-on and turn-off operations. Consequently, it serves as an ideal solution for demanding industrial automation tasks that require reliable and fast switching.
Technical Specifications
- Brand & Model: Schneider Electric – TM3DQ16T.
- Series: Modicon TM3.
- Module Type: Discrete transistor output (PNP, source).
- Outputs: 16 channels, 24 V DC, 0.5 A per channel.
- Response Time: 450 µs (on) and 450 µs (off).
- Leakage Current: ≤ 0.1 mA, ensuring minimal power loss.
- Voltage Drop: Less than 0.4 V, maintaining efficient operation.
- Power Consumption (5 V DC): 5 mA (off) / 15 mA (on).
- Power Consumption (24 V DC): 0 mA (off) / 20 mA (on).
- Max Tungsten Load: 3 W per output.
- Electrical Connection: 10 x 1.5 mm² removable screw terminal block (pitch 3.81 mm).
Environmental & Physical Characteristics
- Operating Temperature: -10…55 °C (horizontal) / -10…35 °C (vertical).
- Storage Temperature: -25…70 °C.
- Relative Humidity: 10…95 % non-condensing.
- Operating Altitude: 0…2000 m.
- Protection Rating: IP20 (with protective cover).
- Pollution Degree: 2.
- Vibration Resistance (DIN rail): 3.5 mm @ 5…8.4 Hz / 3 gn @ 8.4…150 Hz.
- Shock Resistance: 15 gn for 11 ms.
- Dimensions (H x D x W): 90 mm x 84.6 mm x 27.4 mm.
- Net Weight: 0.11 kg.
Immunity & Electromagnetic Compatibility
- ESD: 8 kV air / 4 kV contact (IEC 61000-4-2).
- Radiated RF: 10 V/m (80 MHz…1 GHz), 3 V/m (1.4…2 GHz), 1 V/m (2…3 GHz).
- Magnetic Field: 30 A/m @ 50/60 Hz.
- Fast Transients: 1 kV for I/O.
- Surge (common mode): 1 kV DC.
- Conducted RF: 10 V (0.15…80 MHz).
- Radiated Emissions: Class A – 40 dBμV/m @ 30…230 MHz / 47 dBμV/m @ 230…1000 MHz.
Installation & Mounting Guide
- Mounts on TH35-7.5 or TH35-15 DIN rails (IEC 60715).
- Alternatively, panel mounting is possible with an optional fixing kit.
- For optimal performance, use unshielded cables up to 30 m.
- Furthermore, local signalling is provided by one green LED per channel for output status.
Compatibility & System Integration
- Fully compatible with Modicon M241, M251, M221, and M262 controllers.
- Additionally, it supports non-insulated outputs with AC isolation between outputs and internal logic.
- Consequently, integration into existing automation systems is straightforward and flexible.
Certifications & Standards
- Compliant with IEC 61131-2.
- Holds cULus, CE, UKCA, RCM, EAC, and cULus HazLoc certifications.
- Furthermore, it meets marine specifications (LR, ABS, DNV, GL) for spot frequencies.
Package Contents
- 1 x TM3DQ16T output module.
- 1 x removable screw terminal block (10-way).
- Mounting hardware for DIN rail.
- Quick start guide (digital copy available).
Warranty & Shipping Information
- Warranty: 12 months against manufacturing defects.
- Dispatch Time: Orders are shipped within 12-24 hours.
- Shipping Carriers: FedEx, UPS, and DHL are available.
- All shipments include tracking for your convenience.
Expert Review
In our assessment, the TM3DQ16T excels in high-density DC output control. For instance, its 450 µs switching speed is ideal for applications requiring precise timing. Furthermore, the low leakage current and minimal voltage drop ensure stable actuator performance. Additionally, the compact design saves valuable cabinet space, making it a practical choice for system integrators.
Manager’s Insight
From a management perspective, this module reduces inventory complexity due to its wide compatibility across multiple M-series PLCs. Moreover, the screw terminal block simplifies field wiring and maintenance. Consequently, it delivers a cost-effective solution for 24 V DC load switching, improving overall operational efficiency.
Typical Applications
- Conveyor systems – for motor starters and solenoids.
- Packaging machinery – to control pneumatic valves.
- Material handling equipment – for indicator lamps and alarms.
- HVAC systems – managing dampers and relay controls.
- General purpose discrete output switching in factory automation.
Frequently Asked Questions (FAQ)
- What is the maximum current per output?
Each output supports 500 mA continuously. - Is this module compatible with the M221 PLC?
Yes, it works seamlessly with M221, M241, M251, and M262. - Are the outputs isolated from each other?
No, the outputs are non-insulated, but there is AC isolation between outputs and the internal logic. - What is the typical response time?
The turn-on and turn-off times are both 450 µs. - What cable length is recommended?
For unshielded cables, the maximum distance is 30 m. - Is this a PNP or NPN module?
It is a PNP (positive logic / source) module. - Can I mount it on a panel?
Yes, you can mount it on a panel using the optional fixing kit.
Selection Guide & Practical Advice
When selecting the TM3DQ16T, firstly consider the total current draw of your loads to ensure it does not exceed the module’s capacity. Additionally, verify that your controller is one of the compatible models (M241, M251, M221, or M262). For environments with high electrical noise, we recommend using shielded cables to enhance immunity. Finally, for NPN requirements, please choose the complementary sink version.
