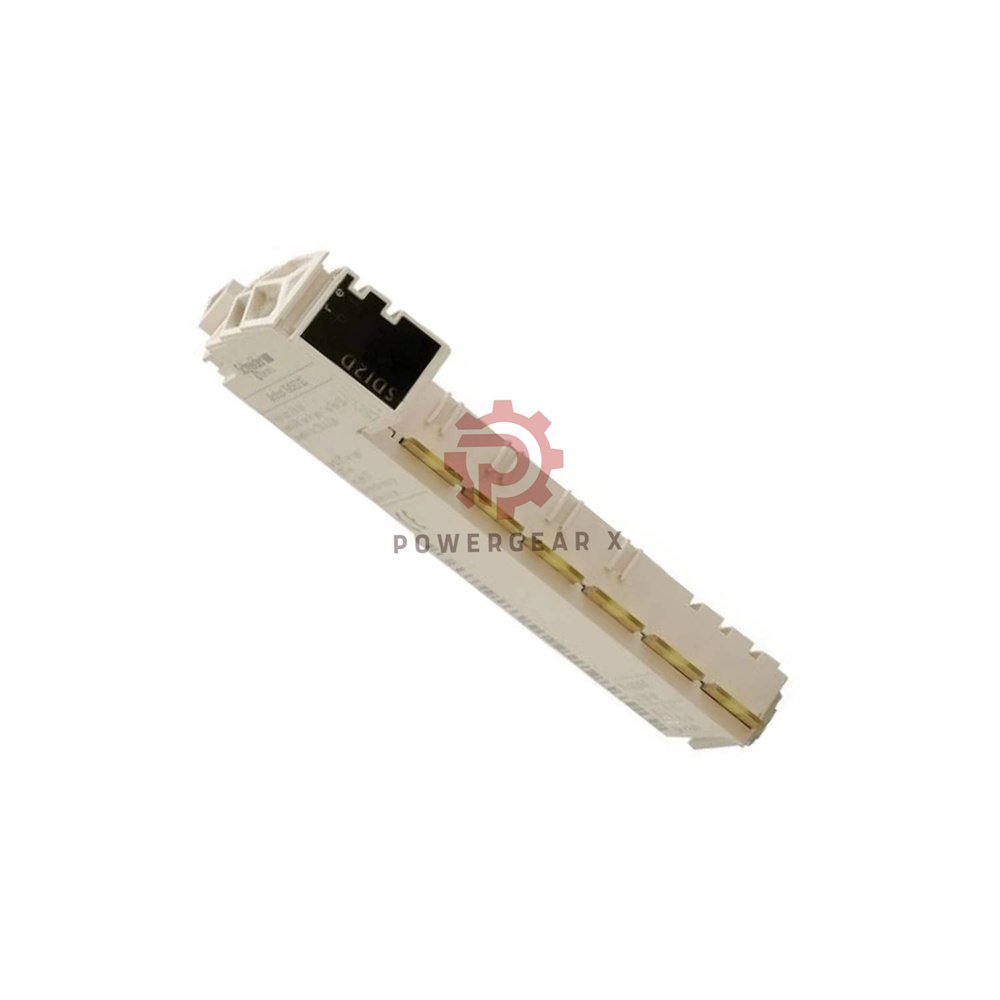

TM5SDO4T Modicon Output Module | 4-Channel 24V DC Transistor

TM5SDO4T – Discrete Output Module

Brand: Schneider Electric | Series: Modicon TM5 | Type: 4-Channel Transistor Output

Compact 24V DC output module for logic & motion controllers. Source output, 0.5A per channel, short-circuit proof. White housing, 3-wire connection.

Key Features

• 4 digital outputs – transistor, source logic
• 0.5 A per channel – 2 A common max
• 24 V DC operation – wide range 20.4…28.8 V
• Fast response – ≤300 µs ON/OFF
• Protection – reverse polarity, short-circuit, overload
• Isolation – 500 Vrms channel-to-bus

Technical Specifications

• Outputs
  • Number: 4
  • Type: Transistor (source)
  • Current per channel: 0.5 A
  • Peak current: 12 A
  • Voltage drop: <0.3 V at 500 mA
• Performance
  • Switching freq: ≤500 Hz (resistive)
  • Response time: ≤300 µs
  • Leakage current: ≤5 µA (OFF)
• Power & Environment
  • Supply: 24 V DC (20.4…28.8 V)
  • Current consumption: 20 mA (I/O), 32 mA (bus)
  • Power dissipation: 0.86 W
  • Temperature: -10…55 °C (horizontal, no derating)
  • Storage: -40…70 °C
  • Humidity: 5…95% non-condensing
  • Altitude: 0…2000 m (op.) / 0…3000 m (store)
  • Pollution degree: 2 (IEC 60664)
• Mechanical
  • Weight: 0.025 kg
  • Protection: IP20 (IEC 61131-2)
  • Vibration: 3.5 mm (5…8.4 Hz), 1 gn (8.4…150 Hz)
  • Shock: 15 gn / 11 ms

Installation & Commissioning

• Mounting: DIN rail, horizontal or vertical (-10…50 °C).
• Wiring: 3-wire connection, 0.5 mm² max.
• LED indicators: green (power), red (fault), yellow (output status).
• Commissioning: auto-detection by Modicon M258 / LMC058. No extra tools.

Compatibility

• Controllers: Modicon M258, LMC058, PacDrive LMC Pro/Pro2/Eco.
• System: TM5 bus, 5 V DC power supply.
• No isolation between output channels.

Certifications & Standards

• IEC 61131-2, UL 508, CSA C22.2 No. 213/142
• Certifications: CSA, GOST-R, CULus, C-Tick
• EMC: EN/IEC 61000-4-2, -3, -4, -5, -6; CISPR 11

Package & Delivery

• Package: 1 unit, dimensions 10.5 x 6 x 2 cm, weight 38 g.
• Warranty: 12 months.
• Shipping: FedEx, UPS, DHL – dispatched within 12-24 hours.

Expert Review

“Reliable choice for high-density digital output applications. The 300 µs response time ensures precise control. Built-in short-circuit protection simplifies wiring and reduces downtime.”

Manager’s Insight

“Cost-effective upgrade for M258 or LMC systems. The 0.5A output is ideal for solenoid valves and indicator lamps. Easy to install and maintain.”

Applications

• Discrete control in packaging machines
• Conveyor systems and material handling
• Lighting and signal towers
• Small actuator and relay driving

FAQ

• What is the maximum switching frequency?
  500 Hz for resistive loads.
• Can I connect inductive loads?
  Yes, but use external freewheeling diodes.
• Is the module compatible with PacDrive Eco?
  Yes, fully compatible.
• What is the voltage drop per output?
  Less than 0.3 V at 0.5 A.
• How do I mount it?
  Snap onto DIN rail – no screws needed.
• Does it include a sensor supply?
  Yes, max 500 mA at 24 V (drop <2 V).
• Which controller is best paired?
  Modicon M258 or LMC058 for seamless integration.
• Can I mix this with analog modules?
  Yes, on the same TM5 bus.

Selection Guide

• For 0.5A loads: TM5SDO4T – 4 outputs, source.
• For 2A loads: Use TM5SDI4D or relay modules.
• For sinking outputs: Check TM5SDO2T or SDO6T.
