BMXCPS2000 Modicon X80 Power Supply 20W AC | Schneider PLC Module

Product Introduction

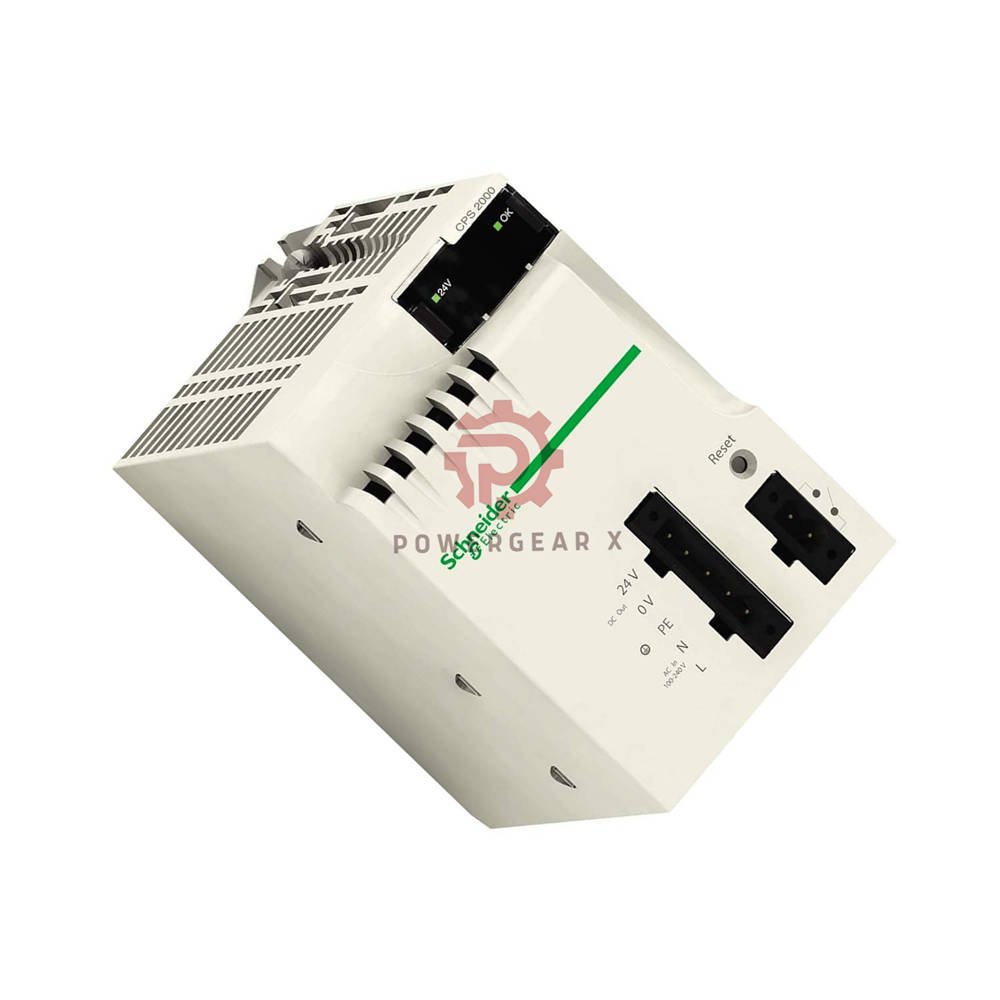

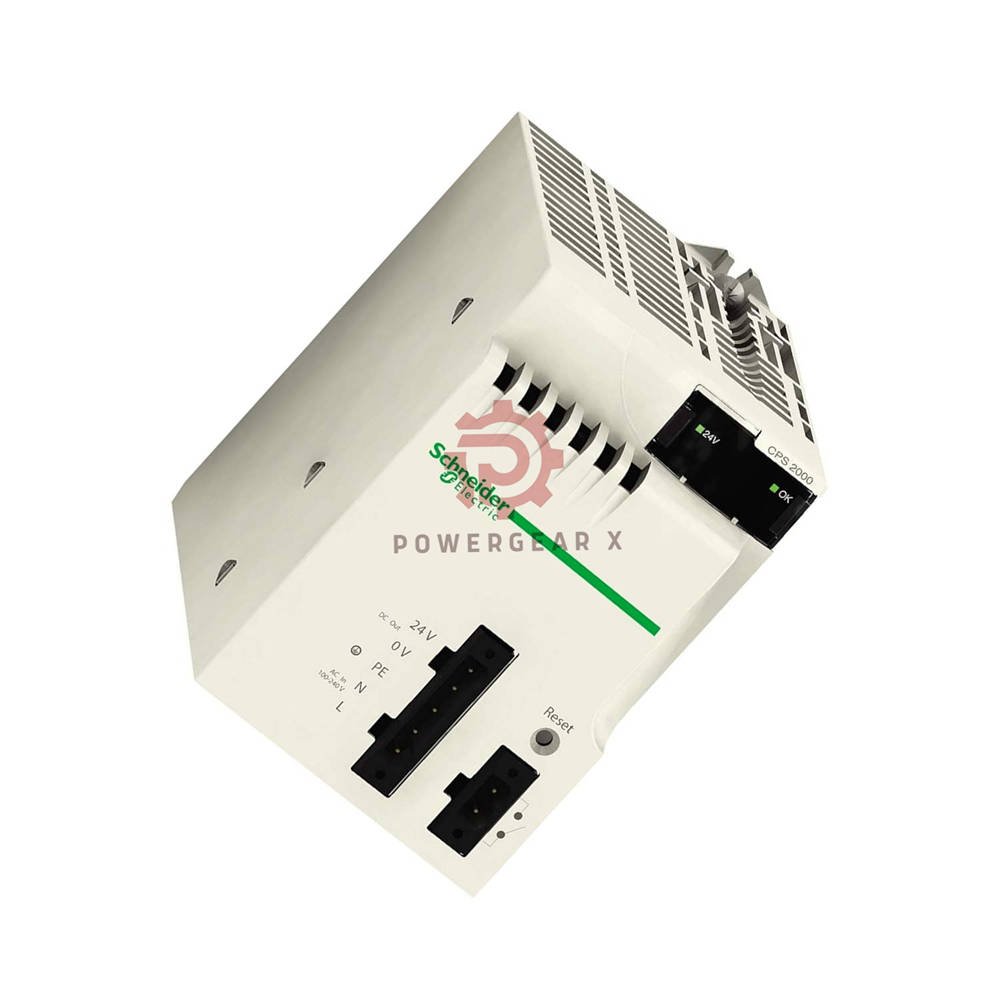

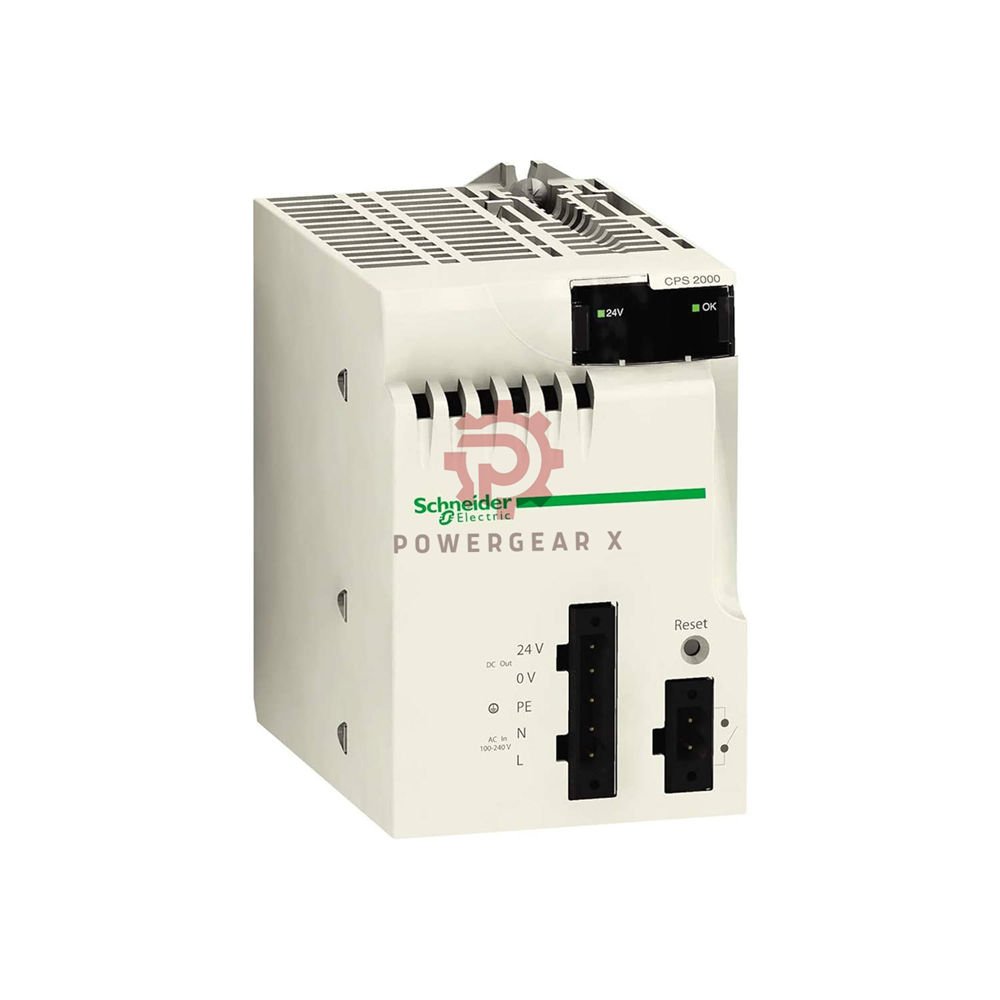

Modicon X80 BMXCPS2000 is a compact power supply module for AC systems. It delivers reliable 20 W output for industrial automation. This module supports 100..240 V AC primary voltage. It provides three secondary power outputs for sensors, I/O, and logic. The design ensures stable performance in harsh environments.

Key Features at a Glance

• Primary voltage: 100…240 V AC (85…264 V limit)
• Secondary power: 10.8 W (24 V sensor), 16.8 W (24 V I/O & processor), 8.3 W (3.3 V logic)
• Protection: Overload, overvoltage, short-circuit, and internal fuse
• Status LEDs: Green for rack voltage and sensor voltage
• Reset: Push-button for cold restart
• Weight: Only 0.3 kg

Technical Specifications

• Brand: Schneider Electric
• Model: BMXCPS2000
• Series: Modicon X80
• Type: Power Supply Module
• Input voltage: 85…264 V AC, 47…63 Hz
• Apparent power: 0.07 kVA
• Input current: 0.31 A at 240 V, 0.61 A at 115 V
• Inrush current: 30 A at 120 V, 60 A at 240 V
• I²t on activation: 12 A².s (240 V)
• Secondary outputs: 0.45 A (24 V sensor), 0.7 A (24 V I/O), 2.5 A (3.3 V logic)
• Power dissipation: 8.5 W max
• Dielectric strength: 1500 V (primary/secondary logic), 2300 V (sensor), 1500 V (primary/ground)
• Insulation resistance: ≥ 100 MΩ
• Operating temperature: 0…60 °C
• Storage temperature: -40…85 °C
• Relative humidity: 5…95 % at 55 °C (non-condensing)
• Vibration resistance: 3 gn
• Shock resistance: 30 gn
• IP rating: IP20
• Altitude: 0…2000 m (derating up to 5000 m)

Compatibility & Installation

• Backplane: Not compatible with BMEXBP..02
• Connectors: 2-pin alarm relay, 5-pin line supply, PE, 24 V sensor input
• Mounting: Directly on Modicon X80 backplane
• Wiring: Use shielded cables for sensor and I/O lines
• Grounding: Connect protective earth to the 5-pin connector

Protection & Reliability

• Microbreak immunity: 1 ms
• Internal fuse: Not accessible, protects primary circuit
• Overload & short-circuit: Automatic secondary protection
• Overvoltage: Secondary circuit protected
• Coating: Protective treatment TC for harsh environments

Certifications & Standards

• Directives: 2014/35/EU (LVD), 2014/30/EU (EMC), 2012/19/EU (WEEE)
• Certifications: Merchant Navy, CSA, UL, CE, RCM, EAC
• Standards: EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201

Expert Review

“The BMXCPS2000 offers excellent value for compact control cabinets. Its three isolated outputs ensure stable power to sensors, I/O, and logic without interference. The 1 ms microbreak immunity is a standout feature for mains fluctuations. We recommend it for small to medium PLC systems where space and reliability matter.”

Manager’s Insight

“From a procurement perspective, this module reduces inventory complexity. One unit covers 24 V sensor, 24 V I/O, and 3.3 V logic. The IP20 rating and wide temperature range make it suitable for factory floor use. The 12-month warranty and global certifications give peace of mind.”

Applications & Suitable Devices

• PLCs: Modicon M340, M580, and Quantum series
• I/O racks: X80 distributed I/O stations
• Motion controls: Servo drives and VFDs that require isolated 24 V
• Sensors: Proximity, photoelectric, and pressure sensors
• Actuators: Solenoids, relays, and small valves
• Automation cells: Packaging, material handling, and assembly lines

Frequently Asked Questions

• Q: Is BMXCPS2000 compatible with BMEXBP..02 backplanes?
  No. This module does not work with BMEXBP..02 backplanes. Use X80 standard backplanes.
• Q: What is the maximum output current on the 24 V sensor output?
  0.45 A. Do not exceed this to avoid overloading.
• Q: Can I use this module at 2000 m altitude without derating?
  Yes, up to 2000 m. For 2000–5000 m, apply a derating factor.
• Q: How do I perform a cold restart?
  Press the RESET push-button on the front panel.
• Q: What does the green LED indicate?
  One LED shows rack voltage OK. The other shows sensor voltage OK.

Experience-based Q&A

• Q: The module does not power up. What should I check first?
  Check the primary voltage and fuse. Also verify the 5-pin connector wiring.
• Q: Can I parallel two BMXCPS2000 for redundancy?
  No, this model is not designed for parallel operation. Use a dedicated redundancy module.
• Q: My sensor output voltage drops under load. Is this normal?
  No. Ensure the total load is below 0.45 A. Check for short circuits.
• Q: What is the typical lifespan of this power supply?
  With proper cooling and load, expect 5–8 years in industrial environments.

Selection Guide

• For M340 systems: Choose BMXCPS2000 if you need 20 W total power.
• For high-inrush loads: This module handles up to 60 A inrush, suitable for capacitive loads.
• For multi-voltage needs: The three outputs (3.3 V, 24 V I/O, 24 V sensor) cover most PLC requirements.
• For harsh environments: IP20 and wide temperature range make it fit for dusty or warm areas.
• For global projects: UL, CSA, CE, and RCM certifications simplify international compliance.

Package Contents

• BMXCPS2000 power supply module (1 unit)
• 5-pin connector (line supply, PE, sensor input)
• 2-pin alarm relay connector
• Quick start guide (multilingual)
• Warranty card (12 months)
