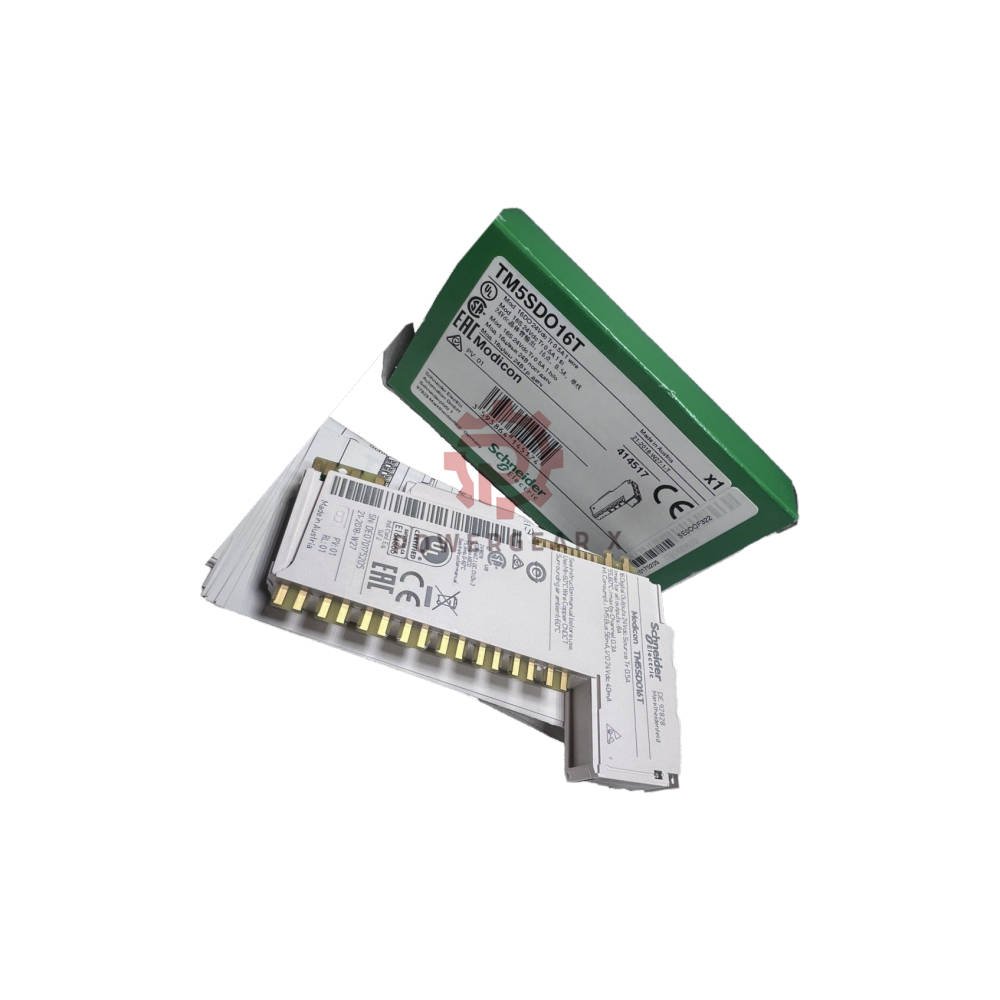

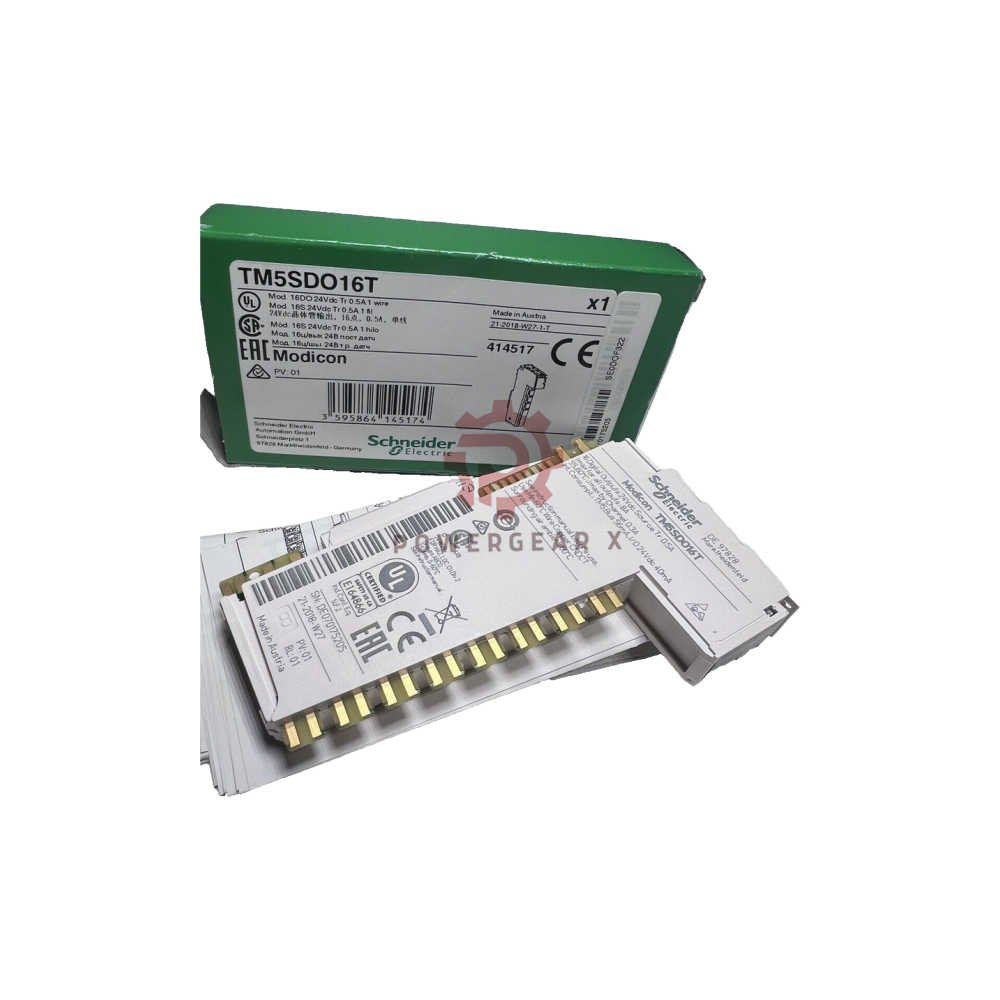

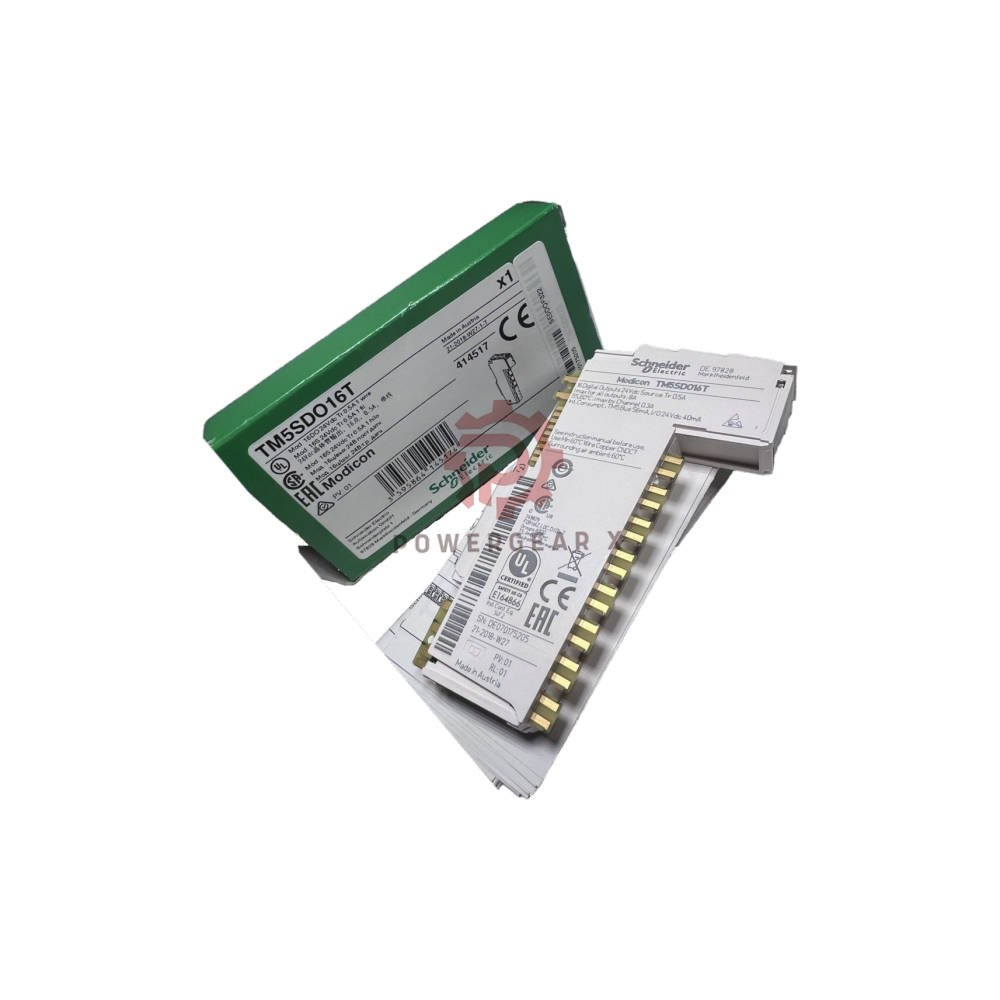

Name: TM5SDO16T Modicon TM5 16-Output Transistor Module 24V DC 0.5A Source
SKU: TM5SDO16T
Price: 234.00 USD
Availability: InStock

Product details

TM5SDO16T Modicon TM5 Digital Output Module – 16 Transistor Outputs, 24 V DC, 0.5 A

TM5SDO16T is a digital output module from the Modicon TM5 range. Moreover, it provides 16 transistor outputs. Each channel therefore handles 0.5 A at 24 V DC. In addition, the module uses source logic. Furthermore, it works with Modicon LMC058, PacDrive LMC, Modicon M258, and other controllers. Consequently, this module suits many machine control tasks. This module is white and weighs only 0.025 kg. It also has one wire per connection. As a result, the TM5SDO16T is built for fast switching and reliable machine control. Besides, it fits tight panel spaces.

Technical Data

Brand: Modicon
Model: TM5SDO16T
Series: TM5
Module type: Digital output module
Output count: 16 transistor outputs
Output logic: Source
Output voltage: 24 V DC
Voltage limits: 20.4 to 28.8 V
Current per channel: 0.5 A
Max current per group: 8 A
Peak output current: 3 A
Switching frequency: ≤ 500 Hz for resistive load
Response time: ≤ 300 µs (0 to 1 phase) and ≤ 300 µs (1 to 0 phase)
Max leakage current: 5 µA when power is off
Protection: Reverse polarity, overload, short circuit
Isolation: No isolation between channels; 500 Vrms between channel and bus
Voltage drop: <2 V at 500 mA for sensor supply; <0.1 V at 500 mA for output
Max sensor supply current: 500 mA
Power consumption: 56 mA at 5 V DC bus; 40 mA at 24 V DC input/output
Local signaling: 1 green/red LED for power; 16 yellow LEDs for output status
Electrical connection: 1 wire
CE marking: Yes
Weight: 0.025 kg
Operating temperature: -10 to 55 °C (horizontal, no derating); -10 to 60 °C (horizontal, with derating); -10 to 50 °C (vertical)
Storage temperature: -40 to 70 °C
Relative humidity: 5 to 95 % without condensation
IP degree: IP20 per IEC 61131-2
Pollution degree: 2 per IEC 60664
Operating altitude: 0 to 2000 m
Storage altitude: 0 to 3000 m
Vibration resistance: 1 gn at 8.4 to 150 Hz on DIN rail; 3.5 mm at 5 to 8.4 Hz on DIN rail
Mechanical shock resistance: 15 gn for 11 ms
EMC: ESD 4 kV contact, 8 kV air (EN/IEC 61000-4-2); radiated fields 1 V/m 2 to 2.7 GHz, 10 V/m 80 to 2000 MHz (EN/IEC 61000-4-3); fast transients 1 kV I/O, 1 kV shielded cable, 2 kV power cable (EN/IEC 61000-4-4); surge 0.5 kV differential, 1 kV common mode (EN/IEC 61000-4-5); conducted RF (EN/IEC 61000-4-6); emissions per CISPR 11

Compatibility

Modicon LMC058 motion controller
PacDrive LMC controller
Modicon M258 logic controller
PacDrive LMC Pro motion controller
PacDrive LMC Pro 2
PacDrive LMC Eco
Associated accessories for these controllers

Installation Guide

Mount the TM5SDO16T on a DIN rail.
Use one wire per connection point.
Keep the module in a dry place. Therefore, avoid condensation.
Respect the temperature limits for horizontal or vertical installation.
Connect 24 V DC power correctly. Moreover, the module has reverse polarity protection.
Do not exceed 8 A per output group. Furthermore, keep wiring short.

Commissioning and Maintenance

Check the green/red power LED after power-up.
Use the 16 yellow LEDs to monitor each output state.
No special calibration is needed.
Clean the module with a dry cloth only.
Replace the module if a short circuit or overload occurs repeatedly. Consequently, you avoid long downtime.

Expert Review

The TM5SDO16T is a solid choice for machine builders who need fast, compact digital outputs. Its 300 µs response time and 500 Hz switching frequency suit many packaging, sorting, and assembly tasks. The source logic also works well with common industrial sensors. However, the module does not isolate channels, so keep this in mind for noise-sensitive designs. The wide temperature range and strong EMC ratings make it reliable in tough factory floors. For small to medium I/O counts, this module therefore saves space and wiring time. In addition, it reduces wiring effort compared to discrete relays. Consequently, it lowers total system cost.

Manager’s Insight

We see strong demand for the TM5SDO16T from system integrators using Modicon M258 or LMC058 controllers. It is a cost-effective way to add 16 outputs without changing the controller. The 0.5 A per channel covers most solenoid valves, relays, and small actuators. Moreover, stock is stable and shipping is fast. If you need a drop-in output module for a TM5 system, this is a safe pick. Consequently, it lowers downtime risk for your line. Furthermore, it simplifies spare parts planning.

Best Fit Equipment and Applications

Packaging machines
Sorting systems
Assembly lines
Material handling equipment
Small process control panels
Machines using Modicon LMC058, M258, or PacDrive LMC controllers
Applications with solenoid valves, indicator lights, and small DC motors

FAQ

Q: What is the difference between source and sink output?
A: Source output provides positive voltage to the load. Sink output connects the load to ground. The TM5SDO16T uses source logic.

Q: Can I use this module without a Modicon controller?
A: It is designed for Modicon TM5 systems. It works with LMC058, M258, and PacDrive LMC controllers. However, using it with other systems may need extra engineering.

Q: How many outputs can I turn on at the same time?
A: You can turn on all 16 outputs. But keep the total current per group below 8 A. Therefore, each channel must stay at or below 0.5 A.

Q: Does the module need external fuses?
A: The module has short circuit and overload protection. Still, follow your machine safety rules. Consequently, some applications may need extra fuses.

Q: What wire size should I use?
A: Use one wire per point. Check your local electrical code for the correct wire gauge. Moreover, keep wire length short to reduce noise.

Q: How do I know if an output is active?
A: Each output has a yellow LED. Therefore, a lit LED means the output is on.

Q: Can I mount the module vertically?
A: Yes. But the operating temperature range becomes -10 to 50 °C. For horizontal mounting, you get up to 55 °C without derating. Furthermore, vertical mounting saves panel width.

Q: What is the lead time and shipping method?
A: We ship in 12 to 24 hours. We use FedEx, UPS, and DHL. Moreover, tracking is provided.

Q: What is the warranty?
A: We offer a 12-month warranty. Therefore, contact us for returns or support.

Q: How do I choose the right output module for my machine?
A: Count your outputs. Check the voltage and current per channel. Make sure the logic type (source or sink) matches your field devices. The TM5SDO16T fits 24 V DC, 0.5 A, source logic needs. For higher current, use a relay module or an interposing relay.
