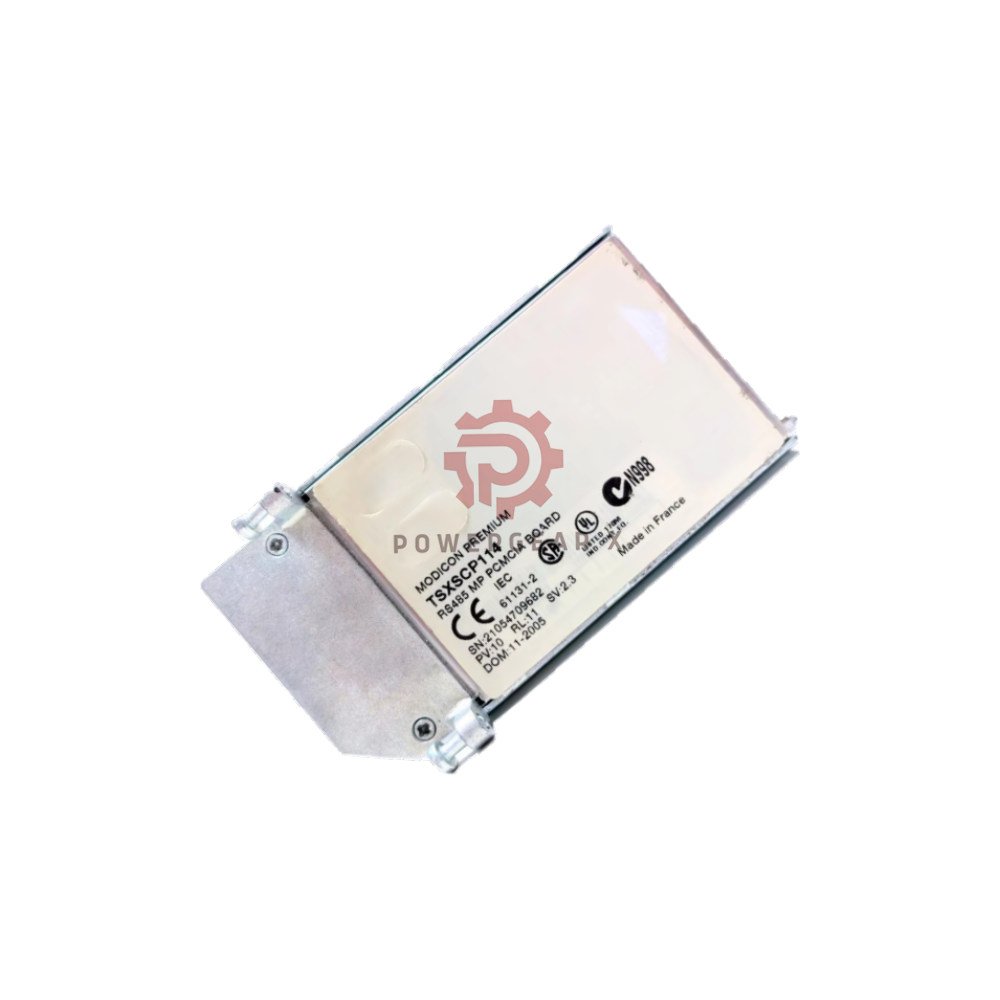

TSXSCP114 PCMCIA Card Type III for Modicon Premium and Atrium Co-Processor
The TSXSCP114 is a PCMCIA Type III communication card. It fits Modicon Premium processors and Atrium co-processors. This card adds RS485 connectivity. It supports Modbus, Character mode, and Uni-Telway protocols. The card suits industrial automation systems that need reliable serial communication. It comes from Schneider Electric and carries the Modicon brand. The TSXSCP114 is a practical choice for legacy and current Premium platforms.
Technical Data
- Brand: Schneider Electric
- Model: TSXSCP114
- Range: Modicon Premium Automation platform
- Product type: PCMCIA card type III
- Physical interface: RS485
- Communication protocols: Modbus, Character mode, Uni-Telway
- Current consumption: 150 mA at 5 V DC
- Net weight: 0.105 kg (0.23 lb)
- Measurement range: Not applicable for this communication card
- Frequency response: Not applicable for this communication card
- Sensitivity: Not applicable for this communication card
- Linearity: Not applicable for this communication card
- Resolution: Not applicable for this communication card
- Temperature range: Not specified in source data
- Environmental tolerance: Not specified in source data
- Anti-interference: Not specified in source data
Compatibility Notes
- Product compatibility: TSX37-21, TSX37-22, TSXSCY21601
- Accessory destination: Atrium co-processor, Premium processor
- Accessory category: Communication accessories
- Accessory type: PCMCIA card
Installation Guide
- Power off the PLC or processor before installation.
- Insert the TSXSCP114 into a free Type III PCMCIA slot.
- Secure the card gently. Do not force it.
- Connect the RS485 cable to the card port.
- Power on the system and check LED status.
- Configure the protocol in your PLC software.
Commissioning and Maintenance Convenience
- Hot swap is not recommended. Always power down first.
- Use standard Modbus or Uni-Telway settings for quick setup.
- Clean the card edge with dry air if needed.
- Check RS485 termination for long cable runs.
- Store in anti-static packaging when not in use.
Expert Review
The TSXSCP114 fills a clear gap for legacy Modicon users. It brings RS485 and three protocol options in one Type III card. The card is light and draws little power. It works well in both Premium processors and Atrium co-processors. For plants that still run TSX37 or TSXSCY21601 hardware, this card is a smart spare part. It avoids full system upgrades. The main limit is the lack of published temperature and noise specs. Buyers should confirm those details with the vendor before harsh-environment use.
Manager’s Insight
This card is a niche but valuable item. It keeps older Modicon lines alive. The TSXSCP114 is easy to stock. It has a long shelf life and low return risk. The discount schedule PC14 and single-unit packaging help with inventory. For resellers, target maintenance teams and system integrators. They often need one or two cards fast. Offer clear compatibility checks. That reduces support calls and boosts trust.
Best Fit Devices and Applications
- Modicon Premium PLC racks
- Atrium co-processor systems
- TSX37-21 and TSX37-22 controllers
- TSXSCY21601 communication modules
- Modbus RS485 networks
- Uni-Telway device links
- Character mode serial links
- Factory automation and process control
FAQ
Q: What is the main use of the TSXSCP114?
A: It adds RS485 communication to Modicon Premium and Atrium systems.
Q: Which protocols does this card support?
A: It supports Modbus, Character mode, and Uni-Telway.
Q: Is this card compatible with TSX37-21?
A: Yes, it works with TSX37-21 and TSX37-22.
Q: Can I install the card while the system is running?
A: No. Power off the system before installation.
Q: What is the power draw?
A: The card uses 150 mA at 5 V DC.
Q: Does it come with a cable?
A: No. The package contains only the PCMCIA card.
Q: What is the net weight?
A: The net weight is 0.105 kg.
Q: Where is it made?
A: The country of origin is France.
Q: What is the warranty?
A: We offer a 12-month warranty.
Q: How fast do you ship?
A: We ship within 12 to 24 hours.
Q: Which couriers do you use?
A: We use FedEx, UPS, and DHL.
Q: Can I return the card?
A: No. The returnability is No.
Q: How do I choose the right card for my PLC?
A: Check your processor model and slot type first.
Q: What if my system uses a different protocol?
A: Match the card protocol to your network protocol before buying.
Q: Do you provide technical support?
A: Yes. Contact us for setup help.
Packaging List
- 1 x TSXSCP114 PCMCIA card
- Package weight: 0.18 kg (0.4 lb)
- Package height: 3.5 cm (1.38 in)
- Package width: 15.5 cm (6.10 in)
- Package length: 17 cm (6.69 in)
- Unit type: PCE
- Number of units in package: 1
Ordering and Shipping Details
- Category: 22556 – TSX MICRO, PL7 MICRO & ACCESS
- Discount Schedule: PC14
- GTIN: 00785901602750
- Returnability: No
- Country of origin: FR
- Shipping time: 12 to 24 hours
- Couriers: FedEx, UPS, DHL
- Warranty: 12 months
