STBDDO3605K Basic Digital Output Kit – 6 Point 24 V DC for Modicon STB

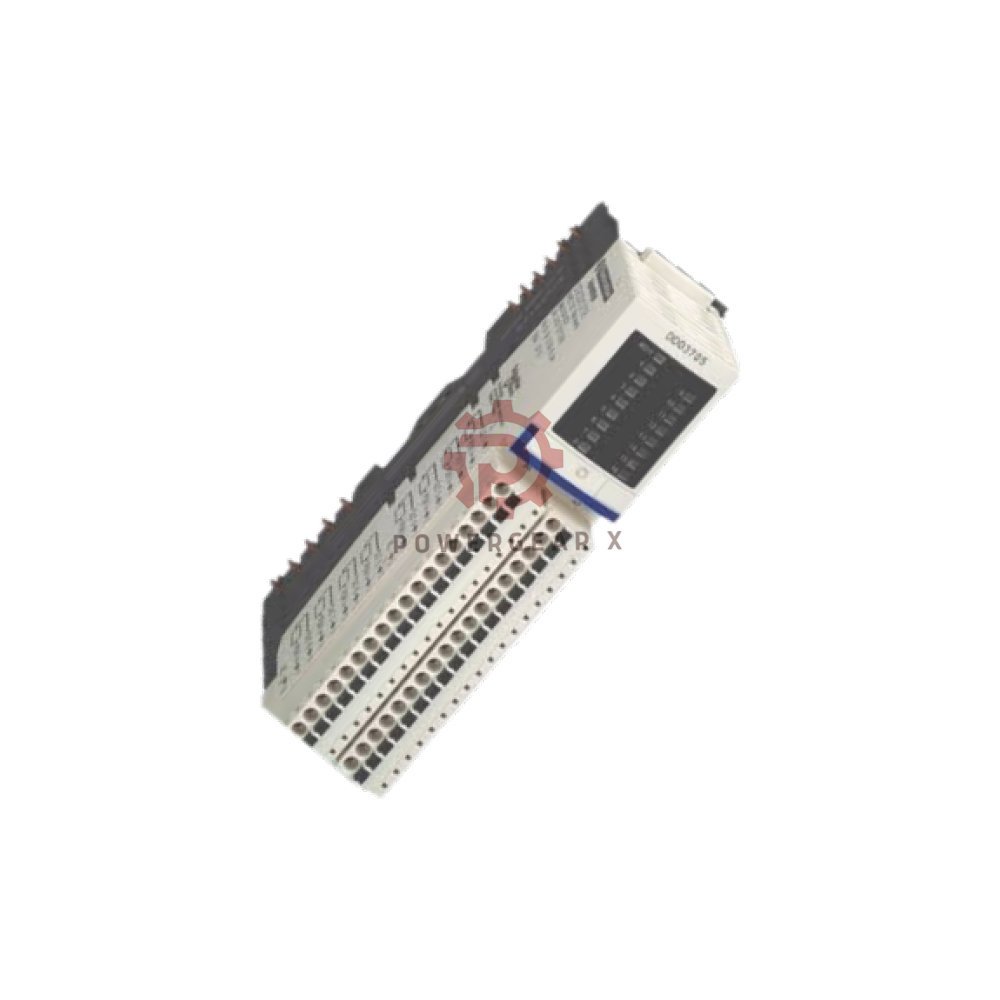

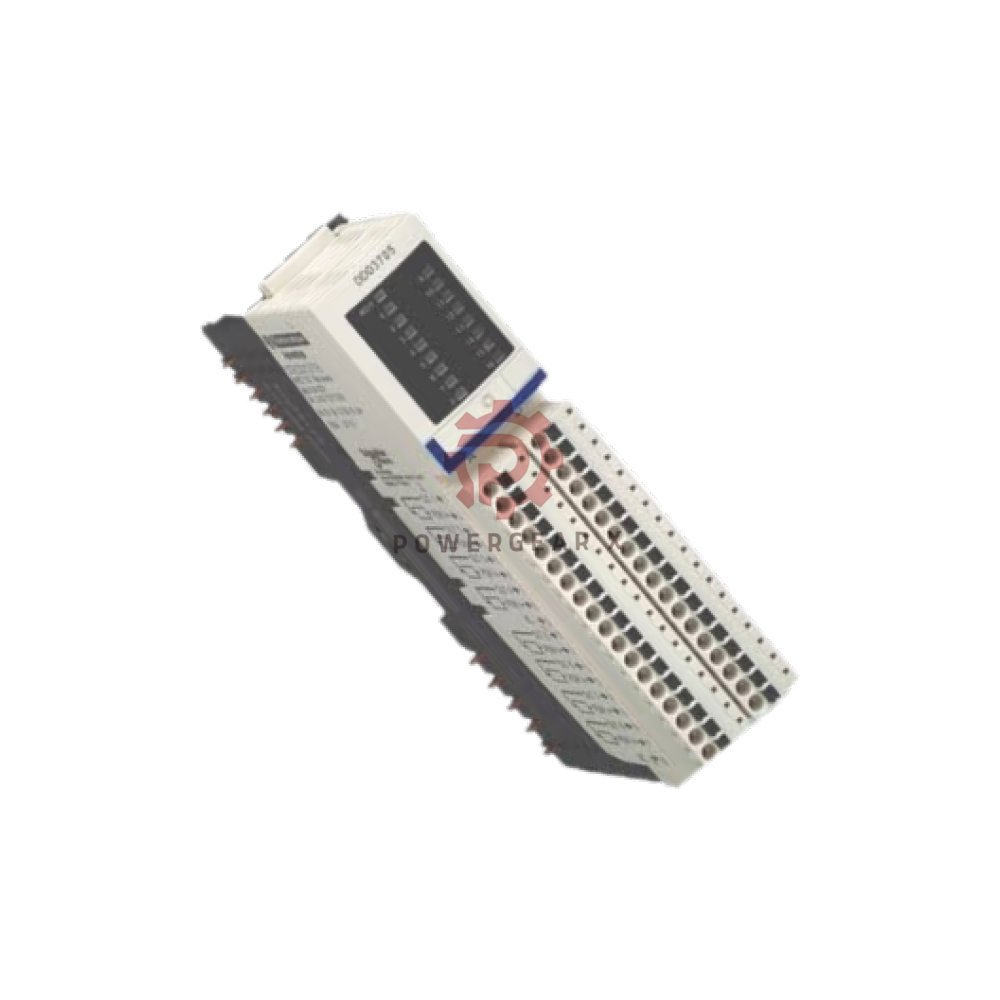

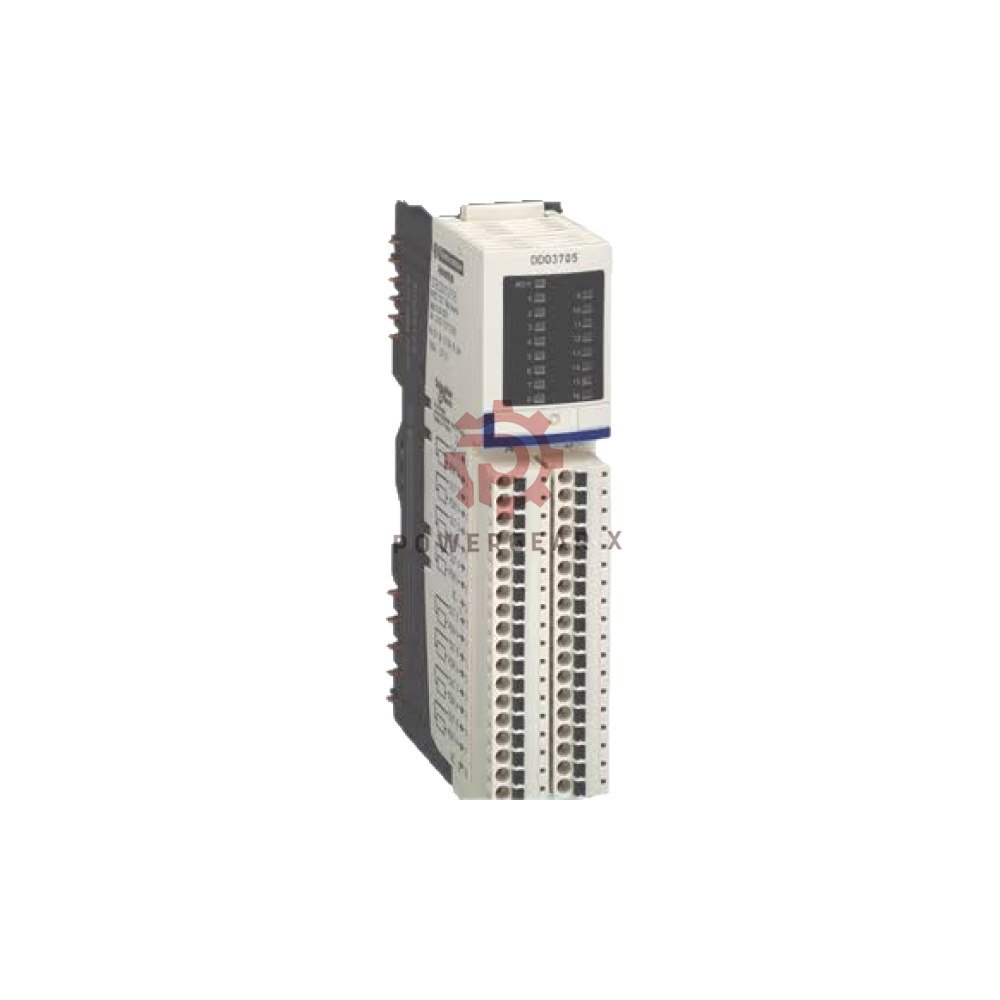

The STBDDO3605K is a basic digital output kit for the Modicon STB distributed I/O solution. It gives you 6 solid state outputs at 24 V DC. The kit arrives ready to use. It includes the module, base, and two connector types. Wiring is simple. Cold swapping is supported. This kit suits compact control panels and remote I/O drops. It is a smart pick for fast machine builds.
Technical Data
- Brand: Schneider Electric
- Model: STBDDO3605K
- Series: Modicon STB distributed I/O solution
- Type: Basic digital output kit
- Output channels: 6
- Output type: Solid state
- Output voltage: 24 V DC
- Output current: 250 mA
- Output logic: Positive
- Voltage window: 19.2 to 30 V DC
- Max voltage: 56 V for 1.3 ms
- Response time: 550 µs off-to-on, 900 µs on-to-off
- Cold swapping: Yes
- Hot swapping: No for basic NIMs
- Protection: Reverse polarity, short circuit, thermal overload
- Fuse: Integrated on PDM, time lag 5 A
- Isolation: 1500 V for 1 minute between channels and logic bus
- Leakage current: Up to 0.4 mA at state 0, 30 V
- Surge current: Up to 2.5 A for 0.5 ms
- Load capacitance: Up to 50 µF
- Load inductance: Up to 500 mH at 4 Hz
- Reset: Manual or automatic reset on COM fault
- Supply voltage: 24 V DC via power distribution module
- Current consumption: 90 mA at 5 V DC logic bus
- Marking: CE
- Overvoltage category: II
- Status LED: 1 green module status, 1 green LED per channel
Kit Composition
- Module: STBDDO3605
- Base: STBXBA1000
- Connector 1: STBXTS2100, 6-terminal spring clamp
- Connector 2: STBXTS1100, 6-terminal screw type
Compatible Parts
- Power distribution module STBPDT3100
- Power distribution module STBPDT3105
- I/O base STBXBA1000
Dimensions and Weight
- Height: 13.9 mm
- Depth: 70 mm
- Width: 128.3 mm
- Weight: 0.114 kg
Environment and Standards
- Standards: EN/IEC 61131-2
- Certifications: UL, FM Class 1 Division 2, CSA
- Pollution degree: 2 per IEC 60664-1
- Operating altitude: Up to 2000 m
- IP rating: IP20 per EN 61131-2 class 1
- Operating temperature: 0 to 60 °C without derating
- Storage temperature: -40 to 85 °C without derating
- Relative humidity: 95 % at 60 °C, no condensation
- Vibration: 0.35 mm at 10 to 58 Hz, 3 gn at 58 to 150 Hz on 35 x 7.5 mm rail, 5 gn at 58 to 150 Hz on 35 x 15 mm rail
- Shock: 30 gn for 11 ms per IEC 88 reference 2-27
Expert Review
This kit wins on speed and simplicity. The STBDDO3605K ships as a full set. You get the module, base, and both connector styles. That removes extra ordering steps. The 6 outputs at 24 V DC cover many small loads. Solid state design means no moving parts. Response time is fast enough for most machine tasks. Cold swapping helps cut downtime. The built-in fuse and protection features add safety. For panel builders, this is a clean, low-stress choice.
Manager’s Insight
Buyers like this kit because it arrives complete. No missing base or connector surprises. The STBDDO3605K fits Modicon STB systems that need a few more outputs. Stock it next to STBPDT3100 power modules. Offer it in bundles for remote I/O panels. Push the 12-month warranty and 12 to 24 hour dispatch. Use FedEx, UPS, and DHL for urgent orders. This item turns small upgrade projects into quick sales.
Best Fit Equipment and Applications
- Modicon STB distributed I/O drops
- Remote control panels
- Conveyor control cells
- Packaging machines
- Labeling systems
- Small pump and valve skids
- Lighting and signal control
- Factory automation retrofits
FAQ
Q: What comes inside the box?
A: You get the STBDDO3605 module, STBXBA1000 base, and two 6-terminal connectors.
Q: Can I swap the module while power is on?
A: Cold swapping is supported. Hot swapping is not supported on basic NIMs.
Q: What kind of loads can each output drive?
A: Each channel handles up to 250 mA at 24 V DC with positive logic.
Q: Does it protect against wiring errors?
A: Yes. It has reverse polarity, short circuit, and thermal overload protection.
Q: Which power modules pair with this kit?
A: Use STBPDT3100 or STBPDT3105 power distribution modules.
Q: How do I know an output is active?
A: Each channel has a green status LED. The module also has a green RDY LED.
Q: What is the warranty and shipping time?
A: The kit carries a 12-month warranty and ships in 12 to 24 hours.
Q: Which courier options do you use?
A: We ship by FedEx, UPS, and DHL with tracking.
Q: Can I use this in a cold storage room?
A: The operating range is 0 to 60 °C. Storage goes down to -40 °C. Check your room conditions first.
Q: What should I check before ordering?
A: Confirm your STB system, load current, and panel space. Also check if you need spring clamp or screw wiring.
Q: Is the fuse replaceable?
A: The fuse sits on the power distribution module. It is a time lag 5 A type.
Q: Does it work at high altitude?
A: It works up to 2000 m without derating.
Buying Guide
- Check your STB node and power module first.
- Add up the current for all six loads.
- Pick spring clamp or screw connectors for your panel.
- Confirm rail size: 35 x 7.5 mm or 35 x 15 mm.
- Order spare connectors for fast service.
- Ask about the 12-month warranty terms.
- Choose FedEx, UPS, or DHL if downtime is urgent.
