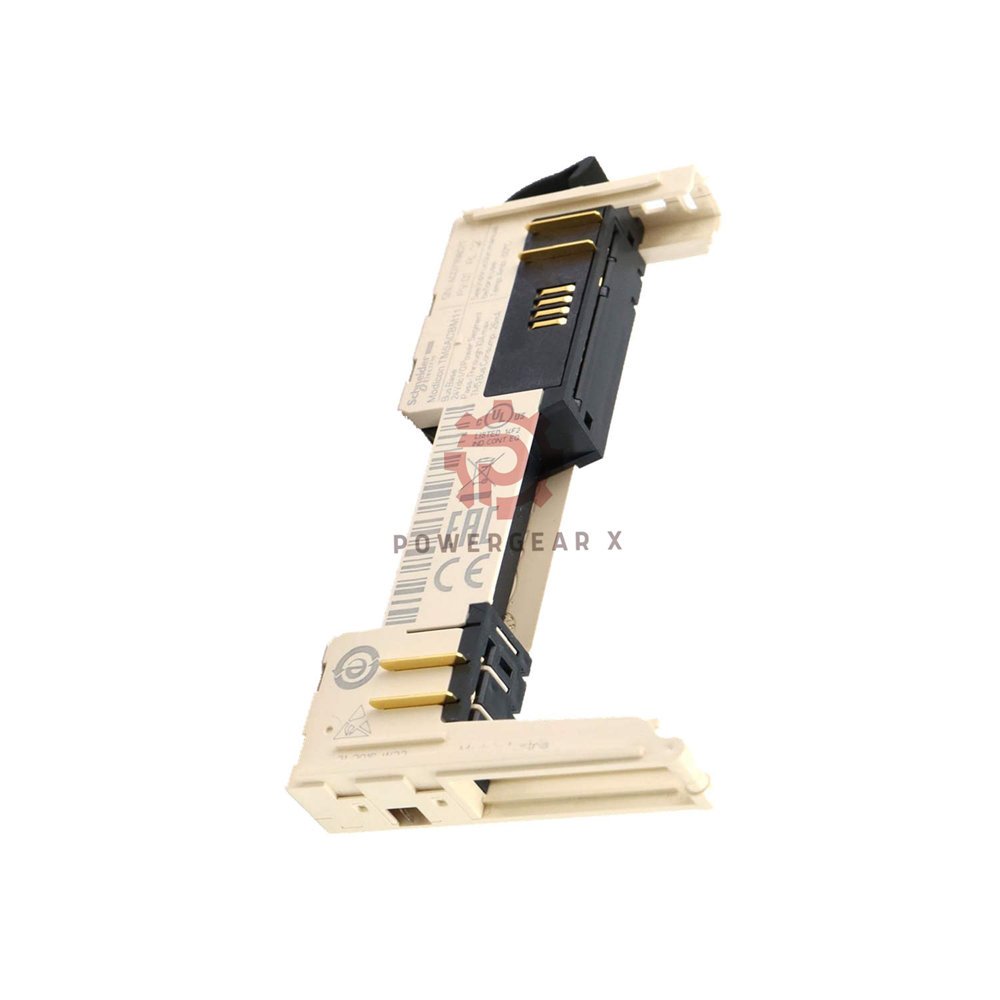

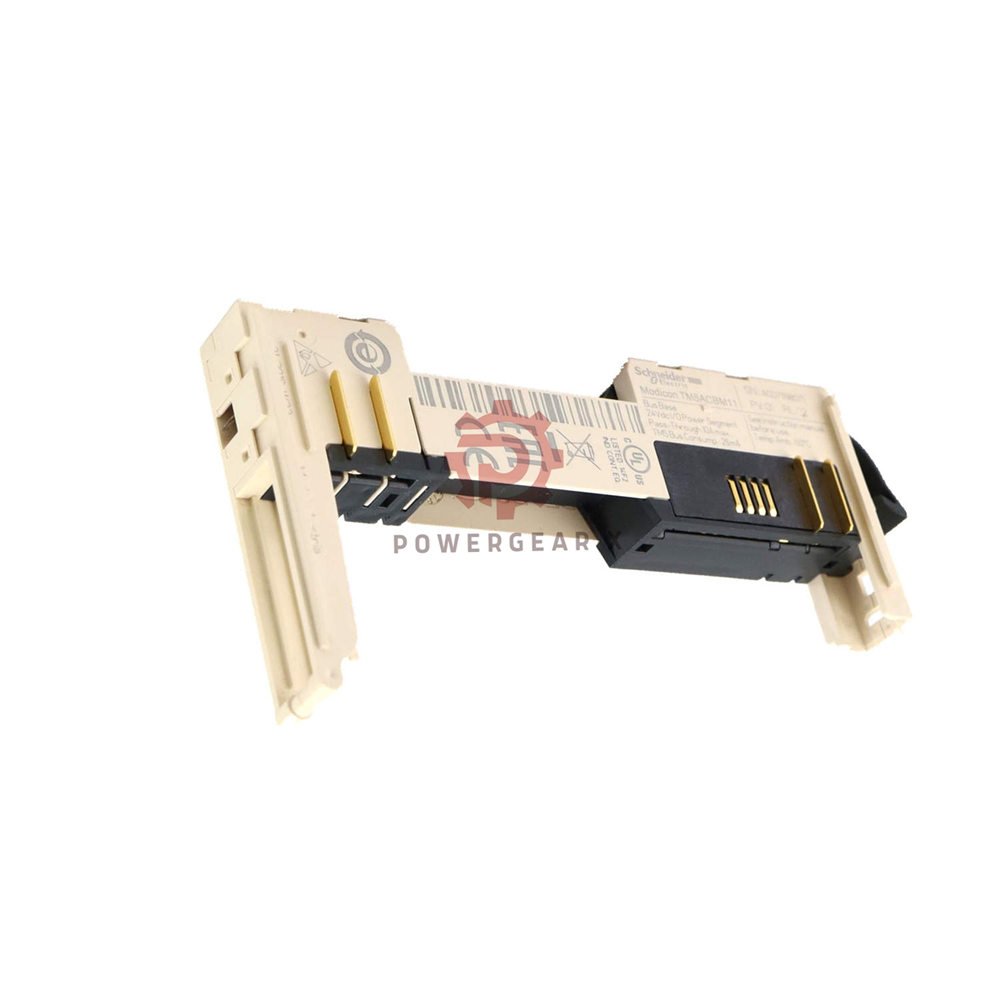

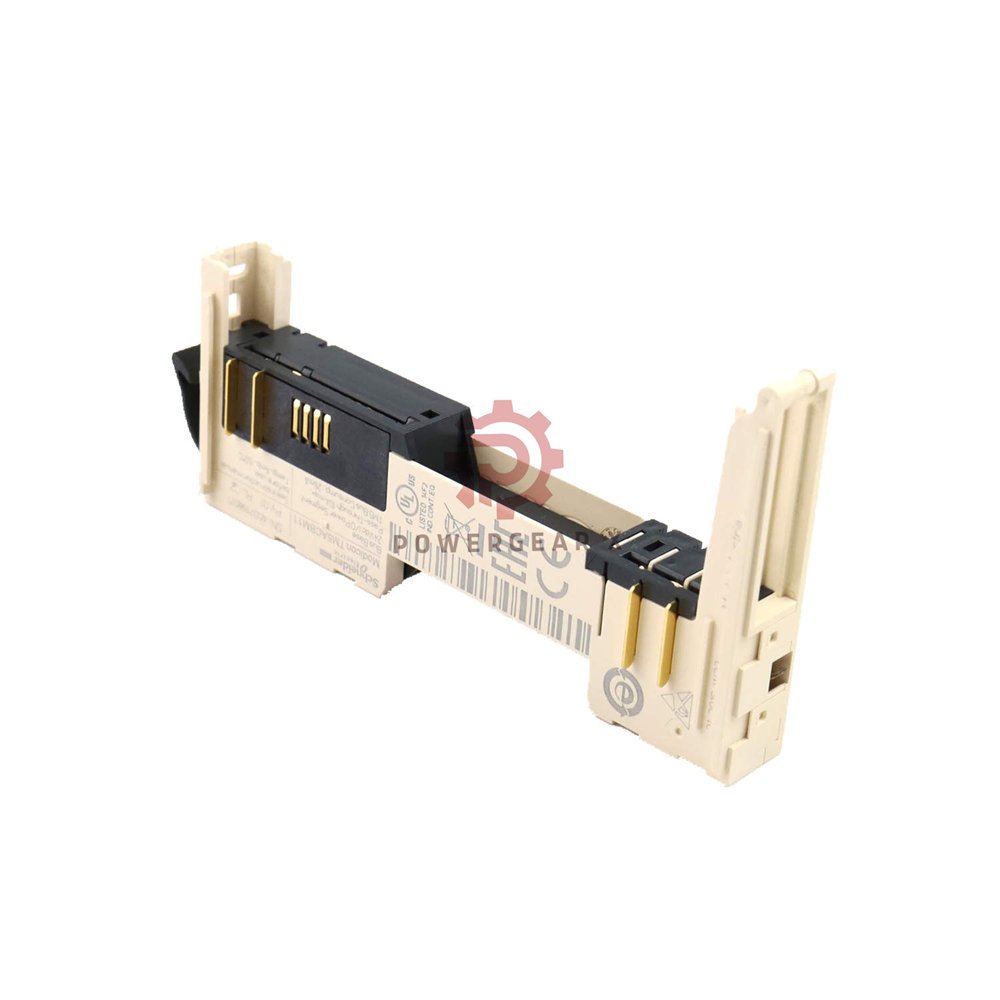

TM5ACBM11 – Bus Base
TM5ACBM11 is a white bus base for Modicon TM5 systems. It supplies 24V DC power to connected slices. This base supports analog, counter, and discrete modules. It works with M258 and LMC058 controllers.
Key Features
- Compact size: 1.7 x 5.4 x 10.7 cm
- Lightweight: only 27 g
- Simple integration: snap-on design
- Wide compatibility: TM5 slice modules
Technical Specifications
- Brand: Schneider Electric
- Model: TM5ACBM11
- Series: Modicon TM5
- Type: Bus base / communication accessory
- Rated voltage: 24 V DC
- Color: White
- Weight: 0.02 kg (27 g)
- Package dimensions: 1.7 x 5.4 x 10.7 cm
- Compatible with:
- Remote transmitter modules
- Counter modules
- 24 V DC discrete slices
- Common distribution modules
- Analog modules
- Controllers: Modicon M258, LMC058
Installation & Mounting
- Mounting: Snap onto DIN rail
- Wiring: Use standard TM5 terminal blocks
- Orientation: Horizontal or vertical
- Maintenance: No regular servicing needed
Manager’s Insight
This bus base is the backbone of your TM5 system. It simplifies wiring and ensures stable power distribution. The white color makes it easy to identify in crowded cabinets. We recommend it for new installations or expansions. Its compact design saves valuable panel space.
Applications
- Packaging lines: connect sensors and actuators
- Material handling: conveyor controls
- Machine building: OEM equipment
- HVAC: building automation
- Water treatment: pump and valve monitoring
Comparison with Similar Models
- TM5ACBM11 – base for TM5 slices, 24V DC
- TM5ACBM12 – similar but grey color
- TM5ACBM10 – older version, different pinout
- TM5ACBM21 – for high-power modules
Selection Guide
- Choose TM5ACBM11 if: you need a standard white base for TM5 slices.
- Consider this base for: mixed analog/digital systems.
- Avoid if: you require an IP67 or extreme temperature rating.
- Best paired with: M258 or LMC058 controllers.
- Warranty: 12 months from date of purchase.
Shipping & Delivery
- Dispatch: 12-24 hours after order confirmation.
- Carriers: FedEx, UPS, DHL (tracking provided).
- Packaging: Anti-static bag in a carton box.
Frequently Asked Questions (FAQ)
- Q: Does this bus base include a power supply?
- A: No, you need a separate 24V DC power supply for the system.
- Q: Can I mix analog and digital modules on this base?
- A: Yes, it supports both analog and digital TM5 slices.
- Q: How many modules can I connect to one base?
- A: This base powers one slice module only.
- Q: Is this base compatible with the older TM3 series?
- A: No, it only works with TM5 series modules.
- Q: What is the operating temperature range?
- A: 0…55 °C (same as TM5 system specification).
