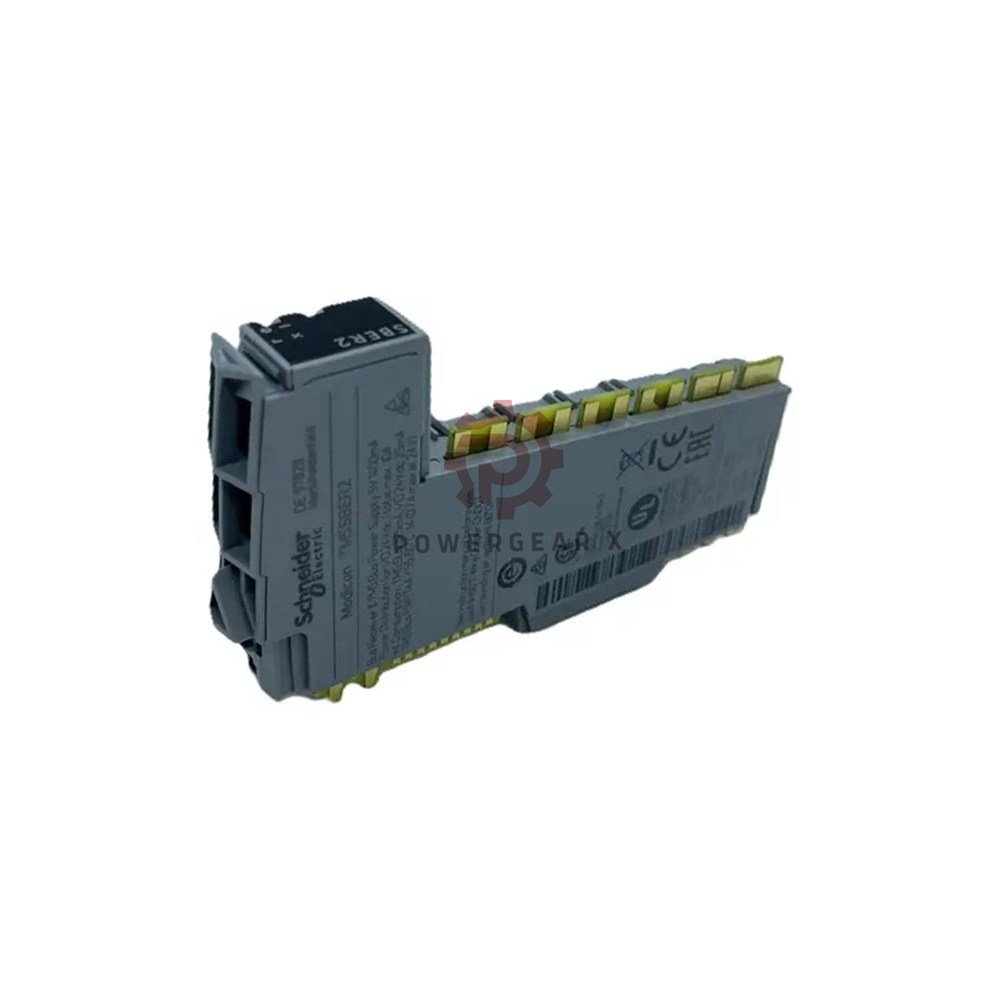

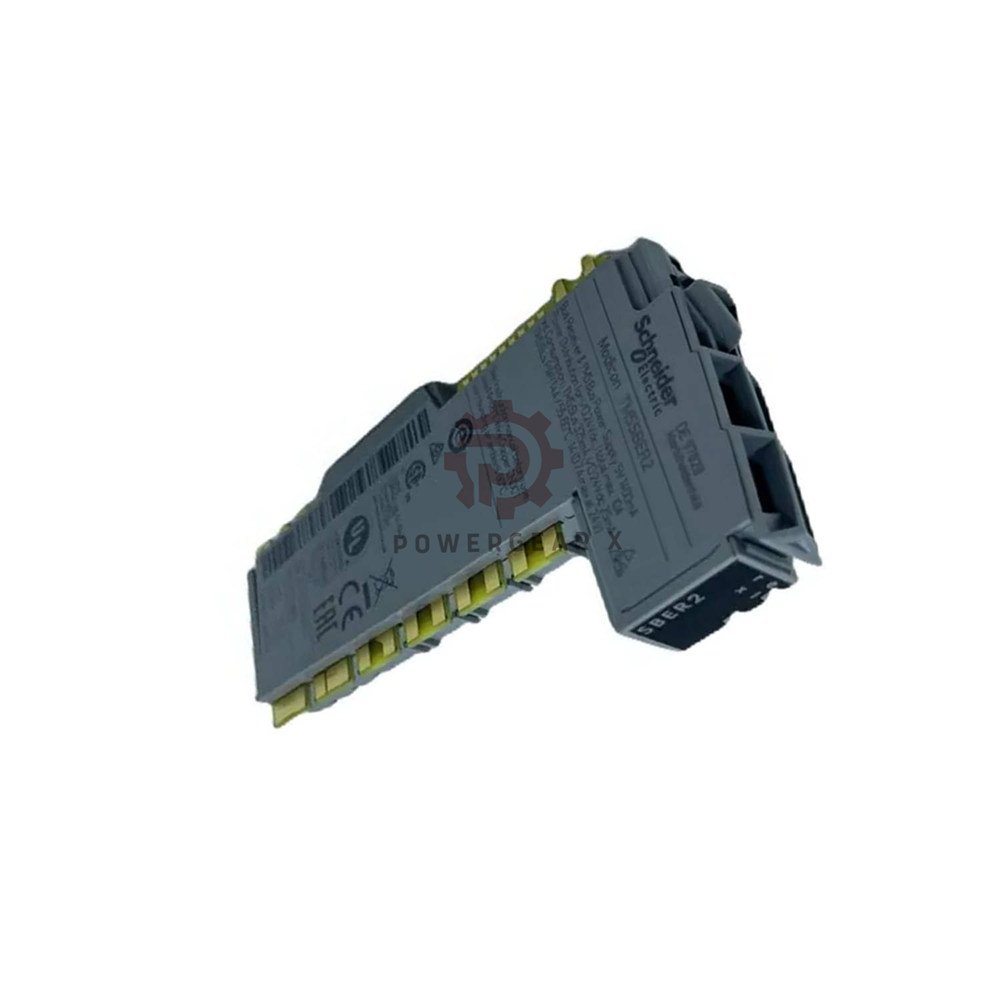

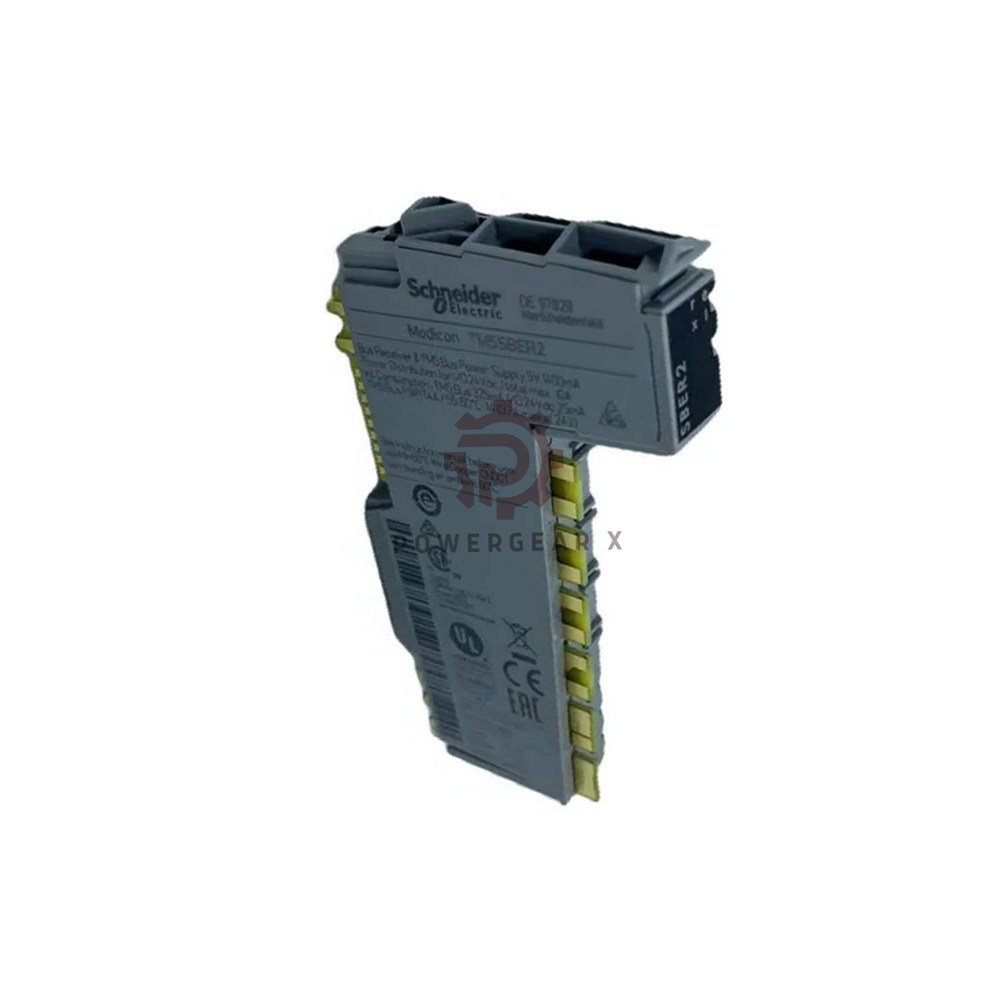

TM5SBER2 Schneider Electric Remote Receiver – Modicon TM5 Series

Product at a Glance

• TM5SBER2 – remote receiver module by Schneider Electric.
  • Part of the Modicon TM5 series.
  • Used for communication between remote I/O (RIO) and power distribution.
  • Distributes power to the TM5 bus and connected I/O modules.
• Works with Modicon M258 and LMC058 controllers.
• Gray housing, light weight (0.025 kg), and compact design.

Key Technical Specifications

• Power & Bus
  • Bus length: up to 2500 m (8202 ft).
  • Max cable distance between devices: 100 m (328 ft).
  • Current consumption: 25 mA @ 24 V DC.
  • Power dissipation: max 2.22 W.
• Local Indicators (LEDs)
  • Green: power supply OK.
  • Red (bus current): fault indication.
  • Red (power): supply error.
  • Yellow: data bus communication active.
• Environmental & Mechanical
  • Operating temp: 0 °C … 55 °C (horizontal, no derating).
  • Storage temp: –25 °C … 70 °C.
  • Humidity: 5 % … 95 % (non‑condensing).
  • Protection: IP20 (IEC 61131‑2) and IP67.
  • Pollution degree: 2 (IEC 60664).
  • Vibration: 1 gn (8.4…150 Hz) on DIN rail.
  • Shock: 15 gn for 11 ms.
• EMC Immunity
  • ESD: 4 kV contact / 8 kV air (EN/IEC 61000‑4‑2).
  • Radiated field: 10 V/m (80…2000 MHz).
  • Fast transients: 2 kV (power lines), 1 kV (I/O).
  • Surge: 1 kV common mode, 0.5 kV differential.

Compatibility & Installation

• Controllers: Modicon M258, LMC058 (logic & motion).
• Mounting: standard DIN rail (horizontal or vertical).
• Cable: shielded recommended for distances up to 100 m.
• Power supply: 24 V DC from the bus or external source.

Certifications & Standards

• CSA C22.2 No 142, No 213.
• IEC 61131‑2, UL 508.
• Certifications: CSA, cULus, C‑tick, GOST‑R.
• EMC: EN/IEC 61000‑4‑6, CISPR 11 (radiated/conducted).

Package & Shipping

• Unit: 1 piece (PCE) per package.
• Dimensions: 3.0 × 6.0 × 10.5 cm.
• Weight: approx. 60 g (2.12 oz).
• GTIN: 3595864074870.
• Dispatch: within 12‑24 hours.
• Carriers: FedEx, UPS, DHL (tracking included).

Expert Review

• Manager’s Insight: “Reliable and simple. The TM5SBER2 is perfect for distributed I/O over long distances. It saves wiring costs and keeps the system tidy. The LED indicators make troubleshooting fast. A solid choice for large machines or conveyor lines.”

Applications

• Remote I/O communication in large factories.
• Power distribution for TM5 I/O modules.
• Motion control systems (with LMC058).
• Conveyors, packaging lines, and material handling.

Comparison with Similar Models

• TM5SBER2 vs TM5SBER1 (shorter bus length, less power).
• vs TM5SBET1 (transmitter module, not receiver).
• vs TM5SDO4T (digital output, no remote function).
• For detailed specs, visit our product comparison page.

FAQ – Frequently Asked Questions

• What is the maximum bus length?

  2500 m (8202 ft) total, with 100 m between devices.

• Can I use this module outdoors?

  No, it is rated IP20/IP67 but only for indoor, dry locations.

• Do I need a separate power supply?

  It draws 25 mA from the 24 V bus, no extra supply needed.

• How do I know if communication is active?

  The yellow LED on the module flashes when data is exchanged.

• Is it compatible with non‑Schneider PLCs?

  Only guaranteed with Modicon M258 and LMC058.

• What is the warranty period?

  12 months from the date of purchase.

• Which shipping methods are available?

  FedEx, UPS, or DHL – you choose at checkout.

• Can I return the module if it doesn’t fit?

  Yes, but returnability depends on the distributor’s policy.

Selection Guide

• For long‑distance I/O → choose TM5SBER2.
• For short distances (≤200 m) → consider TM5SBER1.
• Need both transmit and receive? Use a TM5SBET1 + TM5SBER2 pair.
• Check your controller model – only M258 and LMC058 are supported.
