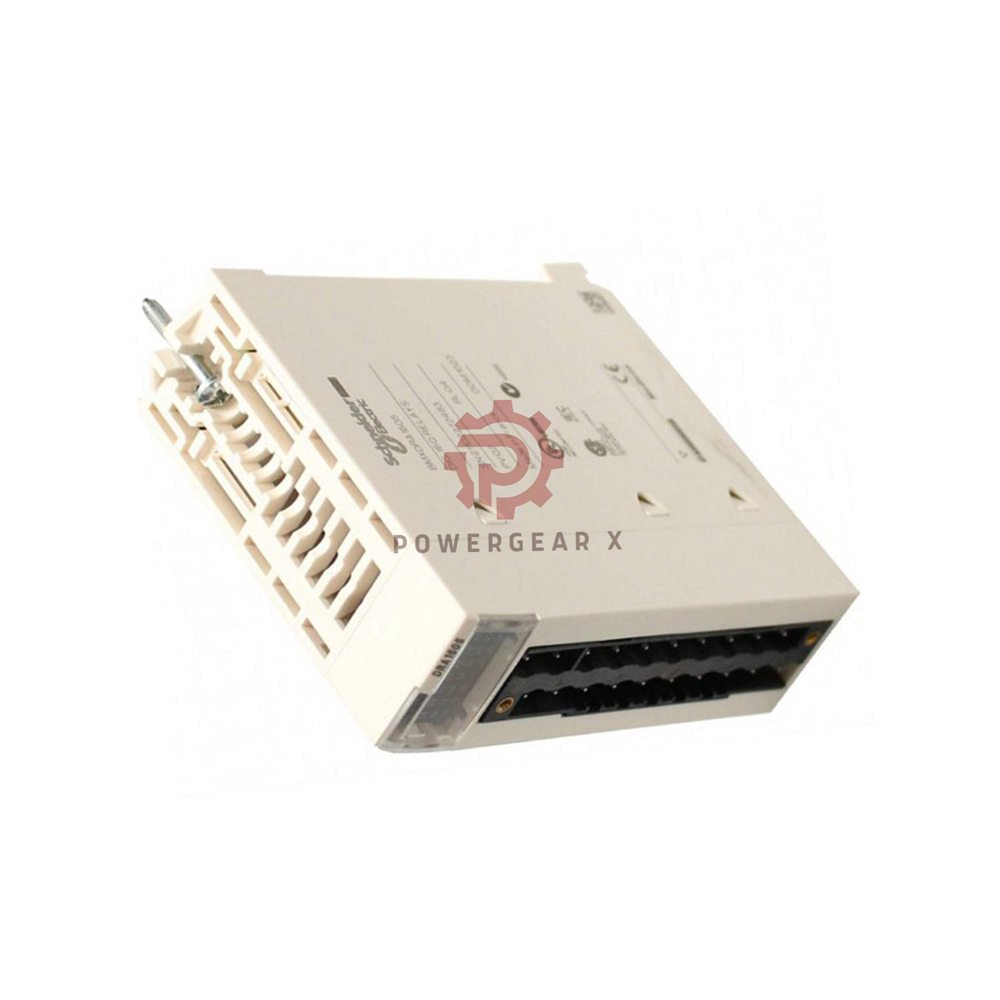

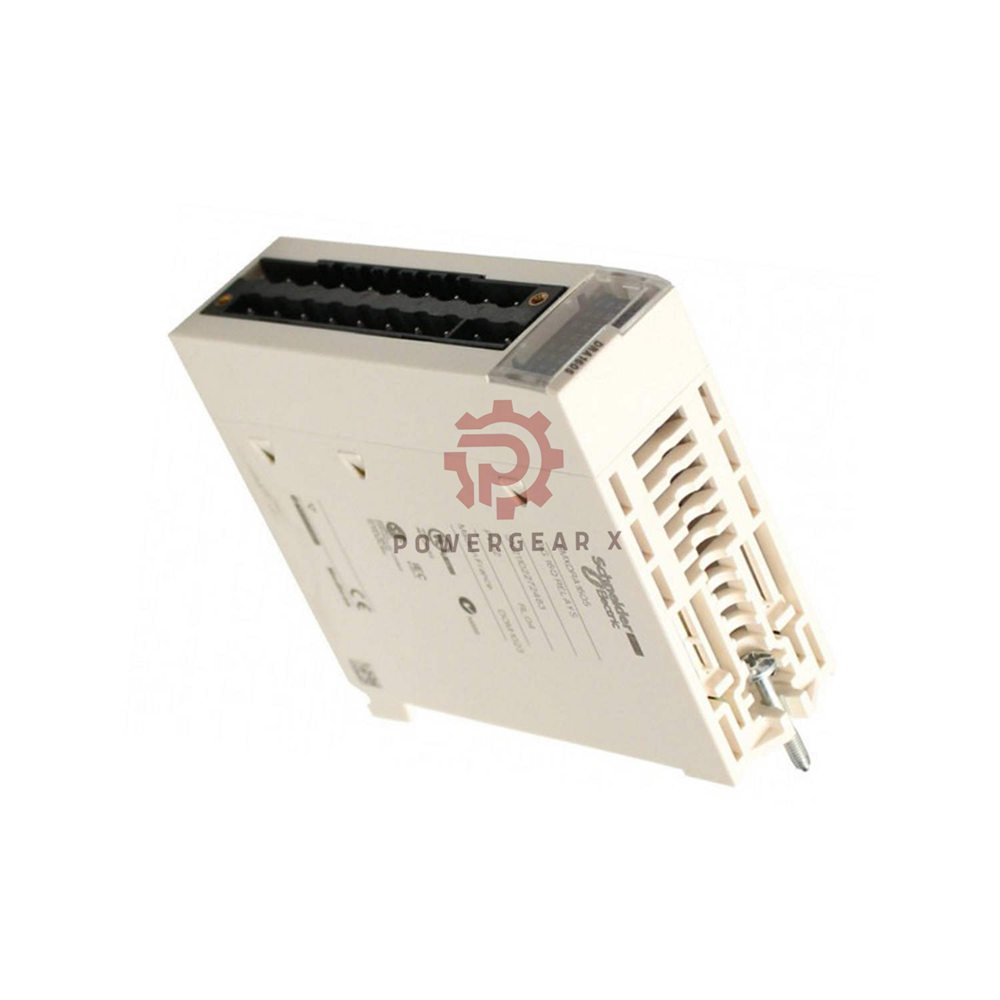

BMXDRA1605 Schneider Modicon X80 Relay Output Module | 16-Channel

Product Overview

BMXDRA1605 is a discrete output module from Modicon X80. It has 16 relay outputs. It works with AC and DC loads. This module suits many automation tasks.

Technical Data

• Brand: Schneider Electric
• Model: BMXDRA1605
• Series: Modicon X80
• Type: Discrete Output Module
• Outputs: 16 relay outputs
• Voltage Range: 24-240V AC, 24-48V DC
• Current: 2A per output
• Response Time: <8ms (on), <10ms (off)
• Power Dissipation: 3W
• MTBF: 2,100,000 hours
• Weight: 0.15 kg

Key Features

• Relay Outputs: 16 normally open (NO) relays.
• Wide Voltage: Works with 24-240V AC and 24-48V DC.
• Protection: Use fuses for overload and short circuits.
• LED Status: RUN, ERR, and per-channel diagnostics.
• Durable: High MTBF of 2.1 million hours.

Environmental & Physical

• Operating Temp: 0…60 °C
• Storage Temp: -40…85 °C
• Humidity: 5…95% (non-condensing)
• Shock: 30 gn
• Vibration: 3 gn
• IP Rating: IP20
• Altitude: 0-2000m (derating above)

Mounting & Installation

• Snap the module onto a Modicon X80 rack.
• Connect wires to the screw terminals.
• Secure the module with the locking mechanism.
• No special tools needed.

Debugging & Maintenance

• Check the RUN and ERR LEDs for status.
• Each output has a green LED for channel status.
• Replace fuses if an output fails.
• Use the I/O LED to detect module errors.

Compatibility

• Works with all Modicon X80 racks.
• Compatible with M340, M580, and Quantum CPUs.
• Use with EcoStruxure Control Expert software.

Certifications

• CE marked for European standards.
• RoHS compliant.
• UL listed for safety.
• Dielectric strength: 2000V AC for 1 minute.

Package Contents

• BMXDRA1605 module
• Quick start guide
• Warranty card

Warranty & Shipping

• Warranty: 12 months from purchase date.
• Shipping: Dispatched within 12-24 hours.
• Carriers: FedEx, UPS, DHL.

Expert Review

“The BMXDRA1605 offers a robust set of 16 relay outputs. Its wide voltage range makes it very flexible. The fast response time ensures precise control. The high MTBF means less downtime. It is an excellent choice for demanding industrial environments.”

Manager’s Insight

“For plant managers, this module simplifies spare parts inventory. One module covers both AC and DC loads. The LED indicators help technicians troubleshoot quickly. The 3W power dissipation keeps cabinets cool. It is a reliable and cost-effective output solution.”

Applications & Suitable Equipment

• Factory Automation: Conveyors, packaging machines.
• Process Control: Valves, pumps, heaters.
• Building Automation: Lighting, HVAC controls.
• Equipment: Modicon X80, M340, M580, Quantum PLCs.

FAQ – Frequently Asked Questions

• What voltage does this module support?

  24-240V AC and 24-48V DC.

• How many outputs does it have?

  16 relay outputs.

• What is the response time?

  <8ms turn-on, <10ms turn-off.

• Does it have short-circuit protection?

  Yes, but use external fuses per channel.

• Can I use it with a Modicon M340?

  Yes, it fits all X80 racks.

• What is the MTBF?

  2,100,000 hours.

• Is there a per-channel status LED?

  Yes, each output has a green LED.

• What software do I need?

  EcoStruxure Control Expert.

Selection Guide

Choose BMXDRA1605 if you need 16 relay outputs for AC or DC loads. It fits most industrial control panels. For solid-state outputs, consider BMXDAO series. This module is ideal for mixed voltage systems. Ensure your PLC rack has a free slot.

Comparison with Similar Models

• BMXDRA0805: 8 relay outputs (fewer channels).
• BMXDAO1605: 16 solid-state outputs (no mechanical wear).
• BMXDDO1602: 16 DC outputs (sourcing type).
• BMXDDM1602: 16 DC outputs (sinking type).
• BMXDRC0805: 8 relay outputs with shared common.
