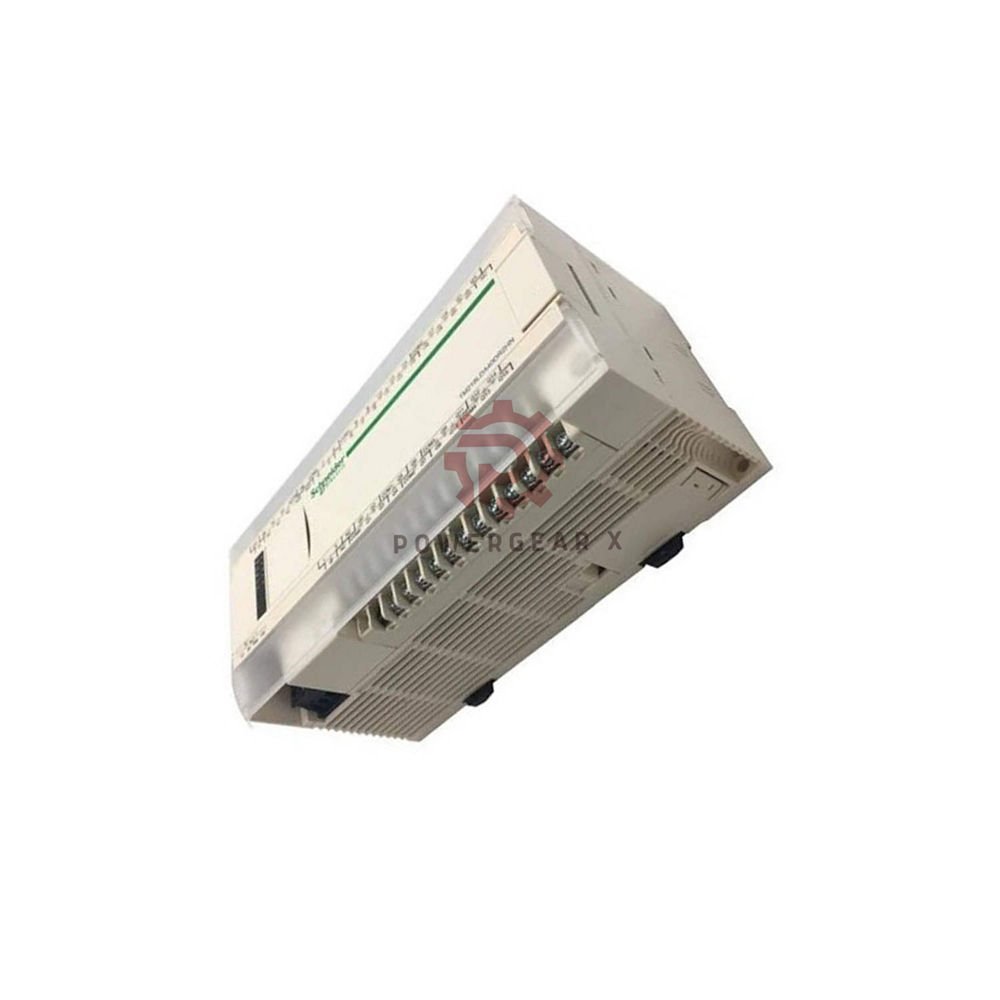

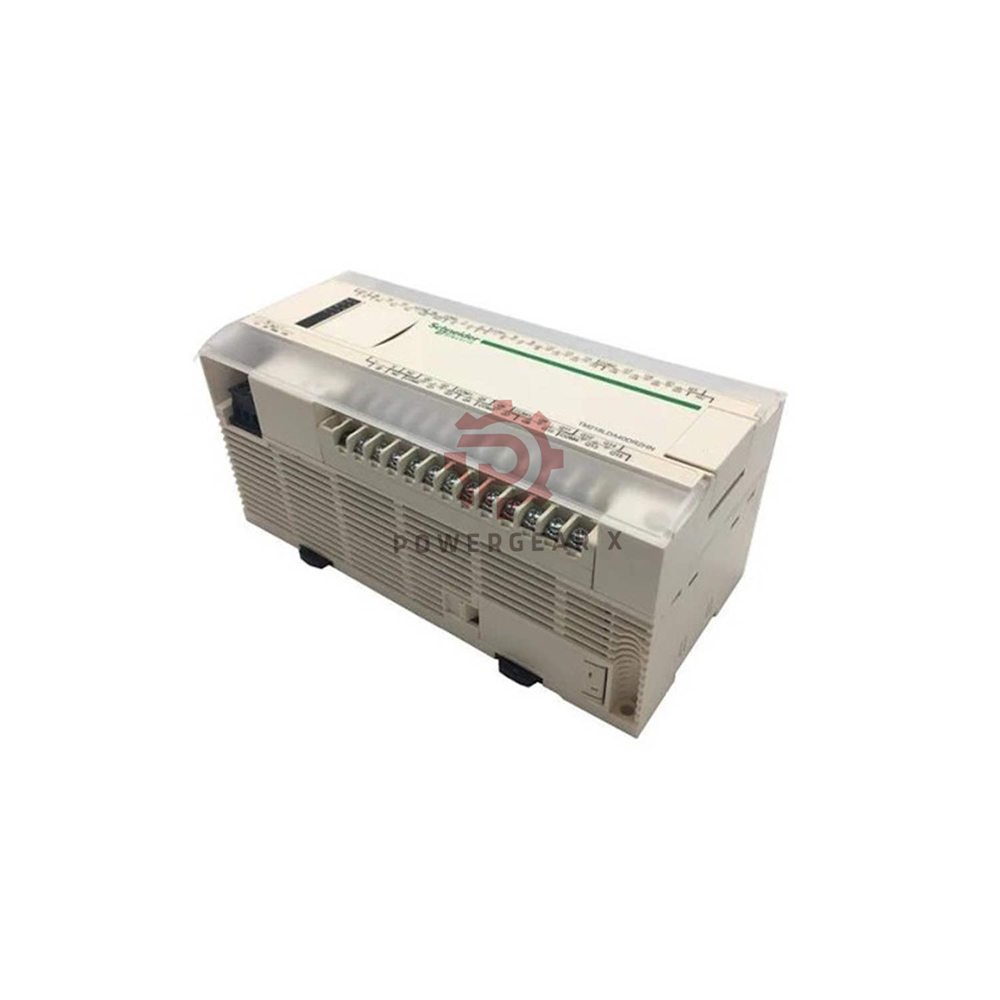

TM218LDA40DR2HN – M218 Controller, 40 I/O, 4 HSC, 2 PTO

TM218LDA40DR2HN – M218 Logic Controller

Modicon M218 – compact, powerful, and ready for 220 VAC. 40 I/O, 4 HSC, 2 PTO, 2 AO. Ideal for small to mid-size automation tasks.

Key Features

• 100…240 Vac – wide input range (85…264 Vac including ripple)
• 4 W continuous output – efficient and stable
• 4 High-Speed Counters + 2 PTO for motion control
• 2 Analog Outputs – precise signal generation
• 1780 Vac / 2500 Vdc isolation – robust protection

Technical Data

• Brand: Schneider Electric
• Model: TM218LDA40DR2HN
• Series: Modicon M218
• Type: Logic Controller / PLC
• Rated Voltage: 100…240 Vac (85…264 Vac limit)
• Frequency: 50/60 Hz
• Power Interruption: 10 ms at 100 Vac
• Inrush Current: 30 A (110 Vac) / 60 A (240 Vac)
• Isolation: 1780 Vac / 2500 Vdc (AC supply to logic, I/O, PE)
• Continuous Output: 4 W
• I/O Count: 40 (digital + analog)
• High-Speed Counters: 4 HSC
• Pulse Outputs: 2 PTO
• Analog Outputs: 2 AO
• Operating Temp: 0…55 °C
• Humidity: 10…95% RH non-condensing
• EMC Immunity: Industrial environment (IEC 61000-6-2)
• Mounting: DIN rail or panel

Installation & Commissioning

• DIN rail snap-fit – no tools needed
• Removable terminal blocks for easy wiring
• LED indicators for status and diagnostics
• Auto-detection of I/O modules
• Software: SoMachine / EcoStruxure Machine Expert – free download

Maintenance & Service

• Front-accessible battery and fuse
• Online firmware update via USB
• Diagnostic log with time-stamped events
• Restore factory settings in 3 steps

Compatibility

• Works with Modicon M218 extension modules (up to 7)
• Supports CANopen and Modbus protocols
• Integration with HMI panels and VFD drives
• Programming via EcoStruxure Machine Expert (formerly SoMachine)

Certifications

• CE, UL, cUL, RCM, EAC
• Marine – DNV GL
• Hazardous location – Class I Div 2

Package Contents

• TM218LDA40DR2HN controller
• Power connector (removable)
• DIN rail clip (pre-installed)
• Quick start guide (printed)
• Warranty card (12 months)

Warranty & Delivery

• 12-month warranty – parts and labor
• Same-day shipping (orders before 2 PM)
• Express courier: FedEx, UPS, DHL (2-4 days worldwide)

Expert Review – Automation Engineer

“The M218 is a workhorse for small machines. Its 4 HSC and 2 PTO handle indexing and speed control smoothly. The 1780 Vac isolation gives peace of mind in noisy factories. For the price, it’s hard to beat.” – Senior Controls Engineer

Manager’s Insight – Plant Operations

“We deployed 12 units across our packaging line. Downtime dropped by 30% due to quick diagnostics. The 4W output keeps energy costs low. A solid choice for OEMs and system integrators.” – Operations Manager

Typical Applications

• Packaging machinery (fill-seal, labeling)
• Conveyor systems with speed control
• Small material handling robots
• HVAC and building automation
• Water treatment dosing pumps

Compatible Devices

• Schneider Magelis HMIs
• Altivar ATV12 / ATV320 drives
• TeSys D contactors
• Any Modbus RTU / TCP slave device

Frequently Asked Questions

• • Q: What is the max input voltage?
  • A: 264 Vac (including ripple). Rated 100–240 Vac.

• • Q: Can I use this with 120 Vac?
  • A: Yes, 100–240 Vac covers 120 Vac perfectly.

• • Q: How many expansion modules?
  • A: Up to 7 modules (digital, analog, or special).

• • Q: What software do I need?
  • A: EcoStruxure Machine Expert (free) or SoMachine.

• • Q: Does it support Ethernet?
  • A: No, but Modbus serial is standard.

• • Q: Is the 4W output continuous?
  • A: Yes, it provides 4 W steady power for internal use.

• • Q: How do I reset to factory defaults?
  • A: Hold the reset button for 5 seconds during power-up.

• • Q: Can I use it in a cold environment?
  • A: Minimum ambient is 0 °C. Use a cabinet heater below 0 °C.

• • Q: What is the inrush current protection?
  • A: Built-in varistor and PTC – no external suppressor needed.

• Q: Does it come with mounting clips?
• A: Yes, DIN rail clip is pre-installed.

Selection Guide – Which M218 to choose?

• Need more I/O? Choose TM218LDA60DR4HN (60 I/O).
• Need Ethernet? Pick TM218LDAE24DR2HN (Ethernet built-in).
• Need more analog? TM218LDA40DR2HN already has 2 AO – good for most.
• Compact footprint? TM218LDA16DR2HN for 16 I/O.
• This model (40 I/O) is the best balance for small to mid-size systems.

Expert Tips from the Field

• Use shielded cables for HSC and PTO to avoid noise.
• Set the inrush current limiter to ‘high’ for capacitive loads.
• Keep the controller at least 50 mm from high-voltage lines.
• Update firmware via USB for new features.
