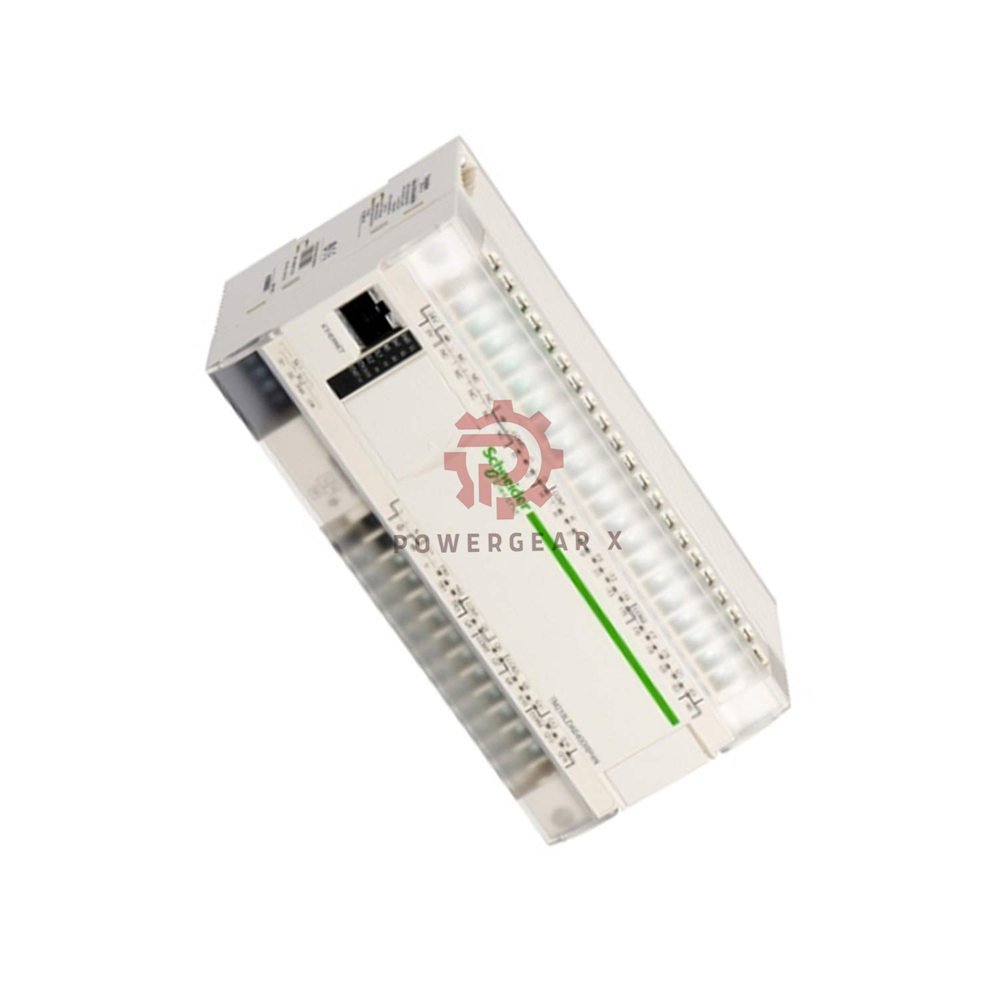

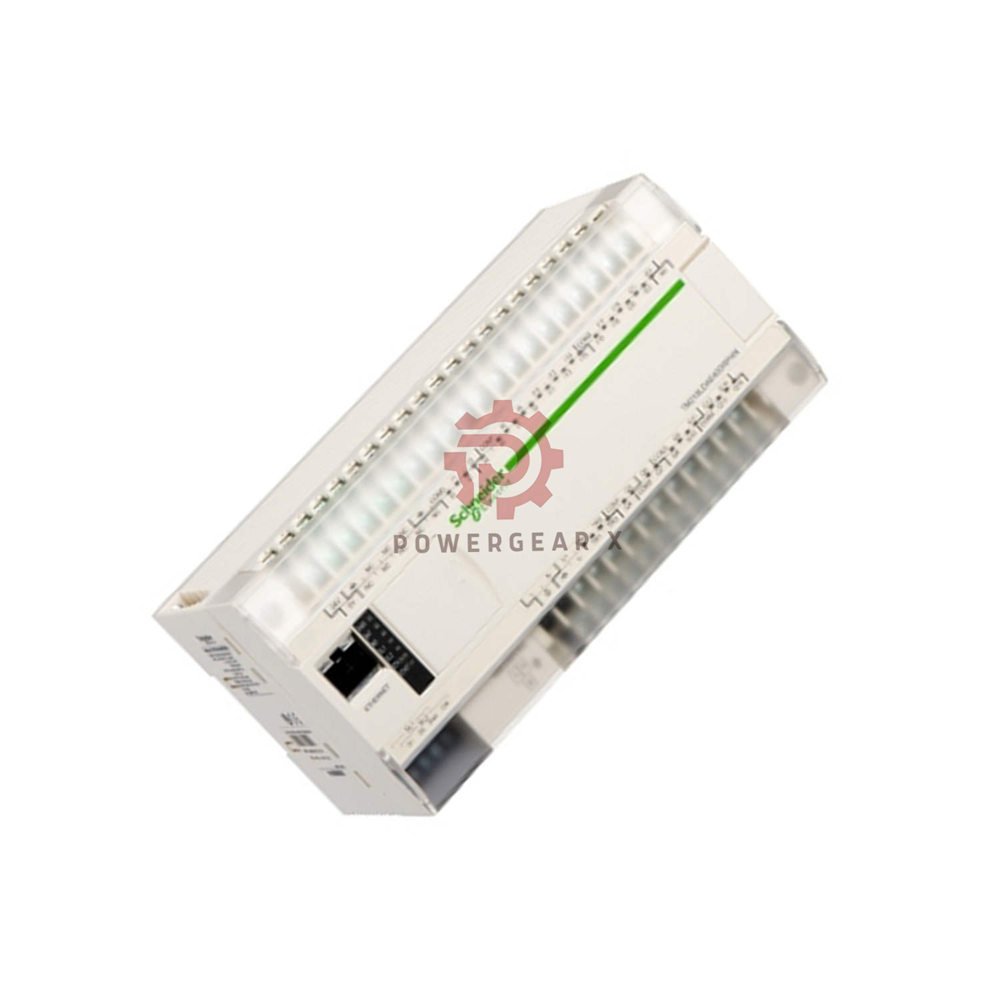

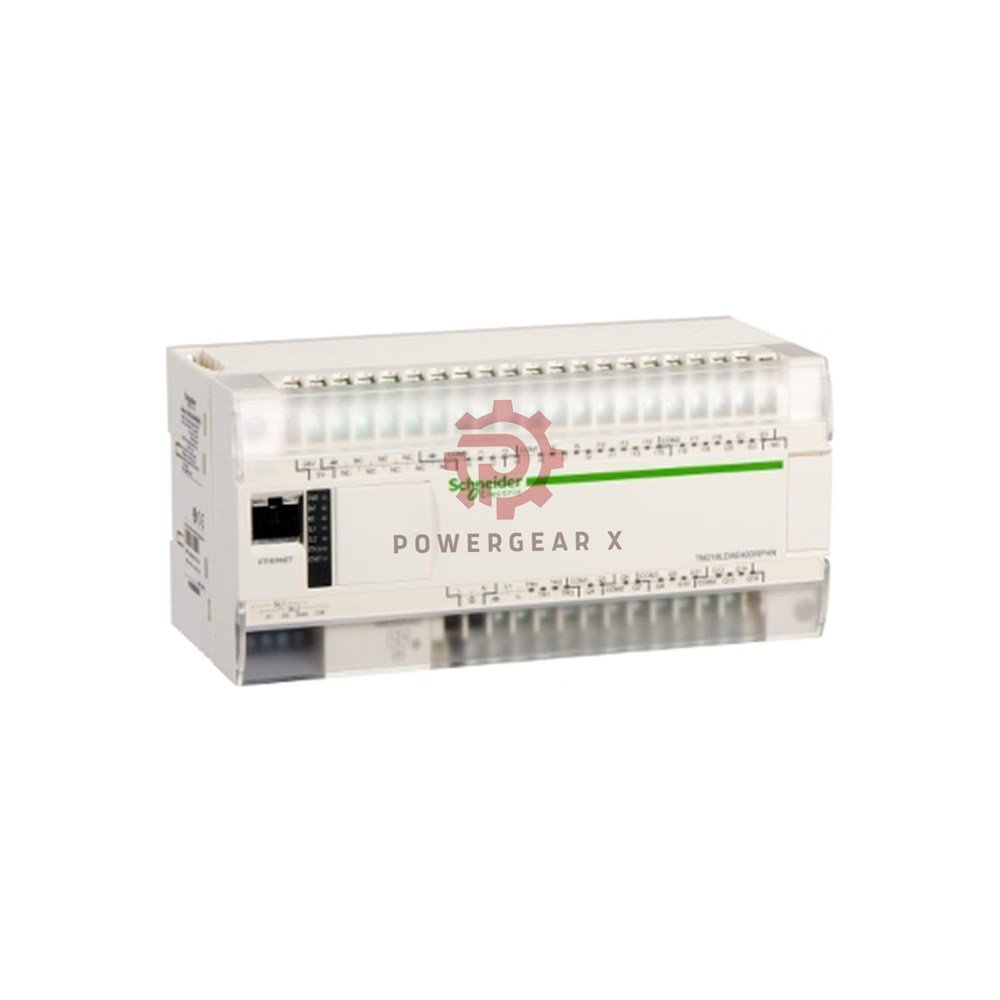

Name: Modicon M218 TM218LDA40DR4PHN PLC Controller – 40 I/O, Analog Inputs
SKU: TM218LDA40DR4PHN
Price: 266.00 USD
Availability: InStock

Product details

Modicon M218 Logic Controller – TM218LDA40DR4PHN

Compact base with 40 discrete I/O. 2 analog inputs. 12-bit resolution. Reliable for small to mid-size machines.

This controller delivers precise analog measurement in a space-saving design. Fits conveyors, packaging lines, and HVAC systems. Easy to install and maintain. Trusted by OEMs and system integrators.

Technical Specifications

Brand: Schneider Electric / Modicon
Model: TM218LDA40DR4PHN
Series: M218 Logic Controller
Type: Compact CPU base with 40 discrete I/O
Analog input channels: 2 (single-ended)
Voltage input ranges: -10…+10 Vdc, 0…+10 Vdc
Current input ranges: 0…20 mA, 4…20 mA
Input impedance (V): >1 MΩ
Input impedance (mA): 250 ±5% Ω
Resolution: 12-bit (including sign)
Accuracy at 25°C: ±1% full scale
Maximum deviation: ±2.5% full scale
Temperature drift: ±0.06% full scale
Sampling time: 10 ms per channel + 1 scan
System transfer time: 20 ms + 1 scan
Common mode rejection: 80 dB
Crosstalk: 60 dB
Non-linearity: ±0.4% full scale
LSB (voltage): 5 mV
LSB (current): 10 µA
Overvoltage protection: ±30 Vdc (<5 min), ±15 Vdc (continuous)
Overcurrent protection: ±30 mA dc
Isolation: Optocoupler (input to internal circuit)
Cable type: Shielded, max 3 m (EMC compliant), absolute max 10 m
Terminal type: Removable plug-in terminal block

Environmental & Immunity

Operating temperature: 0…55 °C
Storage temperature: -25…70 °C
Humidity: 10…95% RH (non-condensing)
EMC immunity: High (shielded cable required)
Transient protection: Built-in

Installation & Commissioning

• Use shielded cable ≤3 m for EMC compliance.
• Plug-in terminal blocks – no special tools needed.
• Auto-detects input type (voltage or current).
• LED indicators for each channel status.
• Firmware updates via USB – simple and fast.
• Compatible with Modicon programming suite.

Compatibility & Certifications

• Expands with all M218 series modules.
• Software: EcoStruxure Machine Expert, SoMachine.
• Certifications: CE, UL, cUL, RoHS.
• EMC compliant for industrial environments.
• ATEX and marine options available on request.

Expert Review

“The M218 delivers outstanding value. Its 12-bit analog input stays stable in noisy conditions. With 40 discrete I/O, it is a true all-in-one solution for small to medium machines. Ideal for packaging and material handling.”

Manager’s Insight

“Customers love the quick setup and rugged build. The 3 m shielded cable limit ensures data integrity. With 12-month warranty and 24-hour shipping, we keep your production running.”

Typical Applications

• Conveyor control systems
• Packaging machinery
• HVAC and building automation
• Pump and fan control
• Small process skids

Frequently Asked Questions

Q: What is the maximum cable length?
A: 3 m shielded for EMC compliance. Absolute maximum is 10 m.
Q: Can I mix voltage and current inputs on the same module?
A: Yes. Each channel configures independently for voltage or current.
Q: Does it support remote I/O expansion?
A: Yes. Supports up to 7 expansion modules via the internal bus.
Q: What is the power supply requirement?
A: 24 Vdc nominal. Accepts 19.2…28.8 Vdc range.
Q: Should I choose voltage or current input for my application?
A: Use voltage for short distances. Use current for better noise immunity over longer runs.
Q: Is it compatible with older SoMachine software?
A: Yes. Supports SoMachine V4.3 and newer versions.
Q: How do I reduce noise on analog readings?
A: Use shielded cable with grounded shield. Keep cable length under 3 m. Separate from power cables.
Q: What is the typical scan time added to sampling?
A: Sampling takes 10 ms per channel plus one full scan cycle.
