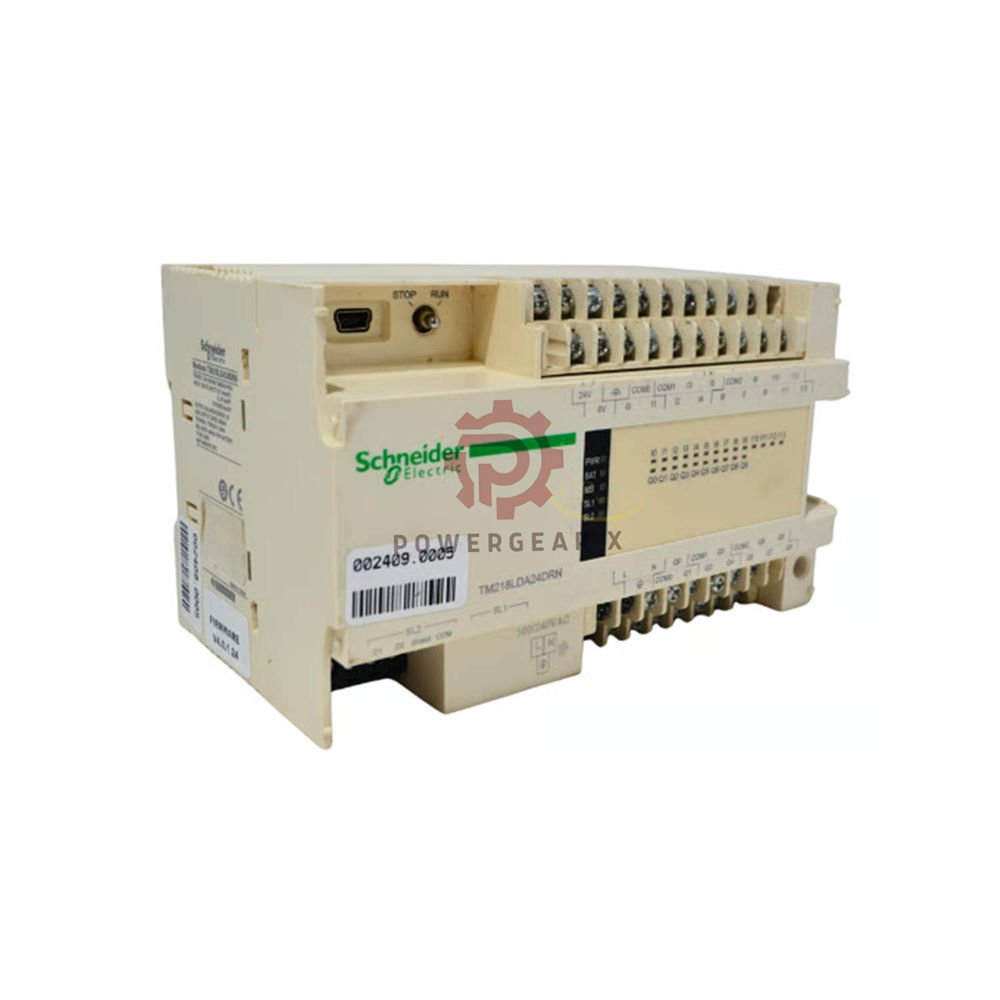

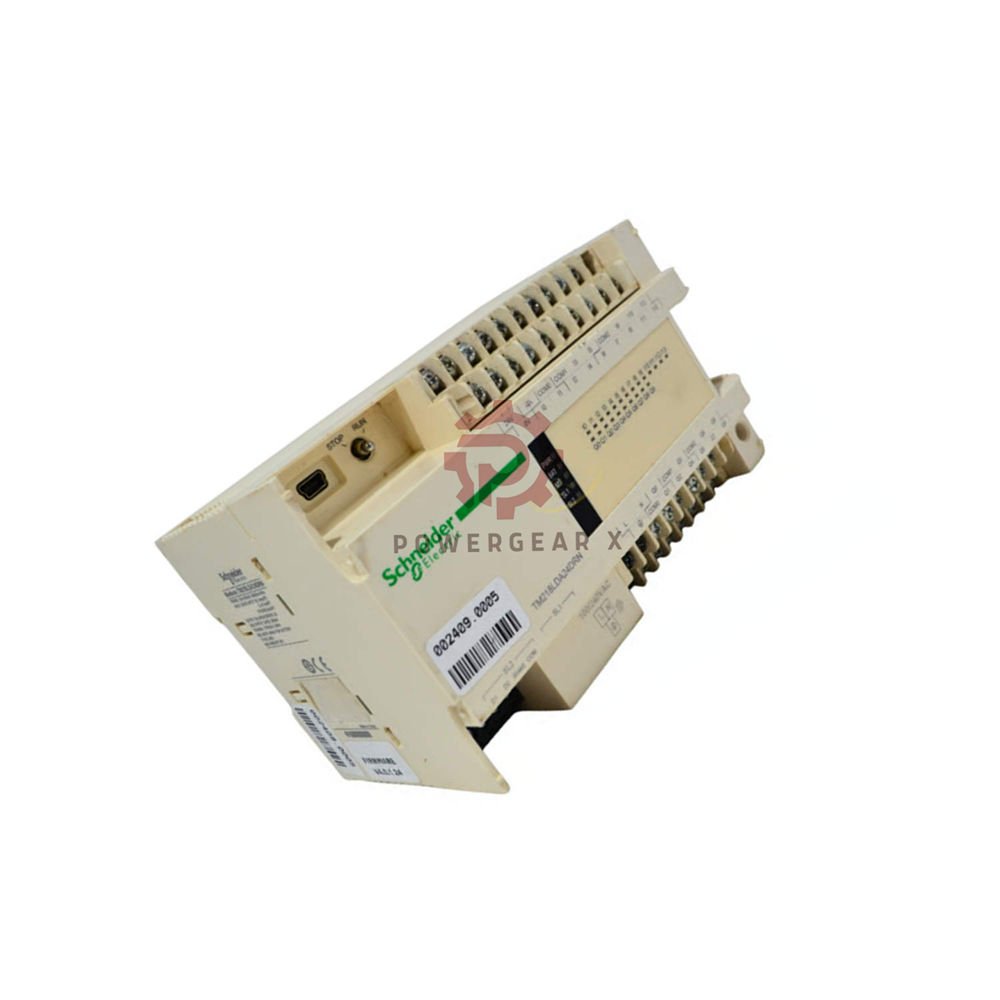

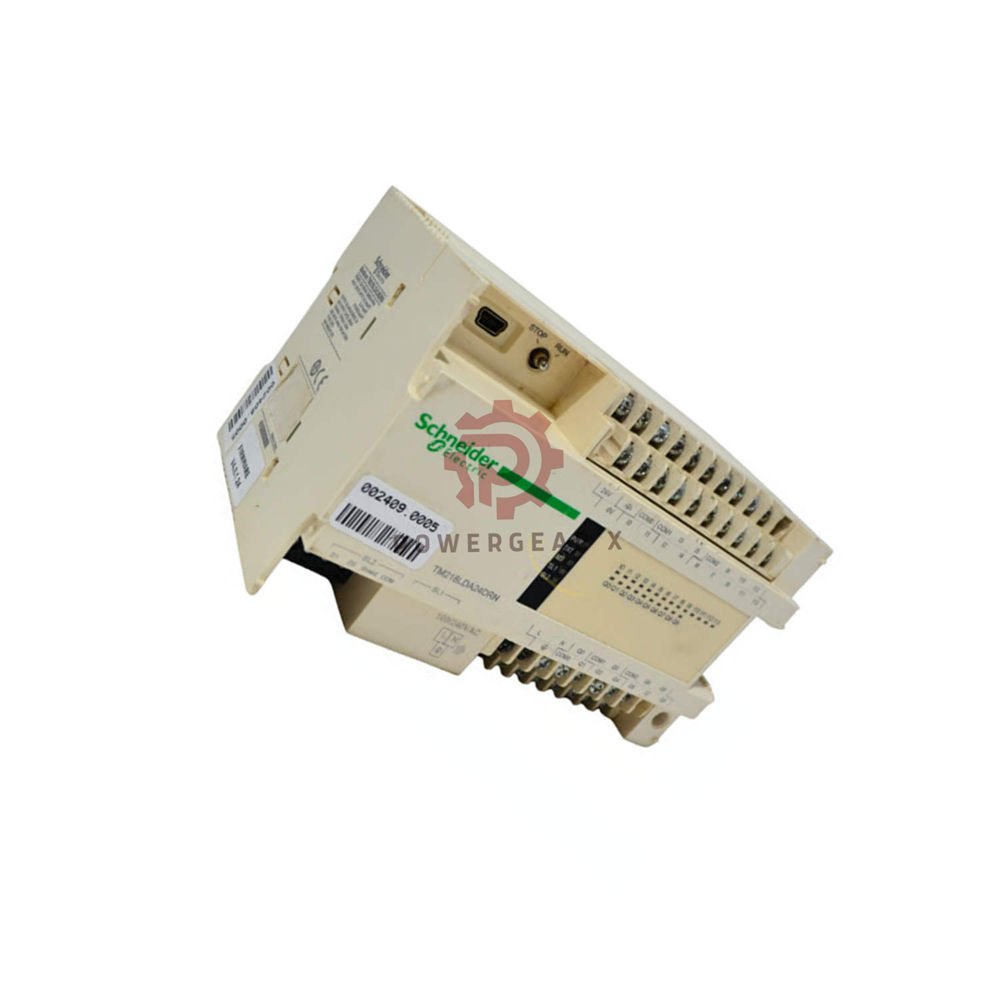

TM218LDA24DRN Modicon M218 Logic Controller – Compact PLC

TM218LDA24DRN – Modicon M218 Logic Controller

Compact · Reliable · Fast I/O · Built for small-to-medium automation tasks.

1. Product Description

• – The TM218LDA24DRN is a Modicon M218 logic controller from Schneider Electric.
• – It provides 12 regular digital inputs plus 2 fast inputs for high-speed counting (HSC).
• – Additionally, it offers 10 relay outputs for direct load switching.
• – Furthermore, the input configuration supports both sink and source wiring.
• – However, please note that overvoltage protection is not included.

2. Technical Specifications

• Brand / Model: Schneider Electric – TM218LDA24DRN (M218 series).
• Input type: Sink/Source, range 0…28.8 Vdc.
• Rated current: Standard 5 mA, enhanced 7 mA.
• Digital I/O: 12 regular inputs + 2 fast (HSC up to 20 kHz) and 10 relay outputs.
• Overvoltage protection: Not available.
• Operating temperature: 0 … 55 °C; storage -25 … 70 °C.
• Humidity tolerance: 5 … 95 % RH (non‑condensing).
• Immunity: Meets IEC 61000 for ESD, burst, and surge.

3. Installation, Debug & Maintenance

• – Mounting: Use DIN rail or panel mount with the supplied clip.
• – Wiring: Spring‑cage terminals accept 0.2…2.5 mm² wire.
• – Debugging: LED indicators show I/O status and run/stop states.
• – Maintenance tip: Regularly check relay contact wear for inductive loads.

4. Compatibility & Certification

• – Software: Fully compatible with SoMachine and EcoStruxure Machine Expert.
• – Communication: Modbus RTU via non‑isolated serial port.
• – Certificates: CE, UL, CSA, and RoHS compliant.

5. Packaging, Warranty & Shipping

• – Box contents: Controller, terminal blocks, user manual, and mounting clip.
• – Warranty: 12 months from the invoice date.
• – Shipping: We dispatch within 12‑24 hours after order confirmation.
• – Carriers: FedEx, UPS, or DHL – tracking provided.

6. Expert Review & Manager’s Insight

• Expert Review: “The TM218LDA24DRN stands out with its fast HSC inputs and relay outputs.
• Moreover, the sink/source flexibility simplifies wiring with various sensors.
• In fact, it is ideal for conveyors, packaging, and simple motion control.
• Furthermore, programming with SoMachine is straightforward and saves time.”
• Manager’s Insight: “This controller keeps costs low while maintaining solid performance.
• For instance, the 10 relays can drive small motors or solenoids directly.
• Additionally, the 12‑month warranty and fast shipping reduce project risks.”

7. Suitable Devices & Applications

• – Small conveyor belts and material handling systems.
• – Packaging machines: filling, sealing, and labelling.
• – Positioning with incremental encoders (HSC inputs).
• – Pump/fan control, alarm panels, and light curtain monitoring.

8. FAQ – Practical Questions & Purchase Guide

• Q: Can I connect NPN and PNP sensors together?
• Yes. The sink/source inputs accept both types with common wiring.
• Q: What is the maximum counting frequency for fast inputs?
• Up to 20 kHz – suitable for incremental encoders and high‑speed counting.
• Q: Does it include built‑in Ethernet or a serial port?
• It has a non‑isolated serial port for Modbus RTU; no Ethernet.
• Q (experience): How can I prevent relay welding on inductive loads?
• Add an external snubber or freewheel diode. RC suppression is recommended.
• Q (experience): What if I need more than 10 outputs?
• Use an expansion module (TM2 series) via the local bus.
• Q (purchase guide): M218 vs M241 – which one to choose?
• M218 is cost‑effective for simple I/O; M241 adds Ethernet and motion control.
• Q (purchase guide): When is this model the best choice?
• When you need relay outputs and fast counter inputs in a compact package.
