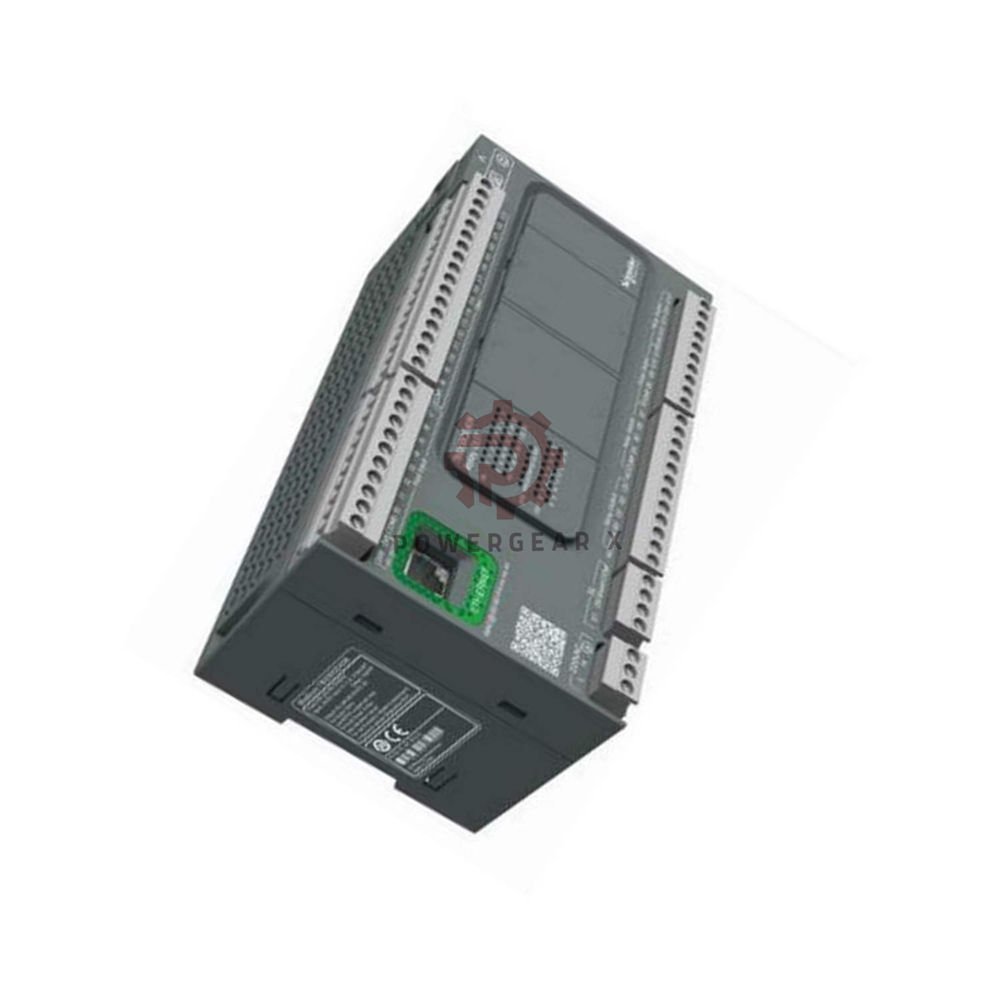

TM200CE40T Easy Modicon M200 Logic Controller 40 I/O Ethernet

Product Overview

• TM200CE40T is a compact logic controller from the Easy Modicon M200 series.
• It combines 40 discrete I/O, Ethernet, and high-speed functions in a 175 mm wide housing.
• This controller is built for small to mid-size automation tasks that need fast response and simple networking.
• It supports Source+ transistor outputs and sink/source inputs for flexible wiring.

Key Technical Data

• Brand & Series: Schneider Electric – Easy Modicon M200
• Model: TM200CE40T
• Rated supply: 24 V DC (20.4…28.8 V)
• Discrete I/O: 40 total (24 inputs, 16 transistor outputs)
• High-speed inputs: 4 (I0, I1, I6, I7) – 5 µs response
• Fast inputs: 4 (I2…I5) – 35 µs turn-on
• Fast outputs: Q0…Q1 (PLS/PWM/PTO up to 100 kHz)
• Standard outputs: Q2…Q15 (0.5 A per channel)
• Output logic: Positive (source) – transistor type
• Power consumption: 18 W (max I/O load)
• Memory: 512 KB internal flash + optional 32 GB micro SD
• Battery backup: BR2032 (5-year life, 3-year data retention)
• Execution speed: 0.3 ms / 1K instructions (Boolean 0.2 µs)
• PID loops: Up to 14 adjustable regulators

Advanced Specifications (MECE)

• Measurement & Frequency:
  • High-speed counting (HSC): 100 kHz, 32-bit (4 channels)
  • PWM/PLS output: 100 kHz on Q0, Q1
  • Fast input filtering: 0, 3, or 12 ms (selectable)
• Environmental Tolerance:
  • Operating temperature: 0…55 °C (horizontal mount)
  • Storage: -25…70 °C
  • Humidity: 10…95 % non-condensing
  • Altitude: 0…2000 m (operation), 0…3000 m (storage)
  • Shock: 15 gn (11 ms), 30 gn (6 ms)
  • Vibration: 3.5 mm (5…8.4 Hz), 1 gn (8.4…150 Hz) on rail
• Immunity & EMC:
  • ESD: 8 kV air / 6 kV contact (IEC 61000-4-2)
  • RF field: 10 V/m (80 MHz…3 GHz)
  • EFT/Burst: 2 kV power, 1 kV I/O (IEC 61000-4-4)
  • Surge: 1 kV DC power, 2 kV relay output (IEC 61000-4-5)
  • Conducted RF: 10 V (0.15…80 MHz)
  • Radiated emission: Class A (10 m) per EN/IEC 55011
• Installation & Mounting:
  • Mounting: TH35-15 or TH35-7.5 rail (IEC 60715)
  • Panel mounting kit available (optional)
  • Removable screw terminal blocks (I/O, power, serial)
  • Mini B USB 2.0 and RJ45 Ethernet ports
• Debug & Maintenance:
  • USB programming port (SoMachine-Network)
  • Non-isolated serial: RS485 (Modbus RTU/ASCII)
  • Isolated serial: RS485 (terminal block)
  • Ethernet Modbus TCP/IP (client/server)
  • LED status: PWR, RUN, ERR, SD, BAT, SL1, I/O states
  • Automatic reset after overload (1 s)
• Compatibility:
  • Expansion: up to 4 modules (64 relay or 144 transistor outputs)
  • Software: SoMachine / EcoStruxure Machine Expert
  • Communication: Modbus master/slave, USB-SoMachine-Network
• Certifications & Standards:
  • EN/IEC 61131-2, EN/IEC 61010-2-201
  • CE marked
  • IP20 (with cover)
  • Pollution degree ≤ 2

Package Contents

• TM200CE40T logic controller unit
• Removable screw terminal blocks (inputs, outputs, power, serial)
• Protective cover (IP20)
• Quick start guide (printed)
• Battery BR2032 (pre-installed)

Warranty & Shipping

• Warranty: 12 months against manufacturing defects
• Shipping: 12-24 hours dispatch (business days)
• Carriers: FedEx, UPS, DHL (tracked & insured)

Expert Review

• “The TM200CE40T delivers a perfect balance of speed and I/O density for compact machines. Its 100 kHz high-speed counters and fast transistor outputs make it ideal for positioning and light motion control. The built-in Ethernet Modbus TCP simplifies integration with HMIs and SCADA. For cost-sensitive projects that still demand reliability, this controller is a top pick.”

Manager‘s Insight

• “From a project management perspective, the TM200CE40T reduces cabinet space and wiring complexity. The wide operating temperature and robust EMC ratings ensure stable performance in harsh factory floors. With optional SD card backup and easy expansion, it scales with your production needs. A solid investment for OEMs and system integrators.”

Applications & Suitable Equipment

• Packaging machinery (filling, sealing, labeling)
• Conveyor systems (speed control, counting)
• Small pick-and-place units
• HVAC equipment (pump/fan control)
• Textile machines (tension control, positioning)
• Agricultural automation (irrigation, sorting)
• Generic 24 V DC discrete control panels

Frequently Asked Questions (FAQ)

• Can I use this controller with 230 V AC power?
• No. It requires 24 V DC (20.4…28.8 V). Use a suitable power supply.
• How many expansion modules can I connect?
• Up to 4 modules. Max 64 relay outputs or 144 transistor outputs.
• What is the maximum counting frequency?
• 100 kHz for high-speed inputs (I0, I1, I6, I7) in HSC mode.
• Is the Ethernet port isolated?
• No, it is not isolated. Use proper grounding and shielded cables.
• Can I program it via USB?
• Yes, the mini B USB port supports SoMachine-Network programming.
• What software do I need?
• EcoStruxure Machine Expert (formerly SoMachine) – version V1.2 or later.
• How do I back up the program?
• Use the internal flash or optional micro SD card (up to 32 GB).
• Is the battery replaceable?
• Yes, it uses a standard BR2032 coin cell (5-year life).

Selection Guide (Experience-based)

• Choose TM200CE40T if: you need 40 I/O with 8 high-speed/fast inputs and 2 high-speed outputs, plus Ethernet and Modbus.
• Consider expansion: if you need more than 40 I/O, add up to 4 modules – plan total current (max 2 A per common).
• For motion control: use Q0/Q1 for PWM/PTO (100 kHz) and I0/I1/I6/I7 for encoder feedback.
• For harsh environments: verify temperature, humidity, and EMC levels match your site conditions.
• Budget tip: the controller includes Ethernet – you may not need an extra gateway for SCADA.
