TM200CE40R | Easy Modicon M200 Logic Controller with Ethernet

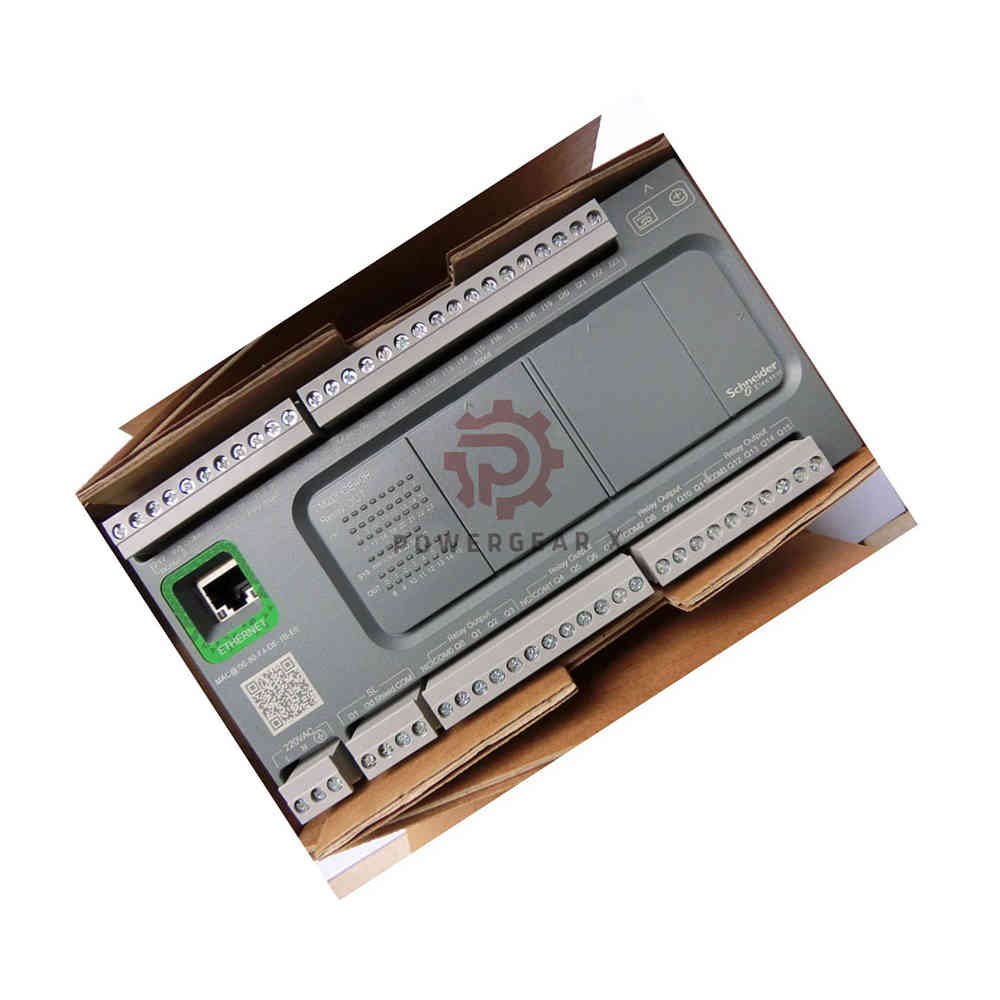

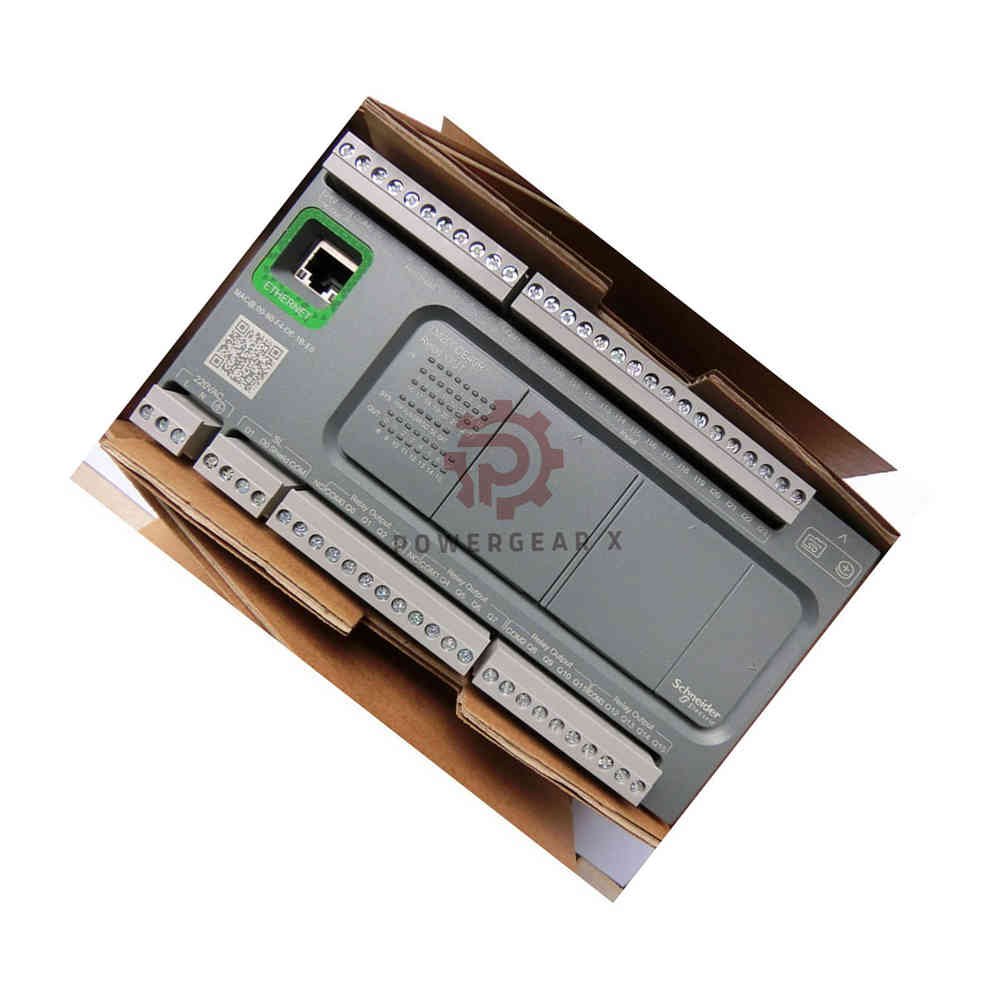

TM200CE40R – Easy Modicon M200 Logic Controller

Product Overview

The TM200CE40R is a compact logic controller from the Easy Modicon M200 series. It combines 40 I/O points with relay outputs and built-in Ethernet. This controller is ideal for small to medium automation tasks. It offers high performance in a space-saving design.

Key Features

• Controller Type: Logic controller with 40 I/O
• Power Supply: 100…240 V AC
• Discrete I/O: 24 inputs (4 high-speed, 4 fast, 16 regular) & 16 relay outputs
• Connectivity: Ethernet Modbus TCP/IP, RS485, RS232, USB port
• Expansion: Supports up to 4 I/O expansion modules

Technical Specifications

General

• Brand: Schneider Electric
• Model: TM200CE40R
• Series: Easy Modicon M200
• Product Type: Logic Controller with relay outputs and Ethernet

Power & Environmental

• Rated Supply Voltage: 100…240 V AC (85…264 V AC limits)
• Power Consumption: 59…69 VA (at 100…240 V AC with max I/O)
• Inrush Current: 50 A
• Ambient Temperature (Operation): 0…55 °C (horizontal installation)
• Ambient Temperature (Storage): -25…70 °C
• Relative Humidity: 10…95 % (non-condensing)
• Operating Altitude: 0…2000 m
• Pollution Degree: ≤ 2
• Protection Degree: IP20 (with protective cover)

Inputs

• Digital Inputs: 24 (I0…I23)
• High-Speed Inputs: 4 (I0, I1, I6, I7) – 5 µs response
• Fast Inputs: 4 (I2…I5) – 35/100 µs response
• Regular Inputs: 16 (I8…I23) – 35/100 µs (I8…I13) & 55/125 µs (I14…I23)
• Input Voltage: 24 V DC
• Input Current: 7 mA
• Input Logic: Sink or source (Type 1 per EN/IEC 61131-2)
• Input Impedance: 3.3 kOhm
• Configurable Filtering: 0 ms, 3 ms, or 12 ms

Outputs

• Digital Outputs: 16 relay (Q0…Q15)
• Output Type: Normally open relay
• Output Voltage: 24 V DC or 220 V AC
• Output Current: 2 A per output
• Max Current per Common: 4 A (COM 0,1,2,3)
• Response Time: 10 ms (turn-on/off)
• Electrical Durability: 100,000 cycles (AC-12/DC-12)
• Mechanical Durability: 20,000,000 cycles
• Minimum Load: 10 mA at 5 V DC

Performance

• Execution Time: 0.3 ms per 1K instruction (event/periodic)
• Boolean Execution: 0.2 µs
• Event Task Response: 60 µs
• Clock Drift: ≤ 90 s/month at 25 °C
• Counting Inputs: 4 fast inputs (HSC mode) at 100 kHz, 32-bit
• Control Signal Types: Quadrature (x1,x2,x4), Pulse/Direction, Single phase, CW/CCW

Communication

• Ethernet: 1 port, 10/100BASE-T, Modbus TCP/IP (client/server)
• Serial Link 1: RS485 (non-isolated)
• Serial Link 2: RS232/RS485 (non-isolated) or isolated RS485
• USB: Mini B USB 2.0 (programming)
• Transmission Rates: 1.2…115.2 kbit/s (RS485/RS232), 12 Mbit/s (USB), 10/100 Mbit/s (Ethernet)
• Protocols: Modbus RTU/ASCII, SoMachine-Network

Expansion & Memory

• Max I/O Expansion Modules: 4 (up to 128 discrete outputs for transistor or 80 for relay)
• Memory Capacity: 512 bytes internal flash (program backup)
• Data Storage: 32 GB micro SD card (optional)
• Battery: BR2032, 5-year life, 3-year backup at 25 °C

Regulation & Control

• PID Regulation: Adjustable, up to 14 simultaneous loops

Installation & Mounting

• Mounting: Top hat TH35-15 or TH35-7.5 rail (IEC 60715), or panel mounting with kit
• Dimensions (H x W x D): 90 mm x 175 mm x 70 mm
• Weight: 0.512 kg
• Connections: Removable screw terminal blocks for I/O, power, serial links; RJ45 for Ethernet; Mini B USB for programming

Compliance & Certifications

• Standards: EN/IEC 61010-2-201, EN/IEC 61131-2
• Certifications: CE, RCM, IACS E10, CSA, CULus
• EMC Immunity: ESD (8 kV air / 6 kV contact), Radiated (10 V/m), EFT (2 kV power lines), Surge (1 kV/2 kV), Conducted RF (10 V)
• Emissions: Conducted & Radiated (Class A per EN/IEC 55011)

Application & Compatibility

Suitable For

• Small to medium machine control
• Building automation systems
• Simple process control
• Material handling equipment
• Packaging machinery

Compatibility

• Software: SoMachine (programming environment)
• Expansion: Works with Easy Modicon M200 I/O modules
• Communication: Modbus TCP/IP and Modbus RTU/ASCII

Ordering & Support

Package Includes

• TM200CE40R Logic Controller
• Removable terminal blocks
• Protective cover
• Mounting kit (for panel mounting)
• Quick Start Guide (digital)

Warranty & Shipping

• Warranty: 12 months
• Shipping: 12-24 hour dispatch
• Carriers: FedEx, UPS, DHL

Manager’s Insight

The TM200CE40R offers a perfect balance between performance and cost. Its built-in Ethernet and relay outputs make it versatile for many projects. The controller is easy to program and integrate. It is a reliable choice for automation engineers seeking a compact yet powerful solution.

Expert Review

This controller provides excellent value for small-scale automation. The high-speed inputs and flexible communication options are standout features. Its robust design ensures long-term reliability in industrial environments. The support for up to 14 PID loops adds significant control capability.

Frequently Asked Questions (FAQ)

What is the maximum number of expansion modules?

You can connect up to 4 expansion modules to this controller.

Can I use this with an SD card for data logging?

Yes, it supports an optional 32 GB micro SD card for data storage.

What is the response time for relay outputs?

The relay outputs have a typical turn-on and turn-off time of 10 ms.

Does this support high-speed counting?

Yes, it has 4 fast inputs that support HSC mode at up to 100 kHz.

What software do I need for programming?

You will need Schneider Electric’s SoMachine software.

Is this controller suitable for a beginner?

Yes, its user-friendly design and SoMachine software make it a great starting point.

How do I choose between relay and transistor outputs?

Choose relay outputs for AC loads or lower switching frequencies. Transistor outputs are better for high-speed DC switching.
