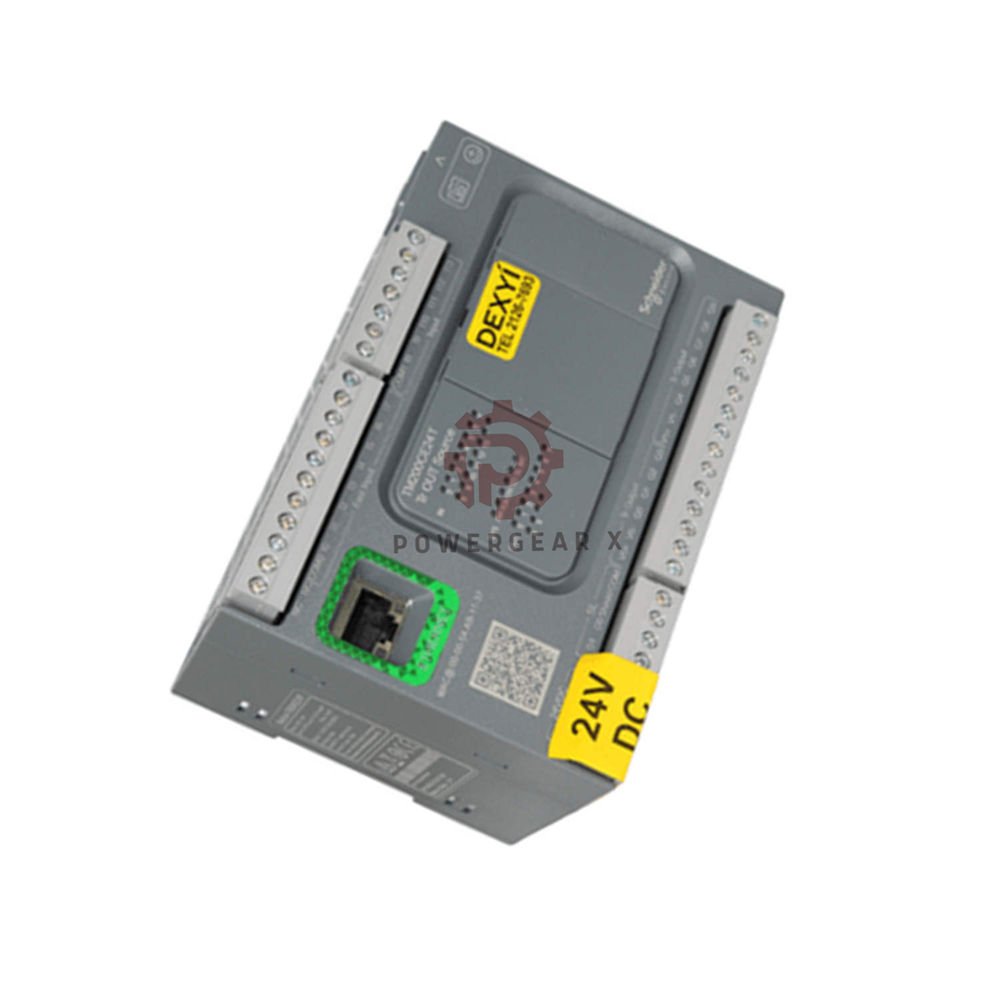

TM200CE24T Logic Controller – M200 Series, Transistor Output, Modbus

Product Overview

• TM200CE24T – Easy Modicon M200 logic controller
• 24 V DC supply, 24 mixed I/O points
• Transistor outputs (source logic), Ethernet & dual serial links
• Compact 130×90×70 mm, IP20 with cover
• Ideal for small to mid-size automation tasks

Key Technical Data

• Brand – Schneider Electric
• Model – TM200CE24T
• Series – Modicon M200
• Type – Logic controller, transistor source
• Rated supply – 24 V DC (20.4…28.8 V)
• Discrete I/O – 24 total (10 inputs, 10 outputs + 4 fast inputs)
• Input features
  • 4 high-speed inputs (I0, I1, I6, I7) – 5 µs response
  • 4 fast inputs (I2…I5) – 35 µs turn-on, 100 µs turn-off
  • 6 regular inputs (I8…I13) – 35 µs/100 µs
  • Sink/source logic, Type 1 per EN/IEC 61131‑2
• Output features
  • 2 fast outputs Q0…Q1 – PWM/PLS/PTO up to 100 kHz
  • 8 transistor outputs Q2…Q9 – 0.5 A each, source logic
  • Response time 1 ms (turn‑on/off)
  • Max current per common: COM0 = 2 A, COM1 = 3 A
• Communication ports
  • Ethernet Modbus TCP/IP – RJ45, 10/100 Mbit
  • Non‑isolated RS485 (terminal block) + RS232/RS485
  • USB mini B – programming & SoMachine‑Network
• Memory & backup
  • 512‑byte internal flash for program backup
  • Optional 32 GB micro SD card
  • BR2032 battery – 5‑year life, 3‑year backup at 25 °C
• Performance
  • 0.3 ms per 1K instruction (event/periodic)
  • Boolean execution: 0.2 µs
  • Event task response: 60 µs
• Counting & positioning
  • 4 fast counters (HSC) – 100 kHz, 32‑bit
  • Quadrature (x1, x2, x4), Pulse/Direction, CW/CCW
  • 2 PWM/PLS channels at 100 kHz
• Regulation – Up to 14 simultaneous PID loops
• Protection
  • Overload & short‑circuit (2 A trip, 1 s auto reset)
  • Insulation: 500 V AC between I/O & logic
• Environmental limits
  • Operation: 0…55 °C (horizontal)
  • Storage: ‑25…70 °C
  • Relative humidity: 10…95 % non‑condensing
  • Altitude: 0…2000 m (operation), 0…3000 m (storage)
  • Pollution degree ≤ 2
• Vibration & shock
  • 3.5 mm / 1 gn (rail) ; 3.5 mm / 2 gn (panel)
  • Shock: 15 gn / 11 ms or 30 gn / 6 ms
• EMC immunity
  • ESD: 8 kV air / 6 kV contact (EN/IEC 61000‑4‑2)
  • Radiated RF: 10 V/m (80 MHz…3 GHz)
  • Fast transients: 2 kV (power), 1 kV (I/O, serial)
  • Surge: 1 kV DC power, 2 kV AC/relay

Installation & Mounting

• DIN rail TH35‑15 or TH35‑7.5 (IEC 60715)
• Panel mounting kit available
• Removable screw terminal blocks for power, I/O & serial
• USB mini B and RJ45 for programming & network
• Max cable distances: input unshielded ≤50 m, output unshielded ≤150 m

Setup & Maintenance Convenience

• Integrated USB port – direct connection to SoMachine
• Micro SD slot for easy data logging & firmware update
• LED diagnostics: PWR, RUN, ERR, SD, BAT, SL1, I/O status
• Auto‑reset overcurrent protection – reduces downtime
• Configurable input filters (0 / 3 / 12 ms)

Compatibility

• Expands up to 4 I/O modules
• Max 64 relay outputs or 138 transistor outputs
• Modbus RTU/ASCII master/slave over serial
• Modbus TCP/IP client/server over Ethernet
• Supports SoMachine‑Network protocol via USB

Certifications & Standards

• EN/IEC 61131‑2, EN/IEC 61010‑2‑201
• CE marked
• EMC compliance: EN/IEC 55011 (Class A)
• RoHS compliant

Package Contents

• TM200CE24T controller
• Removable terminal blocks (I/O, power, serial)
• Protective cover fitted
• Quick start guide (digital)
• Warranty: 12 months from date of purchase

Shipping & Delivery

• Dispatch: 12‑24 hours after order confirmation
• Carriers: FedEx, UPS, DHL – worldwide tracking

Expert Review – Industrial PLC Specialist

• “The TM200CE24T offers a balanced mix of speed and connectivity. The 100 kHz fast I/O and dual serial ports make it perfect for small motion control and remote monitoring. Its compact footprint and easy expansion lower overall cabinet cost. A reliable choice for OEMs and system integrators.” – Senior Controls Engineer

Manager’s Insight – Application & ROI

• “This controller reduces engineering time with ready‑to‑use PID and positioning blocks. The Ethernet port simplifies data exchange with SCADA. For simple packaging, labelling or conveyor applications, it delivers high performance at a competitive price point. Backed by 12‑month warranty and global support.” – Product Manager

Typical Applications & Suitable Equipment

• Small conveyor systems & material handling
• Packaging machines (filling, sealing, labelling)
• Solar tracking and irrigation controls
• HVAC and building automation panels
• Test stands and data acquisition units
• General OEM machinery with up to 24 I/O points

Frequently Asked Questions (FAQ)

• What is the maximum output frequency on fast outputs?

  100 kHz in PWM/PLS mode on Q0 and Q1.

• Can I use this controller with 230 V AC sensors?

  No. All inputs are 24 V DC only.

• Is the Ethernet port isolated?

  No, it is non‑isolated. Use proper surge protection.

• How many expansion modules can I add?

  Up to 4 modules – total digital outputs depend on relay/transistor types.

• What programming software is required?

  EcoStruxure Machine Expert – Basic (formerly SoMachine) via USB.

• Does it support Modbus TCP/IP client?

  Yes, it acts as both client and server.

• What is the backup time without battery?

  Internal flash retains program, but clock and RAM need battery – 3 years at 25 °C.

• Experience tip: Always use shielded cables for fast inputs (≤10 m) to avoid noise.
• Selection guide: Choose TM200CE24T when you need 10+ I/O, Ethernet, and high‑speed counting. For more analog I/O, consider expansion modules or the M241 series.
