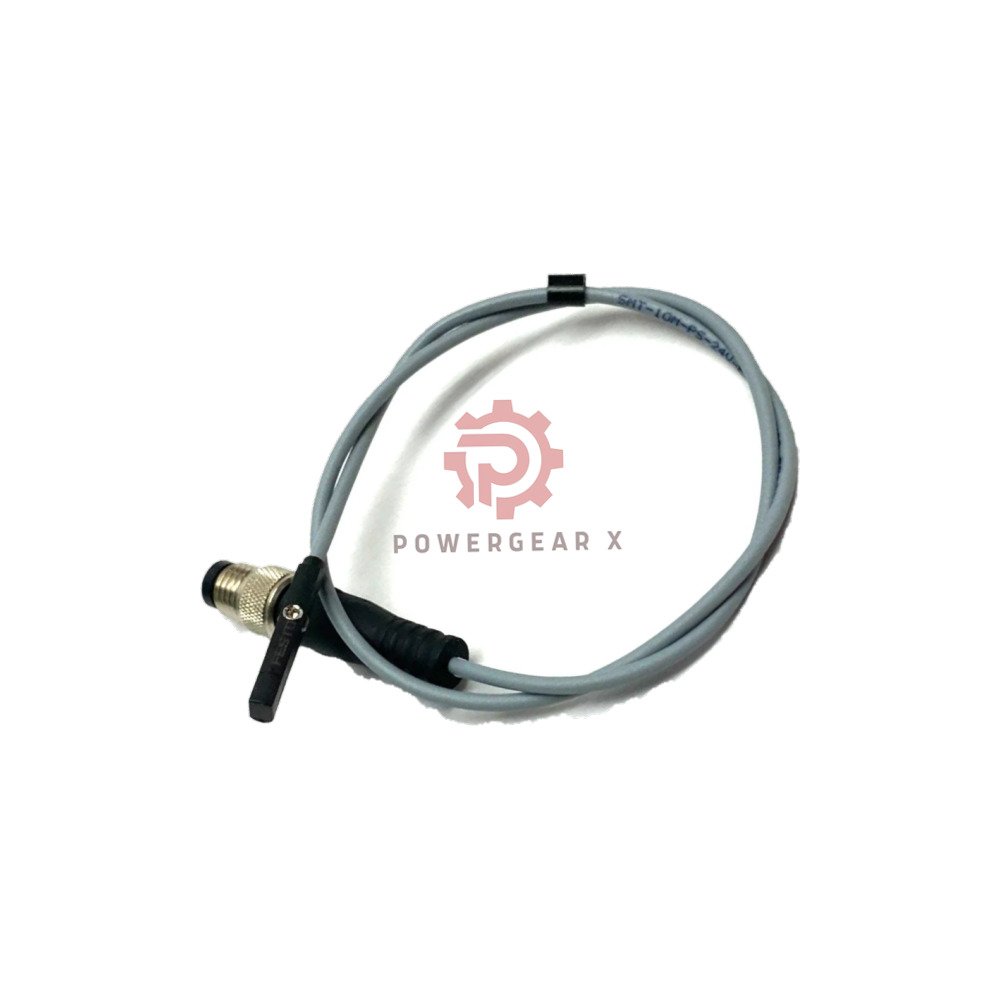

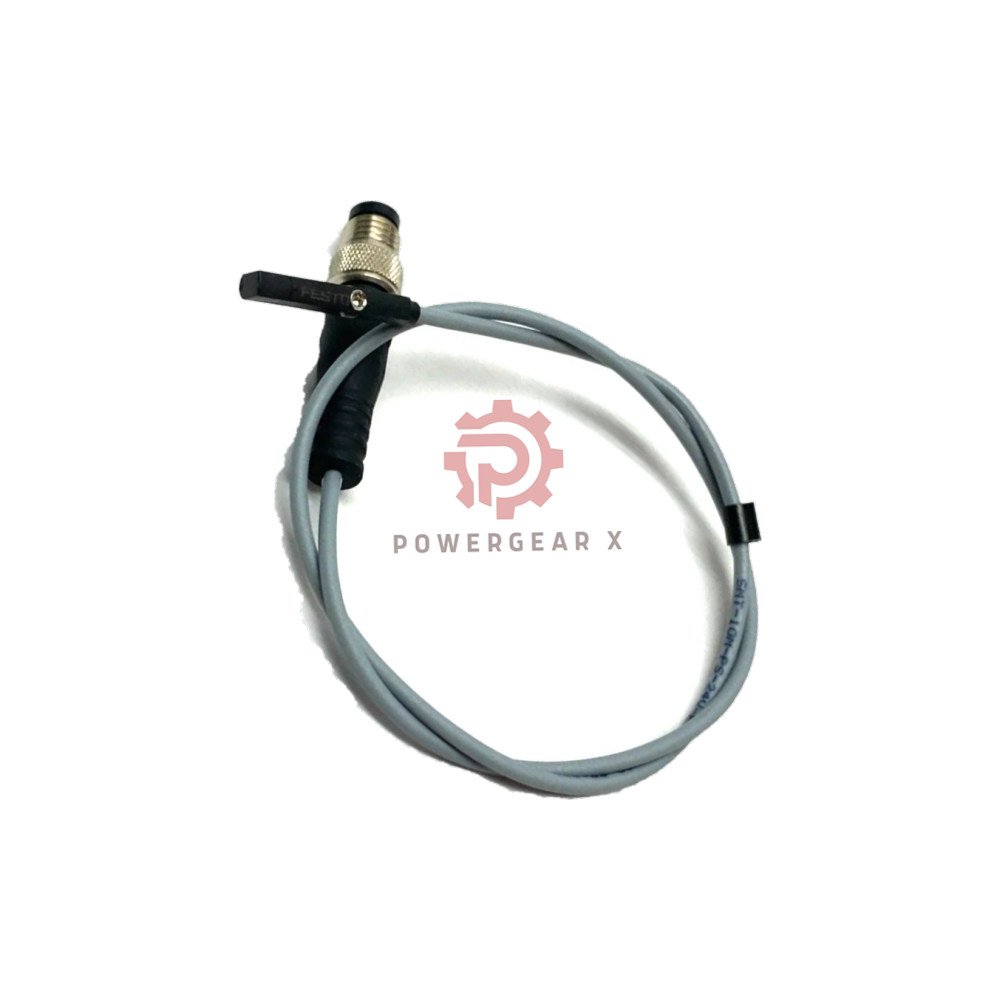

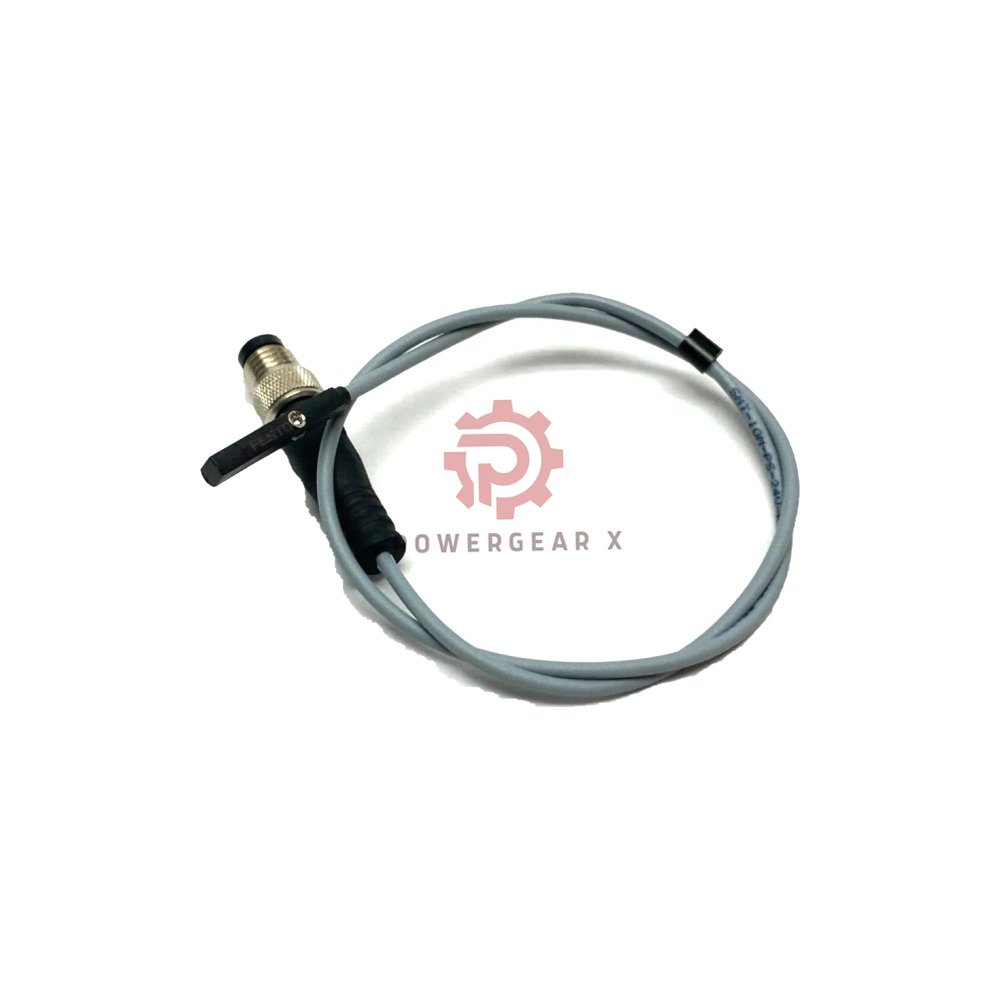

SMT-8M-A-PS-24V-E-0.3-M8D Festo Proximity Sensor
Product Overview
The SMT-8M-A-PS-24V-E-0.3-M8D is a compact proximity sensor from Festo. It belongs to the SMT-8M Series. This sensor fits T-slots on pneumatic cylinders. Therefore, it detects piston position with high accuracy. It runs on 24 V DC. Also, it comes with a 0.3 m cable and an M8 connector. Moreover, a yellow LED shows switching status. As a result, setup and checks are fast. In addition, it resists vibration, oil, and dust. It also carries ATEX and UL approvals. Finally, it ships in 12 to 24 hours via FedEx, UPS, or DHL. A 12-month warranty covers each unit.
Why Choose This Sensor
- Precise: Repetition accuracy of ±0.1 mm.
- Fast: Switch-on time of 1.3 ms or less.
- Tough: IP65, IP68, and IP69K protection.
- Wide range: Works from -40 to 85°C.
- Safe: ATEX and UL listed for hazardous areas.
- Clean: Oil resistant, halogen-free, and RoHS compliant.
Technical Data
- Brand: Festo
- Model: SMT-8M-A-PS-24V-E-0.3-M8D
- Series: SMT-8M Series
- Type: Proximity Sensor
- Output Signal: PNP
- Switching Function: Normally open
- Nominal Voltage: 24 V DC
- Operating Voltage: 5 to 30 V DC
- Mounting: T-slot
- Cable Length: 0.3 m
- Connector: M8 male, 3-pin, A-coded
- Protection Rating: IP65, IP68, IP69K
- Operating Temperature: -25 to 70°C
- Ambient Temperature: -40 to 85°C
- ATEX Ambient: -40 to 70°C
- Housing: Nickel-plated brass, PA-reinforced
- Weight: 8.9 g
- LED: Yellow for status, orange for reserve
- Switching Frequency: Up to 1000 Hz
- Max Switching Frequency: 180 Hz
- Max Output Current: 100 mA
- Max Contact Rating: 2.8 W DC
- Voltage Drop: Below 1.5 V
- Short Circuit Strength: Yes
- Overload Capability: Available
- Polarity Protection: All connections
Measurement Range, Frequency Response, and Sensitivity
- Measured Variable: Position
- Measuring Principle: Magnetoresistive
- Repetition Accuracy: ±0.1 mm
- Frequency Response: Up to 1000 Hz
- Sensitivity: Set by magnetoresistive element
- Linearity: Stable across the slot
- Resolution: 0.1 mm repeat accuracy
Temperature Range and Environmental Resistance
- Operating Temperature: -25 to 70°C
- Ambient Temperature: -40 to 85°C
- Flexible Cable Temperature: -20 to 85°C
- ATEX Temperature: -40 to 70°C
- Humidity: Not specified, sealed housing
- Oil Resistance: Yes
- Vibration: Resistant design
- Protection: IP65, IP68, IP69K
Anti-Interference Ability
- Short Circuit Strength: Yes
- Overload Withstand: Available
- Polarity Protection: All electrical connections
- Voltage Drop: Below 1.5 V
- EMC: CE mark per EU EMC directive
- ATEX: Gas II 3G, Dust II 3D
- Ignition Protection Gas: Ex nA IIC T4 X Gc
- Ignition Protection Dust: Ex tc IIIC T120°C X Dc
Sensor Feature Tree
- SMT-8M-A-PS-24V-E-0.3-M8D
- Electrical
- PNP output
- Normally open
- 5 to 30 V DC
- 3-pin M8 connector
- 0.3 m cable
- Mechanical
- T-slot mount
- Nickel-plated brass housing
- 8.9 g weight
- Screw lock
- 0.6 Nm torque
- Performance
- ±0.1 mm repeat accuracy
- 1.3 ms switch-on
- 1.4 ms switch-off
- 180 Hz max switching
- Protection
- IP65, IP68, IP69K
- ATEX Gas II 3G
- ATEX Dust II 3D
- Oil resistant
- Halogen-free
- Electrical
Installation Guide
First, insert the sensor into the T-slot from above. Then, tighten the screw to 0.6 Nm. Next, connect the M8 plug. After that, check the yellow LED. Finally, keep the cable bend radius at 28 mm or more for chain use.
Debugging and Maintenance Convenience
Therefore, this sensor needs little care. The yellow LED shows output status. Also, the orange LED shows operating reserve. Moreover, the sealed housing resists dust and water. In addition, the M8 plug makes swaps fast. Furthermore, the high IP rating allows washdown cleaning. Finally, the oil-resistant cable lasts long in machine shops.
Compatibility Notes
First, it fits standard T-slots on Festo cylinders. Second, it works with any 24 V DC PNP input card. Also, it suits PLCs, valve terminals, and motion controllers. Moreover, the M8 3-pin plug matches common industrial cables. Consequently, it drops into most automation setups. In short, it is a flexible choice for cylinder feedback.
Certifications
- Design Standard: EN 60947-5-2
- Authorisation: RCM Mark
- Safety: c UL us Listed (OL)
- CE: EU EMC directive
- CE: EU ATEX directive
- ATEX Gas: II 3G, Ex nA IIC T4 X Gc
- ATEX Dust: II 3D, Ex tc IIIC T120°C X Dc
- RoHS: Compliant
- Materials: Free of copper and PTFE, halogen-free
Package List
- 1 x Festo SMT-8M-A-PS-24V-E-0.3-M8D sensor
- 1 x 0.3 m cable with M8 plug
- 1 x mounting screw
- 1 x documentation sheet
Warranty and Shipping
- Warranty: 12 months
- Lead time: 12 to 24 hours
- Couriers: FedEx, UPS, DHL
- Contact: sales@powergearx.com
- WhatsApp: +86 18030005825
Expert Review
This sensor is a strong pick for cylinder feedback. The SMT-8M-A-PS-24V-E-0.3-M8D gives ±0.1 mm repeat accuracy. It switches fast at 1.3 ms. The brass housing and IP69K rating handle washdown. The ATEX approvals open doors to hazardous zones. The M8 plug saves wiring time. The 0.3 m cable fits tight spaces. If you need a small, tough, and exact sensor, this is a solid choice. It ships fast and carries a 12-month warranty.
Manager’s Insight
Buyers often ask for a sensor that just fits. This one does. It drops into standard T-slots. It runs on 24 V DC. The PNP output matches most PLC cards. The yellow LED makes checks easy. The oil-resistant cable lasts in machine shops. The short-circuit and overload protection add safety. For packaging, assembly, and handling lines, it is a safe bet. Order now and we ship within 12 to 24 hours via FedEx, UPS, or DHL.
Best Fit Devices and Applications
- Pneumatic cylinders with T-slots
- Packaging machines
- Assembly lines
- Handling systems
- Valve terminals
- Robot grippers
- Food and beverage lines
- Hazardous zones (ATEX)
- Washdown areas (IP69K)
- Motion control setups
FAQ
Q: What does the orange LED mean?
A: The orange LED shows operating reserve. It helps you check the sensing margin. The yellow LED shows switching status.
Q: Can I use this sensor in a washdown area?
A: Yes. It holds IP65, IP68, and IP69K ratings. It also resists oil and common cleaning agents.
Q: How tight should I screw the sensor?
A: Use a max torque of 0.6 Nm. Over-tightening may crack the housing. Hand-tight plus a small turn is often enough.
Q: Does it work with any cylinder brand?
A: It fits standard T-slots per EN 60947-5-2. Many cylinder brands use this profile. Check your groove size first.
Q: What is the warranty and delivery time?
A: 12 months warranty. Ships in 12 to 24 hours via FedEx, UPS, or DHL. Contact sales@powergearx.com or WhatsApp +86 18030005825.
Buying Guide
- Check your slot type. This sensor fits standard T-slots.
- Confirm output. It uses PNP normally open.
- Check voltage. It runs on 5 to 30 V DC, nominal 24 V.
- Review cable length. 0.3 m suits tight spaces. Add an extension if needed.
- Check the plug. It uses M8 3-pin A-coded.
- Confirm temperature. It handles -25 to 70°C.
- Check approvals. ATEX and UL suit hazardous zones.
- Confirm warranty. 12 months covers defects.
- Order early. Ships in 12 to 24 hours via FedEx, UPS, or DHL.
