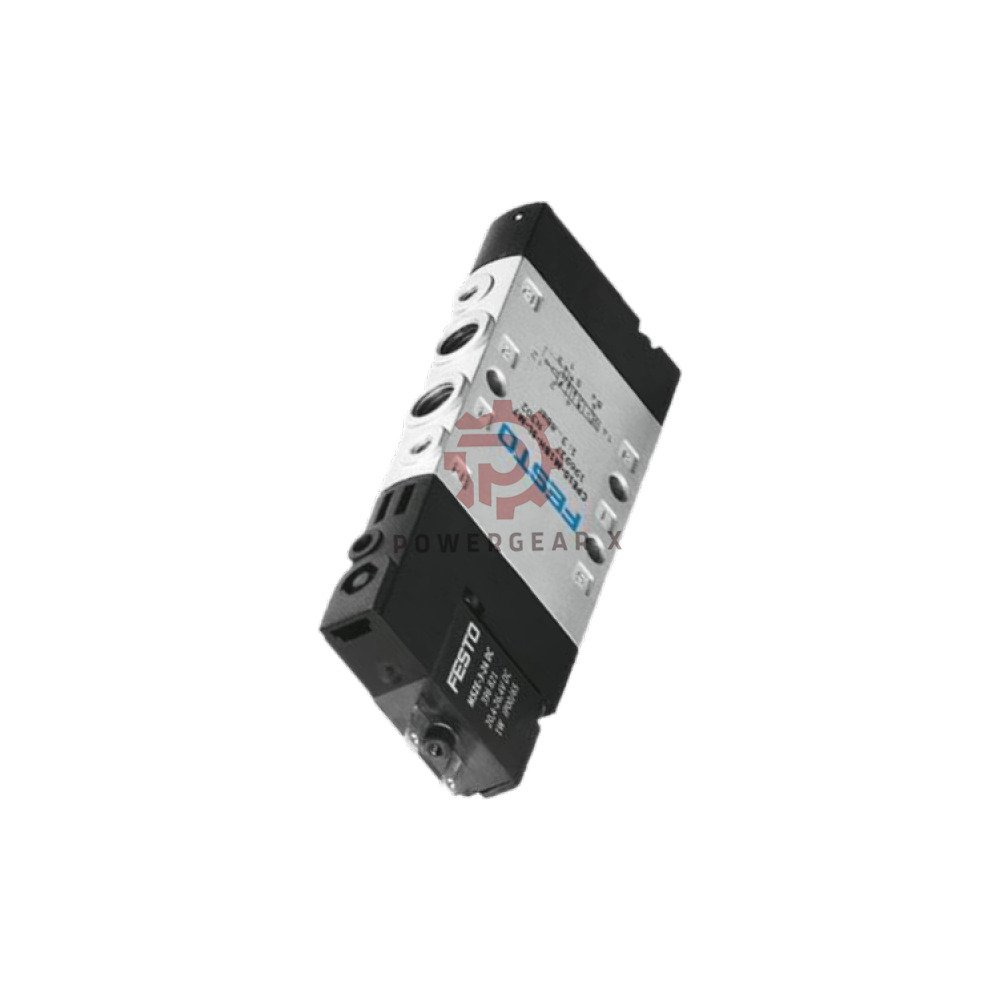

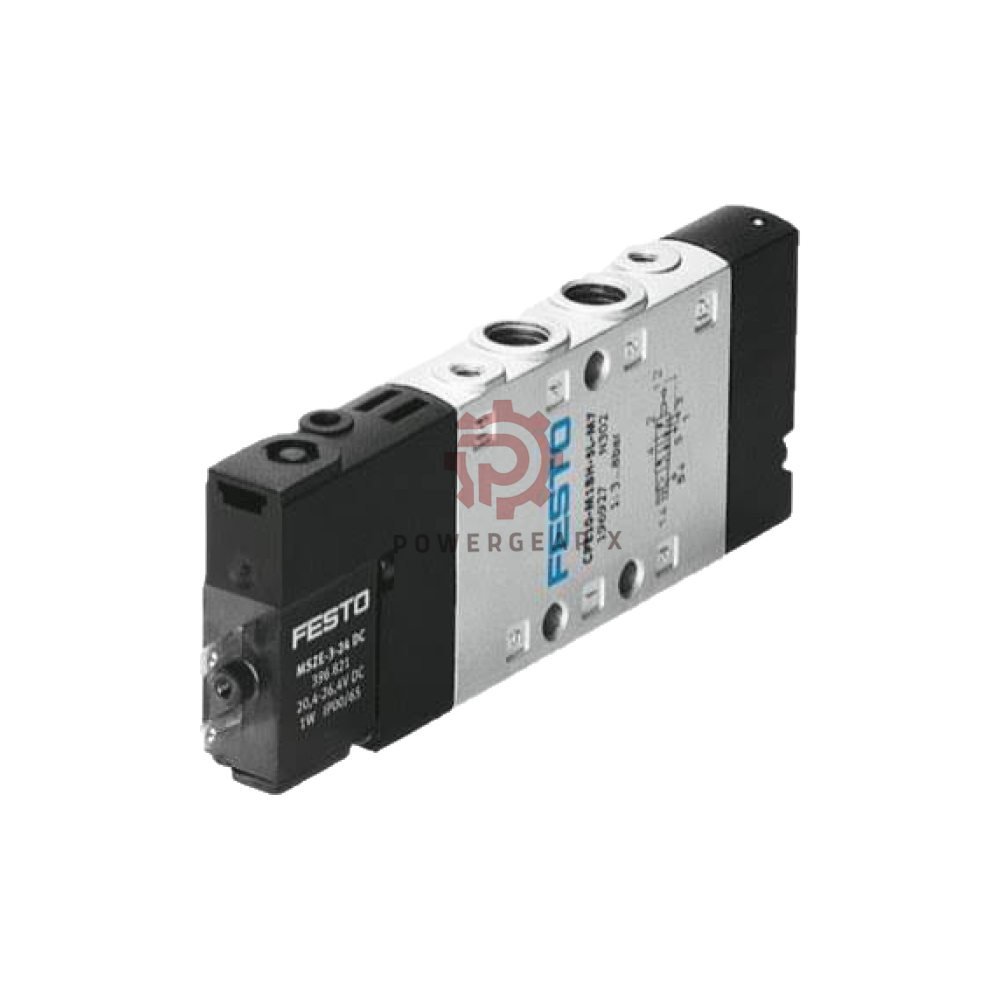

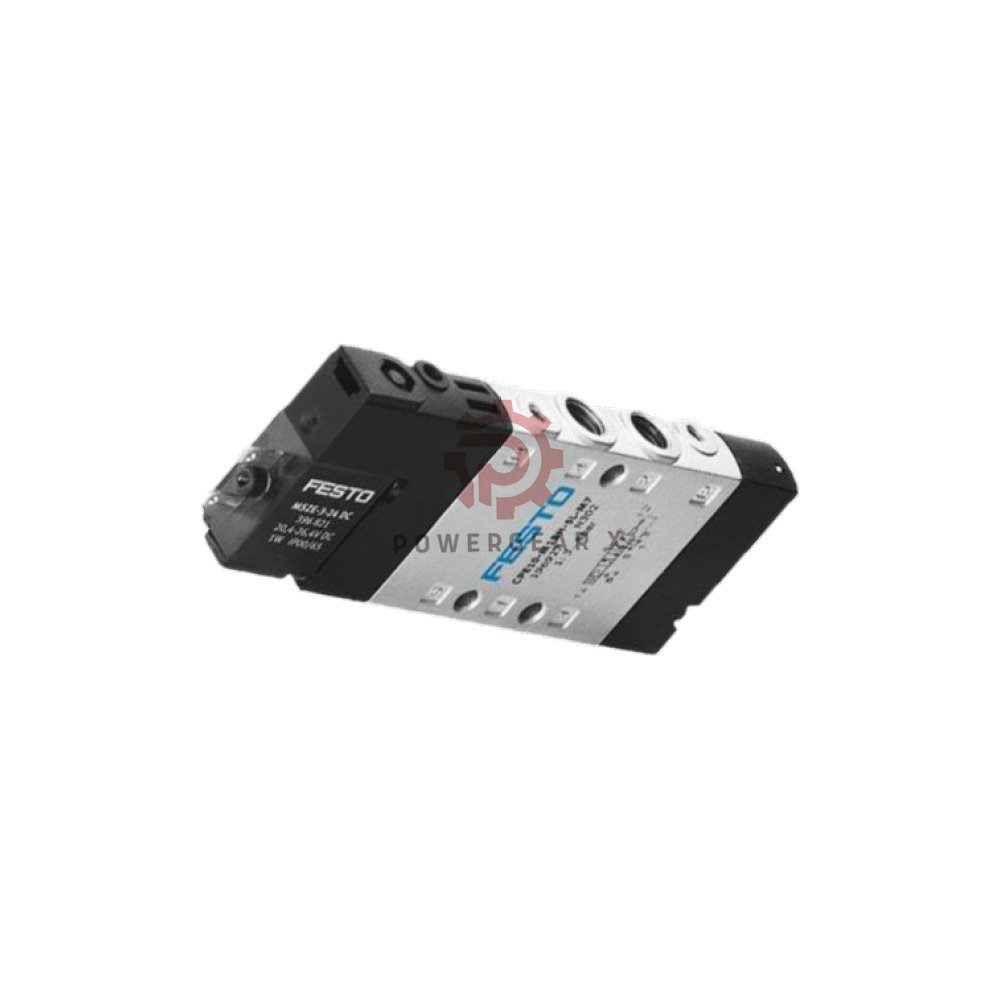

Festo CPE10-M1BH-5L-M7 Solenoid Valve – Compact 5/2-Way Pilot Valve for Fast Pneumatic Control
The CPE10-M1BH-5L-M7 from Festo is a compact and reliable 5/2-way solenoid valve built for precise pneumatic control. It belongs to the proven CPE series and offers fast response, long service life, and easy installation. With a 24 VDC coil, internal pilot air, and M7 pneumatic connection, this valve suits many industrial automation tasks. The 10 mm body saves space. The 350 l/min flow rate supports quick cylinder movements. The pneumatic reset ensures stable operation without constant power. This valve works well in packaging, assembly, and handling systems.
Technical Data
- Brand: Festo
- Model: CPE10-M1BH-5L-M7
- Series: CPE Series
- Type: 5/2-Way, Pneumatic Reset
- Function: Pilot – Internal Air
- Number of Ports: 5
- Operating Pressure: 3 to 8 bar
- Flow Rate: 350 l/min
- Coil Voltage: 24 VDC
- Pneumatic Connection: M7
- Body Size: 10 mm
- Body Material: Aluminum
- Media: Air, Lubricated Air
- Plug Pattern: ZC
- Alternate Part Number: 196927
- UNSPSC Code: 27130000
- Unit of Measure: EA
Measurement Range: 3 to 8 bar. Frequency Response: Fast switching for high-cycle tasks. Sensitivity: Low pilot pressure needed. Linearity: Stable flow across range. Resolution: Fine control with 5/2 function. Temperature Range: Standard industrial air temperatures. Environmental Resistance: Durable aluminum body. Anti-Interference: Reliable 24 VDC coil with ZC plug.
Installation Guide
- Mount the valve on a clean, flat surface.
- Use M7 fittings for air lines.
- Connect the 24 VDC coil to the ZC plug.
- Keep air supply within 3 to 8 bar.
- Use filtered, lubricated air if needed.
- Check for leaks before full operation.
- Do not exceed pressure or voltage ratings.
Commissioning and Maintenance
- Test the valve with low pressure first.
- Listen for smooth switching.
- Check the reset function after power off.
- Clean the air supply regularly.
- Replace worn seals when needed.
- No special tools required for most service.
- Compact design makes access easy.
Compatibility Notes
- Works with standard M7 pneumatic fittings.
- Fits CPE series manifolds and bases.
- Uses ZC plug pattern for electrical connection.
- Compatible with lubricated and non-lubricated air.
- Replaces part number 196927.
- Ideal for Festo and other common PLC outputs.
Certifications and Standards
- Built to Festo quality standards.
- UNSPSC Code: 27130000.
- RoHS and REACH compliant where applicable.
- CE marked for relevant directives.
- Industrial pneumatic safety norms followed.
Package List
- 1 x Festo CPE10-M1BH-5L-M7 Solenoid Valve.
- 1 x Quick start guide.
- Protective packaging.
- Original part number label.
Warranty and Shipping
- 12-month warranty against manufacturing defects.
- 12–24 hour dispatch for in-stock items.
- Express shipping via FedEx, UPS, or DHL.
- Tracking number provided after shipment.
- Secure packaging for safe delivery.
Expert Review
As an automation specialist, I find the CPE10-M1BH-5L-M7 a smart choice for tight spaces. The 5/2-way design with pneumatic reset saves energy. The 350 l/min flow is strong for its 10 mm size. The 24 VDC coil works with most control systems. The M7 ports are common and easy to find. This valve handles fast cycling well. The internal pilot air simplifies plumbing. It is a solid, no-nonsense component for reliable pneumatic control.
Manager’s Insight
From a maintenance manager’s view, this valve reduces downtime. The ZC plug allows quick coil changes. The aluminum body resists wear. The 12-month warranty adds peace of mind. Stocking this part makes sense for plants using Festo CPE systems. The 196927 number helps with reordering. The 12–24 hour dispatch keeps lines running. It is a cost-effective replacement for many 5/2 valves.
Best Applications and Equipment
- Packaging machines with fast cycles.
- Assembly lines using small cylinders.
- Handling and pick-and-place units.
- Textile and printing equipment.
- Automotive test benches.
- Food and beverage packaging (dry air).
- Any system needing 5/2-way control.
FAQ
Q: What is the main function of this valve?
A: It controls double-acting cylinders with a 5/2-way function.
Q: Does it need external pilot air?
A: No. It uses internal pilot air for operation.
Q: What voltage does the coil use?
A: The coil runs on 24 VDC.
Q: What is the flow rate?
A: It delivers up to 350 l/min.
Q: What pressure range is safe?
A: Use between 3 and 8 bar.
Q: What connection type is used?
A: It uses M7 pneumatic ports.
Q: Can I use lubricated air?
A: Yes. It works with lubricated or dry air.
Q: How fast does it ship?
A: We dispatch in 12–24 hours.
Q: What couriers do you use?
A: We ship via FedEx, UPS, or DHL.
Q: Is there a warranty?
A: Yes. It comes with a 12-month warranty.
Q: What is the alternate part number?
A: The alternate number is 196927.
Q: How do I know it fits my system?
A: Check for M7 ports and ZC plug pattern.
Q: Can I replace a 3/2 valve with this?
A: No. This is a 5/2-way valve. Use a 3/2 for single-acting cylinders.
Q: What if the valve does not switch?
A: Check air pressure and electrical signal at the ZC plug.
Q: How do I order the right coil?
A: Match 24 VDC and ZC plug pattern.
Buying Guide
- Confirm your cylinder type: double-acting needs 5/2.
- Check port size: M7 is common but verify.
- Match voltage: 24 VDC is standard in many plants.
- Consider flow: 350 l/min suits small to medium cylinders.
- Look for ZC plug to match your wiring.
- Choose Festo for proven quality.
- Order spare seals if cycling is high.
