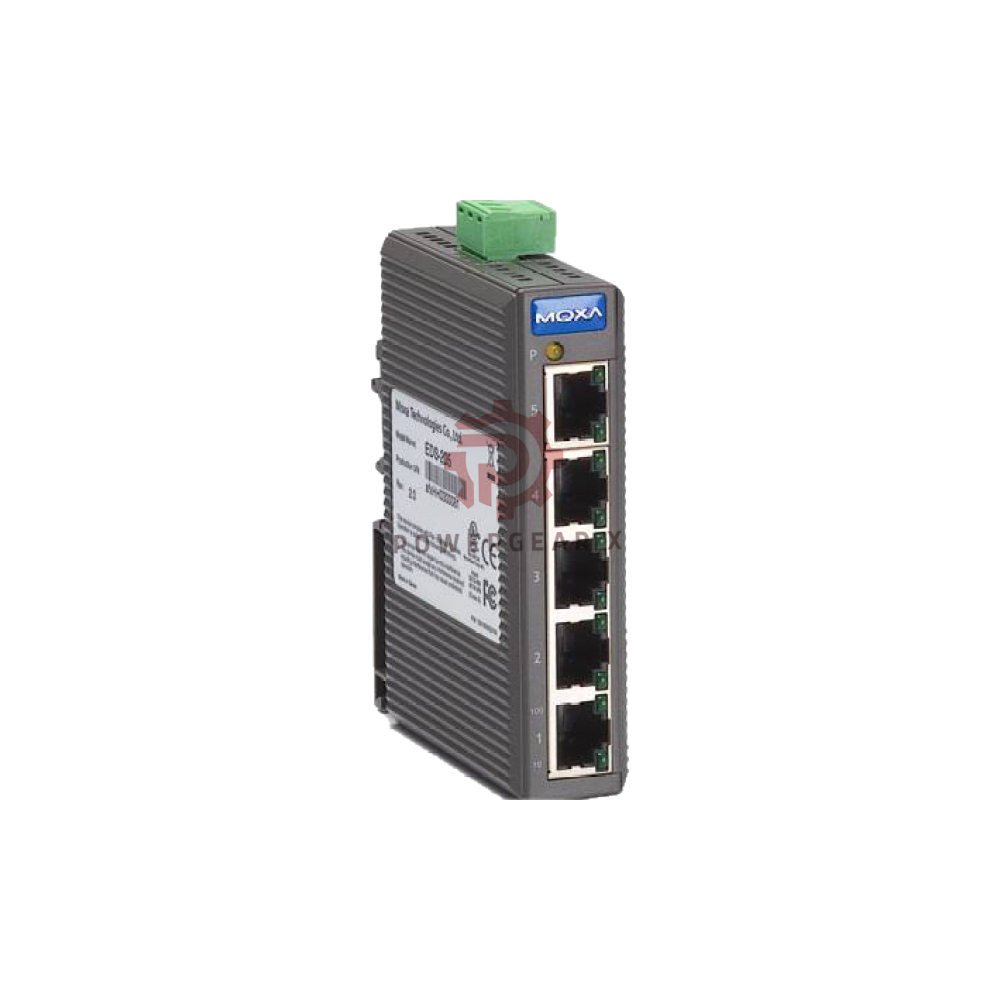

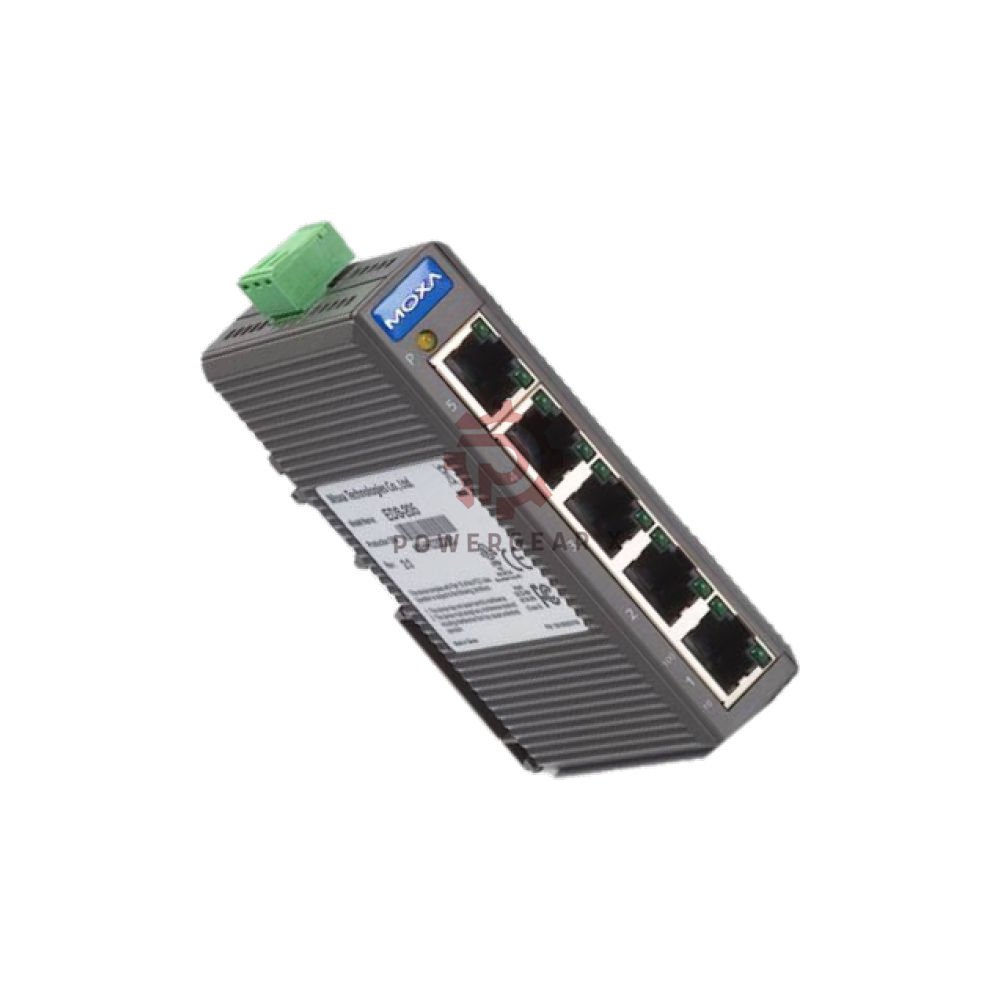

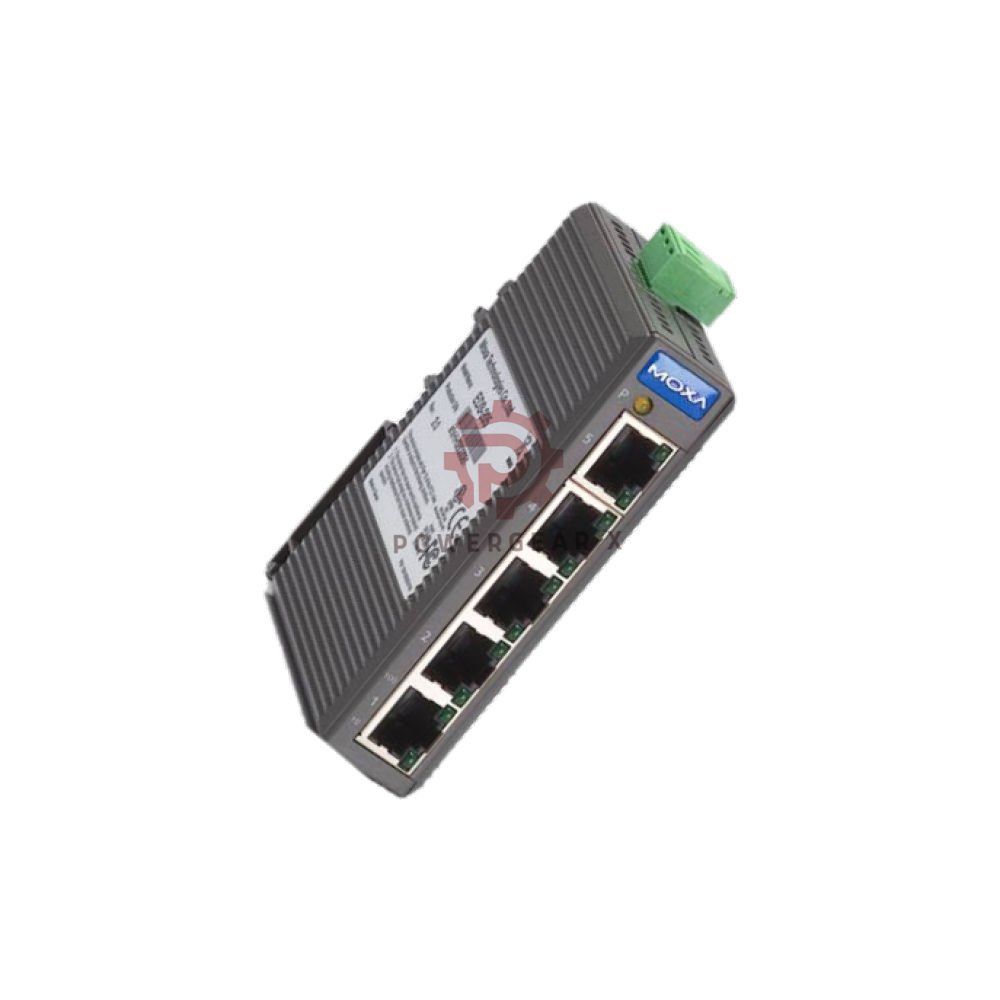

MOXA EDS-205 Unmanaged Ethernet Switch
Product Overview
The MOXA EDS-205 is an entry-level unmanaged Ethernet switch. It belongs to the EDS-205 Series. This switch has 5 copper ports. Therefore, it fits small control panels and simple networks. It comes in a plastic housing. Moreover, it works from -10 to 60°C. It needs no setup. You just plug in cables and power. As a result, it is perfect for fast deployment. In addition, it supports 12/24/48 VDC and 24 VAC. It also has overload and reverse polarity protection. Finally, it ships in 12 to 24 hours via FedEx, UPS, or DHL. A 12-month warranty covers every unit.
Why Choose This Switch
- Simple: No configuration needed. Just connect and go.
- Compact: Only 24.9 x 100 x 74 mm. Saves panel space.
- Flexible power: Works with 12/24/48 VDC or 24 VAC.
- Tough: Handles -10 to 60°C and 5 to 95% humidity.
- Reliable: MTBF of 18,921,624 hours.
- Protected: Overload and reverse polarity protection built in.
Technical Data
- Brand: MOXA
- Model: EDS-205
- Series: EDS-205 Series
- Switch Type: Unmanaged
- Total Ports: 5
- Port Type: 10/100BaseT(X) RJ45
- Duplex Mode: Full or half duplex
- Connector: Auto MDI/MDI-X
- Speed: Auto negotiation
- Processing Type: Store and Forward
- MAC Table Size: 2 K
- Packet Buffer Size: 768 kbits
- Input Voltage: 12/24/48 VDC, 24 VAC
- Operating Voltage: 9.6 to 60 VDC, 18 to 30 VAC
- Input Current: 0.06 to 0.02 A at 12 to 48 VDC
- AC Current: 0.07 A max at 24 VAC, 50 to 60 Hz
- Power Consumption: 0.77 W max
- Power Connector: 1 removable 3-contact terminal block
- Overload Protection: Supported
- Reverse Polarity Protection: Supported
- Housing: Plastic
- IP Rating: IP30
- Dimensions: 24.9 x 100 x 74 mm
- Weight: 111 g
- Installation: DIN-rail mounting
- Operating Temperature: -10 to 60°C
- Storage Temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- MTBF: 18,921,624 hrs
Measurement Range, Frequency Response, and Sensitivity
- Measurement Range: Not applicable (switch, not sensor)
- Frequency Response: Not applicable
- Sensitivity: Not applicable
- Linearity: Not applicable
- Resolution: Not applicable
Temperature Range and Environmental Resistance
- Operating Temperature: -10 to 60°C (14 to 140°F)
- Storage Temperature: -40 to 85°C (-40 to 185°F)
- Ambient Humidity: 5 to 95% non-condensing
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Freefall: IEC 60068-2-32
Anti-Interference Ability
- ESD: Contact 4 kV, Air 8 kV (IEC 61000-4-2)
- Radiated Susceptibility: 10 V/m (IEC 61000-4-3)
- EFT: Power 2 kV, Signal 1 kV (IEC 61000-4-4)
- Surge: Power 2 kV, Signal 1 kV (IEC 61000-4-5)
- Conducted Susceptibility: 10 V (IEC 61000-4-6)
- Power Frequency Magnetic Field: IEC 61000-4-8
- EMI: FCC Part 15B Class A
- EMC: EN 55032/35
Port and Feature Tree
- EDS-205
- Ports
- 5 x 10/100BaseT(X)
- RJ45 connector
- Auto MDI/MDI-X
- Auto negotiation
- Full or half duplex
- Switch Core
- Store and Forward
- 2 K MAC table
- 768 kbits buffer
- Power
- 12/24/48 VDC
- 24 VAC
- 3-contact terminal block
- Overload protection
- Reverse polarity protection
- Housing
- Plastic
- IP30
- DIN-rail mount
- Ports
Installation Guide
First, mount the switch on a DIN rail. Then, connect the power cable. Use 12/24/48 VDC or 24 VAC. Next, plug in your Ethernet cables. The switch handles auto MDI/MDI-X. After that, check the link LEDs. Finally, keep the area dry and cool. Do not open the plastic case.
Debugging and Maintenance Convenience
Therefore, this switch needs almost no maintenance. It has no fan and no software. Also, the LEDs show power and link status. Moreover, the DIN-rail clip makes removal easy. In addition, the 3-contact terminal block saves wiring time. Furthermore, the small size fits tight cabinets. Finally, the high MTBF means long service life.
Compatibility Notes
First, it works with IEEE 802.3, 802.3u, and 802.3x. Second, it connects to PLCs, HMIs, and IP cameras. Also, it fits 10 Mbps and 100 Mbps networks. Moreover, it accepts 12/24/48 VDC and 24 VAC power. Consequently, it suits many industrial power setups. In short, it is a plug-and-play choice for simple links.
Certifications
- Safety: UL 61010-2-201, EN 62368-1
- EMC: EN 55032/35
- EMI: FCC Part 15B Class A
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Freefall: IEC 60068-2-32
- MTBF: Telcordia (Bellcore), GB
Package List
- 1 x MOXA EDS-205 switch
- 1 x removable 3-contact terminal block
- 1 x DIN-rail mounting kit
- 1 x documentation sheet
Warranty and Shipping
- Warranty: 12 months
- Lead time: 12 to 24 hours
- Couriers: FedEx, UPS, DHL
- Contact: sales@powergearx.com
- WhatsApp: +86 18030005825
Expert Review
This switch is a great starter for small networks. The EDS-205 gives you 5 fast ports in a tiny case. It needs no setup. The plastic housing keeps it light. The wide power range covers most DC and AC supplies. The -10 to 60°C range fits many cabinets. The high MTBF of 18,921,624 hours shows strong build quality. If you need a simple, cheap, and tough switch, this is a smart pick. It ships fast and carries a 12-month warranty.
Manager’s Insight
Buyers often want a switch that works right away. This model does. It has 5 ports, auto negotiation, and auto MDI/MDI-X. The dual power options cut wiring hassle. The overload and reverse polarity protection add safety. The DIN-rail clip makes install quick. For small machines, test benches, or camera links, it is a safe bet. Order now and we ship within 12 to 24 hours via FedEx, UPS, or DHL.
Best Fit Devices and Applications
- Small PLC panels
- HMI and touch screens
- IP cameras
- Test benches
- Kiosks and vending machines
- Small factory cells
- Building automation nodes
- Parking systems
- Security panels
- Simple machine links
FAQ
Q: Does this switch need any setup?
A: No. It is unmanaged. Just plug in power and cables. It works right away.
Q: Can I use 24 VAC power?
A: Yes. It accepts 24 VAC from 18 to 30 VAC. It also takes 12/24/48 VDC.
Q: What is the MAC table size?
A: 2 K entries. The packet buffer is 768 kbits.
Q: How do I mount it?
A: Use the DIN-rail clip on the back. No tools needed for most rails.
Q: What is the warranty and lead time?
A: 12 months warranty. Ships in 12 to 24 hours via FedEx, UPS, or DHL. Contact sales@powergearx.com or WhatsApp +86 18030005825.
Buying Guide
- Check your port count. 5 ports fit small devices.
- Confirm power. It takes 12/24/48 VDC or 24 VAC.
- Check space. It is only 24.9 mm wide.
- Review temperature. -10 to 60°C suits most indoor panels.
- Confirm warranty. 12 months covers defects.
- Order early. Ships in 12 to 24 hours via FedEx, UPS, or DHL.
