Siemens 6ES7211-1AE40-0XB0 CPU 1211C | 75KB Memory PLC Controller

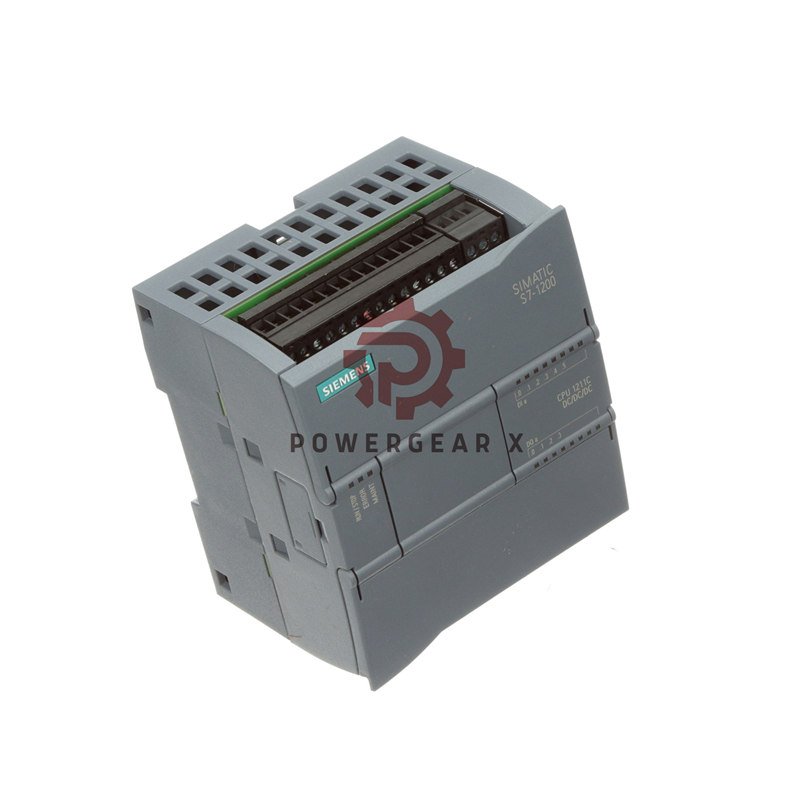

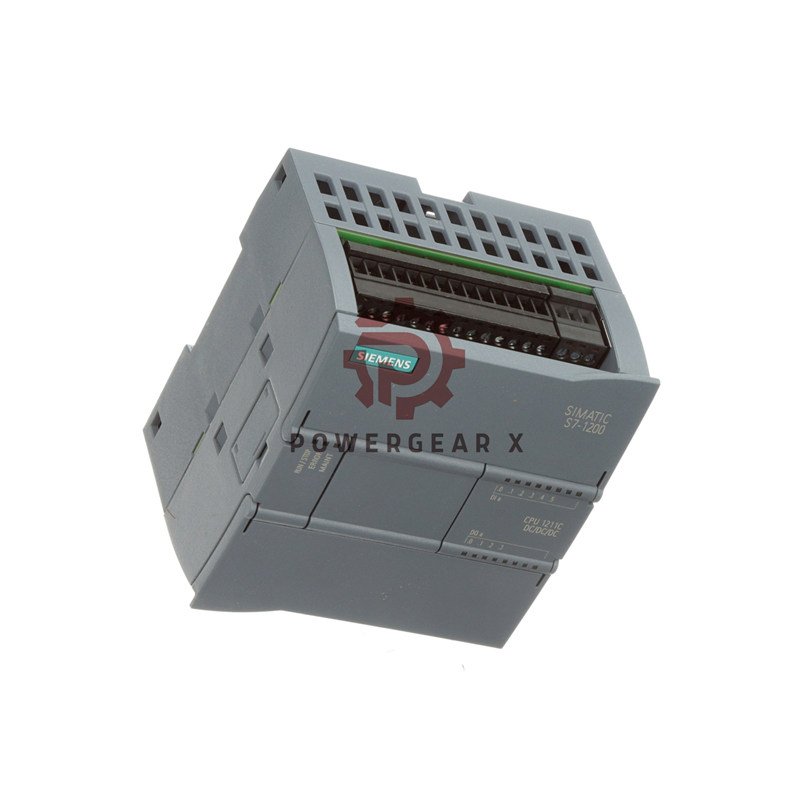

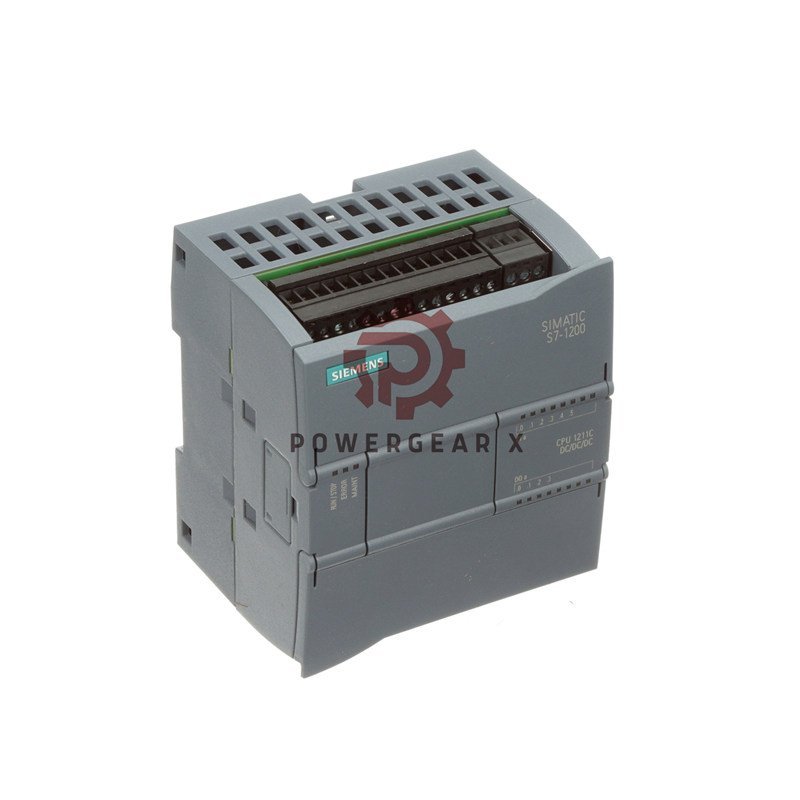

Siemens 6ES7211-1AE40-0XB0 Compact Automation Controller

This advanced 6ES7211-1AE40-0XB0 CPU delivers powerful control in a compact design. The SIMATIC S7-1200 series provides reliable performance for industrial applications. Its integrated I/O and communication features ensure easy installation and operation.

Essential Technical Specifications

• Brand: Siemens Automation
• Model: 6ES7211-1AE40-0XB0
• Memory: 75 KB work memory, 1 MB load memory
• Digital Inputs: 6 channels at 24V DC
• Digital Outputs: 4 channels at 24V DC, 100kHz
• Analog Inputs: 2 channels for 0-10V signals
• Power Supply: 20.4-28.8V DC
• Processor Speed: 0.08 µs for bit operations

Communication Capabilities

• PROFINET interface with 100 Mbit/s speed
• TCP/IP and ISO-on-TCP protocols supported
• Web server functionality for remote monitoring
• 16 simultaneous connections maximum
• S7 communication as server and client
• MODBUS protocol compatibility

Advanced Control Features

• High-speed counting up to 100 kHz
• PID controller for process control
• Pulse train outputs for positioning
• 4 alarm inputs for event monitoring
• 8 position-controlled axes maximum
• Real-time clock with 480-hour backup

Environmental Specifications

• Operating temperature: -20°C to 60°C
• Storage temperature: -40°C to 70°C
• Protection class: IP20 rated
• Installation altitude: up to 2000 meters
• Relative humidity: 95% maximum
• Vibration resistance: 2g operational

Certifications & Compliance

• CE mark for European standards
• UL and cULus for North America
• FM approval for safety requirements
• KC mark for Korean market
• Marine approval for shipboard use
• RCM for Australian compliance

Programming & Development

• STEP 7 V14 or higher required
• LAD, FBD, and SCL languages
• Know-how protection features
• Password protection available
• Cycle time monitoring adjustable
• Online diagnostics and forcing

Physical Dimensions

• Width: 90 mm compact design
• Height: 100 mm space-saving
• Depth: 75 mm efficient layout
• Weight: 370 grams lightweight
• Package size: Optimized for shipping
• Mounting: DIN rail standard

Shipping & Warranty

• 12-month manufacturer warranty
• Express shipping: FedEx, UPS, DHL
• Worldwide delivery available
• Technical support included
• Spare parts availability
• Quick delivery times

Professional Questions

• What is the maximum expansion capability?

The 6ES7211-1AE40-0XB0 supports 3 communication modules and 1 signal board for system expansion.

• Can it handle high-speed counting applications?

Yes, it features 3 high-speed counters at 100 kHz for precise motion control tasks.

• What communication protocols are native?

PROFINET IO Controller/Device, TCP/IP, ISO-on-TCP, and MODBUS are supported.

• Is the real-time clock battery-backed?

No, it uses a maintenance-free hardware clock with 480-hour backup capability.

• What programming languages are available?

Ladder Logic (LAD), Function Block Diagram (FBD), and Structured Control Language (SCL).
