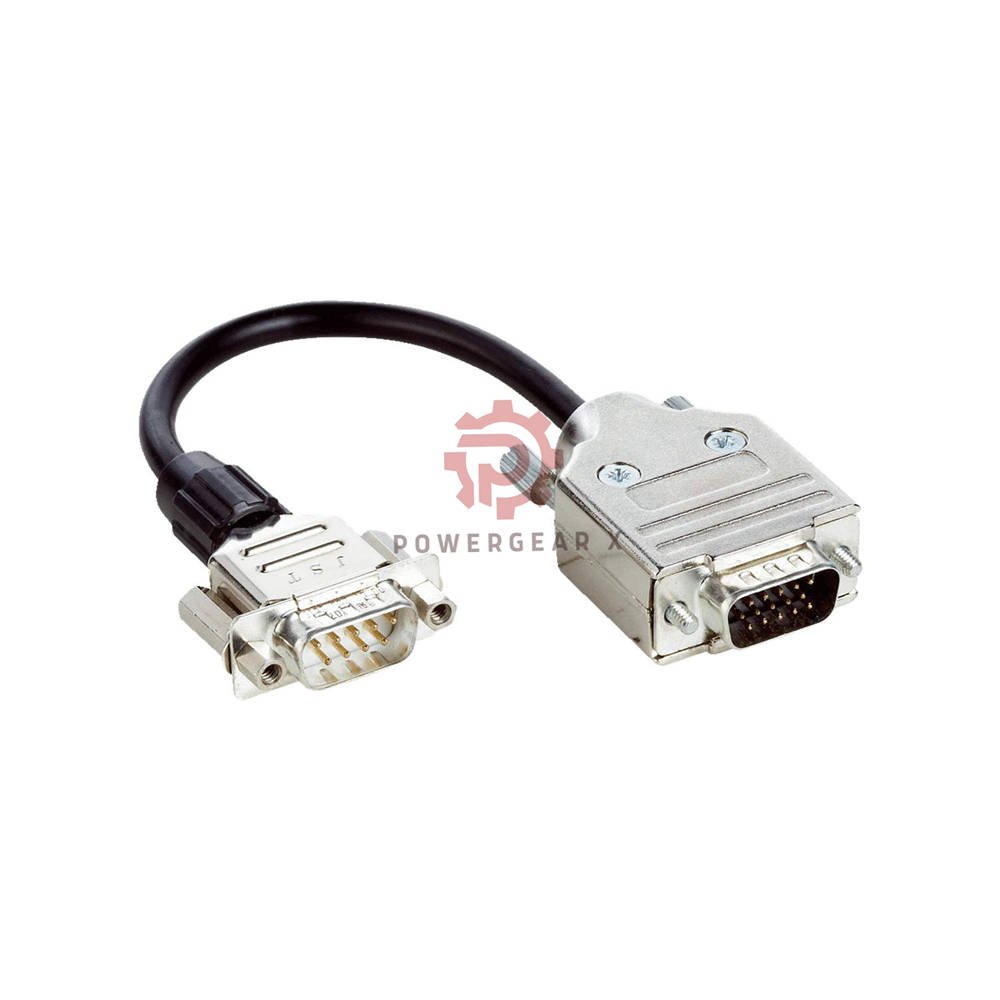

SICK YMHDAC-C30XXXMDSA9 Cable – D-Sub 9 to 15-Pin for Handheld Scanners

Product Overview

• YMHDAC-C30XXXMDSA9 – SICK actuator cable
• Connects handheld scanners to CDB620 / CDM420 / CDF600
• 9-pin D-Sub to 15-pin D-Sub
• Cable length: 0.3 m (300 mm)
• Includes 24V/5V DC converter

Technical Tree

• YMHDAC-C30XXXMDSA9 – SICK adapter cable
  • Head A – Male D-Sub, 9-pin
  • Head B – Male D-Sub, 15-pin
  • Length – 0.3 m
  • Function – AUX port adapter
  • Converter – 24V/5V DC built-in

Key Specifications

• Accessory family: Other adapters
• Head A: Male D-Sub, 9-pin
• Head B: Male D-Sub, 15-pin
• Cable length: 0.3 m
• Usage: Handheld scanners to CDB620 / CDM420 / CDF600 / CDF600-2
• Adapter type: AUX port
• Supplied items: Includes 24V/5V DC converter

Certifications

• EU declaration of conformity ✔
• UK declaration of conformity ✔
• China RoHS ✔

Expert Review

• Manager’s Insight: “This SICK cable solves a common connectivity issue in scanning systems. The built-in voltage converter eliminates the need for external power supplies. It is a simple but essential part for reliable scanner communication. For field upgrades or replacements, this cable saves time and reduces wiring errors.”

Compatible Devices

• SICK handheld scanners
• CDB620 connection box
• CDM420 module
• CDF600 / CDF600-2 devices

Applications

• Barcode scanning stations
• Industrial automation lines
• Warehouse inventory systems
• Production line tracking
• Package sorting facilities

Comparison Models

• YMHDAC-C30XXXMDSA9 (this model – 0.3m with converter)
• YMHDAC-C30XXXMDA9 – 9 to 9-pin version
• YMHDAC-C50XXXMDSA9 – 0.5m length
• YMHDAC-C30XXXMDSB9 – without voltage converter

Frequently Asked Questions

• What does this cable do?
  It connects SICK handheld scanners to CDB620 or CDF600 devices through the AUX port.
• Does it need external power?
  No. The cable includes a built-in 24V/5V DC converter, so no extra power supply is needed.
• Can I use it with other scanners?
  It is designed for SICK handheld scanners. Check your scanner’s connector type before buying.
• Is the converter replaceable?
  The converter is built into the cable. If it fails, replace the whole cable.
• What is the difference between 9-pin and 15-pin?
  9-pin connects to the scanner. 15-pin connects to the base station or controller.

Selection Guide

• Confirm your scanner model uses a 9-pin D-Sub connector.
• Check your base unit – CDB620, CDM420, or CDF600 – uses a 15-pin AUX port.
• Measure the distance between devices – 0.3 m is short, ideal for close mounting.
• If you need a 5V supply for the scanner, this cable with converter is the right choice.
• For longer distances, consider extension cables or longer models.

Warranty & Shipping

• 12-month warranty against manufacturing defects.
• 12-24 hour dispatch on business days.
• Shipping carriers: FedEx, UPS, DHL – tracking provided.
