MICS3-ABAZ55IZ1P01 SICK Scanner – 5.5m, EtherNet/IP, SIL 2

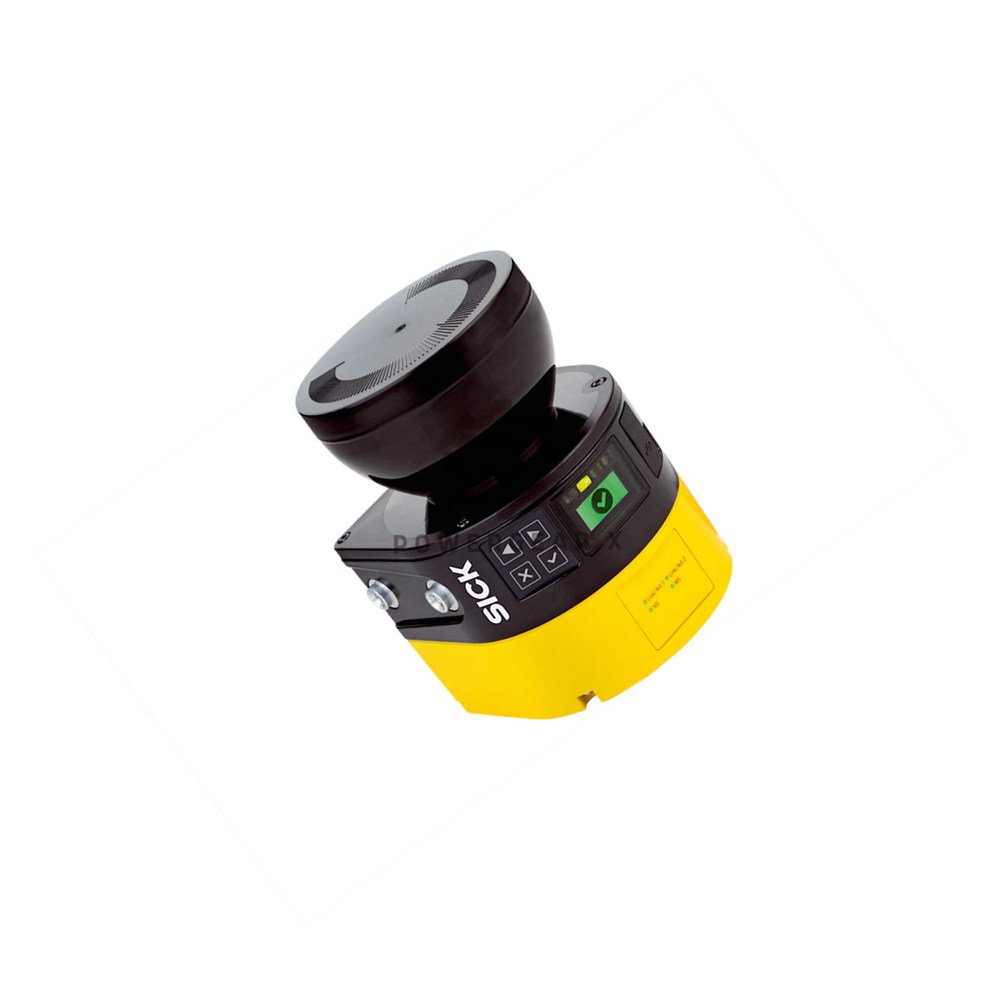

MICS3-ABAZ55IZ1P01 – Safety Laser Scanner

MICS3-ABAZ55IZ1P01 is a safety laser scanner from SICK. It belongs to the microScan3 Core series. This device offers a 5.5 m protective field range. It supports EtherNet/IP with CIP Safety. The scanner monitors up to 4 fields simultaneously.

Key Features

• Protective field: 5.5 m (configurable resolution 30-200 mm)
• Warning field: 40 m
• Scanning angle: 275°
• Safety rating: Type 3, SIL 2, PL d, Category 3
• Communication: EtherNet/IP with CIP Safety
• Multiple fields: 8 fields, 8 monitoring cases
• Integrated memory: configuration stored in system plug
• Display: graphic color screen with LEDs

Technical Specifications

• Brand: SICK
• Model: MICS3-ABAZ55IZ1P01
• Series: microScan3 Core
• Type: Safety Laser Scanner

• Application: Indoor use only
• Protective field range: 5.5 m
• Warning field range: 40 m
• Scanning angle: 275°
• Angular resolution: 0.39°
• Response time: 95 ms

• Resolution (configurable): 30, 40, 50, 70, 150, 200 mm
• Number of fields: 8 fields, 8 monitoring cases
• Simultaneous fields: ≤4
• Protective field supplement: 65 mm

• Safety integrity: Type 3 (IEC 61496), SIL 2 (IEC 61508)
• Performance level: PL d (EN ISO 13849), Category 3
• PFHD: 8.0 x 10⁻⁸
• Mission time: 20 years

• Interfaces: EtherNet/IP (CIP Safety), USB (configuration)
• Connection: M12 for power, 2x M12 for network (D-coded)
• Configuration: SICK Safety Designer software
• Display: Graphic color display plus LEDs

• Supply voltage: 24 V DC (16.8…30 V)
• Power consumption: 7.2 W (typical)
• Dimensions: 112 x 150.7 x 111.1 mm (W x H x D)
• Weight: 1.45 kg
• Housing: Aluminum, yellow/black

• Protection rating: IP65
• Ambient temperature: -10…+50 °C (operation)
• Storage temperature: -25…+70 °C
• Ambient light immunity: ≤40 klx
• Laser class: 1 (eye-safe, 845 nm)

Installation & Mounting

• Mounting: Use M5 screws or bracket (not included)
• Alignment: Ensure 275° field is clear of obstructions
• Wiring: Connect power (M12 A-coded) and Ethernet (M12 D-coded)
• Configuration: Use SICK Safety Designer via USB or Ethernet
• Maintenance: Clean optics cover with soft cloth

Manager’s Insight

This SICK scanner delivers reliable safety for demanding applications. The EtherNet/IP with CIP Safety integrates easily into modern control systems. The configurable resolution and fields adapt to various tasks. We recommend it for robot cells and AGVs. The 12-month warranty and fast shipping add peace of mind.

Applications

• Robot workcells: access protection, intrusion detection
• AGVs: collision avoidance, docking safety
• Production lines: hazardous zone monitoring
• Warehouses: automated palletizing, conveyor protection
• Packaging machinery: infeed/outfeed safety

Comparison with Similar Models

• MICS3-ABAZ55IZ1P01 – 5.5m, EtherNet/IP, 275°
• MICS3-ABAZ55IZ1P05 – same but with PROFINET
• MICS3-AAAZ55IZ1P01 – same but without display
• microScan3 Pro – extended range and features

Selection Guide

• Choose MICS3-ABAZ55IZ1P01 if: you need EtherNet/IP with CIP Safety and 5.5m range.
• Consider this scanner for: robot cells and AGV systems.
• Avoid if: you need outdoor use or longer protective field.
• Best paired with: SICK Flexi Soft safety controller or any CIP Safety master.
• Warranty: 12 months from invoice date.

Shipping & Delivery

• Dispatch: 12-24 hours after order confirmation.
• Carriers: FedEx, UPS, DHL (tracking provided).
• Packaging: Factory sealed box with foam protection.

Frequently Asked Questions (FAQ)

• Q: What is the protective field range?
• A: 5.5 m with configurable resolution (30-200 mm).
• Q: Does it support PROFINET?
• A: This model supports EtherNet/IP; check other variants for PROFINET.
• Q: Can I use this scanner outdoors?
• A: No, it is designed for indoor use only.
• Q: How many fields can I monitor?
• A: Up to 4 fields simultaneously, from a total of 8 fields.
• Q: What software do I need to configure it?
• A: SICK Safety Designer (free download from SICK website).
