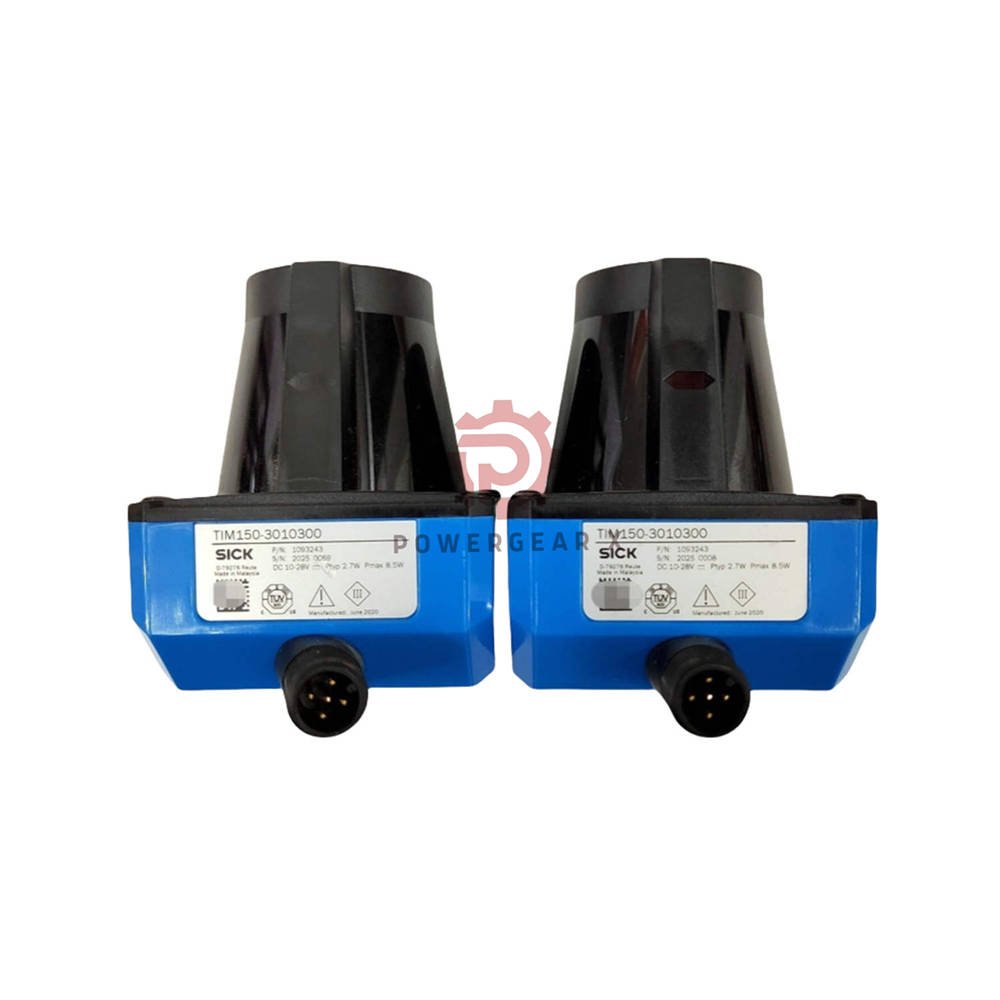

SICK TiM150-3010300 LiDAR 2D Sensor 10m 200° 1° Resolution AGV

Product at a Glance

• SICK TiM150-3010300 – 2D LiDAR sensor for indoor use
• Scanning range: 0.05 m … 10 m
• Horizontal aperture: 200°
• Angular resolution: 1°
• Laser class 1 (safe for eyes)
• Compact and lightweight: 122 g

Core Technical Data

• Brand: SICK – TiM 2D series
• Model: TiM150-3010300
• Measurement principle: HDDM+ (Infrared 850 nm)
• Scanning frequency: 14.5 Hz
• Working range: 0.05 m … 10 m
• Systematic error: ±40 mm
• Statistical error: 30 mm
• Response time: typ. 70 ms
• Detection: almost any object shape

Electrical & Mechanical

• Supply voltage: 10 … 28 V DC
• Power consumption: typ. 2.7 W
• Connection: 1 × M12 male (5‑pin, rotatable)
• Housing: light blue (RAL 5012), IP65 rated
• Protection class III
• Dimensions: 60×60×75.8 mm
• Weight: 122 g (without cable)

Interfaces & I/O

• IO‑Link for parameterization and service
• Digital inputs: 1
• Digital outputs: 2 (push‑pull)
• Configurable delay and dwell times: 69 ms … 30,015 ms
• Optical indicators: 2 LEDs (ON, switching status)

Environmental & Reliability

• Operating temperature: -10 … +50 °C
• Storage temperature: -30 … +70 °C
• Humidity: ≤95 % (non‑condensing)
• Ambient light immunity: 30,000 lx
• MTBF: 82 years · MTTFD: >100 years
• Vibration resistance (sine 10‑1000 Hz, noise 5 g RMS)

What’s Included

• SICK TiM150-3010300 sensor unit
• Quick start guide (digital)
• M12 connector (cable not included)

Warranty & Delivery

• 12‑month warranty against manufacturing defects
• Shipping: 12‑24 hours dispatch (working days)
• Carriers: FedEx, UPS, DHL – express worldwide

Expert Review – Engineer’s Take

• “The TiM150 is a reliable choice for indoor navigation. Its 200° field of view and 1° resolution give accurate data for AGV collision avoidance. Easy to integrate via IO‑Link.” – Senior Automation Engineer

Manager’s Insight

• “For logistics automation, this sensor offers the best price‑performance ratio. The compact size and low power make it ideal for battery‑powered robots. A solid investment.” – Product Manager

Typical Applications

• Automated guided vehicles (AGVs)
• Mobile robot obstacle detection
• Conveyor monitoring and object counting
• Door and gate activation
• People counting and presence detection

Frequently Asked Questions (FAQ)

• Q: What is the maximum detection range?
  A: 10 meters. At 10% remission, range is about 2.8‑3 m.
• Q: Can I use this sensor outdoors?
  A: It is designed for indoor use (IP65, but ambient light immunity is 30,000 lx).
• Q: Does it support IO‑Link?
  A: Yes, IO‑Link is built‑in for parameterization and diagnostics.
• Q: What is the angular resolution?
  A: 1° horizontal, giving 200 measurement points per scan.
• Q: Is this a safety sensor?
  A: No, it is not a safety component as per machine safety regulations.

Practical Field Tips

• Tip 1: For AGV navigation, mount the sensor at 20‑30 cm height to detect low obstacles.
• Tip 2: Use the configurable dwell time to filter out spurious reflections in dusty environments.
• Tip 3: For outdoor use, add a protective shield to reduce sunlight interference.

Selection Guide – Choosing the Right TiM Model

• Choose TiM150-3010300 for 10 m range and 200° angle.
• For longer range (up to 25 m), consider TiM781 or TiM881 series.
• For higher angular resolution (0.33°), check TiM551 models.
• Ensure supply voltage matches 10‑28 V DC and ambient temperature is within -10…+50 °C.

Comparison with Similar Models

• TiM150-3010300 – 10 m range, 200°, 1° resolution
• TiM551-3010000 – 10 m range, 270°, 0.33° resolution
• TiM781-3010000 – 25 m range, 270°, 0.33° resolution

Ordering & Support

• Minimum order: 1 piece
• Customs tariff: 903180
• EAN: 4047081111111
