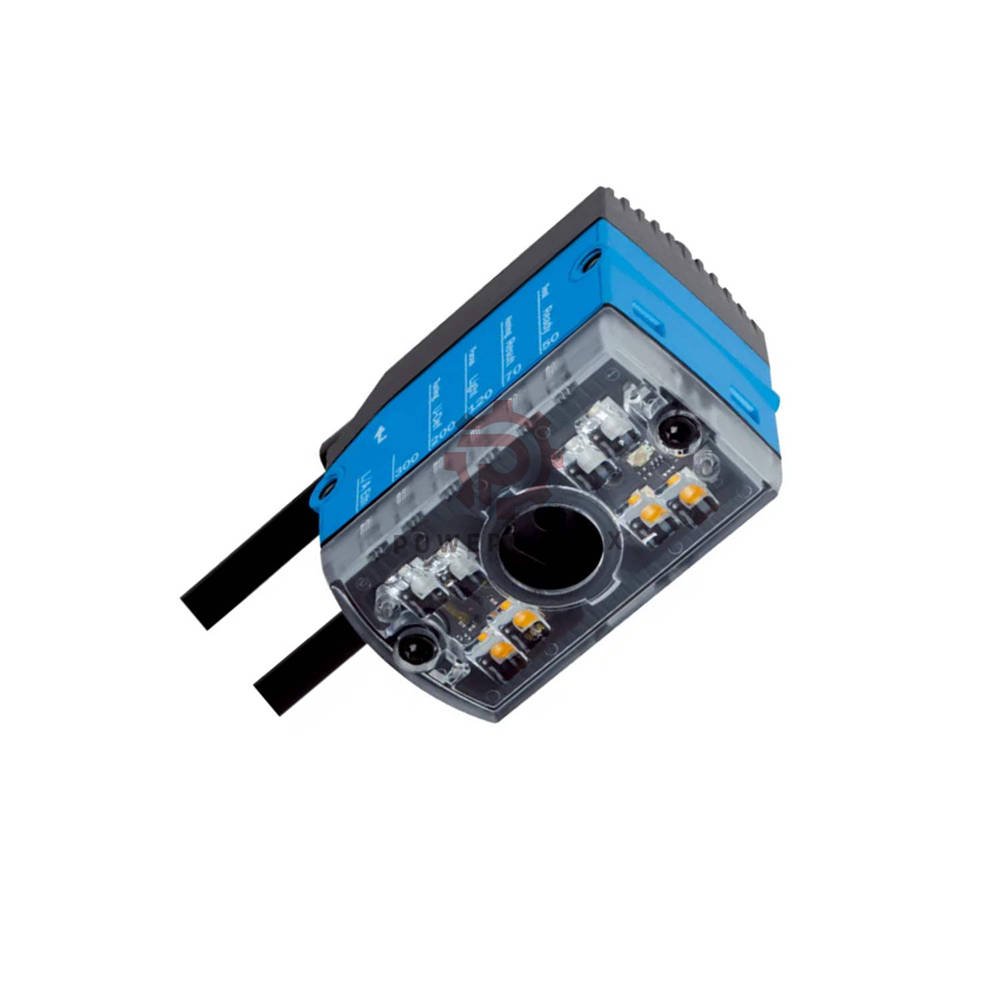

SICK V2D611D-MMSCE4 | Lector61x Code Reader | 40 Hz, 1D/2D, PROFINET

Product Overview

• SICK V2D611D-MMSCE4 is a Lector61x image-based code reader.
• It reads 1D, 2D, and stacked codes with high speed.
• Adjustable focus from 50 mm to 300 mm working range.
• Sensor: 1.2 MP CMOS monochrome.
• Integrated amber and blue LED illumination.
• Scanning frequency: 40 Hz.
• Supports Ethernet, PROFINET, EtherNet/IP, RS-232, and CAN.

Technical Specifications (Tree View)

• Device
  • Variant: Complete device
  • Focus: Adjustable (manual)
  • Sensor: CMOS monochrome, 1280 x 960 px
  • Illumination: Amber (617 nm) + Blue (470 nm), LED class 1
  • Feedback spot: Green (525 nm) and Red (635 nm)
  • Alignment aid: Red laser, class 1
• Optics & Performance
  • Focal length: 12 mm
  • Scanning frequency: 40 Hz
  • Code resolution: 0.02 mm
  • Working range: 50 mm … 300 mm
  • Exposure time: ≥ 60 µs
  • Automated parameter switching: Yes
• Electrical & Mechanical
  • Supply voltage: 12 V … 24 V DC (±15 %)
  • Power consumption: 3.5 W (typ.)
  • Housing: Zinc diecast, light blue (RAL 5012)
  • Weight: 165 g
  • Dimensions (L×W×H): 50 × 40.3 × 29.6 mm
  • Enclosure rating: IP54
  • Protection class: III
• Code Reading Capabilities
  • Readable codes: 1D, 2D, stacked, direct-marked
  • 1D types: Code 128, Code 39, Interleaved 2 of 5, UPC/EAN, Pharmacode, GS1 DataBar, etc.
  • 2D types: Data Matrix ECC200, QR Code, PDF417, MaxiCode, GS1 Data-Matrix
  • Code qualification: ISO/IEC 16022, 15415, 15416, 18004
  • Max. codes per interval: 50
  • Max. characters per interval: 500 (CAN multiplexer)
• Interfaces & Connectivity
  • Ethernet (TCP/IP) – data + FTP image transfer
  • PROFINET (Single Port)
  • EtherNet/IP
  • Serial RS-232 (0.3 … 115.2 kBaud)
  • CAN / CANopen (20 kbit/s … 1 Mbit/s)
  • Digital inputs: 2 (switching)
  • Digital outputs: 3 (switching)
  • Reading pulse: digital, serial, Ethernet, CAN, auto, presentation
• Indicators & Controls
  • Optical indicators: 9 LEDs (status, alignment, feedback)
  • Control: 1 pushbutton (select / start-stop)
  • Web server + SOPAS ET software
  • External FTP for image/data storage
• Environmental & Compliance
  • EMC: EN 61000-6-3 / -6-2
  • Vibration: EN 60068-2-6
  • Shock: EN 60068-2-27
  • Operating temp: 0 °C … +40 °C
  • Storage temp: –20 °C … +70 °C
  • Humidity: 90 % (non-condensing)

Expert Review & Manager’s Insight

• Manager’s Insight: “This reader offers great flexibility. The 40 Hz scan speed and adjustable focus make it perfect for fast production lines. We like the multiple interfaces – Ethernet, PROFINET, and CAN – for easy integration. The 12-month warranty gives peace of mind.”

Applications & Suitable Equipment

• Packaging lines – read barcodes on boxes and labels.
• Automated warehouses – identify totes and pallets.
• Assembly stations – verify part markings.
• Pharmaceutical tracking – read Data Matrix codes.
• Electronics manufacturing – read small 2D codes on PCBs.
• Suitable with conveyors, robots, and sortation systems.

Frequently Asked Questions (FAQ)

• What is the working range?
  50 mm to 300 mm (adjustable focus).
• Can it read damaged codes?
  Yes, it qualifies codes per ISO standards and reads poor-quality marks.
• What software do I need?
  SOPAS ET (free download) or web browser.
• How many codes per read?
  Up to 50 codes in one reading interval.
• Is it suitable for outdoor use?
  No, it is rated IP54 for indoor use only.
• What is the response time?
  Not specified, but 40 Hz scan rate means fast decoding.
• Can I connect it to a PLC?
  Yes, via PROFINET, EtherNet/IP, or serial.
• Does it support image storage?
  Yes, via FTP.
• What is the warranty?
  12 months against defects.
• How is it shipped?
  Dispatched in 12-24 hours via FedEx, UPS, or DHL.

Selection Guide

• Choose SICK V2D611D-MMSCE4 if you need flexible focus and multiple interfaces.
• For outdoor or harsh environments, consider IP67-rated readers.
• For very small codes, check higher resolution models.
• This model is best for medium-speed lines with varied code types.
• Compare with SICK Lector65x for higher speed, or SICK Lector62x for fixed focus.

Package Contents

• SICK V2D611D-MMSCE4 reader
• Quick start guide
• Mounting bracket (optional)
• Cable not included (order separately)

Warranty & Shipping

• 12-month warranty covers manufacturing faults.
• 12-24 hour dispatch on working days.
• Shipped via FedEx, UPS, or DHL with tracking.
