Name: NAV350-3232 Laser Scanner | High-Accuracy Indoor LiDAR
SKU: NAV350-3232
Price: 234.00 USD
Availability: InStock

Product details

Product Overview

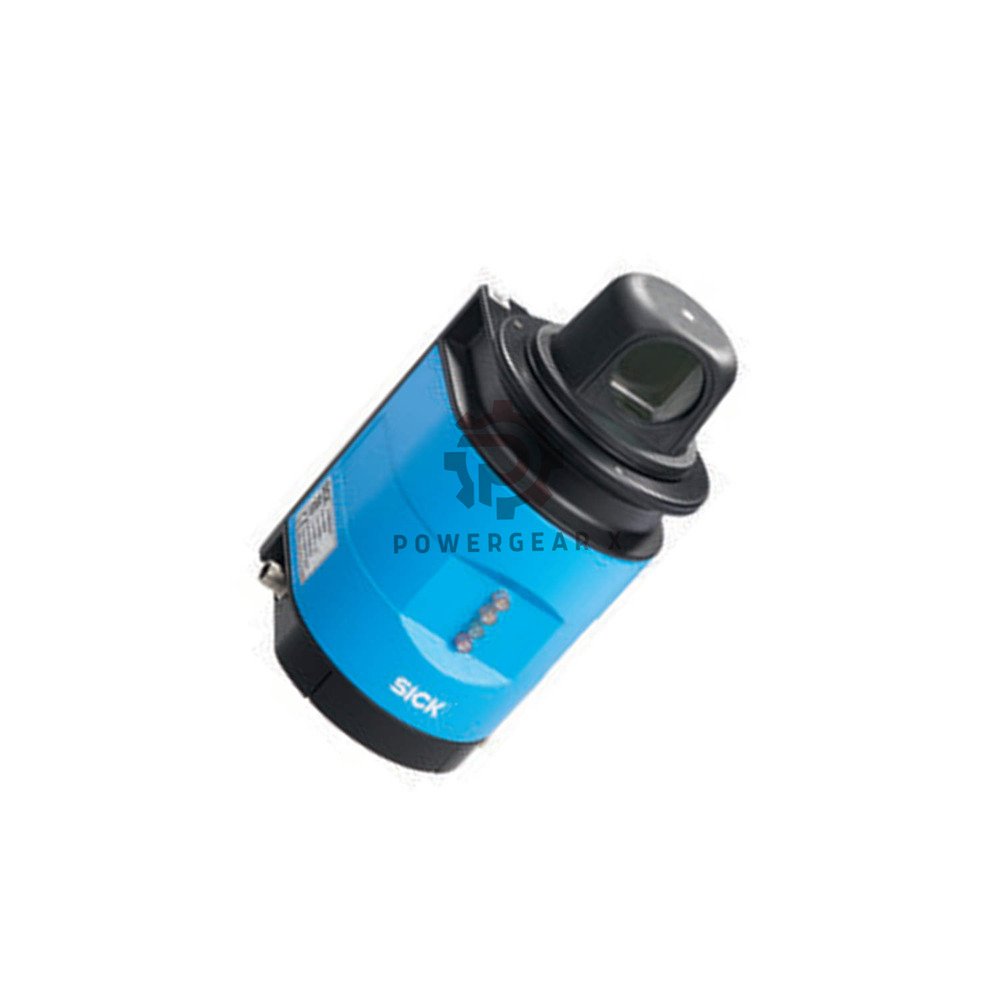

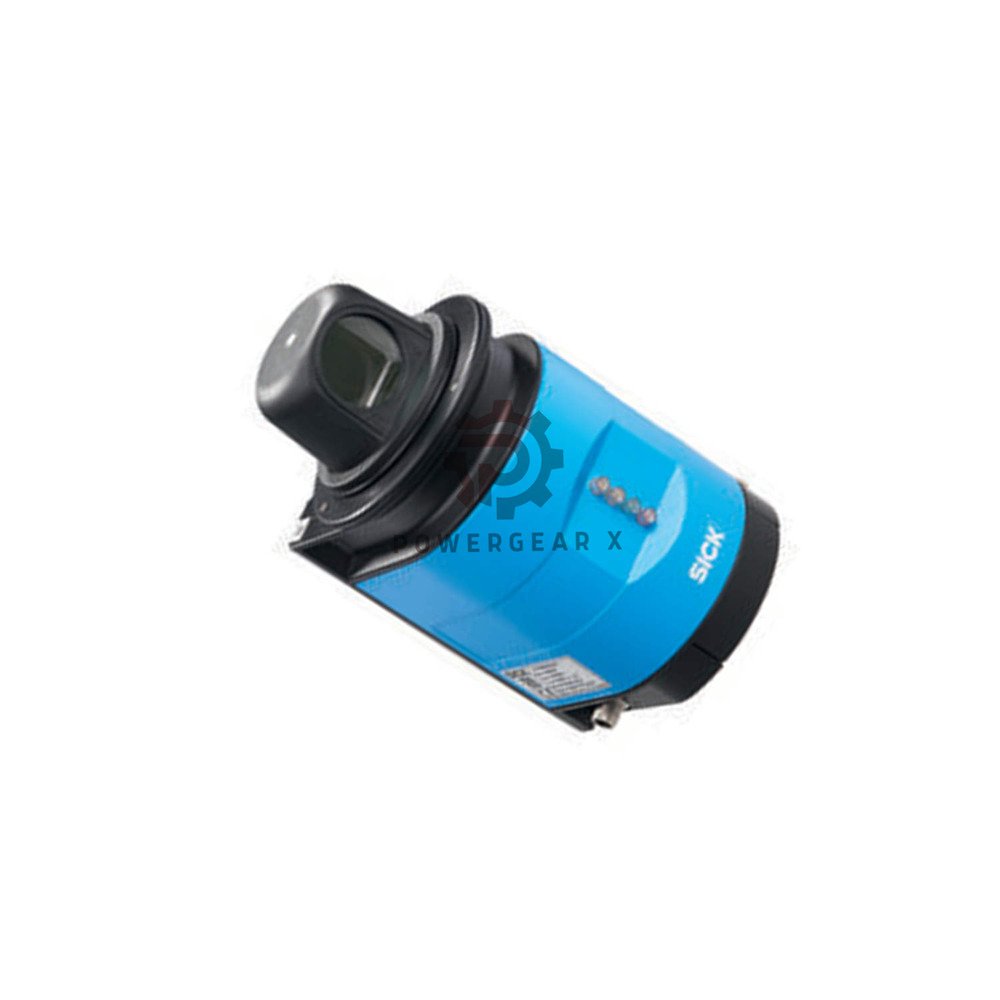

SICK NAV350-3232 is a high-performance 2D LiDAR sensor for indoor navigation. It uses a 905 nm laser (Class 1, safe for eyes). The 360° horizontal aperture scans at 8 Hz. It detects almost any object shape with high precision. This sensor is built for automated guided vehicles (AGVs) and mobile robots.

It offers a working range up to 250 m (70 m on reflectors). At 10% remission, it scans 35 m; at 90%, it reaches 100 m. The angular resolution is 0.25°. With ±4 mm positioning accuracy, it ensures reliable navigation. The rugged aluminum housing (IP65) withstands tough indoor environments.

Key Technical Specifications

Brand: SICK
Model: NAV350-3232
Measurement Range: 0.5 m … 250 m (70 m on reflectors)
Scanning Frequency: 8 Hz, ± 5 %
Angular Resolution: Horizontal 0.25°
Systematic Error: ±10 mm (RDI), ±15 mm (Contour)
Statistical Error: 15 mm (Contour)
Positioning Accuracy: ±4 mm
Temperature Range: 0 °C … +50 °C (operating), –20 °C … +80 °C (storage)
Environmental Tolerance: IP65, 85% humidity (non-condensing)
Immunity: Laser class 1, robust against ambient light
Supply Voltage: 24 V DC, ± 15 %
Power Consumption: 36 W
Interfaces: Ethernet (TCP/IP, 100 Mbit/s), RS-232 (19.2 … 115 kBaud)
Digital I/O: 1 output, 4 status LEDs
Reflector Memory: 12,000
MTBF: 86 years, MTTFD > 100 years

Installation Guide

Mount the sensor on a stable, vibration-free surface.
Use the 3 x M12 connectors for power, Ethernet, and RS-232.
Ensure the 360° field of view is clear of obstructions.
Align the sensor horizontally for optimal scanning.
Connect to 24 V DC power supply ( ± 15 %).
Configure IP settings via Ethernet or serial interface.

Commissioning & Maintenance

Easy setup: Use SICK’s SOPAS software for quick configuration.
Diagnostic LEDs: 4 status LEDs show power, network, and error states.
Maintenance: Clean the window regularly with a soft cloth.
Firmware updates: Available via Ethernet connection.
Self-diagnostics: Built-in health monitoring reduces downtime.

Compatibility Information

Works with most AGV controllers and PLCs.
Supports TCP/IP and RS-232 protocols.
Compatible with navigation software from SICK and third-party providers.
Integrates with reflector-based and contour-based navigation.

Certifications

Laser Class 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
Protection Class III
IP65 enclosure rating
CE and UKCA compliant

Package Contents & Warranty

Included: NAV350-3232 sensor, 3 x M12 connectors, quick start guide.
Warranty: 12 months against manufacturing defects.
Shipping: 12-24 hours dispatch via FedEx, UPS, or DHL.

Expert Review

Manager’s Insight: “The NAV350-3232 sets a new standard in indoor LiDAR navigation. Its 0.25° resolution and ±4 mm accuracy are unmatched. The 86-year MTBF ensures long-term reliability. For AGV fleets, this sensor reduces maintenance and increases productivity.”

Applications & Suitable Devices

AGVs: Automated guided vehicles for warehouses.
Mobile Robots: Service and logistics robots.
Material Handling: Forklifts and pallet movers.
Port Automation: Container terminal vehicles.
Indoor Mapping: 3D environment reconstruction.

Frequently Asked Questions

What is the maximum range on reflectors?
70 meters with recommended reflector stripes (width ≥ 80 mm) or cylinders (diameter ≥ 80 mm).
Can this sensor be used outdoors?
No, it is designed for indoor applications only (0 °C to +50 °C).
How do I update the firmware?
Use the Ethernet interface and SICK’s SOPAS software.
What power supply is required?
24 V DC, ± 15 %, with 36 W power consumption.
Is the sensor a safety component?
No, it is not a safety device per machine safety regulations.
How many reflectors can it store?
Up to 12,000 reflectors in its internal memory.
What is the typical lifespan?
MTBF is 86 years, ensuring long-term operation.
