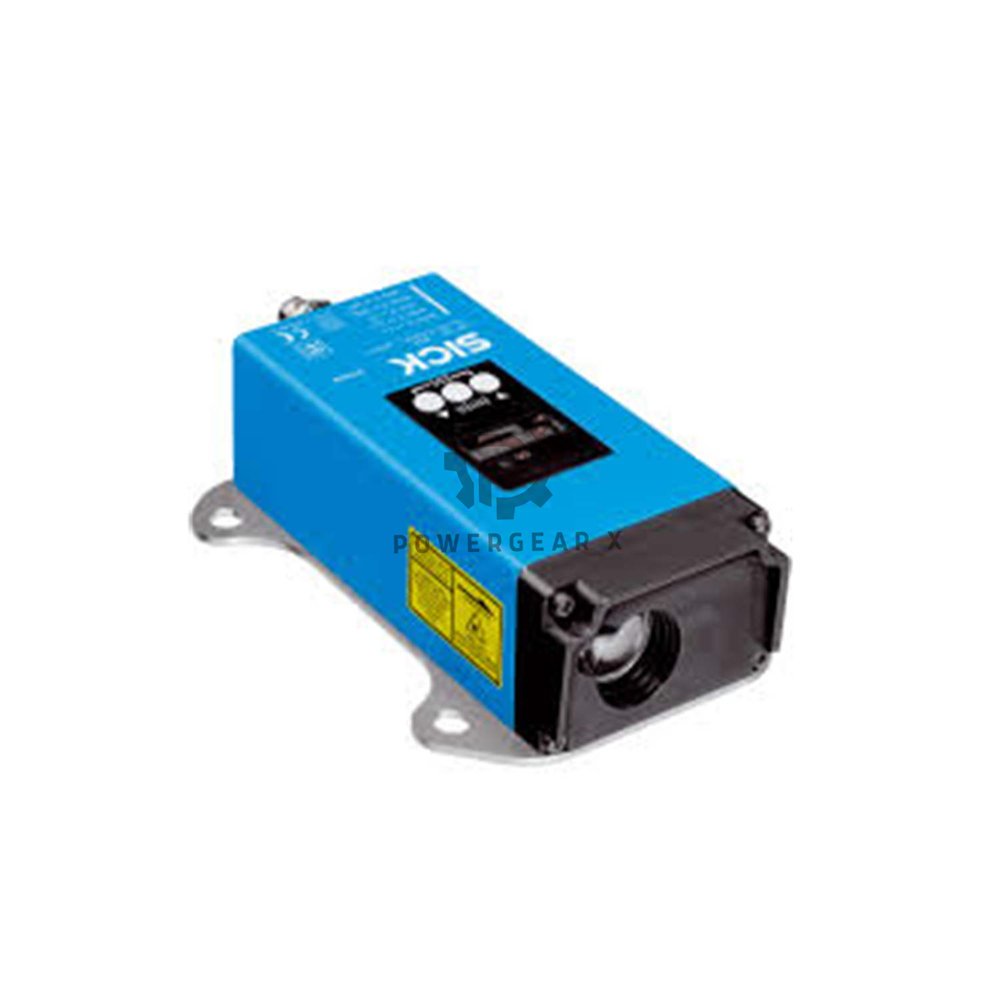

DL100-23AA2112 – Long Range Distance Sensor
DL100-23AA2112 is a long range distance sensor from SICK. It measures distances from 0.15 m to 300 m using reflective tape. This device offers 0.1 mm resolution with ±3 mm accuracy. It has a visible red laser (class 2). The sensor works well for indoor positioning and automation.
Key Features
- Measuring range: 0.15 m to 300 m (with reflective tape)
- Resolution: 0.1 mm (adjustable up to 100 mm)
- Accuracy: ±3 mm
- Repeatability: 2 mm
- Response time: 2 ms (measurement cycle: 1 ms)
- Laser class: 2 (visible red light)
- Outputs: 2 push-pull (PNP/NPN) digital outputs
- Display: 6-digit dot matrix with LEDs
- IP65 rated housing (aluminum die cast)
Technical Specifications
- Brand: SICK
- Model: DL100-23AA2112
- Series: DL100
- Type: Long Range Distance Sensor
- Measuring range: 0.15…300 m (with Diamond Grade tape)
- Resolution: 0.1 / 0.125 / 1 / 10 / 100 mm (selectable)
- Repeatability: 2 mm
- Measurement accuracy: ±3 mm
- Response time: 2 ms
- Measurement cycle: 1 ms
- Output time: 1 ms
- Light source: Red laser (class 2, 21 CFR 1040.10)
- Spot size: 5 mm + (2 mm x distance in m)
- Max. movement speed: 15 m/s
- Acceleration: ≤15 m/s²
- Digital outputs: 2 push-pull (PNP/NPN), ≤100 mA each
- Functions: Distance, speed, warning, laser off, preset
- Multifunctional input: 1 x MF1
- Supply voltage: 18…30 V DC
- Current consumption: <250 mA (at 24 V)
- Display: 6-digit dot matrix + LEDs
- Protection: IP65, Class III
- Dimensions: 69.4 x 82.5 x 100.2 mm (W x H x D)
- Weight: 800 g (1.6 kg with bracket)
- Housing: Aluminum die cast, PMMA window
- Operating temperature: -20…+55 °C (-20…+75 °C with cooling)
- Storage temperature: -40…+75 °C
- Ambient light immunity: ≤100,000 lx
- MTTFD: 101 years
- EMC: EN 61000-6-2, EN 61000-6-4
Installation & Mounting
- Mounting: Use M4 screws or mounting bracket (included)
- Alignment: Aim at reflective tape for best performance
- Wiring: Connect M12 male connector (SPEEDCON compatible)
- Configuration: Use SICK SOPAS or teach-in buttons
- Maintenance: Clean optics cover with soft cloth
Manager’s Insight
This SICK sensor is perfect for long-distance positioning. The extremely fast 1 ms cycle time suits dynamic applications. The high resolution and accuracy ensure reliable measurements. We recommend it for crane positioning and storage systems. The 12-month warranty and fast shipping add peace of mind.
Applications
- Crane positioning: hoist and trolley monitoring
- Storage systems: automated racking, AS/RS
- Conveyor control: length measurement, object tracking
- Steel and metal: coil positioning, cut-to-length
- Port automation: container positioning, ship-to-shore
Comparison with Similar Models
- DL100-23AA2112 – 300m range, 0.1mm res, red laser
- DL100-21AA2112 – 100m range, lower resolution
- DL50 – 50m range, smaller housing
- DT1000 – 1000m range, for extreme distances
Selection Guide
- Choose DL100-23AA2112 if: you need long range (300m) with high accuracy.
- Consider this sensor for: crane and storage positioning applications.
- Avoid if: you need a compact sensor or work with natural objects (use reflective tape).
- Best paired with: SICK reflective tape (Diamond Grade) and PLC.
- Warranty: 12 months from invoice date.
Shipping & Delivery
- Dispatch: 12-24 hours after order confirmation.
- Carriers: FedEx, UPS, DHL (tracking provided).
- Packaging: Foam-lined box with anti-static protection.
Frequently Asked Questions (FAQ)
- Q: What is the maximum measuring range?
- A: 300 m with Diamond Grade reflective tape.
- Q: What is the laser class?
- A: Class 2 – visible red laser, safe for brief exposure.
- Q: Can I use this sensor outdoors?
- A: It is intended for indoor use, but IP65 allows some outdoor exposure.
- Q: How do I change the resolution?
- A: Use SOPAS software or the teach-in function.
- Q: Does it work with natural targets?
- A: Reflective tape is required for full range; natural targets reduce range.
