Product details
Product Overview

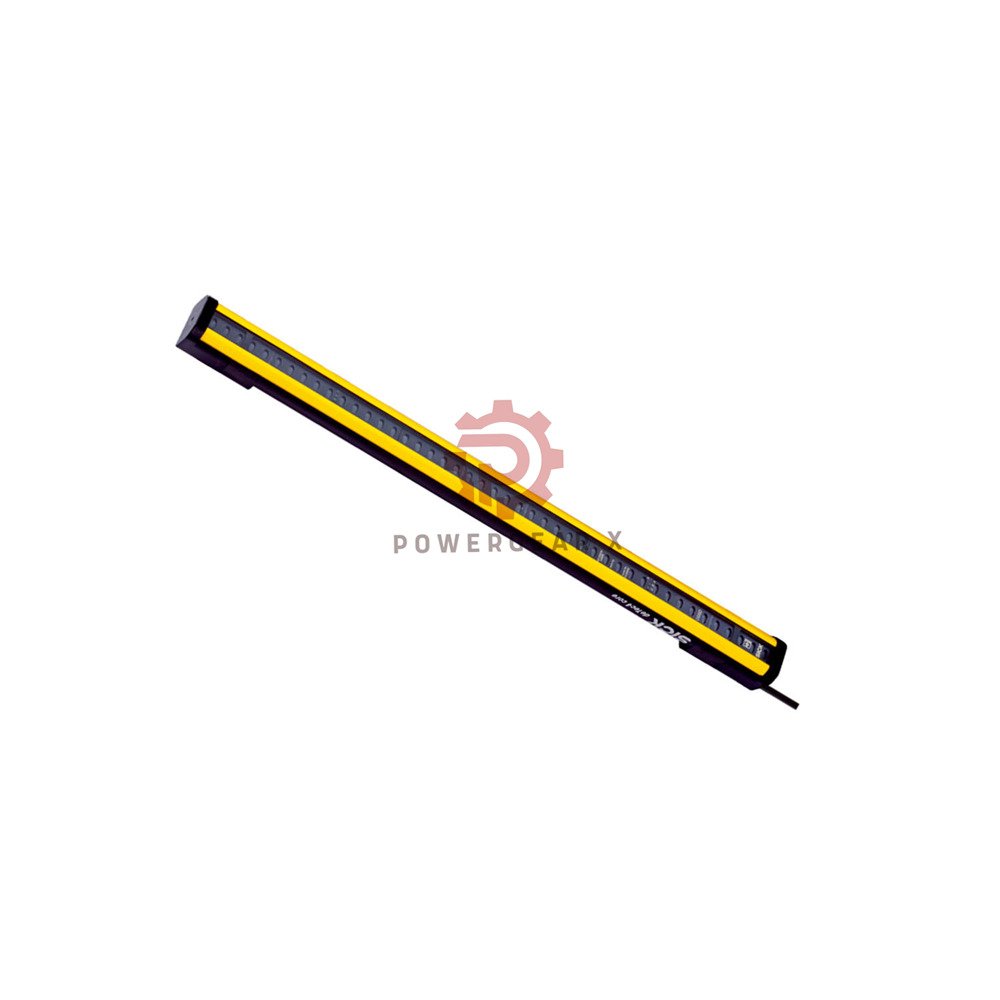

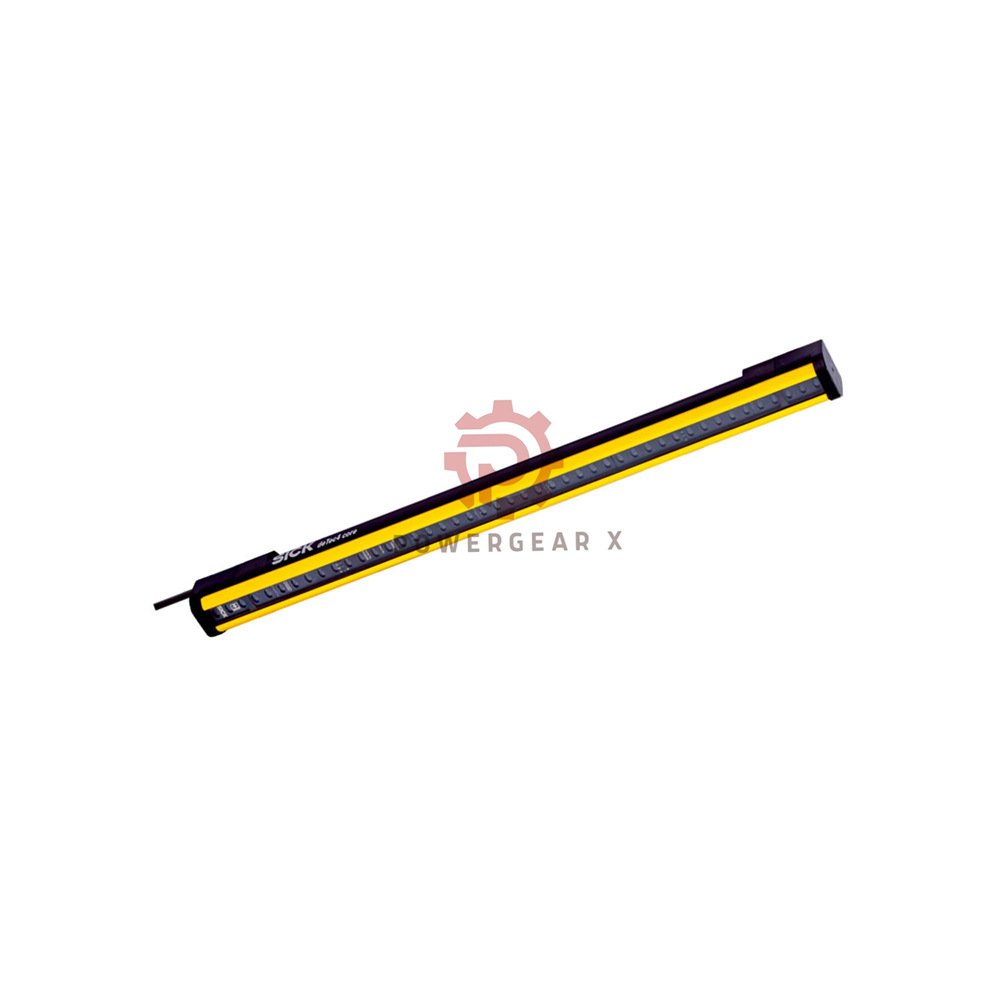

- C4C-SA10530A10000 – SICK deTec4 Core safety light curtain.
- Type 4, SIL3, PL e – highest safety level.
- Protective field height: 1050 mm.
- Resolution: 30 mm (hand protection).
- Range: up to 15 m scanning distance.
- No blind zones – full protection across entire height.
Key Technical Data (Tree View)
- General
- Brand: SICK
- Series: deTec4 Core
- Part number: C4C-SA10530A10000
- Alternate: 1211499
- Pair with receiver C4C-EA10530A10000
- Safety ratings
- Type 4 (IEC 61496)
- SIL3 (IEC 61508), SILCL3 (IEC 62061)
- Category 4, PL e (ISO 13849)
- PFHD: 3.7 x 10⁻⁹
- Mission time: 20 years
- Optical data
- Resolution: 30 mm
- Protective field height: 1050 mm
- Scanning range: 15 m
- Response time: 11 ms
- No blind zones – yes
- Synchronization: optical
- Wavelength: 850 nm
- Electrical
- Supply: 24 V DC (19.2‑28.8 V)
- Power consumption: 2.11 W (typical)
- Outputs: 2 PNP OSSD, 300 mA each
- Connection: M12 male, 5‑pin
- Environmental
- IP65 / IP67 enclosure
- Operating temp: -30 to +55 °C
- Storage: -30 to +70 °C
- Shock: 10 g / 16 ms
- Vibration: 5 g / 10‑55 Hz
- Physical
- Housing: aluminum extruded
- Weight: 970 g
- Dimensions: 41.34 in length
Installation & Commissioning
- Mounting
- FlexFix bracket – alignment ±15°.
- Brackets can be placed anywhere on rear half‑round contour.
- No blind zones – easy positioning.
- Setup
- Automatic calibration on protective field width.
- Integrated LEDs for status and diagnostics.
- Optical synchronization – no cable needed.
- Integration
- Flexi Loop compatible.
- Fieldbus via Flexi Soft: CANopen, DeviceNet, EtherCAT, Ethernet/IP, Modbus TCP, Profibus, Profinet.
Compatibility & Certifications
- Standards
- IEC 61496‑1 (Type 4)
- IEC 61508 (SIL3)
- ISO 13849‑1 (PL e, Category 4)
- Applications
- Normal industrial environment.
- Harsh conditions: -30 to +55 °C, IP65/IP67.
Package & Logistics
- Includes sender, receiver, test rod, safety and mounting instructions.
- Shipping: 12‑24 hours dispatch via FedEx, UPS, or DHL.
- Warranty: 12 months from purchase date.
Expert Review – Manager’s Insight
- “deTec4 Core sets a new standard – no blind zones and easy FlexFix mounting.”
- “Automatic calibration saves hours during commissioning.”
- “Rugged IP65/IP67 and -30°C rating make it reliable in cold storage or outdoor use.”
- “PL e and SIL3 – top safety for any high‑risk machine.”
Applications & Suitable Equipment
- Machines: packaging, palletizing, robotics, press brakes.
- Conveyors: material handling, sorting lines.
- Access guarding: entry points, hazardous zones.
- Environments: cold storage, wet areas, dust‑prone facilities.
Frequently Asked Questions (FAQ)
- Q: What is the maximum protective field height available?
A: Up to 2100 mm. This model is 1050 mm.
- Q: Does this model have blind zones at the top or bottom?
A: No – deTec4 Core has no blind zones across the full height.
- Q: Can I use this light curtain outdoors?
A: Yes, IP65/IP67 and -30°C to +55°C make it suitable for outdoor or cold storage.
- Q: What is included in the package?
A: Sender, receiver, test rod, and mounting/operating instructions.
- Q: How do I connect this to a PLC?
A: Via the M12 connector (5‑pin) – OSSD outputs go directly to safety PLC or relay.
- Expert tip: Use the test rod (included) for quick function checks during routine maintenance.
- Selection guide: Choose 30 mm resolution for hand protection. For finger protection, select 14 mm models.
Compare with Similar Models
- C4C-SA10510A10000 – 14 mm resolution, finger protection.
- C4C-SA15030A10000 – 1500 mm protective height, 30 mm resolution.
- C4C-EA10530A10000 – receiver unit (pair with this sender).
